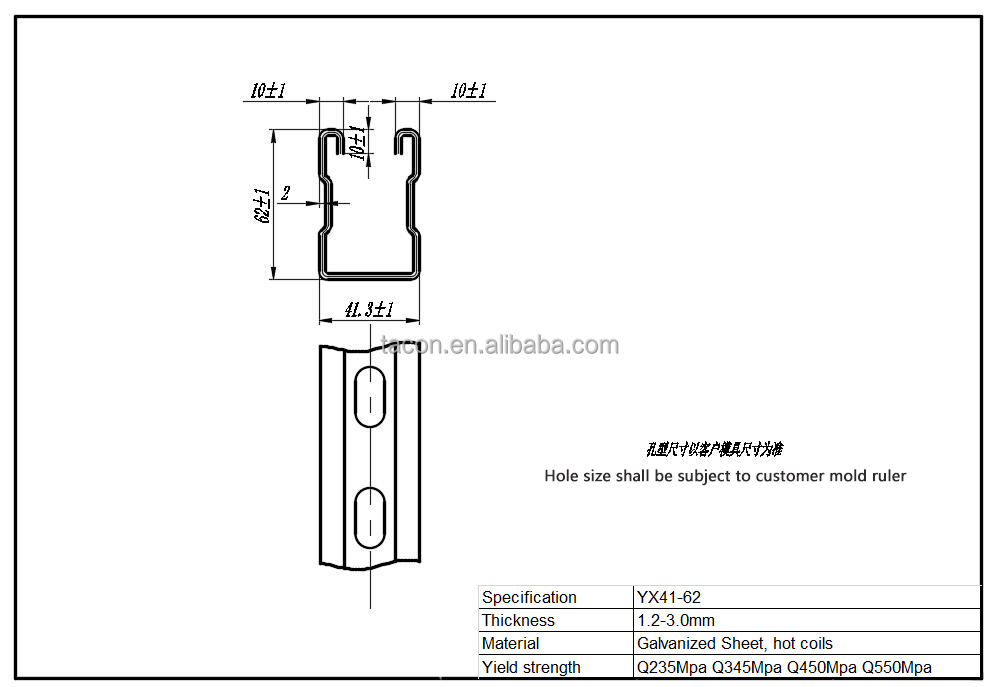

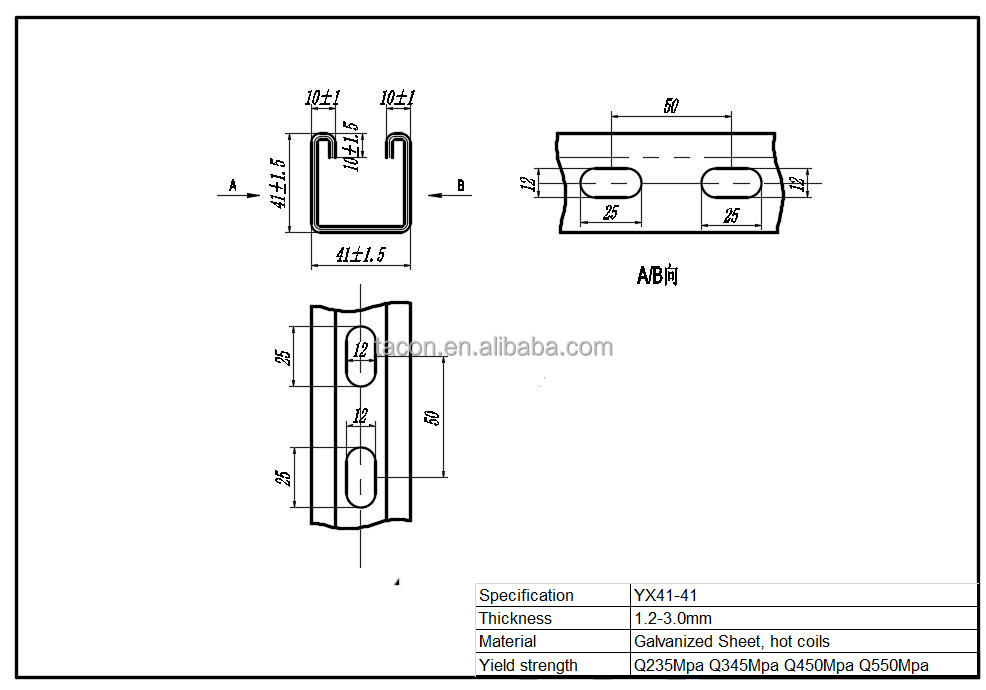

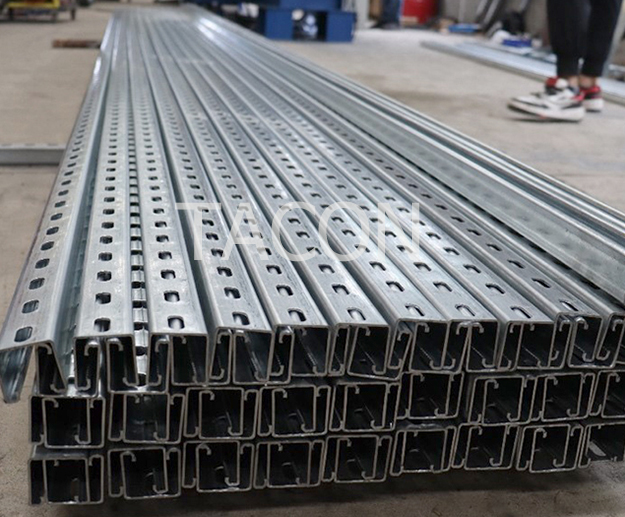

Profile Drawing
Our products can be customized according to your requirements.
* Thickness: 1.2-3.0mm
* material : galvanized Sheet, hot coils
* yield strength: Q235Mpa Q345Mpa Q450Mpa Q550Mpa

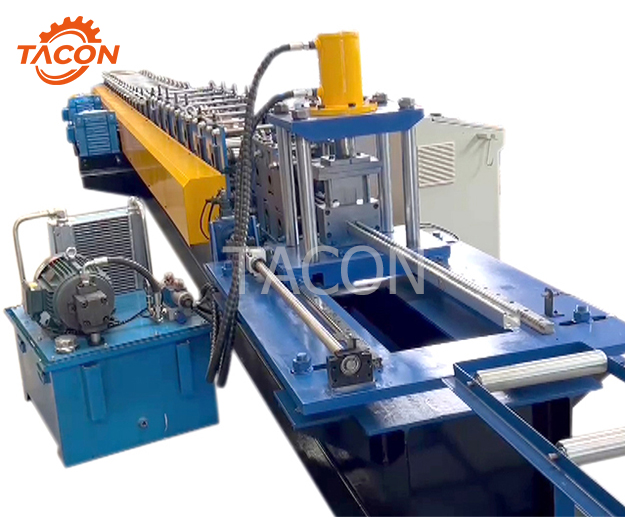

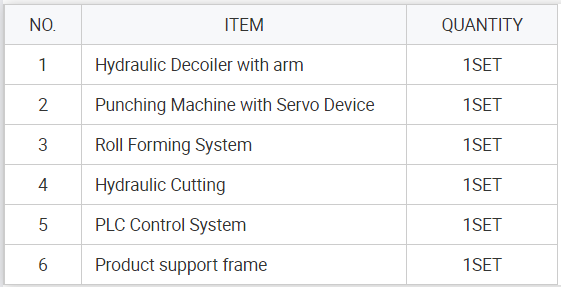

Machine Components
The weight of the roll forming Machine : 10.0T
The total demension of machine : (length)25.0m x (width)1.4m x (height)1.8m
Flow chart
Hydraulic Decoiler with arm→ Punching machine with feeding device →Roll Forming System→ Hydraulic Cutting→ Product Support Frame
Technology Parameters

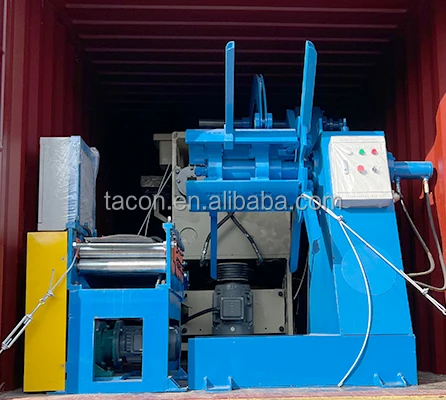

Ⅰ Hydraulic Decoiler with Arm
* Tightening of coil: Hydraulic
* Weight capacity of decoiler: 4.0T
* Inner diameter of decoiler: 380-550mm
* Max outer diameter of decoiler: 1600mm

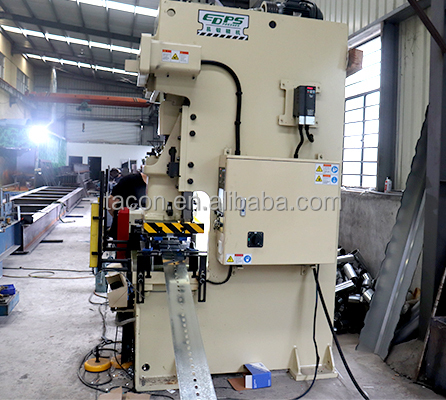

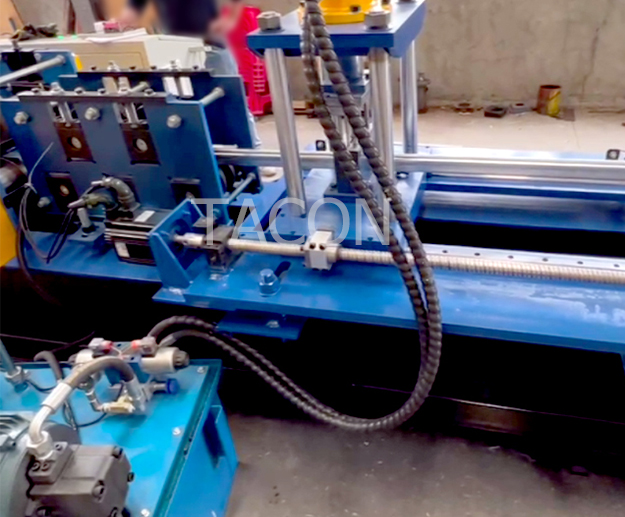

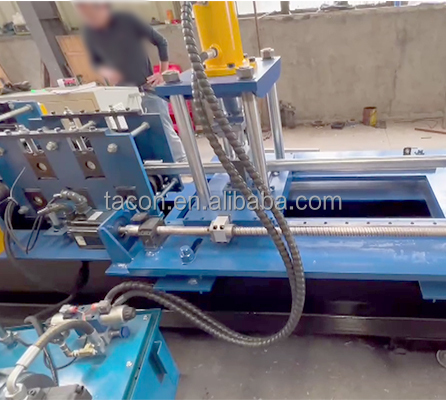

Ⅱ Punching Machine with Servo device
* Punching Capacity: 110TON
* Servo Feeding System
* Punching Machine Type: Pneumatic
* Punching Brand: YIDUAN (China very good brand)
* Punching hole will have three row, one row for bottom, and two row for flange…

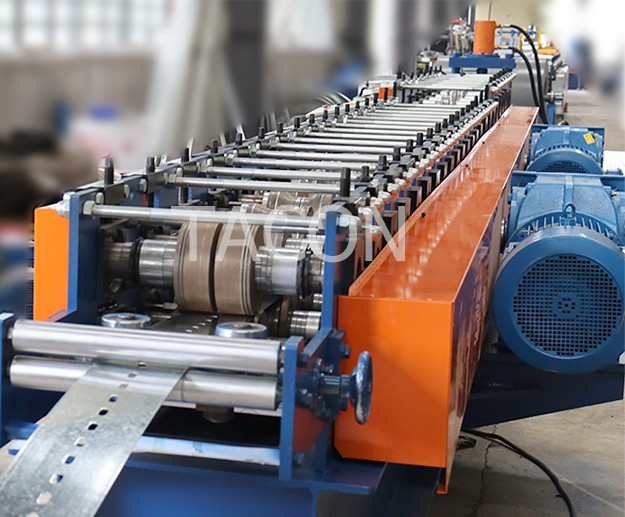

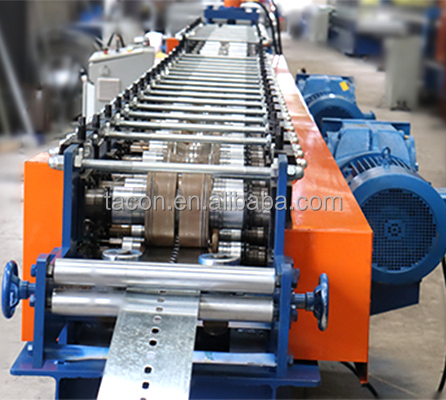

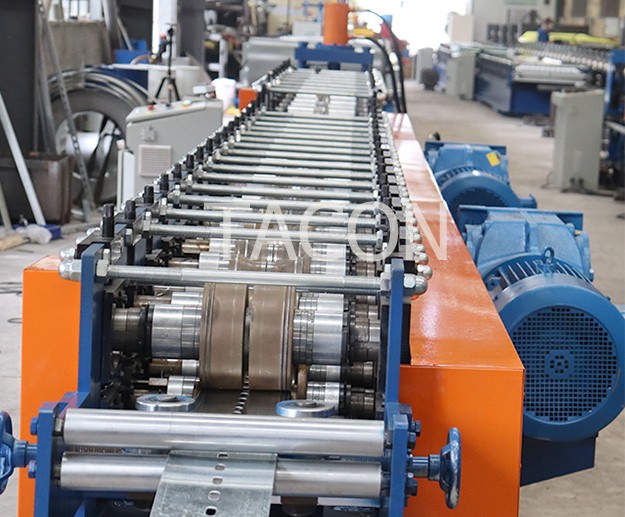

Ⅲ Rolling Forming System
* main motor type: Frequency motor
* motor power: 5KWX2=37.5KW
* Drive: chain
* speed of forming: 18m/min
* material of rollers: D2
* 24 groups rollers
* material of main shaft : 40Cr (The main shaft have the high frequency grinding &heat Treatment and the surface of shaft is chroming
* diameter of main shaft: ø75mm

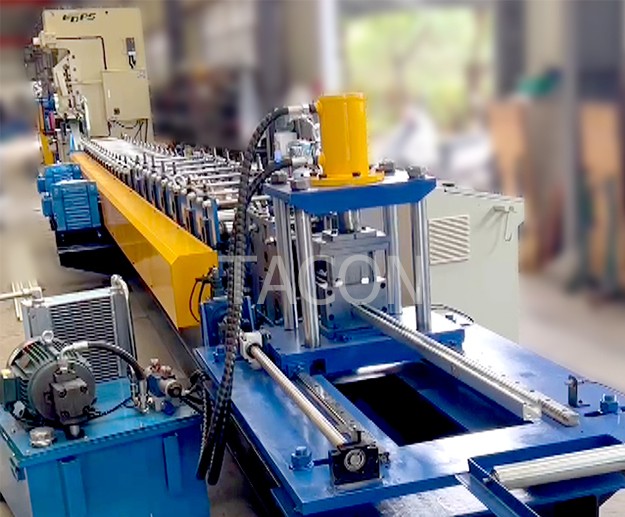

Ⅳ Hydraulic Cutting with Flying Shear
* Cutting type: Hydraulic cutting
* Hydraulic motor power: 5.5KW
* Servo Motor brand: SIEMENS OR Delta
* Hydraulic Station with Air-cooling system

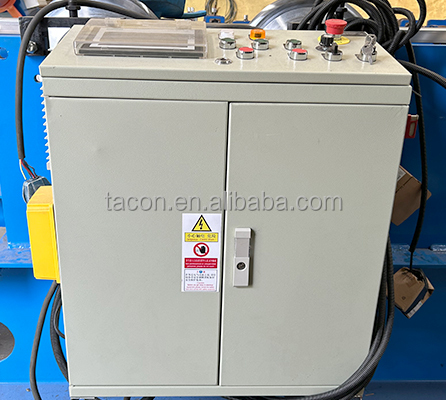

Ⅴ PLC Control System
* Control the quantity &punching length& cutting length automatically
* Voltage: 380V, 3 Phase 50Hz (according to your request)
* Size of PLC Control Board (PLC: 700mm(L)x1000mm(H)x300mm(W)
* PLC manufacturer: SIEMENS
* Touchscreen: SIEMENS
* Solenoid valve: Beijing hade
* Oil hydraulic cylinder: XINGDE
* Oil pipeline: Omar
* Frequency: SIEMENS
* Encoder : Omron

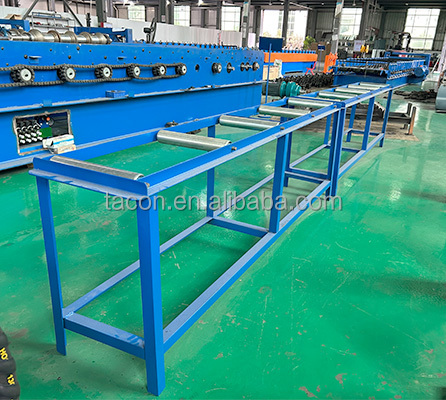

Ⅵ Product support frame
The length of product support frame : 6m
