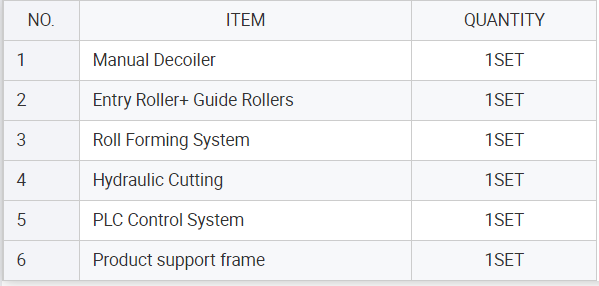

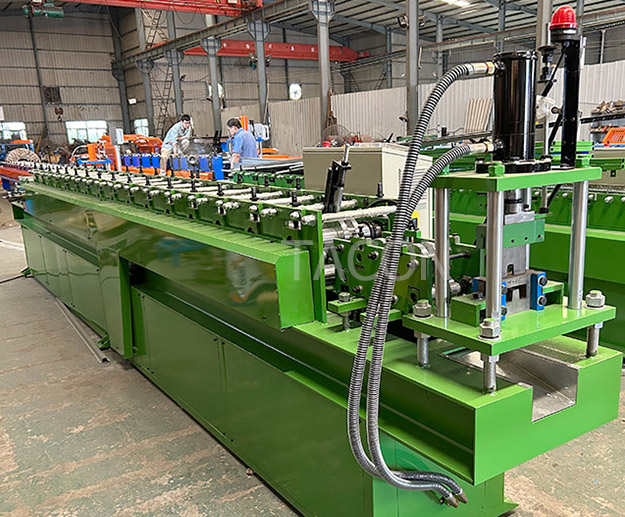

Machine Components
Our products can be customized according to your requirements.
Flow Chart
Manual Decoiler→Entry Roller+ Guide Rollers→ Rolling Forming System→ Hydraulic Cutting→ Product Support Frame
Technology Parameters
Ⅰ Manual Decoiler
1. Decoiler type: Manual decoiler
2. Weight capacity of decoiler: 3.0 T
3. Inner diameter of decoiler: 508+/-30mm
4. Max outer diameter of decoiler: 1000mm

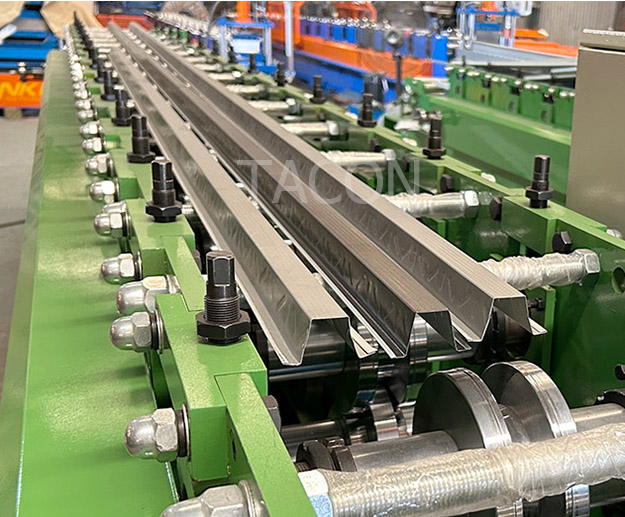

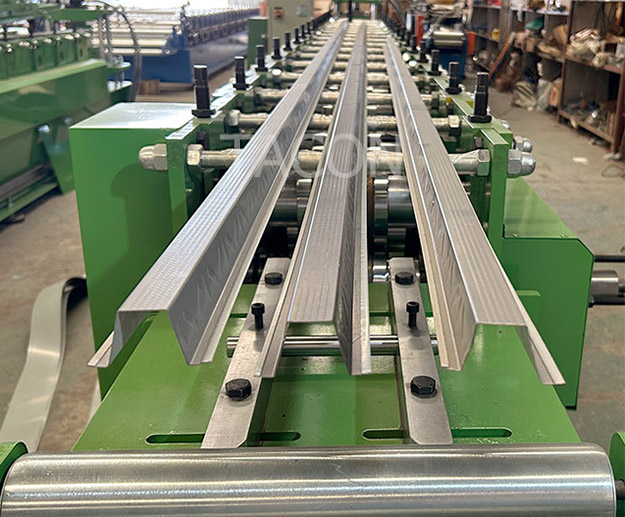

Ⅱ Roll Forming System
1. Roll forming speed: 10-20m/min
2. Shafts diameter: Φ70mm
3. Main motor: 5.5KW
4. Roller: 45#
5. Roller groups: 16 Stations
6. Machine will have protective cover

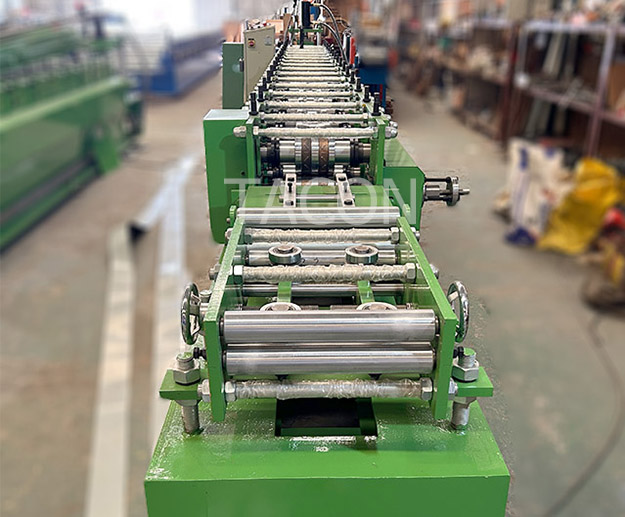

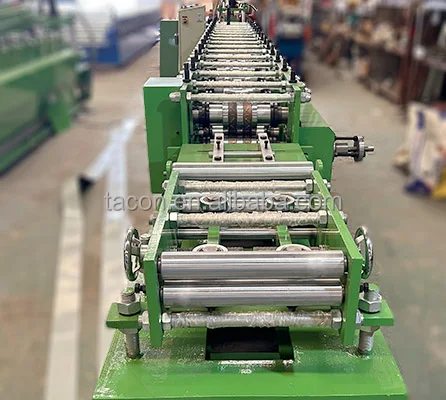

Ⅲ Entry Roller+ Guide Rollers

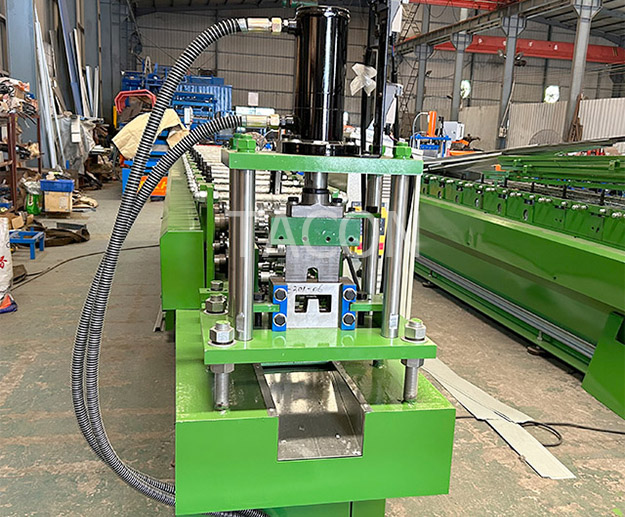

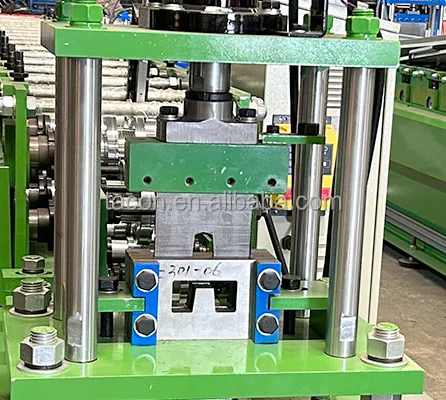

Ⅳ Hydraulic Cutting
1. Hydraulic Motor power: 3.0KW
2. Cutting material: Cr12

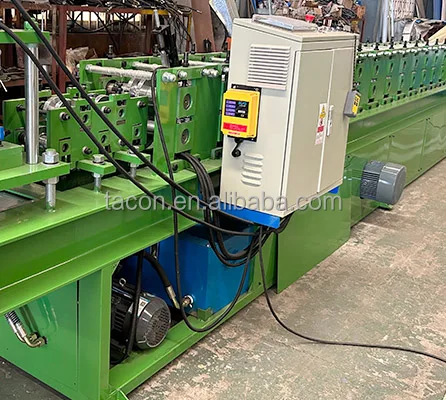

Ⅴ PLC Control System
* Control the quantity &punching length& cutting length automatically
* Voltage: 415V, 3 Phase 50Hz
* PLC manufacturer: Japan Panasonic
* Solenoid valve: Beijing hade
* Oil hydraulic cylinder: TAIWEI
* Hydraulic Value: YUKEN
* Oil pipeline: parkers
* Encoder: Omron
Ⅵ Product support frame
3 pieces
