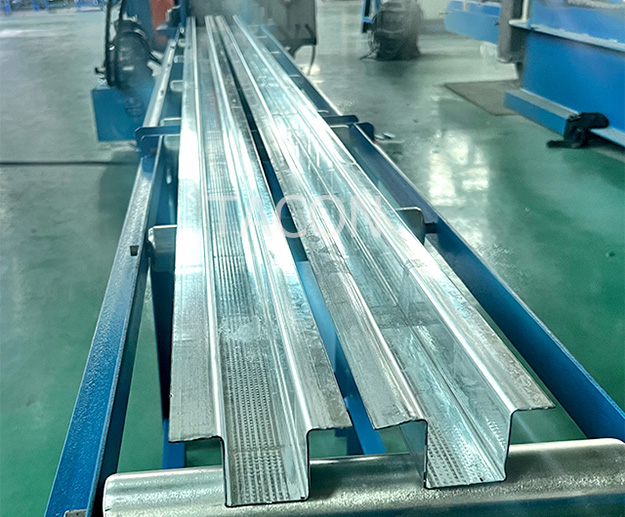

Profile Drawing
Our products can be customized according to your requirements.
* Material Thickness: 0.5-2.0 mm * Yield strength: Q235Mpa
Machine Composition
Machine Total Weight : 3.5T
Machine Total Length: (length)6.0m x (width)1.1m x (height)1.5mth)1.1m x (height)1.5m
Work Flow
Decoiler→ Guide and levelling →forming machine → Hydraulic cutting → Product Support Table
Machine Parameters
Ⅰ Decoiler

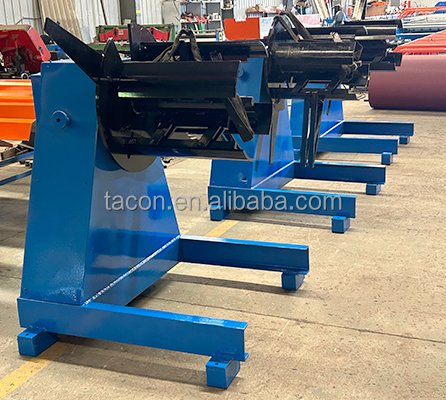

1. Decoiler type: Manual decoiler
2. Weight capacity of decoiler: 3.0 T
3. Inner diameter of decoiler: 508+/-30mm
4. Max outer diameter of decoiler: 1000mm

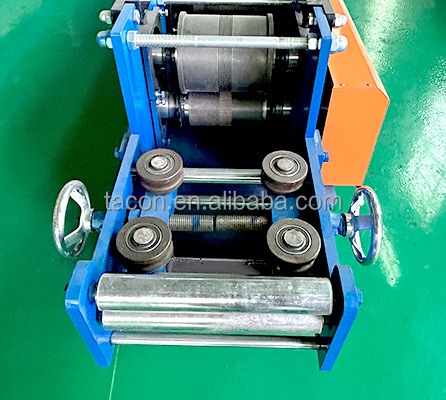

Ⅱ Guide of Adjustable

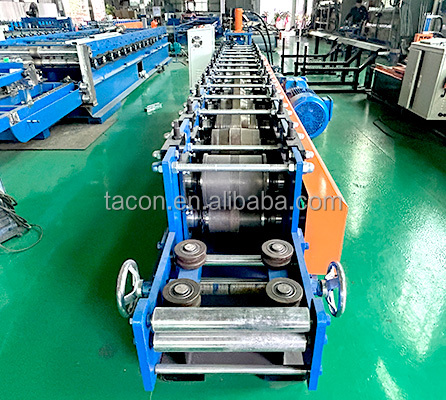

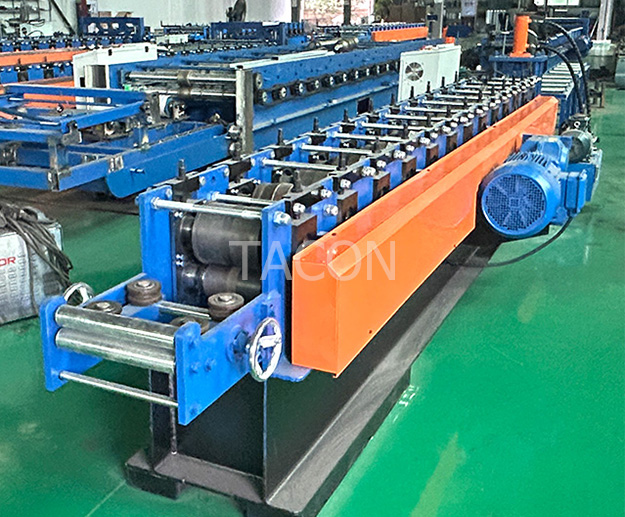

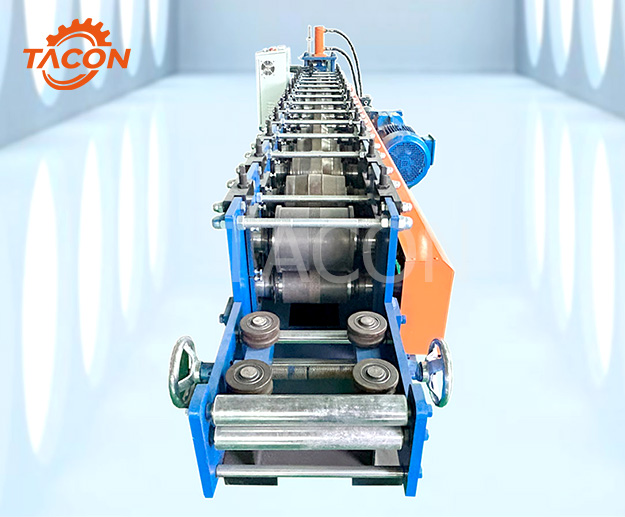

Ⅲ Roll forming Machine
* Main Motor: Frequency Motor
* with embossed
* Power: 7.5KW
* Forming Speed: 10-20m/min
* Roller material : GCr15
* Stations: 14
* Main Shaft Material：45#
* Main Shaft Diameter: ø60mm

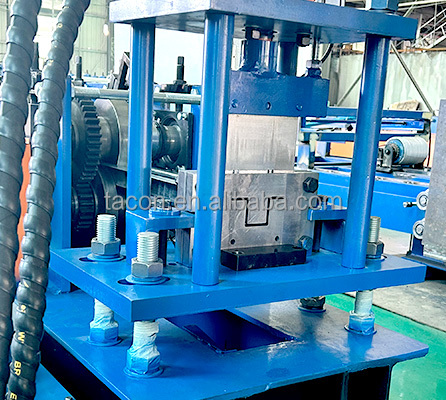

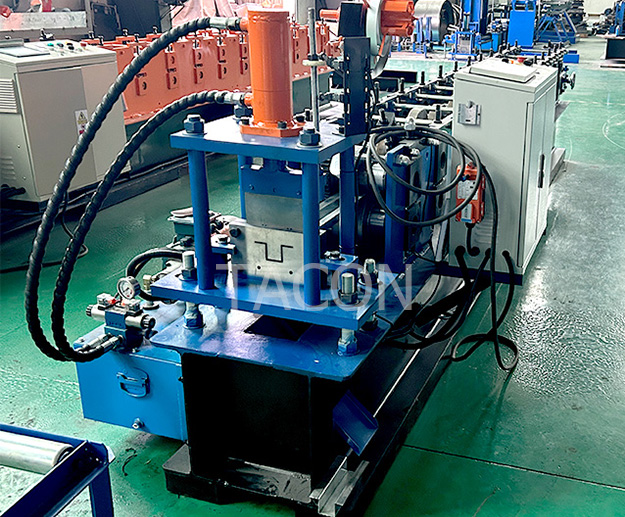

Ⅳ Hydraulic cutting
* Cutting type：hydraulic cutting
* Hydraulic power：3.0KW
* Cutter Material: Cr12

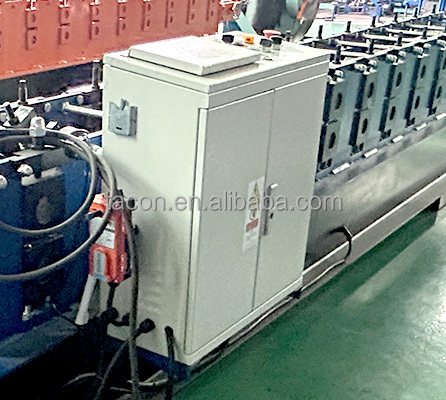

Ⅴ Plc Control System
* Voltage: 415V 3 Phase 50Hz
* Length Tolerance：+/- 2mm
* PLC Size：700mm(L)x1000mm(H)x300mm(W)
* Plc Manufacturer: Panasonic
* Frequency：DELTA
* Hydraulic Value: Beijing Huade
* Cylinder: TAIWEI
* Pipe: Omar
* Touch screen：WEINVIEW
* Encoder: Omron

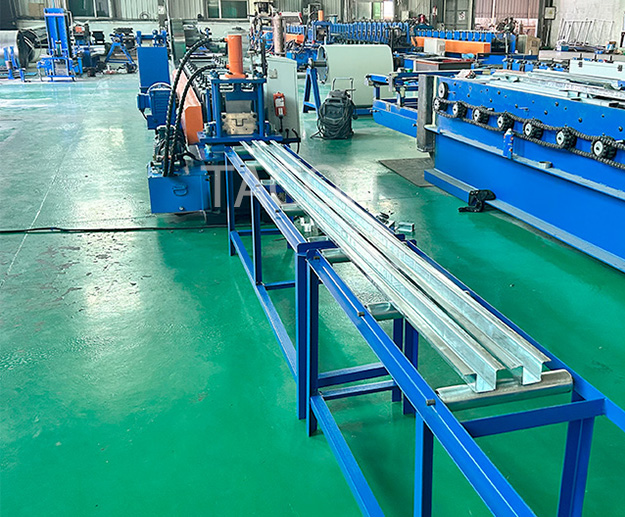

Ⅵ Product Support Table

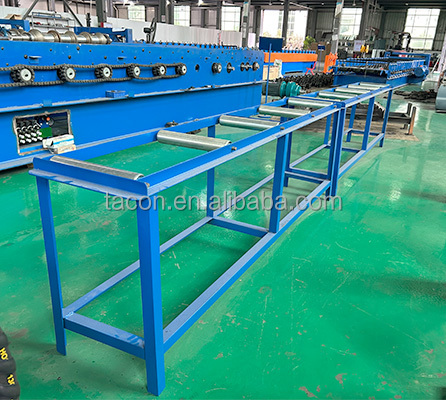

Product Support Table : 3 pieces(6m)
