NO. | ITEM | MAIN TECHNICAL SPECIFICATIONS |
1 | Hydraulic Decoiler
(only fastened by hydraulic, not rotation) | type of Driver: Hydraulic |
Capacity Weight:6.0T |
Inner Diameter: ¢480-¢540mm |
Diameter of Outer：1300mm |
2 | Pre-punching+ pre-cutter | Two Hydraulic Stations |
One middle hole 14x30mm |
One double Hole 8x20mm |

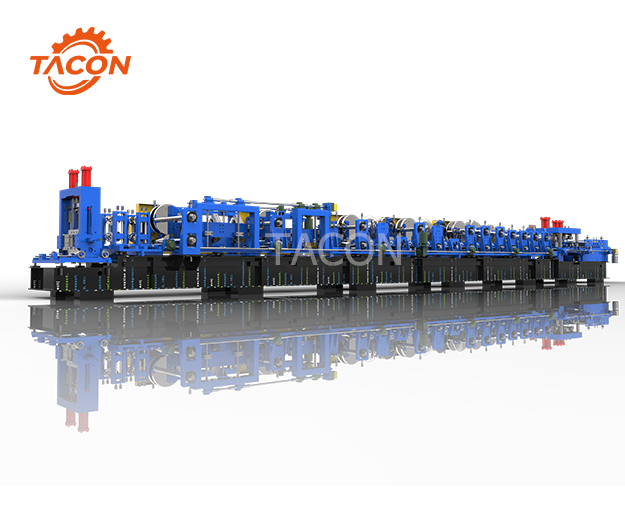

3 | Roll forming Machine | Main Motor: Servo Motor |
Power: 30KW |
Forming Speed: 15-20m/min |
Roller material: Cr12 |
Stations: 20 |
Main Shaft Material：40Cr |
Main Shaft Diameter: 60mm |
4 | Hydraulic post cutting | Cutting type：hydraulic post cutting |
Motor power：11KW+fan cool |
Cutter Material: Cr12 |
5 | Plc Control System | Voltage: 415V 3 Phase 50Hz |
Length Tolerance：+/- 2mm |
PLC Size：700mm(L)x1000mm(H)x300mm(W) |
PLC Manufacturer: Panasonic |
Cylinder: TAIWEI |
Hydraulic Value: Beijing Huade |
Pipe: Omar |
Touch screen：Panasonic/Weinview |
Encoder: Omron |
6 | Product Support Table | Product Support Table : 3 pieces(6m) |
