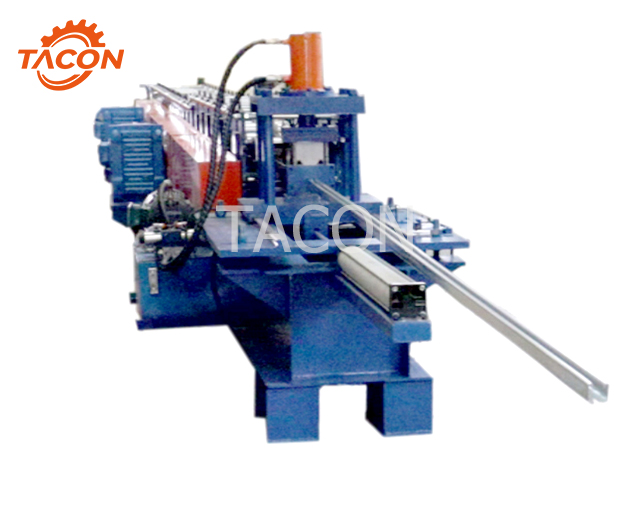

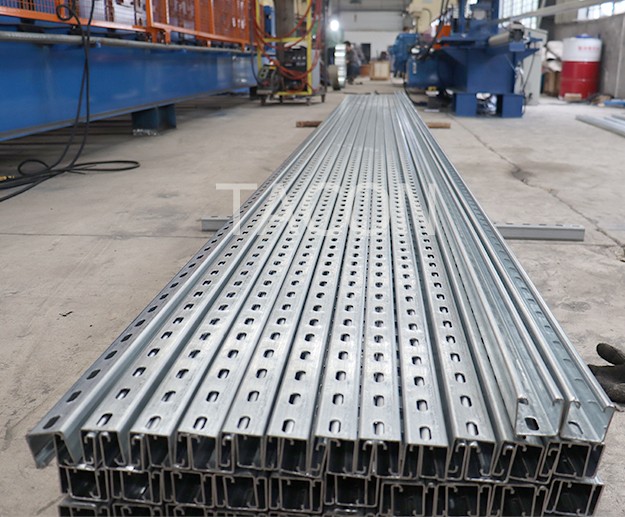

Profile Drawing
* Thickness: 1.5-3.0mm
* material : galvanized Sheet, hot coils
* yield strength: Q235Mpa Q345Mpa

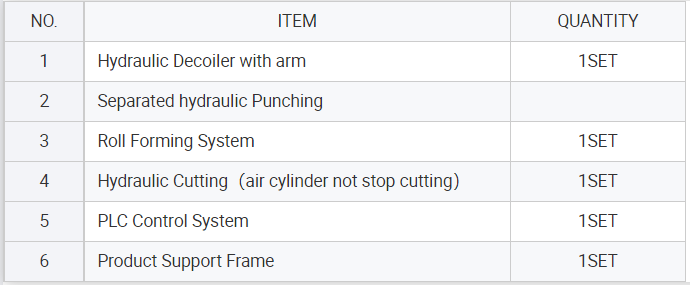

Machine Components
Our products can be customized according to your requirements.
Flow Chart
Hydraulic Decoiler with arm→ Separated hydraulic Punching→Roll Forming Machine→Hydraulic Cutting（air cylinder not stop cutting） → Product Support Frame
Technology Parameters
ⅠHydraulic Decoiler with Arm
* Tightening of coil: Hydraulic
* Weight capacity of decoiler: 4.0T
* Inner diameter of decoiler: 380-550mm
* Max outer diameter of decoiler: 1600mm
Ⅱ Separated Hydraulic Punching with servo motor

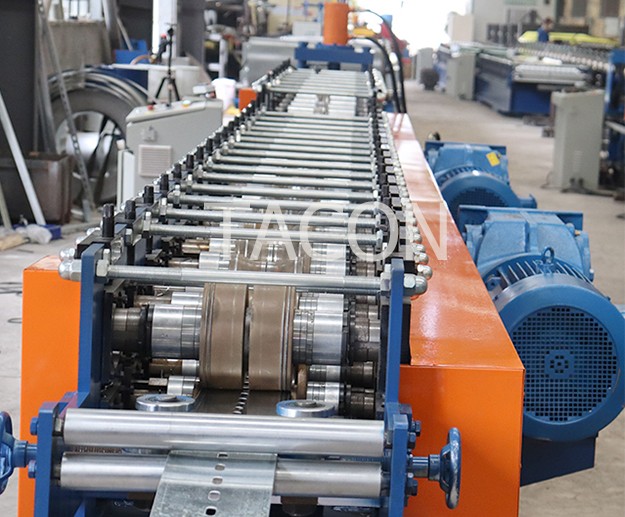

Ⅲ Rolling Forming System
* main motor type: Frequency motor
* motor power: 5KWX2=37.5KW
* Drive: chain
* speed of forming: 18m/min
* material of rollers: D2
* 24 groups rollers
* material of main shaft : 40Cr (The main shaft have the high frequency grinding &heat Treatment and the surface of shaft is
chroming
* diameter of main shaft: ø75mm

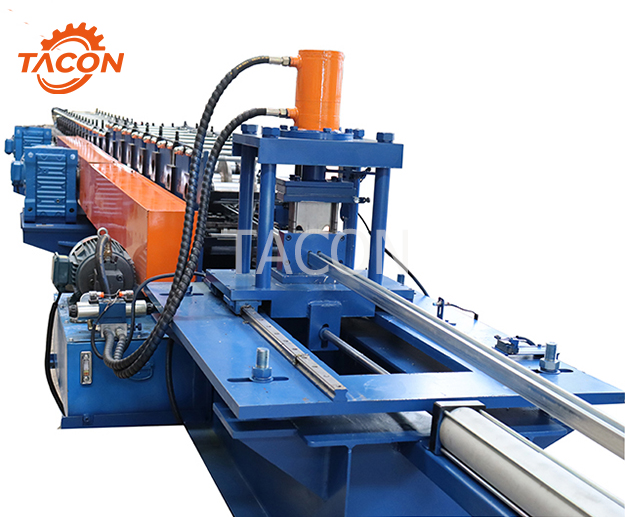

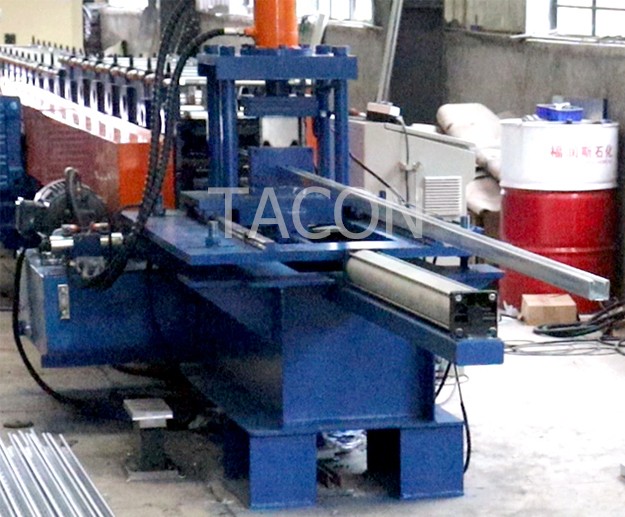

Ⅳ Hydraulic Cutting（air cylinder not stop cutting）
* Cutting type: Hydraulic cutting
* Blade material: Cr12MoV
* Hydraulic motor power: 5.5KW
* Hydraulic Station with Air-cooling system

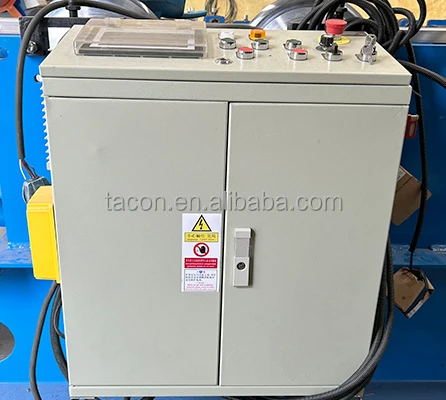

Ⅴ PLC Control System
* Control the quantity &punching length& cutting length automatically
* Voltage: 380V, 3 Phase 50Hz (according to your request)
* Size of PLC Control Board (PLC: 700mm(L)x1000mm(H)x300mm(W)
* PLC manufacturer: SIEMENS
* Touchscreen: Siemens
* Solenoid valve: Beijing hade
* Oil hydraulic cylinder: XINGDE
* Oil pipeline: Omar
* Frequency: Siemens/Delta
* Encoder : Omron

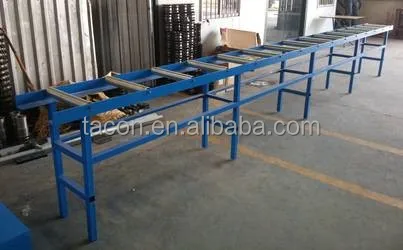

Ⅵ Product Support Frame
The length of product support frame : 6m
