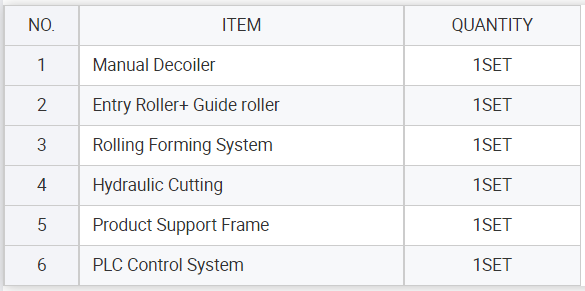

Machine Components
Our products can be customized according to your requirements.
Main Machine size : 9.0mx1.6mx1.7m
Flow Chart
Manual Decoiler→Entry Roller+ Guide roller→ Rolling Forming System→ Hydraulic Cutting→ Product Support Frame
Technology Parameters

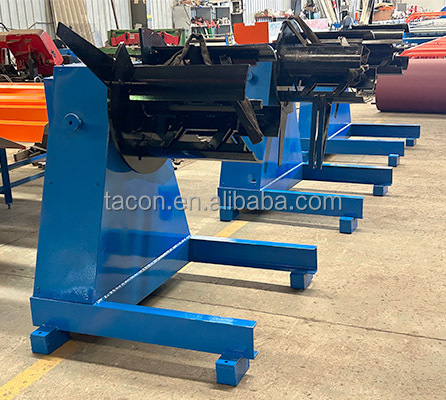

Ⅰ Manual Decoiler
1. Decoiler type: Manual decoiler
2. Weight capacity of decoiler: 5.0 T
3. Inner diameter of decoiler: 508+/-30mm
4. Max outer diameter of decoiler: 1000mm

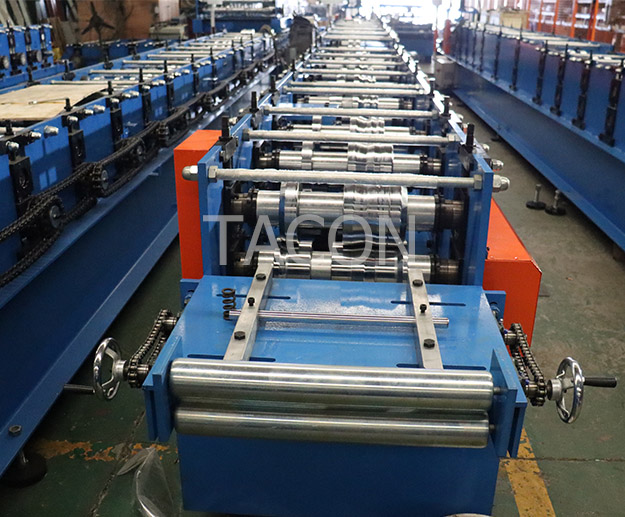

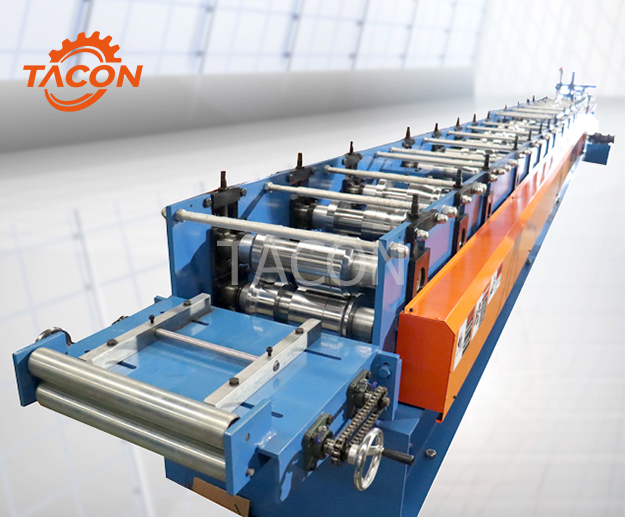

Ⅱ Entry Roller+ Guide Rollers

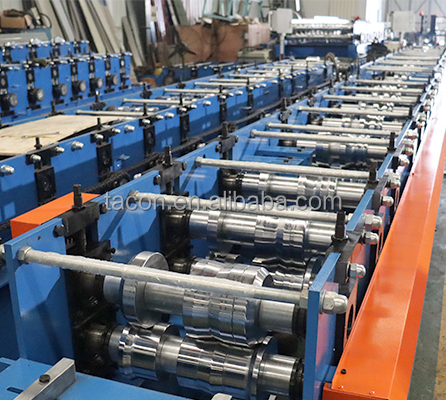

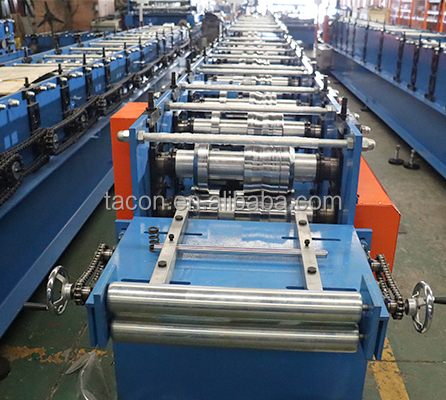

Ⅲ Roll Forming System
1. Roll forming speed: 10-20m/min
2. Shafts diameter: Φ75mm
3. Main motor: 7.5KW
4. Roller: 45#
5. Roller groups: 18 Stations
6. Machine will have protective cover

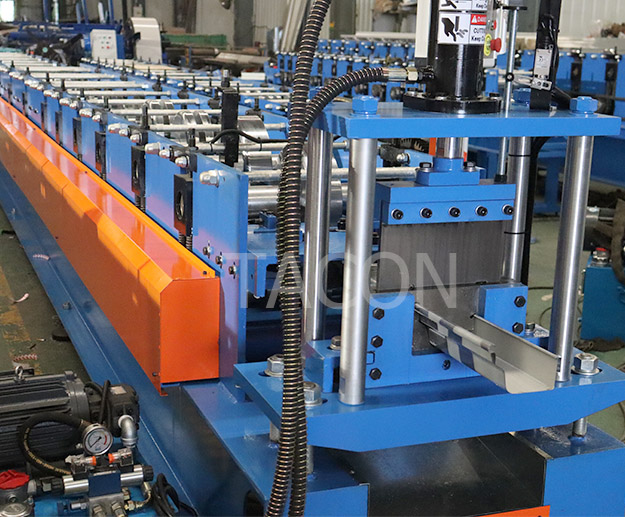

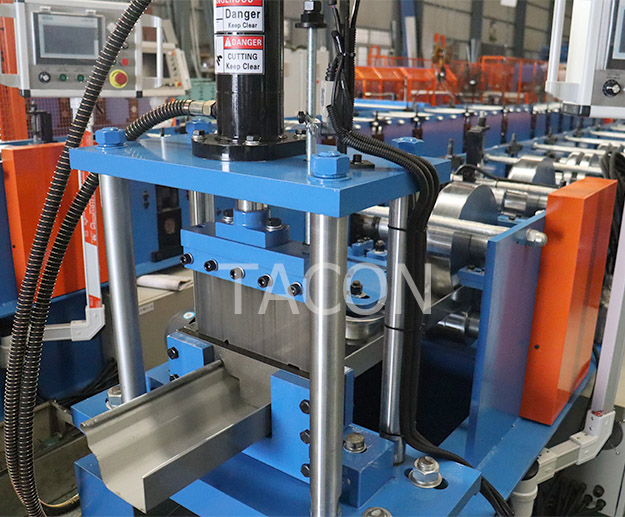

Ⅳ Hydraulic Cutting
1. Hydraulic Motor power: 4.0KW
2. Cutting material: Cr12

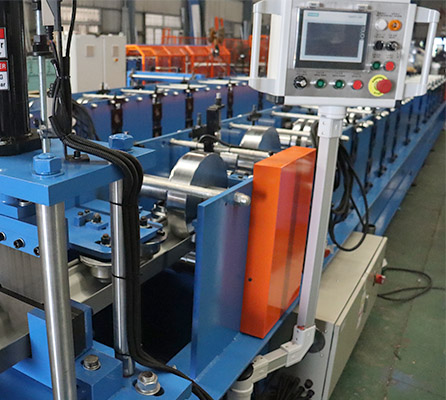

Ⅴ PLC Control System
1. Control quantity and length automatically
2. Touch screen : WEINVIEW
3. PLC: Panasonic/Siemens
4. Relay: Schneider
5. Encoder : Omron
6. Frequency: TAIDA
7. Length tolerance : ±2mm
8. Voltage : 415v 50HZ 3phase
