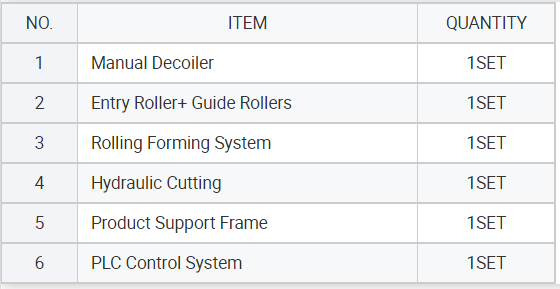

Machine Components
Our products can be customized according to your requirements.
Flow Chart
Manual Decoiler→Entry Roller+ Guide Rollers→ Rolling Forming System→ Hydraulic Cutting→ Product Support Frame
Technology Parameters
ⅠManual Decoiler
1. Decoiler type: Manual decoiler
2. Weight capacity of decoiler: 5.0 T
3. Inner diameter of decoiler: 508+/-30mm
4．Max outer diameter of decoiler: 1000mm

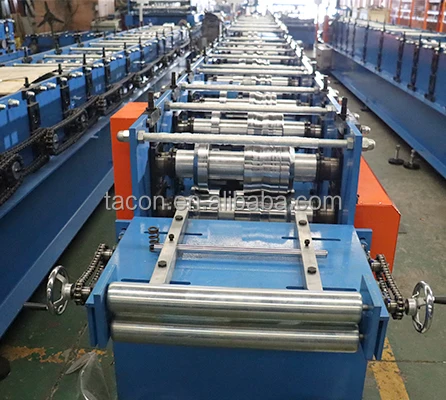

Ⅱ Entry Roller+ Guide Rollers

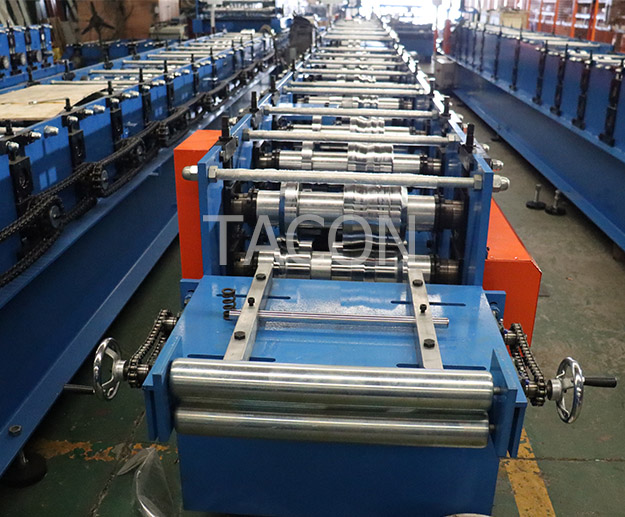

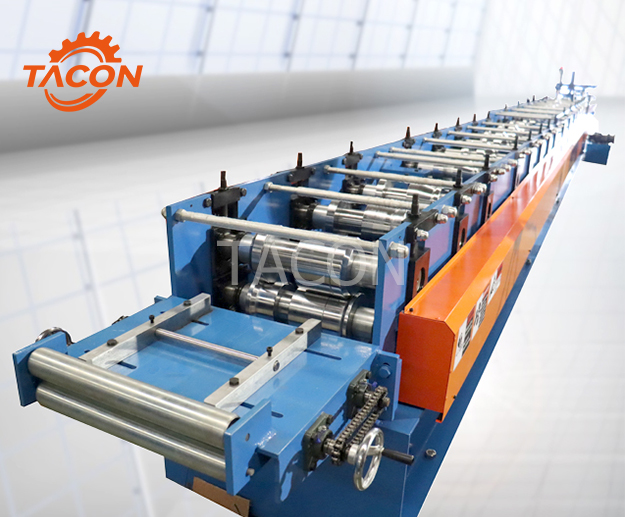

Ⅲ Roll Forming System
1. Roll forming speed: 10-20m/min
2. Shafts diameter: Φ75mm
3. Main motor: 7.5KW
4. Roller: 45#
5. Roller groups: 16 Stations
6. Machine will have protective cover

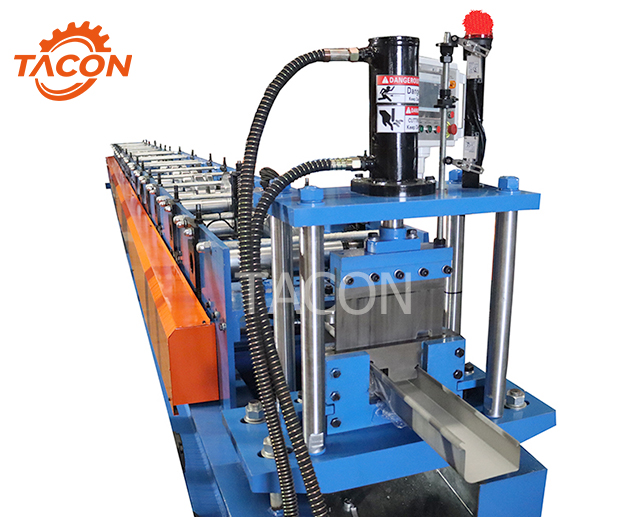

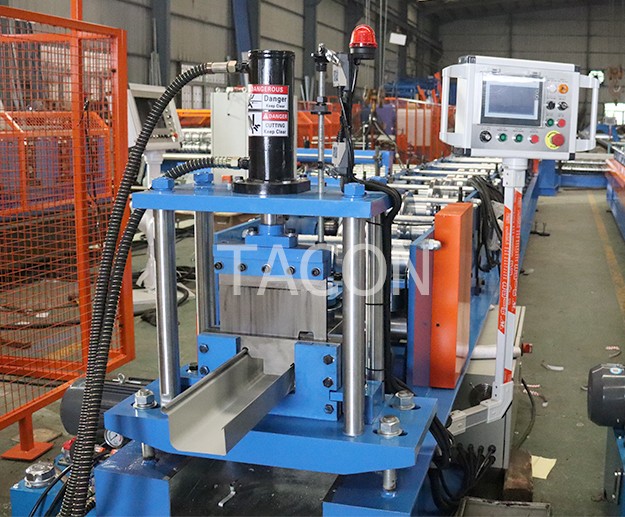

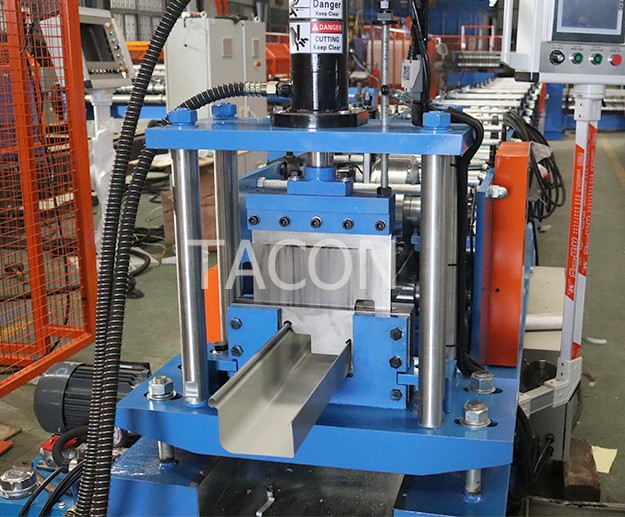

Ⅳ Hydraulic Cutting
1. Hydraulic Motor power: 3.0KW
2. Cutting material: Cr12
Ⅴ PLC Control System
1. Control quantity and length automatically
2. Touch screen : WEINVIEW
3. PLC: Panasonic/Siemens
4. Relay: Schneider
5. Encoder : Omron
6. Frequency: TAIDA
7. Length tolerance : ±2mm
8. Voltage : 415v 50HZ 3phase
Ⅵ Product Support Frame
Product support frame: 3 pieces
