Product details

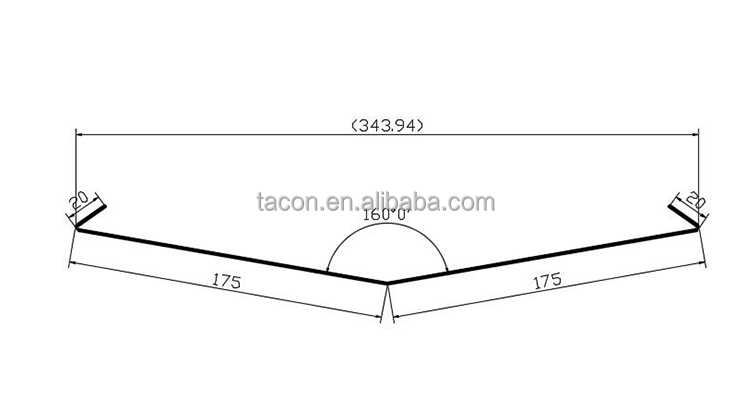

Profile Drawing

1)material：color coated steel sheet, galvanized steel sheet,

2) Thickness：0.4-0.6mm

3) Yield strength: G550Mpa

4) Feeding width：390mm

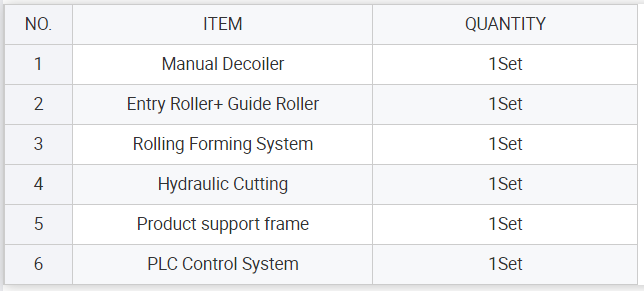

Machine Components

Main Machine size : 8.0mx1.2mx1.5m

Flow Chart

Manual Decoiler→Entry Roller+ Guide Roller→ Rolling Forming System→ Hydraulic Cutting→ Product Support Frame

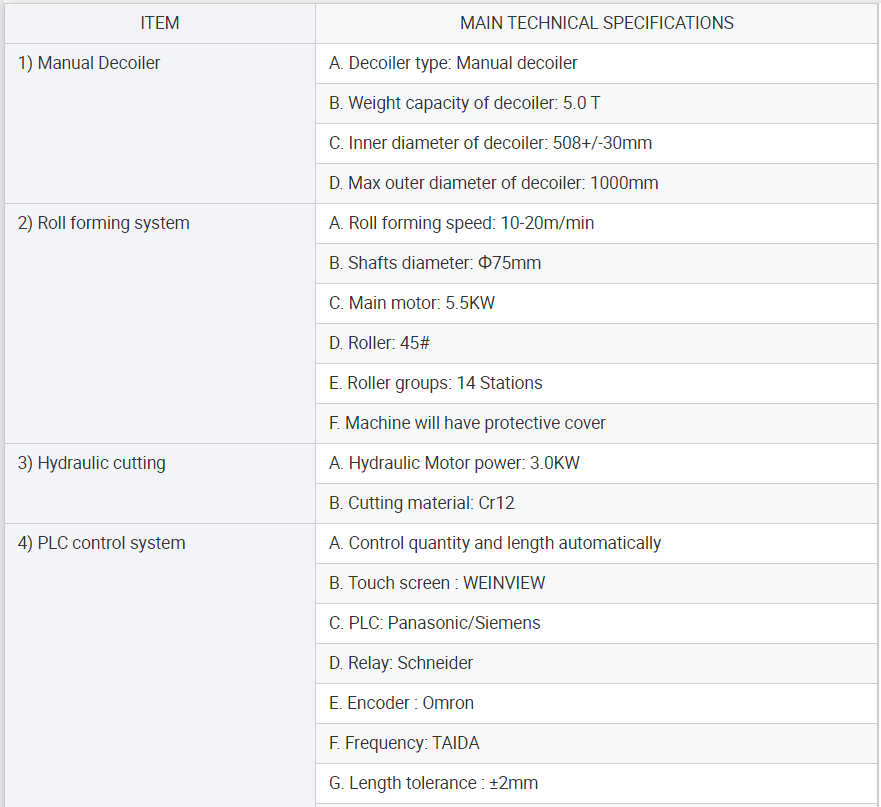

 PRODUCT SPECIFICATIONS
