Product details

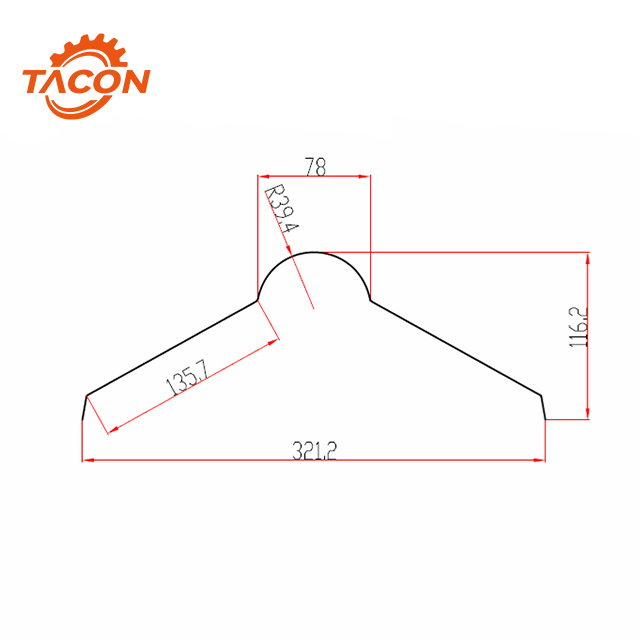

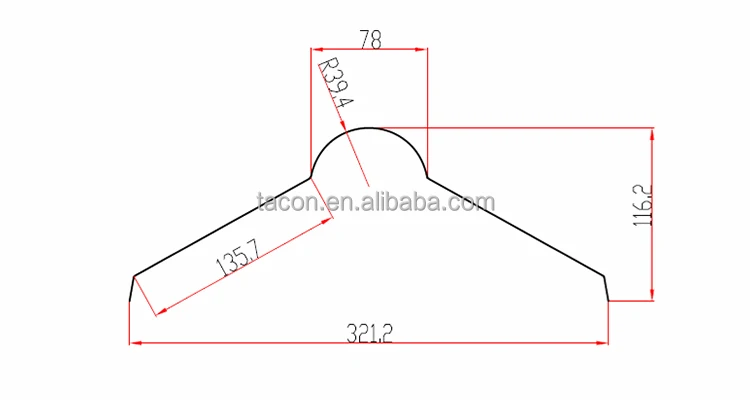

Profile

1) material：color coated steel sheet, galvanized steel sheet

2) Thickness：0.4-0.6mm
3) Yield strength: G550Mpa

4) Feeding width：390mm

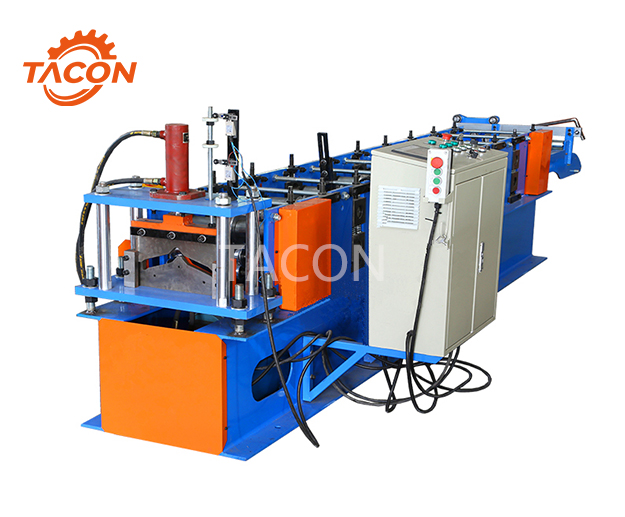

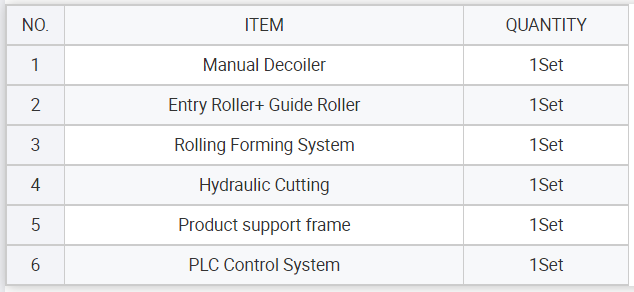

Machine Components

Flow Chart

Manual Decoiler→Entry Roller+ Guide Roller→ Rolling Forming System→ Hydraulic Cutting→ Product Support Frame

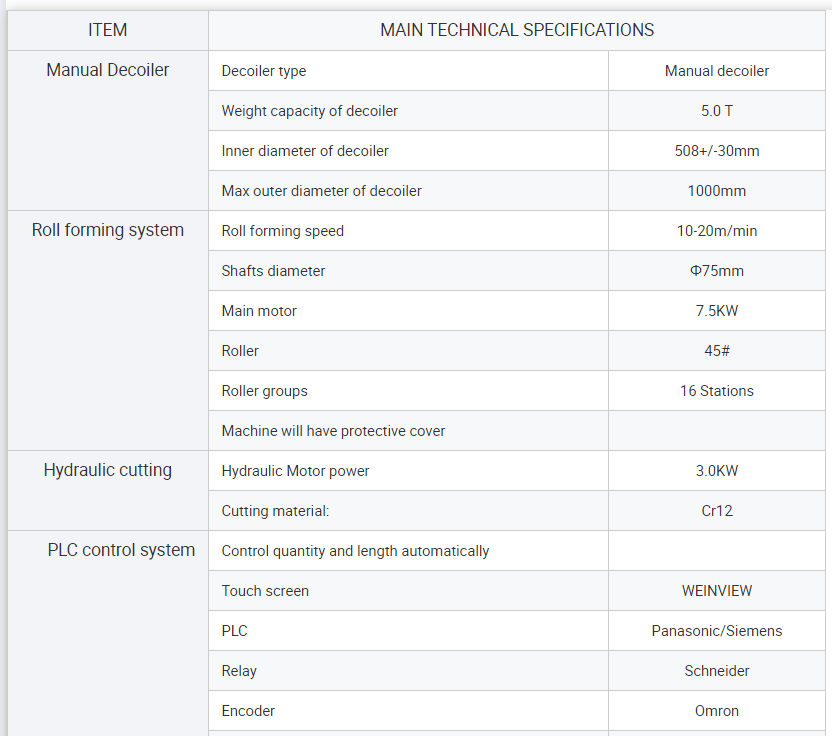

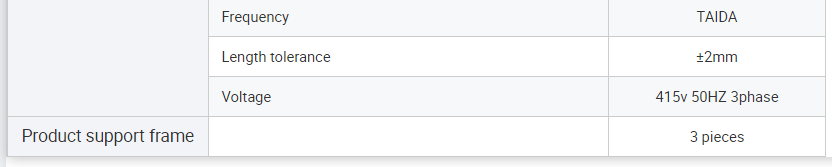

PRODUCT SPECIFICATIONS
