Profile Drawing
(1) Thickness: 1.0-2.5mm
(2) material: Galvanized coil/hot coil
(3) yield strength : Q235Mpa Q350Mpa
Machine Components
1.C Beam Forming Machine
Flow Chart
Manual Decoiler→ Guide with adjustable→ Roll Forming Machine→ Hydraulic Cutting→ Run-out table
2. Holding Beam Forming Machine
Flow Chart
Run-in Table→ Roll Forming Machine→Run-out table
FEATURES AT A GLANCE
ⅠDecoiler
* Decoiler Type: Manual
* weight capacity of decoiler : 5.0T
Ⅱ Guide with adjustable

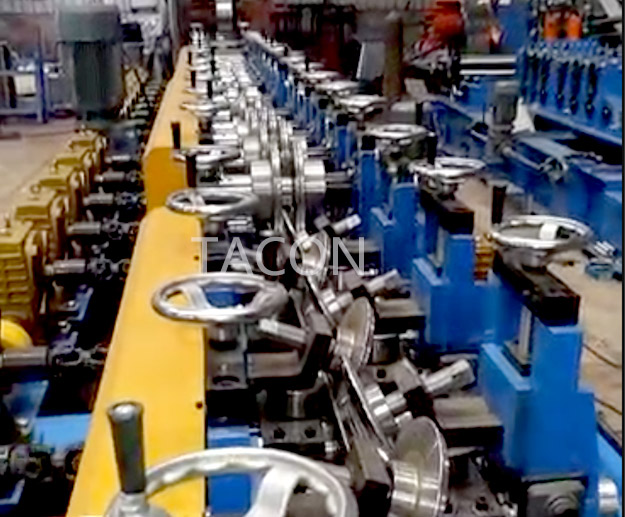

Ⅲ Roll forming Machine
* main motor type: Frequency motor
* total power: 18.5KW
* Driver: CHAIN
* speed of forming: 10-18m/min
* material of roller :Cr12
* rollers: 17 groups
* material of main shaft: 40Cr (The main shaft have the high frequency grinding &heat Treatment and the surface of shaft is
chroming)
* diameter of main shaft: ø75mm

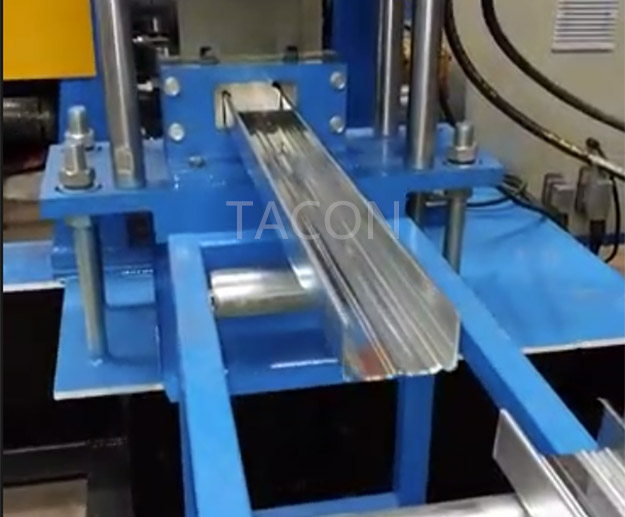

Ⅳ Hydraulic Cutting
* Punching Type: Hydraulic cutting
* Hydraulic motor power: 4.0KW
Ⅴ PLC Control System
* Control the quantity &cutting length automatically
* The Machine will be stopped while cutting
* Automatic Length measures and quantity counting (precision +/- 2mm)
* Voltage: 380V, 3 Phase 50Hz
* Size of PLC Control Board: 700mm(L)x1000mm(H)x300mm(W)
* PLC manufacturer: panasonic/siemens
* Solenoid valve: taiwei
* Oil hydraulic cylinder: taiwei
* Oil pipeline: parkers
* Touch Screen manufacturer: weinview
* Relay: schneider
* Encoder: Omron
* frequency converter: Panasonic/siemens
Ⅵ Run-out table
The length of product support frame : 6m

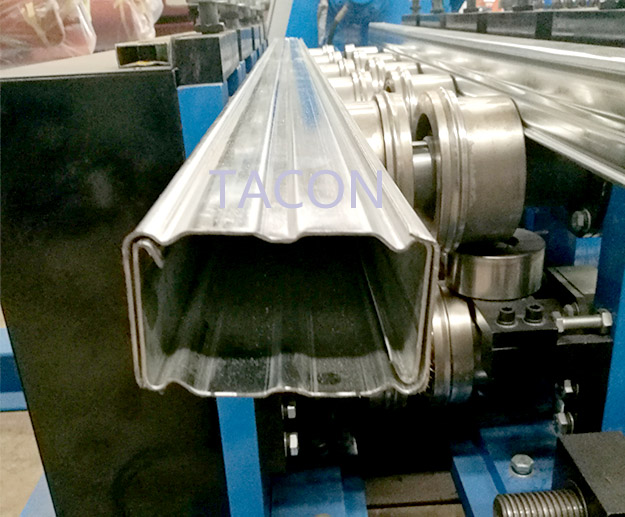

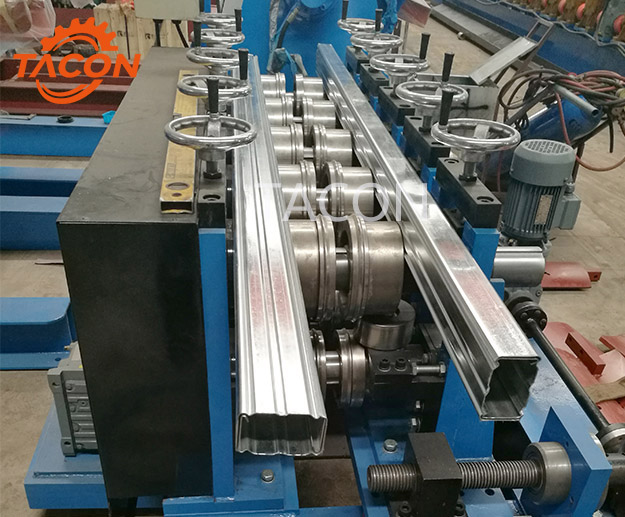

Ⅶ Holding Beam Forming Machine
Roll forming Machine
* main motor type: Frequency motor
* total power: 5.5KW
* speed of forming: 12m/min
* material of roller :Cr12
* rollers: 4 groups
* material of main shaft: 40Cr
* diameter of main shaft: ø75mm
Simple PLC Control System
* Voltage: 380V, 3 Phase 50Hz
* Solenoid valve: taiwei
* Oil hydraulic cylinder: taiwei
* Oil pipeline: parkers
* Relay: schneider
