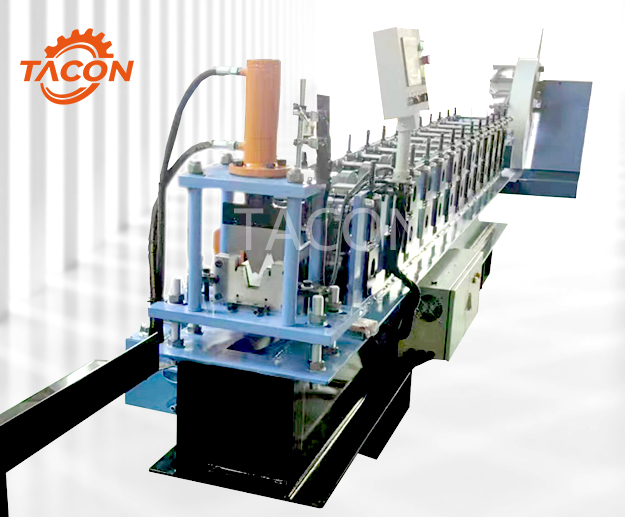

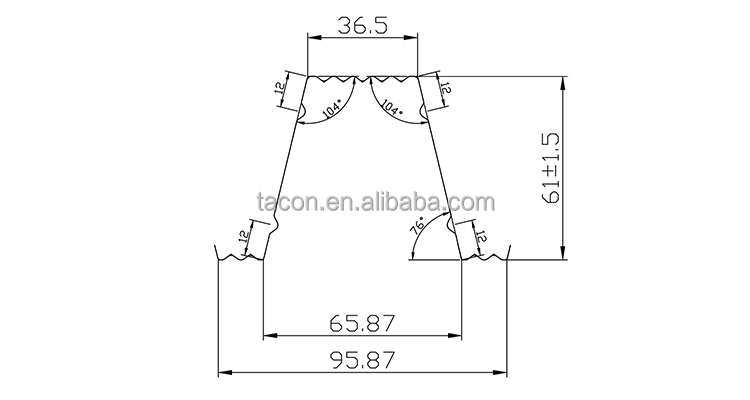

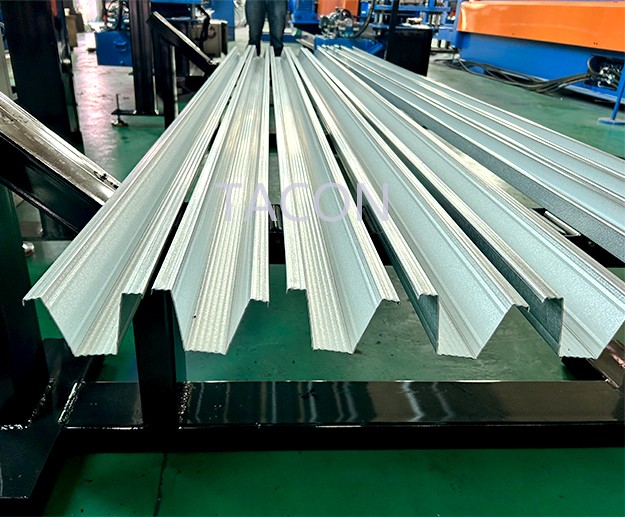

Profile Drawming
Our products can be customized according to your requirements.
1) material：color coated steel sheet, galvanized steel sheet,
2) Thickness：0.7-1.2mm
3) Yield strength: G550Mpa

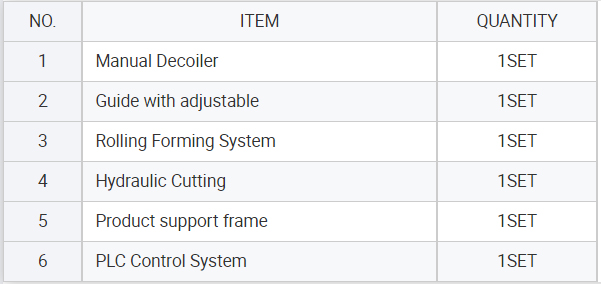

Machine Components
Flow Chart
Manual Decoiler→Guide with adjustable→ Roll Forming System→ Hydraulic Cutting→ Product Support Frame
FEATURES AT A GLANCE

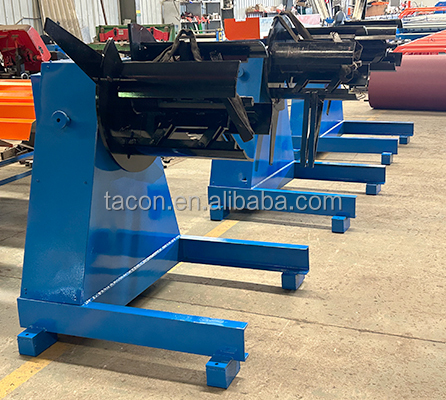

ⅠManual Decoiler
* Decoiler type: Manual decoiler
* Weight capacity of decoiler: 3.0 T
* Inner diameter of decoiler: 508+/-30mm
* Max outer diameter of decoiler: 1500mm
Ⅱ Guide with adjustable

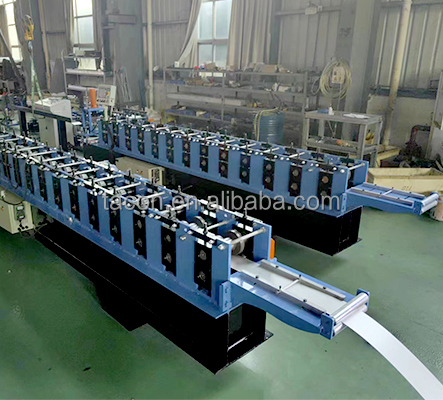

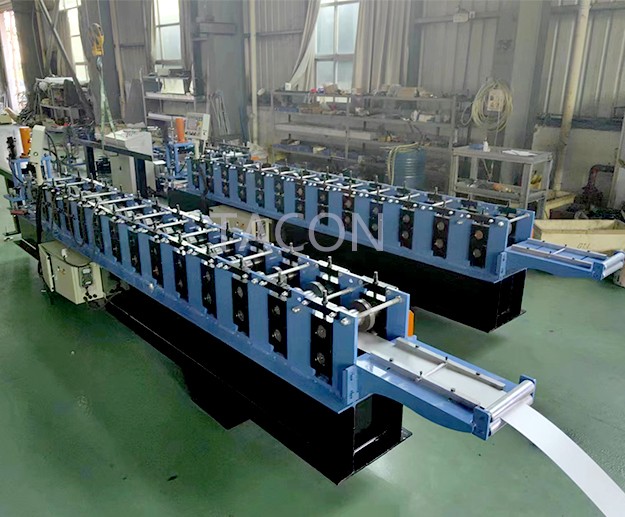

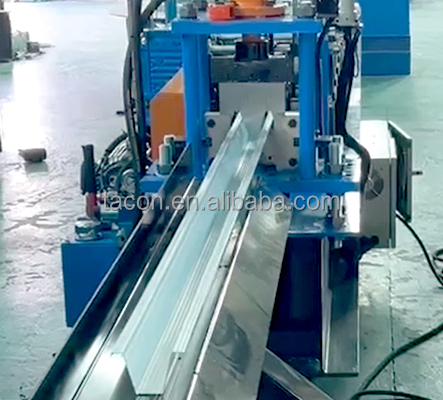

Ⅲ Roll forming system
* Forming speed: 15-20m/min
* Shafts diameter: Φ65mm
* Main motor: 5.5KW
* Roller: GCr15
* Roller groups: 12 Stations

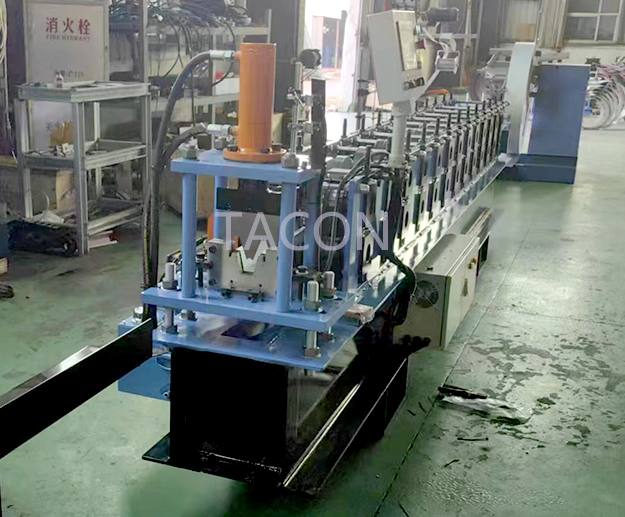

Ⅳ Hydraulic cutting
* Hydraulic Motor power: 3.0KW
* Cutting material: Cr12
Ⅴ PLC control system
* Control quantity and length automatically
* Touchscreen: WEINVIEW
* PLC: Panasonic/Siemens
* Relay: Schneider
* Encoder : Omron
* Frequency: TAIDA
* Length tolerance : ±2mm
* Voltage : 415v 50HZ 3phase

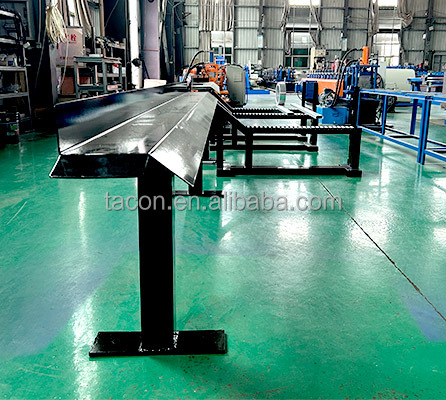

Ⅵ Product support frame
Product support frame: 4m

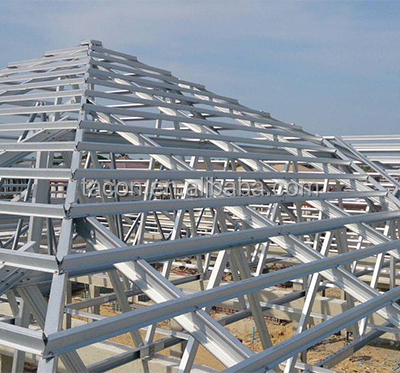

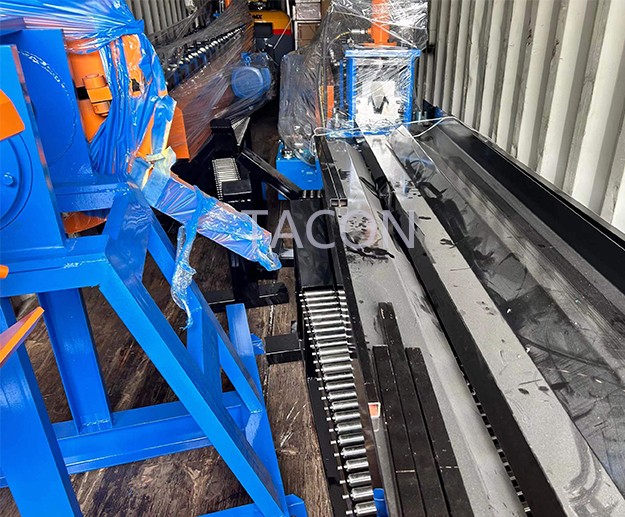

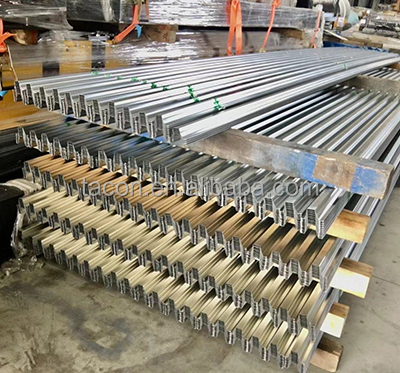

Successful Project
