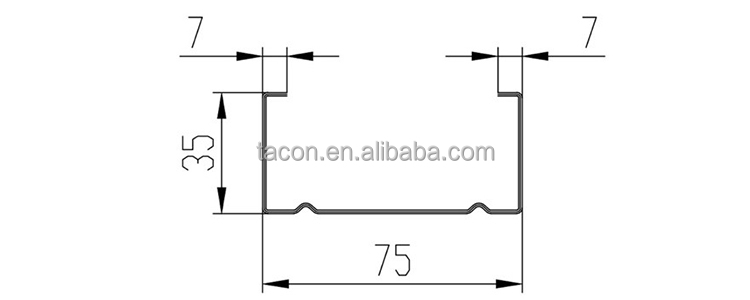

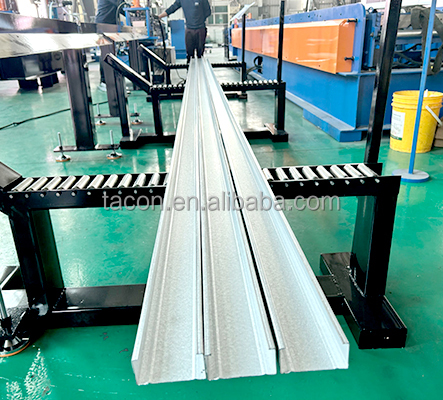

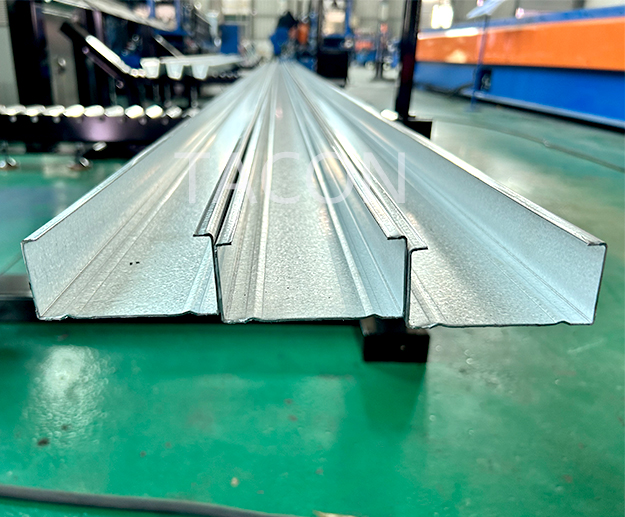

Profile Drawing
Our products can be customized according to your requirements.
* Material Thickness: 0.7-1.2mm
* Material width: 153mm
*Yield strength: G300 G550Mpa

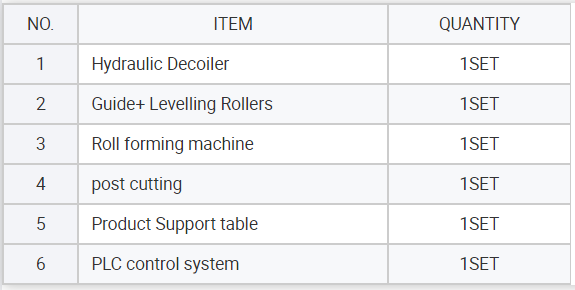

Machine Components
Flow Chart
Hydraulic decoiler→Guide and levelling→Roll forming machine→post cutting→Product Support table

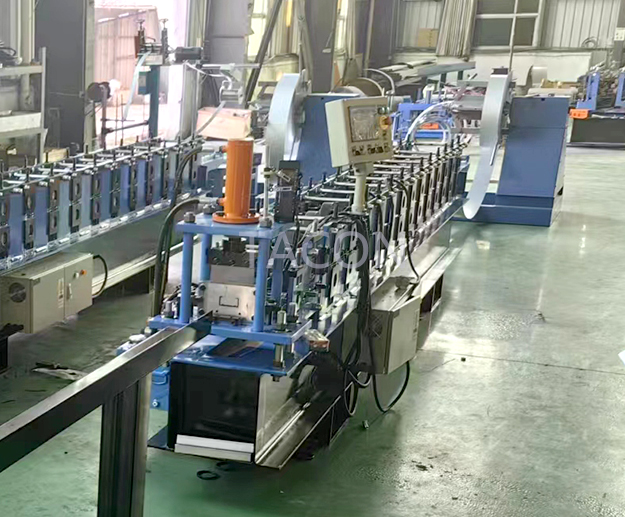

FEATURES AT A GLANCE

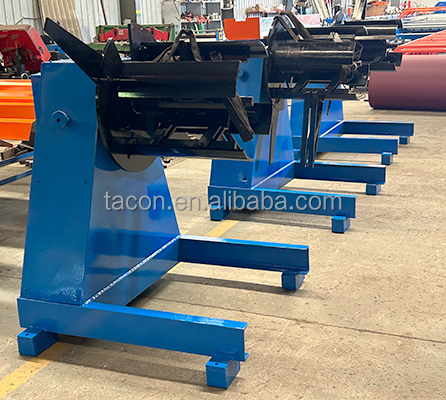

ⅠManual Decoiler
1. Tightening of coil: By Manual
2. Weight capacity of decoiler: 3.0T
3. Inner diameter of decoiler: 380-550mm
4. Max outer diameter of decoiler: 1500mm
Ⅱ Guide+ Levelling Rollers

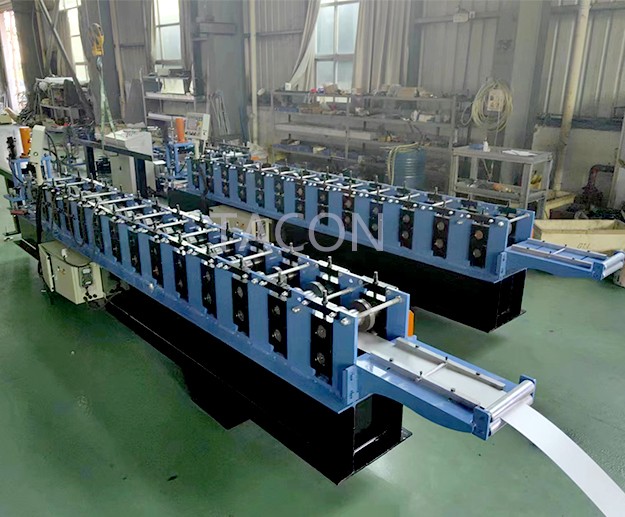

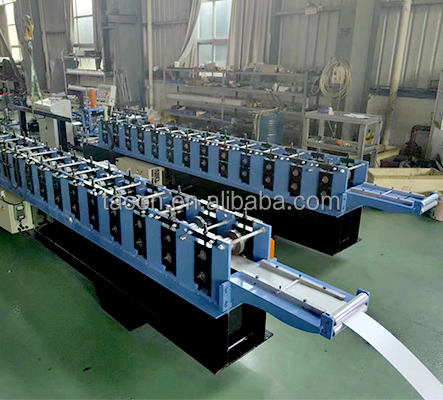

Ⅲ Roll forming machine
1. Main Motor: Frequency Motor
2. Voltage：415V 3phase 50HZ
3. Motor Power: 5.5 KW
4. Roller material: GCr15
5. Stations: 14
6. Main Shaft Material：40Cr
7. Main Shaft Diameter: ø65mm
8. forming speed: 15-20m/min

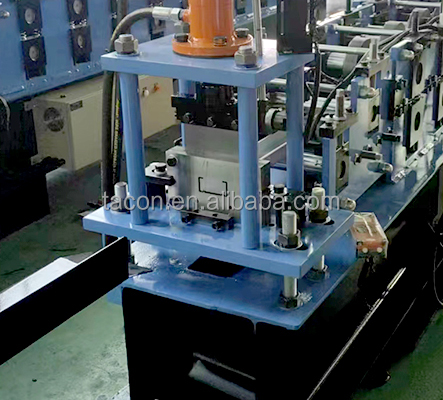

Ⅳ Post Cutting
1. Cutting type: Hydraulic cutting
2. Cutting material: Cr12MoV
3. Hydraulic motor power: 4.0KW

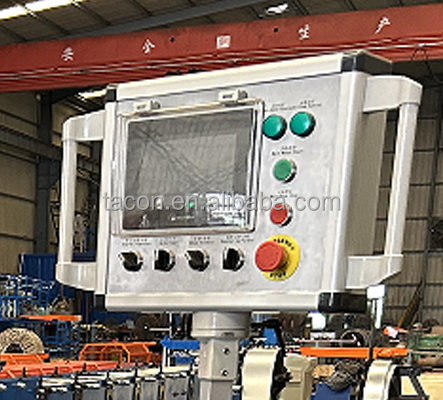

Ⅴ PLC control system
* Control quantity and length automatically
* Touchscreen: WEINVIEW
* PLC: Panasonic/Siemens
* Relay: Schneider
* Encoder : Omron
* Frequency: TAIDA
* Length tolerance : ±2mm
* Voltage : 415v 50HZ 3phase

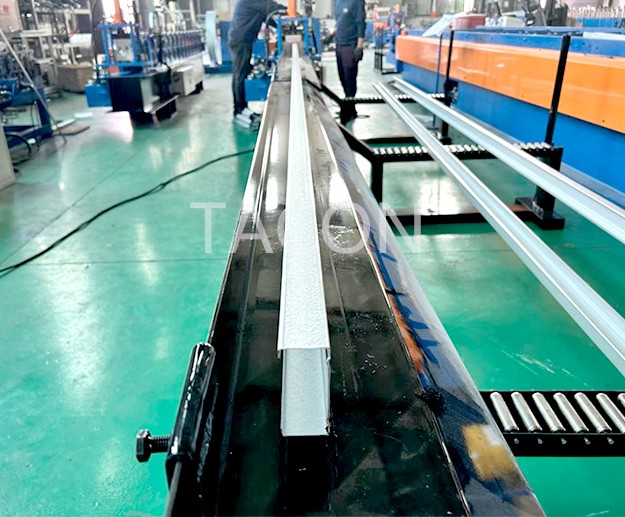

Ⅵ Product support frame
Product support frame: 4m
