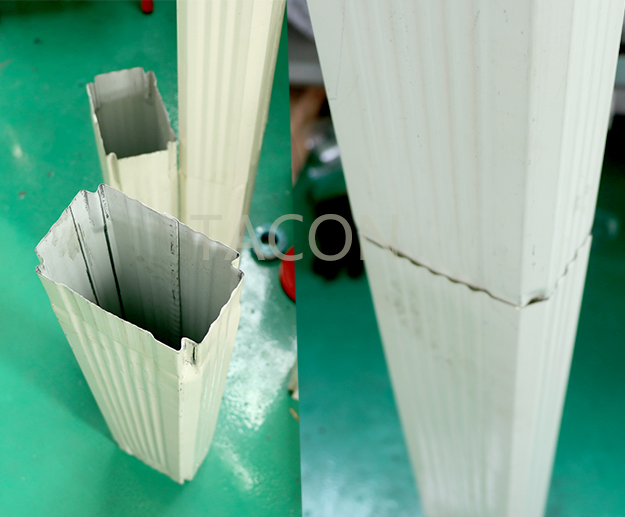

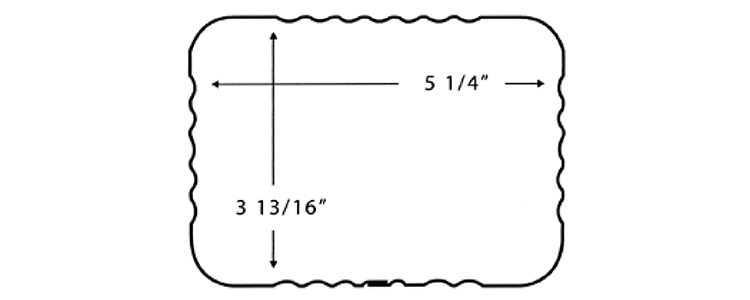

Profile Drawing
Our products can be customized according to your requirements.
* material : pre-painted galvanized steel sheets
* Thickness: 0.4-0.6mm
* yield strength : Q235-345Mpa
Machine Components
Flow Chart
Manual Decoiler→ Guide+ Levelling Rollers→ Rolling Forming System→ Hydraulic Post Cutting→ Product Support Frame
FEATURES AT A GLANCE

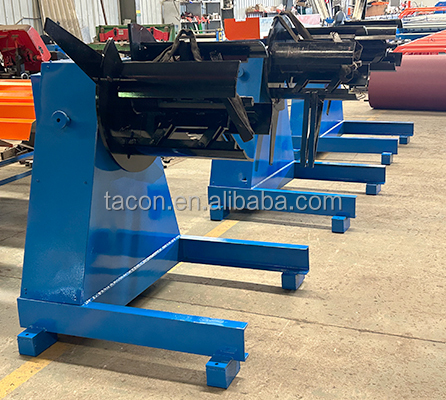

ⅠManual Decoiler
* Tightening of coil: By Manual
* Weight capacity of decoiler : 5.0T
* Inner diameter of decoiler: 510+/-30mm
* Max outer diameter of decoiler: 1300mm
Ⅱ Guide+ Levelling Rollers
It used for levelling and guide before feeding into the roll forming machine

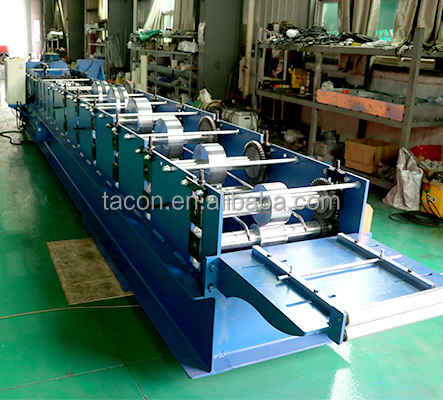

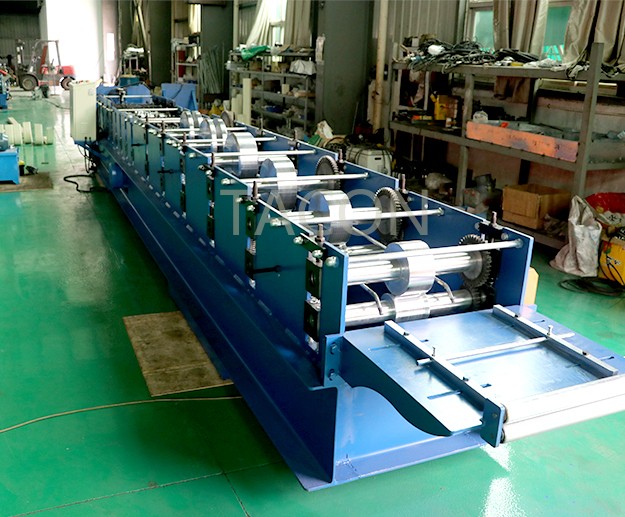

Ⅲ Rolling Forming System
* main motor type: Frequency motor
* motor power: 5KW
* Drive: chain
* speed of forming: 10-15m/min
* material of rollers: 45#
* 15 groups rollers
* material of main shaft : 40Cr (The main shaft have the high frequency grinding &heat Treatment and the surface of shaft is
chroming
* diameter of main shaft: ø65-70mm

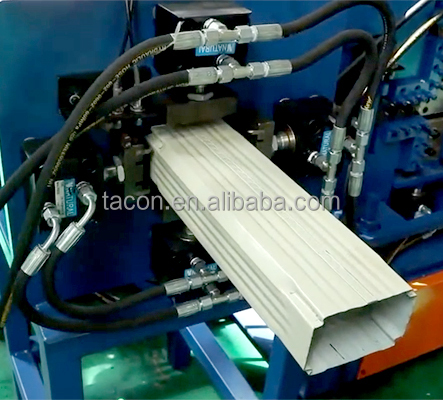

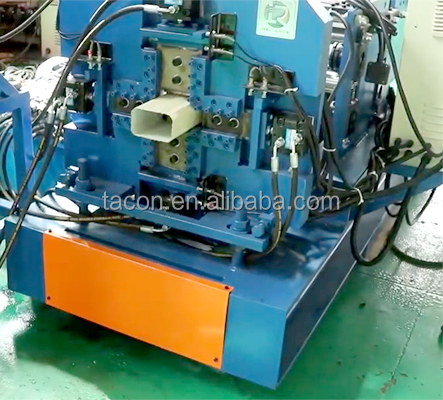

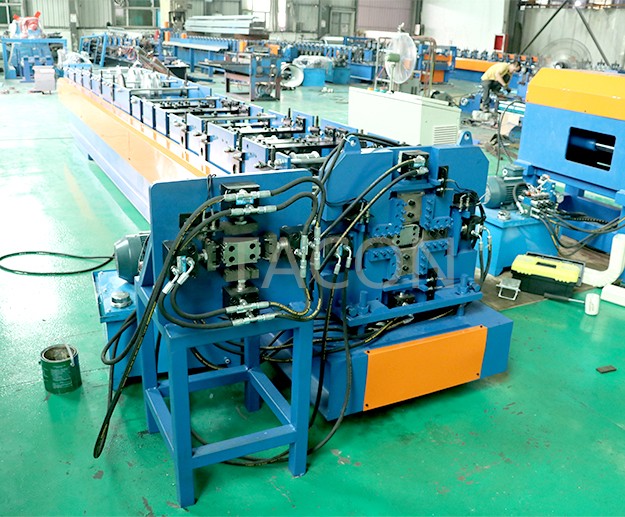

Ⅳ Hydraulic Cutting
* Cutting type: Hydraulic cutting
* Cutting material: Cr12
* Hydraulic motor power: 4.0KW

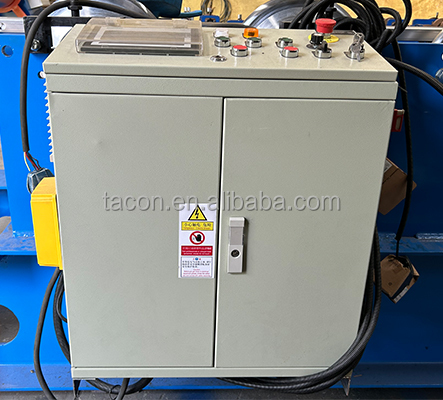

Ⅴ PLC Control System
* Control the quantity &punching length& cutting length automatically
* Voltage: 380V, 3 Phase 50Hz
* Size of PLC Control Board (PLC: 700mm(L)x1000mm(H)x300mm(W)
* PLC manufacturer: Japan Panasonic
* Solenoid valve: Beijing hade
* Oil hydraulic cylinder: XINGDE
* Oil pipeline: Omar
* Touch Screen manufacturer: Japan Panasonic
* Frequency: TAIDA
* Encoder : Omron

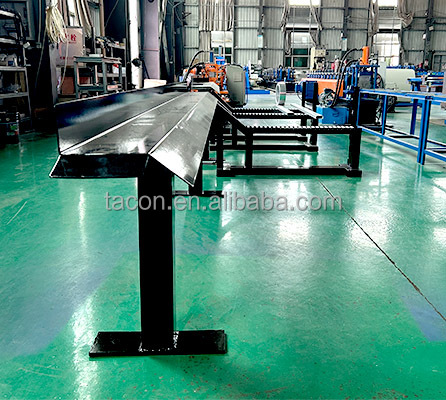

Ⅵ Product support frame
The length of product support frame : 6m

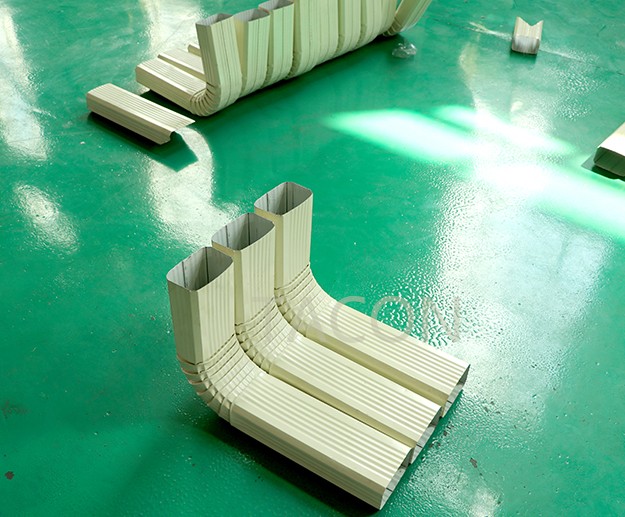

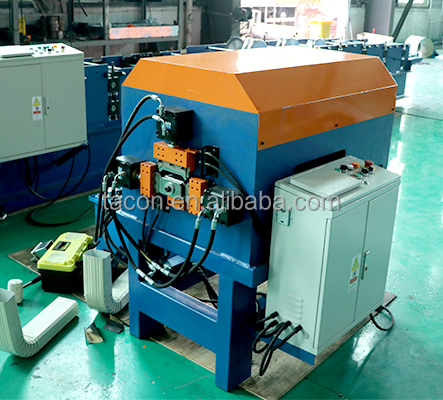

Ⅶ Pipe Shrinking Machine

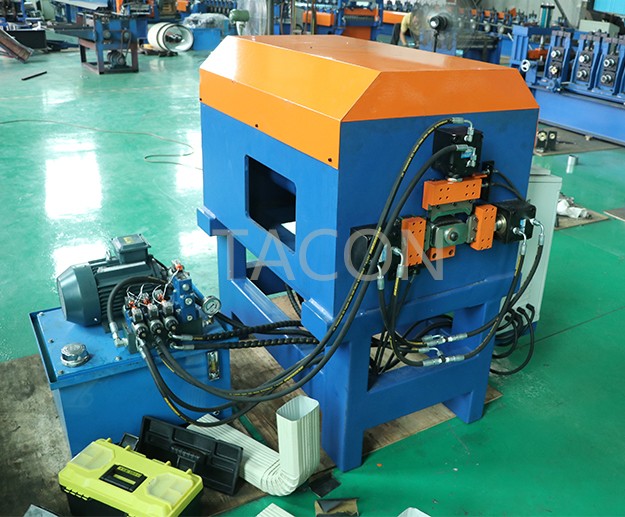

Ⅷ Downspout Bending Machine
Motor power: 2.2kw
