Product details

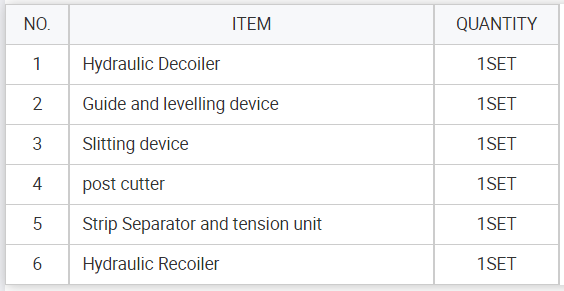

Machine Components

Flow Chart

hydraulic decoiler—Guide and levelling device—slitting device—post cutter—strip separator and tension unit—recoiler

FEATURES AT A GLANCE

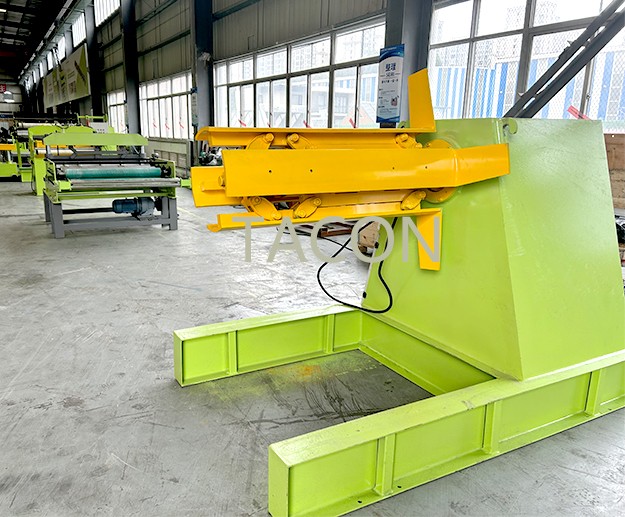

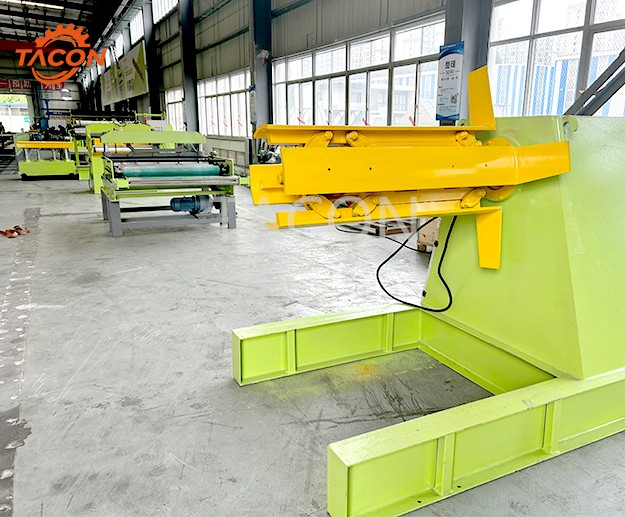

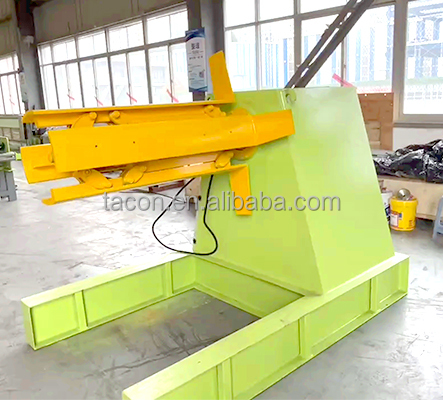

ⅠHydraulic Decoiler

fasten : by Hydraulic
Capacity: 5 Tons
Inner Diameter: Ø470-560mm
Motor Power: 3.0KW

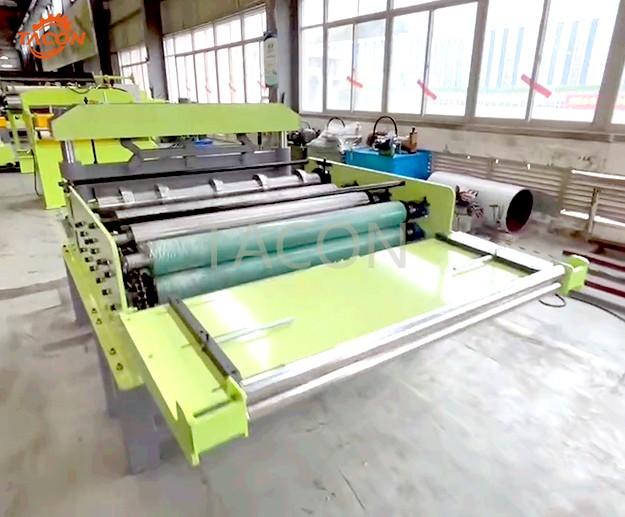

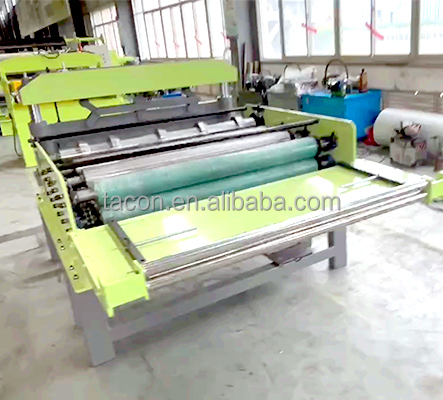

Ⅰ Guide and levelling device

Ⅲ slitting device
Type: Round knife cutting.
Cutter Material: Cr12MVo
Motor : 3KW
Shaft size: Ø70mm
Shaft Material: 40Cr

Ⅳ Strip Separator and tension unit

Shaft Size: Ø70mm

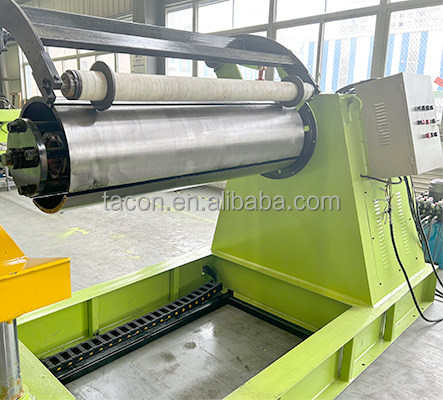

Ⅴ Recoiler

Expansion range : Ø 508±30mm
Load capacity: Max. 5 Tons (Max.)

Ⅵ Electrical System:
PLC: Panosonic
INVERTER: SIEMENS
Voltage: 415V 50HZ 3P
Pneumatic Element: china good brand
