Product details

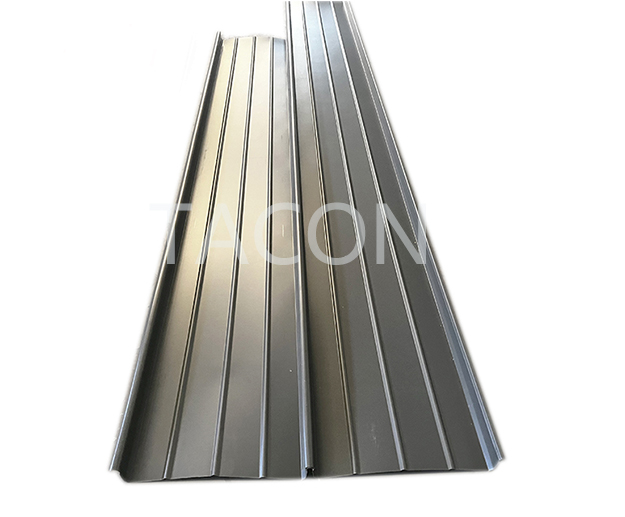

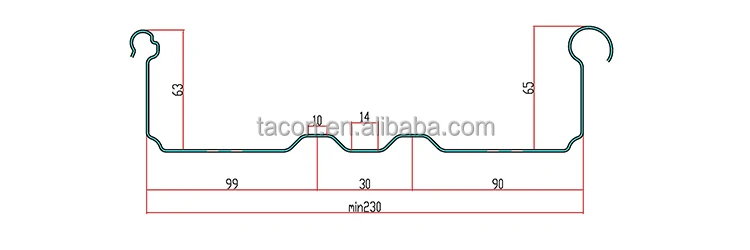

Profile Drawing (three sizes)

Our machines can be customized according to your requirements.

Double-Side Taper Profile: Min.230mm

Material

1.Aluminum coil: 0.7-1.2mm,

2.Yield strength: 250Mpa

3.Pre-painted coil: 0.6-0.8mm,

4. Yield strength: 550Mpa

5.0.6mm pre-painted coil is for inspection, in common use
6.Feeding width: approx.575/600/610mm

7.Effective width: 410/435/445mm

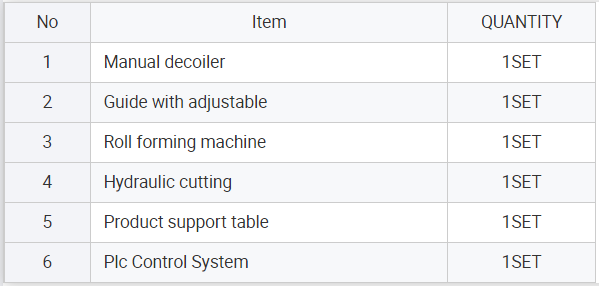

Machine Components

Work Flow

Decoiler→Guide with Adjustable →Roll forming machine → Hydraulic cutting → Product Support Table

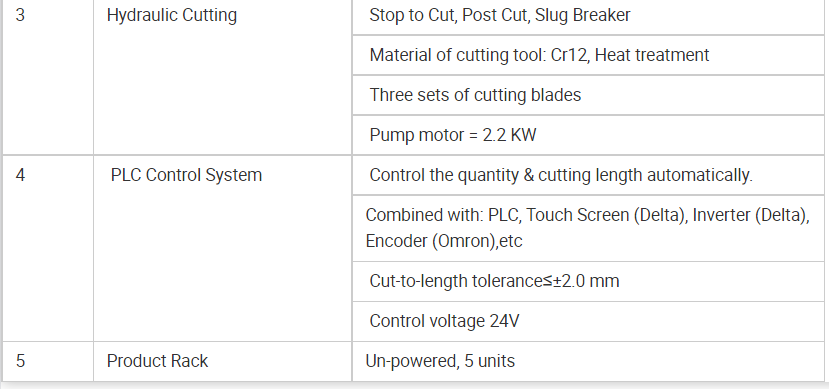

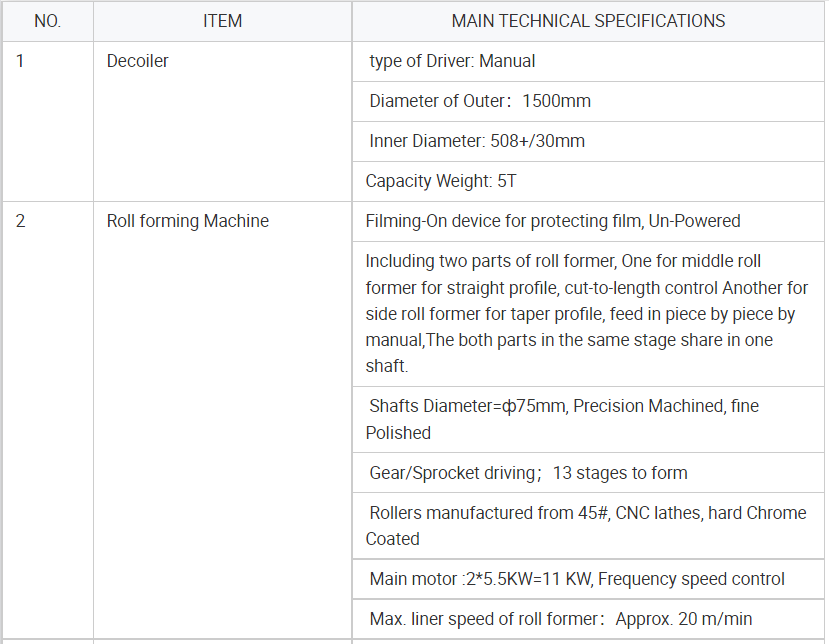

PRODUCT SPECIFICATIONS
