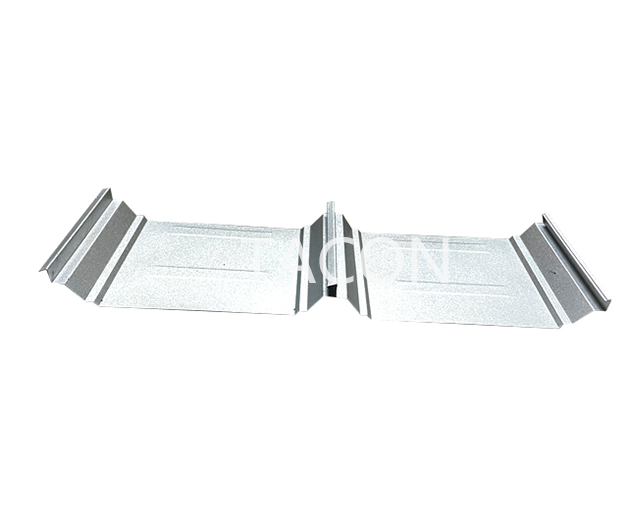

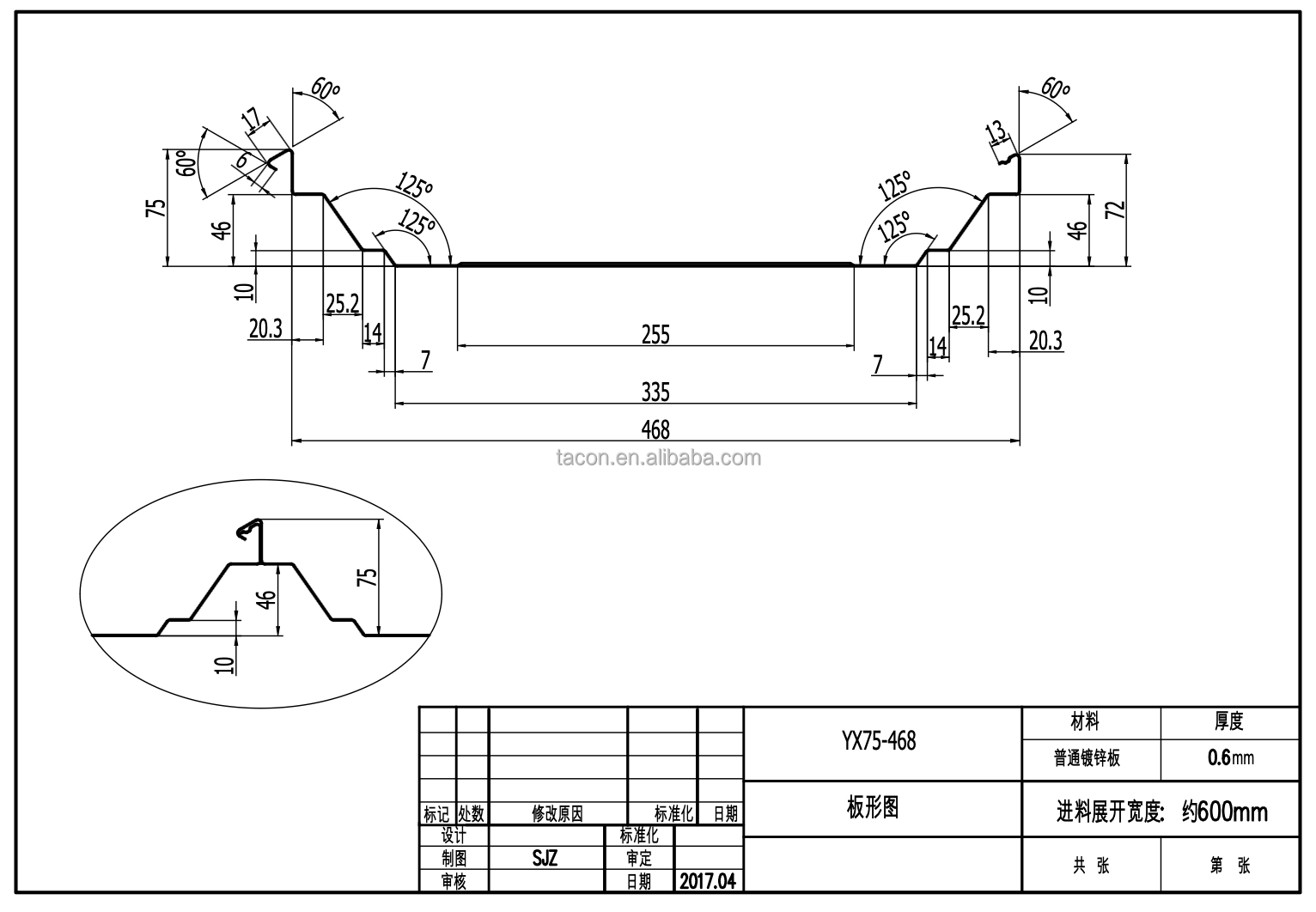

Profile Drawing
* Material Thickness: 0.3-0.8mm
* Effective width: 468mm
* Feeding width: 600mm
* Material: GI. GL. PPGI & PPGL

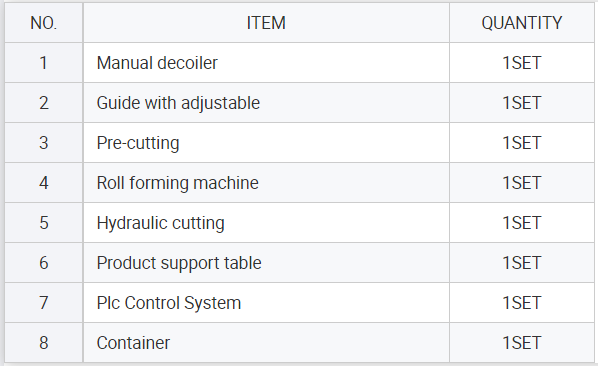

Machine Components
Work Flow
Decoiler→Guide with Adjustable →Pre-cutting→Roll forming machine → Hydraulic cutting → Product Support Table
FEATURES AT A GLANCE
Ⅰ Manual Decoiler
Ⅱ Guide with Adjustable
Ⅲ Pre-cutting
used for cutting last piece

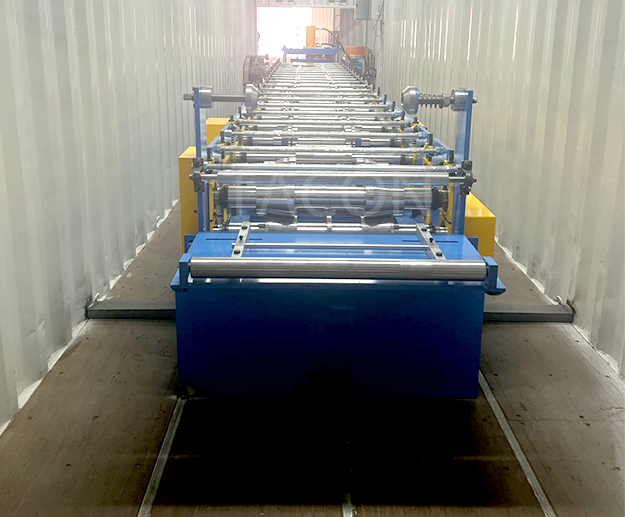

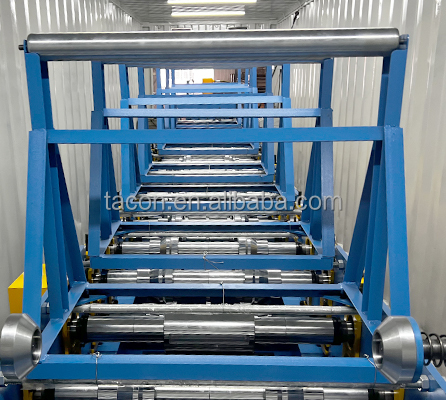

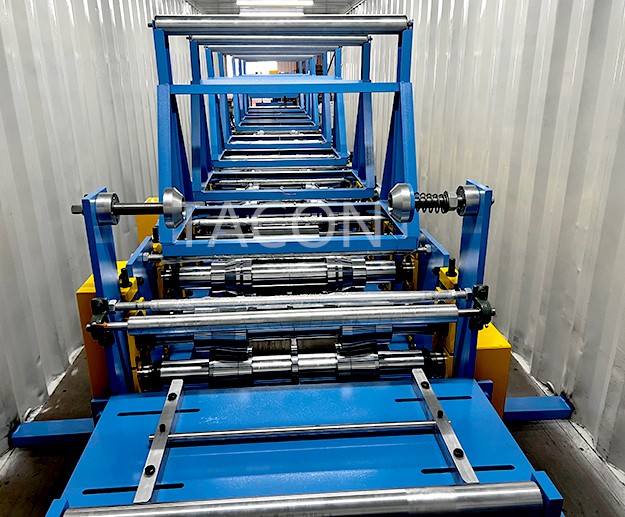

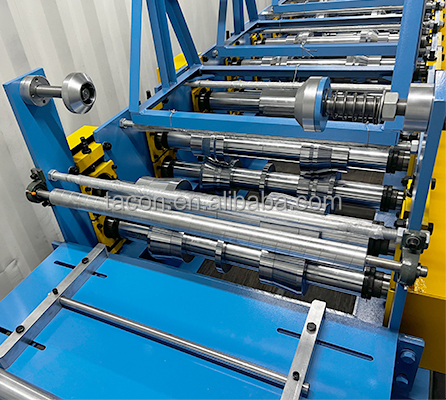

Ⅳ Roll forming Machine
※Main Moter: Frequency Motor
※ Main motor: 7.5KW
※ Roll forming Speed: 15-20m/min
※ Roll materal : 45# (heat Treatment and the surface of shaft is chroming,)
※ Stations:19
※ Main Shaft Material：45#
※ Main Shaft Diameter: ø70mm

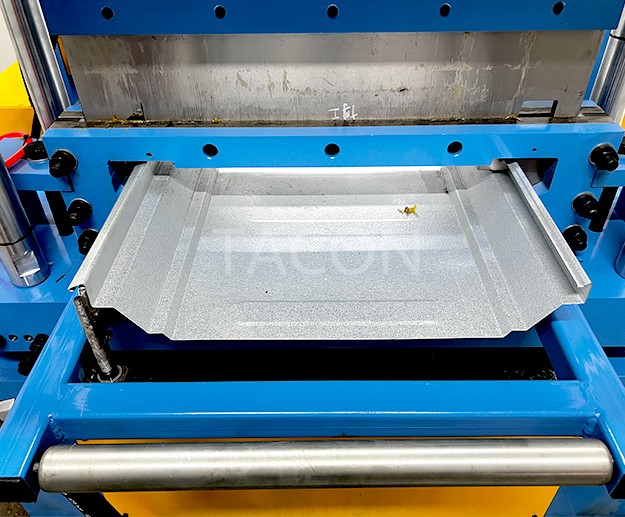

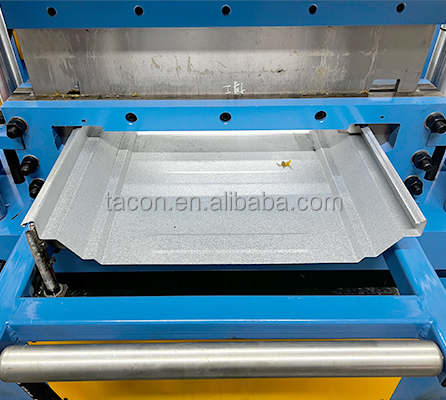

Ⅴ Hydraulic cutting
※ Cutting type: hydraulic cutting
※ Hydraulic power：3.0KW
※ Cutter Material: Cr12

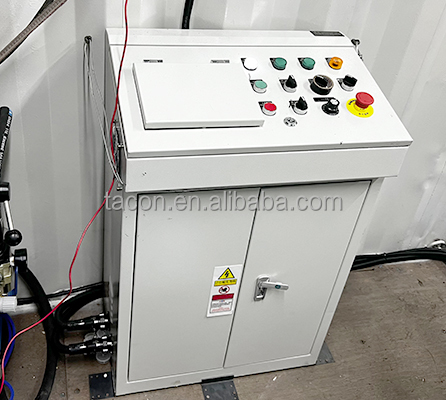

Ⅵ PLC Control System
※ Voltage: 415V 3 Phase 50Hz
※ Length Tolerance： +/- 2mm
※ PLC Size：700mm(L)x1000mm(H)x300mm(W)
※ Plc Manufacturer: Panasonic
※ Frequency: Delta
※ Hydraulic Value: Beijing Huade
※ cylinder: TAIWEI
※ pipe: Omar
※ Touchscreen: Panasonic
※ Encoder: Omron
Ⅶ Product Support Table

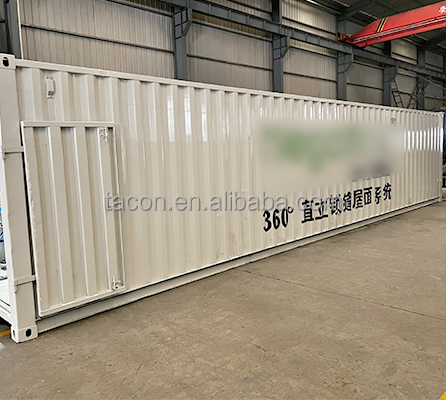

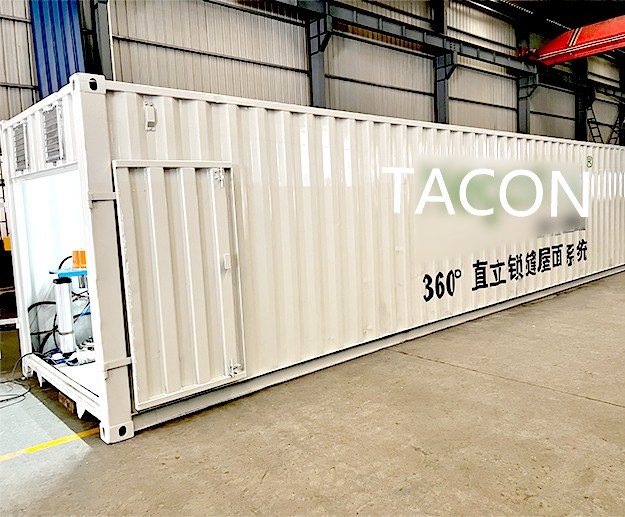

Ⅷ Container
