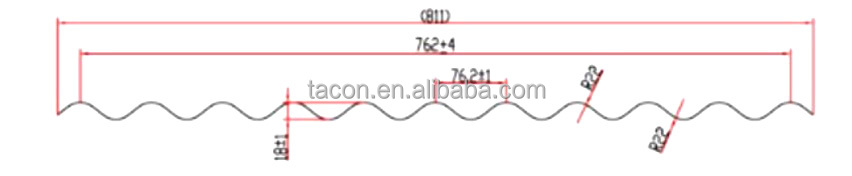

Profile Drawing
1) Material：Galvanized coil, Zincalume coil and PPGL coil
2) Thickness：0.24-0.4mm
3) Yield strength: G550Mpa
4) Raw Material width：914mm

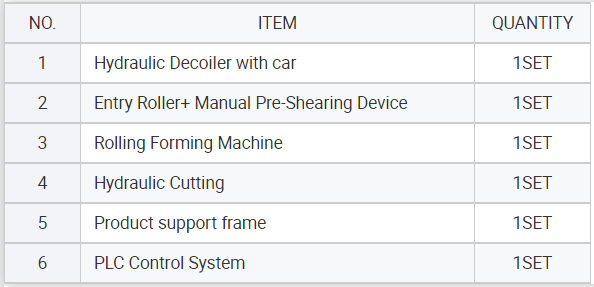

Machine Components
Flow Chart
Hydraulic Decoiler →Entry Roller+Manual Pre-Shearing Device→ Rolling Forming Machine→ Hydraulic Cutting→ Product Support Frame
FEATURES AT A GLANCE

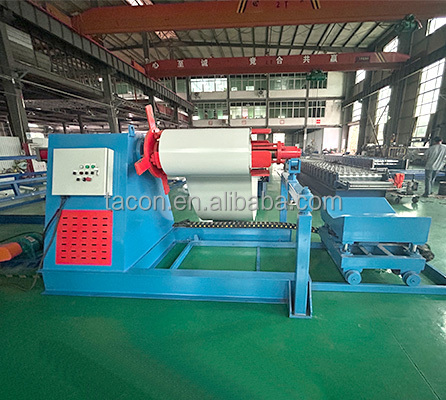

Ⅰ Hydraulic Decoiler with car
A. Decoiler type: Hydraulic decoiler
B. Weight capacity of decoiler: 6.0 T
C. Inner diameter of decoiler: 510+/-30mm
D. Max outer diameter of decoiler: 1500mm
E. Automatic Motor: 3KW
Ⅱ Entry Roller+ Manual Pre-Shearing Device
Pre-shearing to cut off the end of the final piece of sheet only

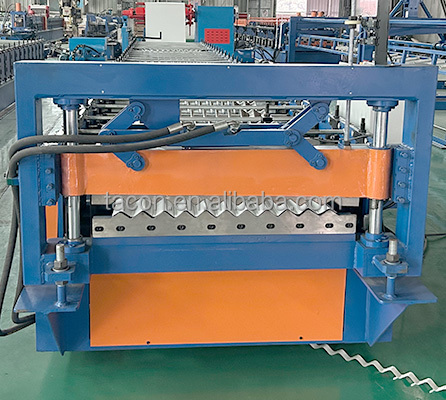

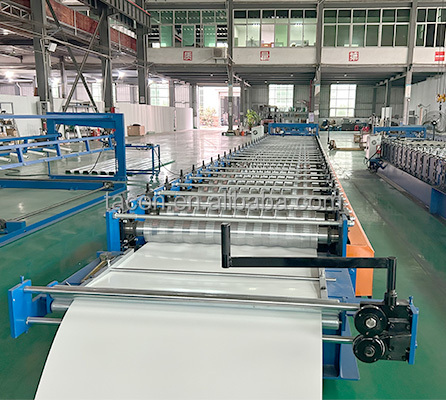

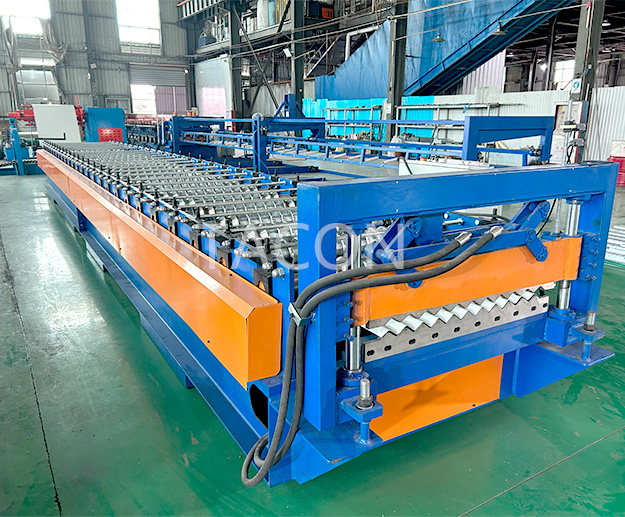

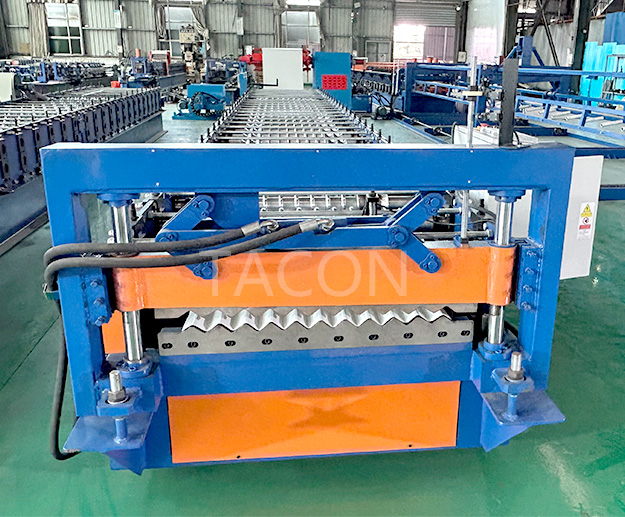

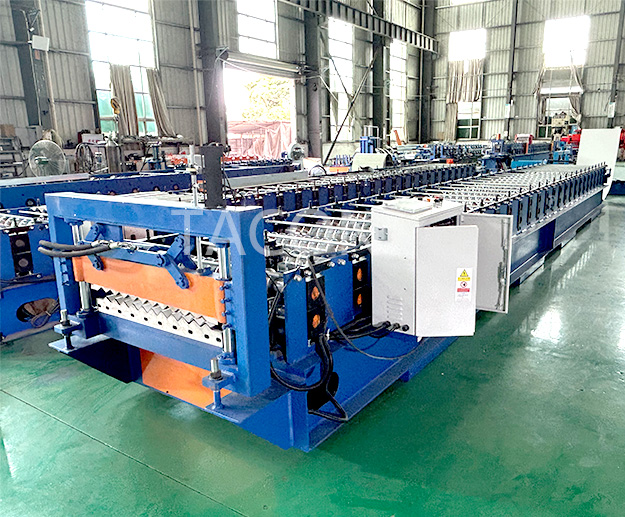

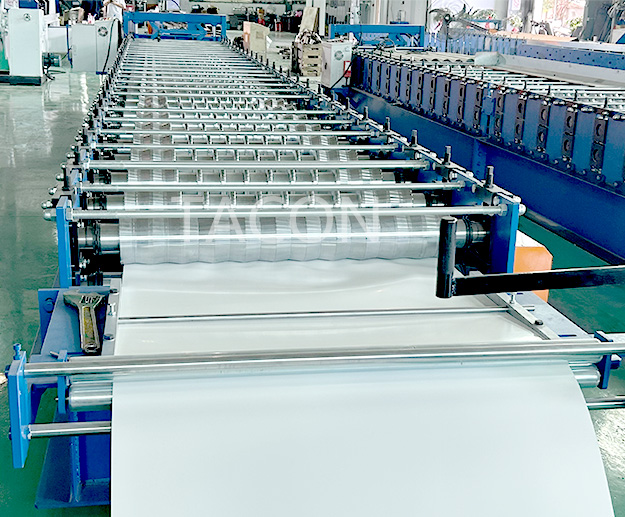

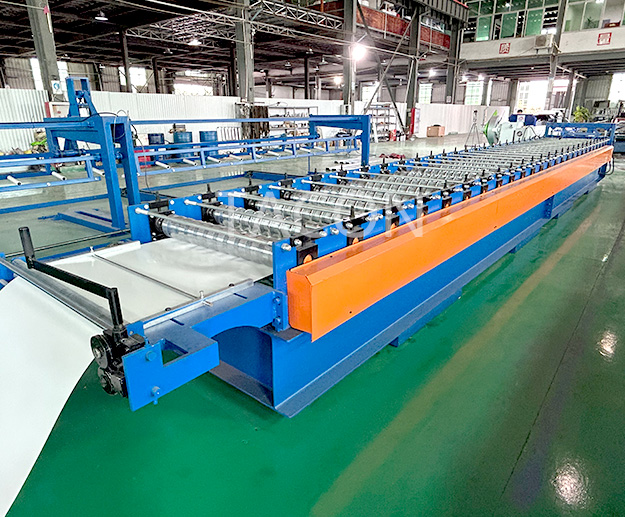

Ⅲ Roll forming Machine
A. Roll forming speed: 15-18m/min
B. Shafts diameter: Φ75/95mm
C. Wall plate thickness: 18mm
D. Main motor: 7.5KW
E. Rollers material: 40Cr

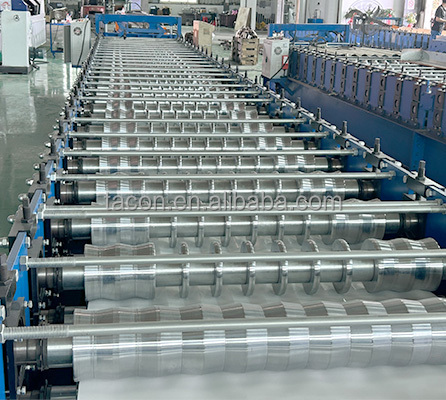

F. Roller groups: 22 Stations
G. from the floor to the frame: 250mm
H. Machine will have protective cover
Ⅳ Hydraulic Cutting
A. Hydraulic Motor power: 3.0KW
B. Cutting material: Cr12
C. Hydraulic valves HUADE brand
D. Cutter material: Cr12Mov

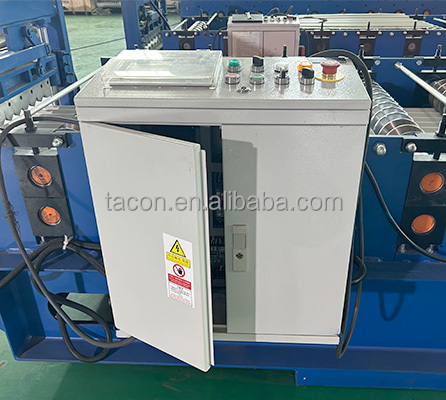

Ⅴ PLC control system
A. Control quantity and length automatically
B. Touch screen: MITSUBISHI
C. PLC: MITSUBISHI
D. Relay: Schneider
E. Encoder : Omron
F. Frequency: TAIDA
G. Length tolerance : ±2mm
H. Voltage : 480v 60HZ 3phase
