Product details

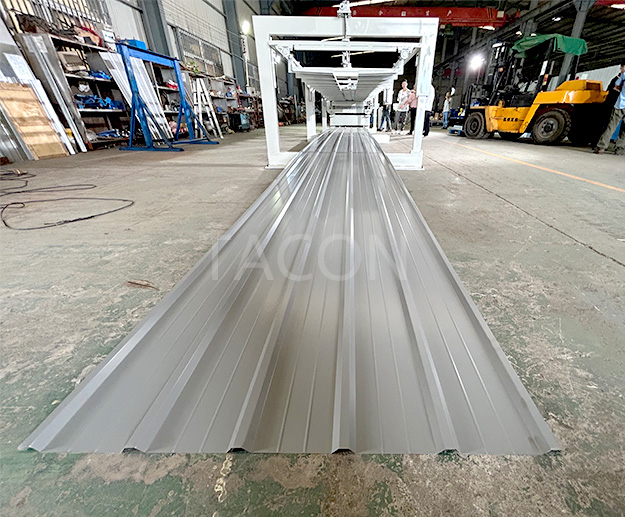

Profile Drawing

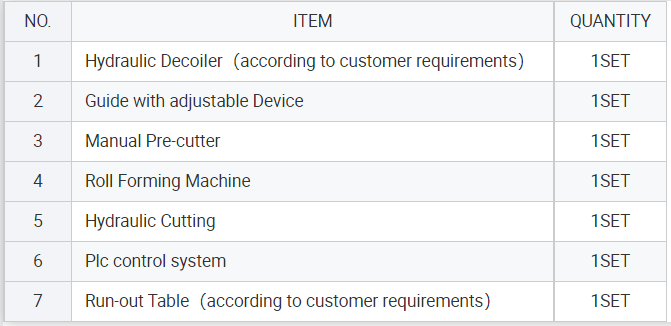

Machine Components

Machine Flow

HydraulicDecoiler→Feeding And Leveling Device→ Manual Pre-cutter→ Roll Forming Machine→ Hydraulic Cutting →Run-out Table

FEATURES AT A GLANCE

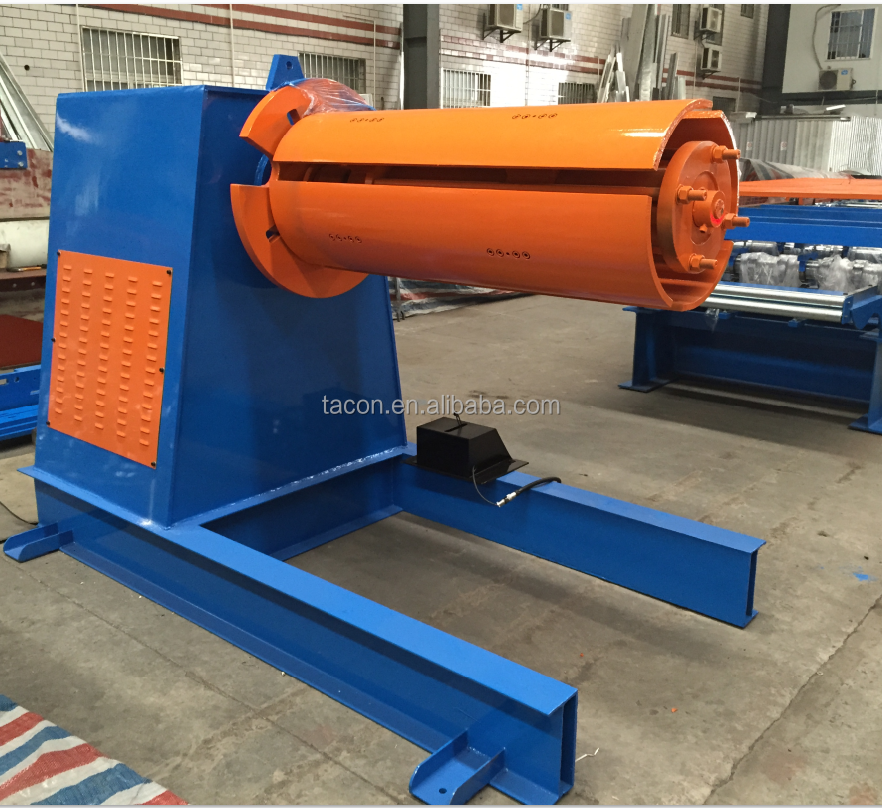

Ⅰ Hydraulic Decoiler

1.Un-coiler Type: Hydraulic Fasten
2.Weight capacity of Un-coiler: 5.0T
3.Coil Width Max: 1250mm
4.Diameter of Inner: 508±30mm
5.Diameter of Outer: 1300mm

Ⅱ Guide with adjustable Device

It is used for guide and levelling when coil come into Roll forming Machine.

Ⅲ Manual Pre-cutter

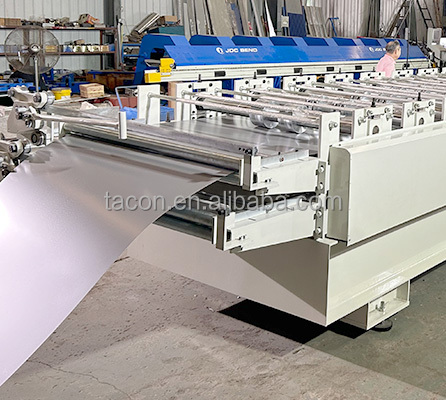

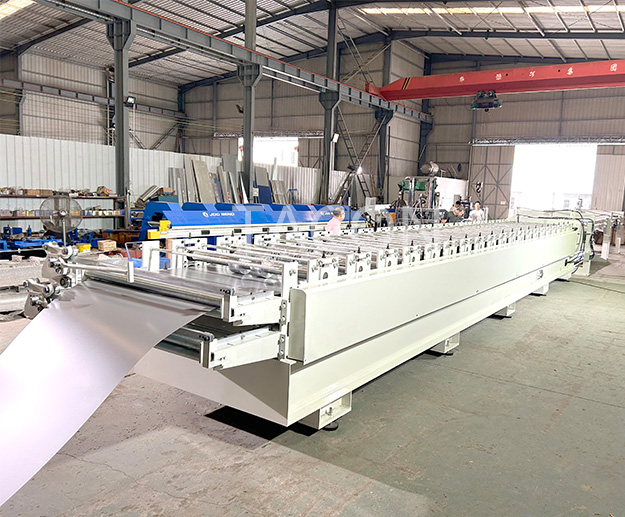

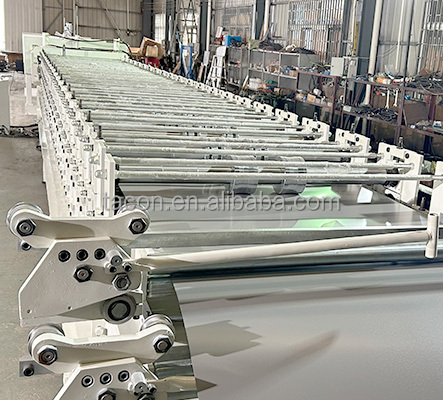

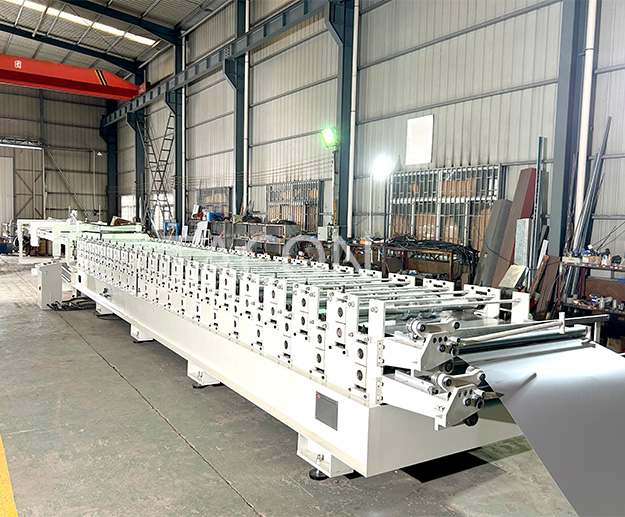

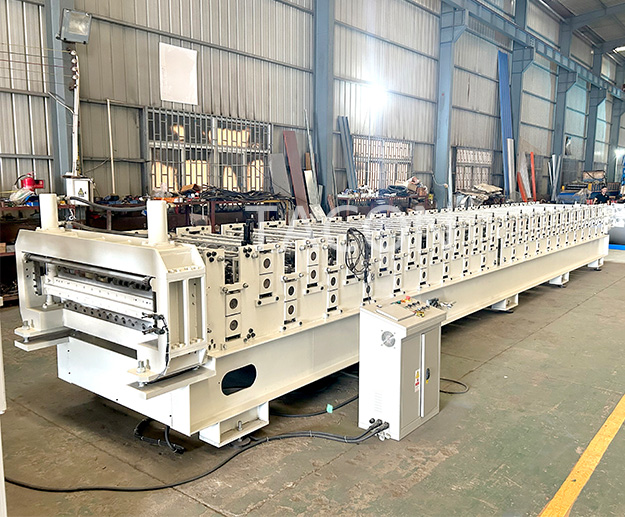

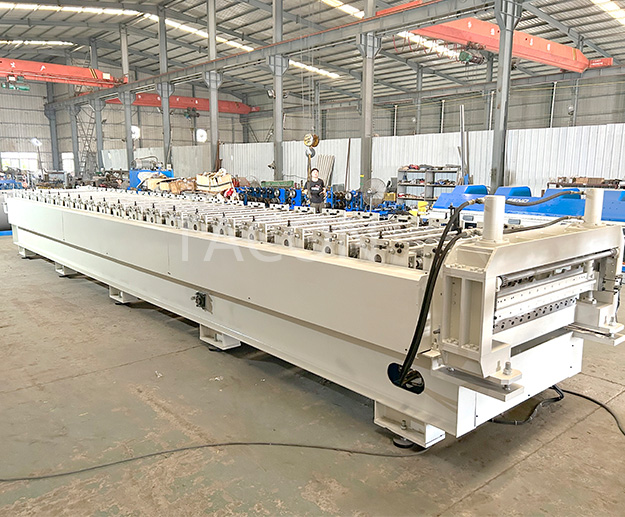

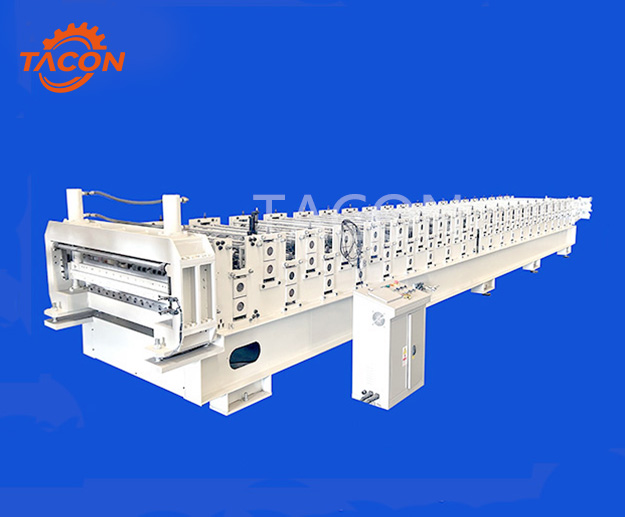

Ⅳ Rolling Forming Machine

1.Motor Type: Frequency Motor
2.Main motor power: 11KW
3.Wall-Plate-Frame design: 18mm
4.Machine frame: H450
5.Speed of forming: 15m/min, Frequency Speed Control
6.Rollers Manufactured from 45#, CNC Lathes, hard Chrome Coated

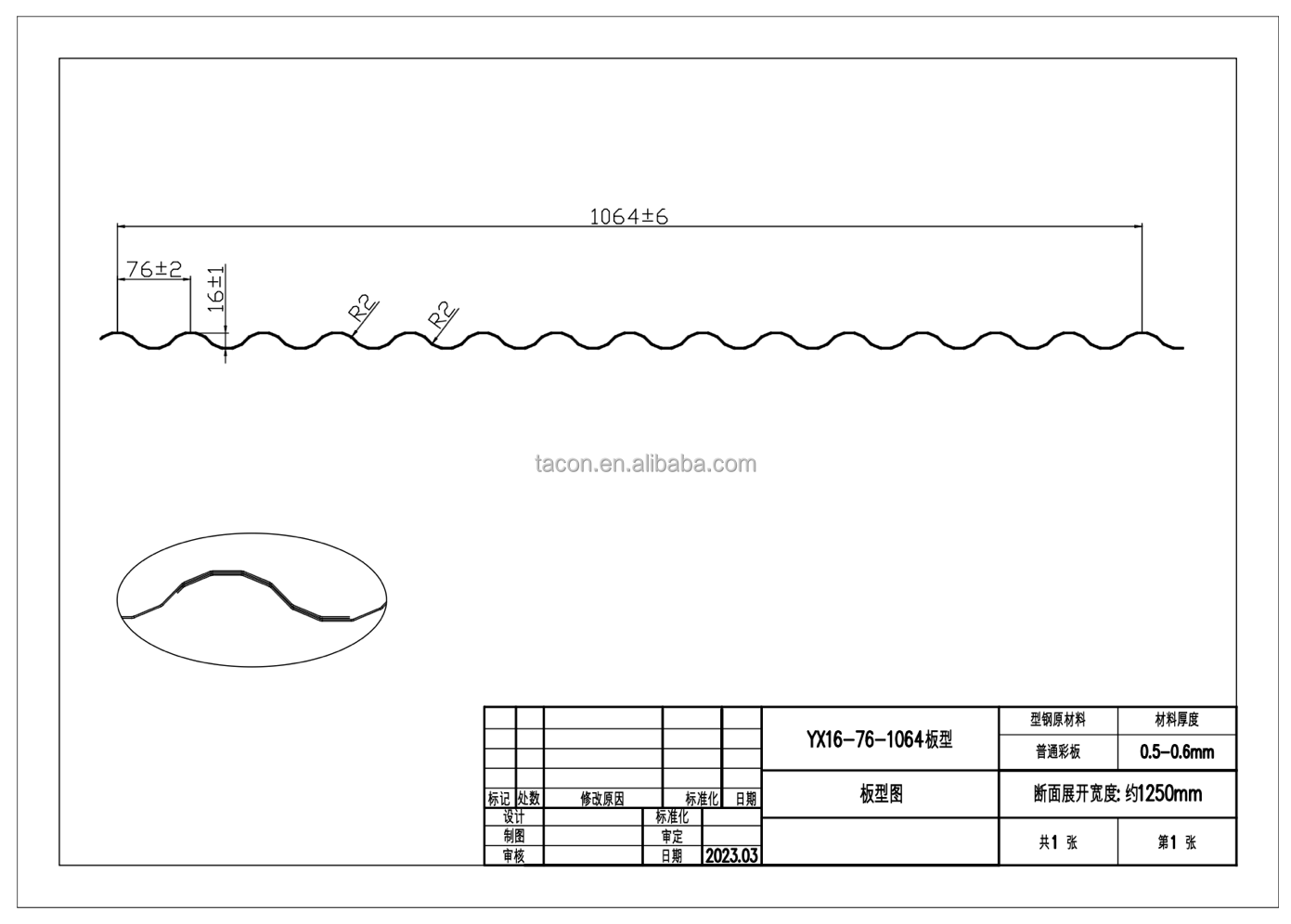

7.Up layer YX16-76-1064 Rollers: 20 Stations

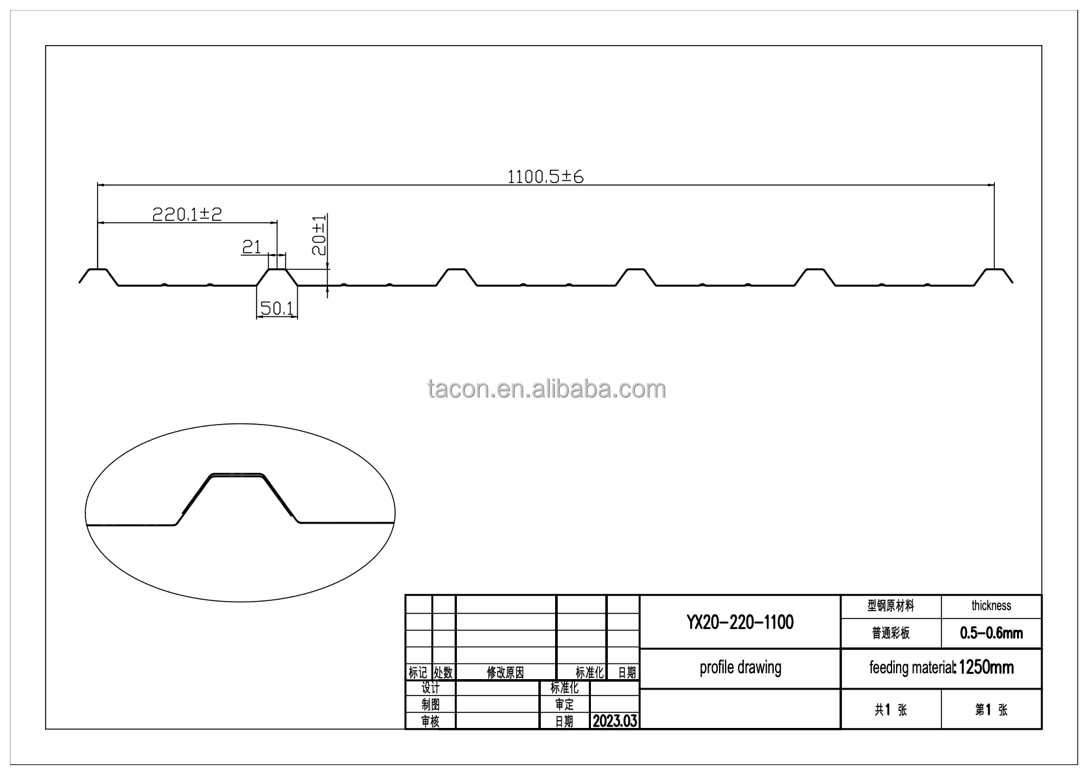

8.Down Layer YX20-220-1100 Rollers: 20 stations
9.Material of main shaft: 45#
10.Diameter of main shaft: ø75/90mm

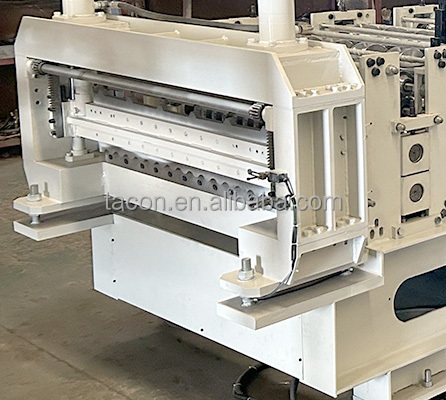

Ⅴ Hydraulic Cutting

1.Cutting type: Hydraulic Cutting
2.Cutting material: Cr12, Heat Treatment
3.Hydraulic motor power: 4.0KW

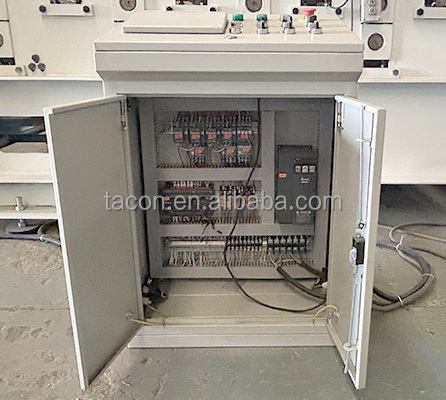

Ⅵ PLC Control System

1.Control the quantity & cutting length automatically
2.The Machine will be stopped while cutting
3.Automatic Length and punching and quantity counting (precision+/- 2mm)
4.Voltage: 380V, 3 Phase 50Hz
5.PLC manufacturer: SIEMENS6. Control Voltage: 24V
