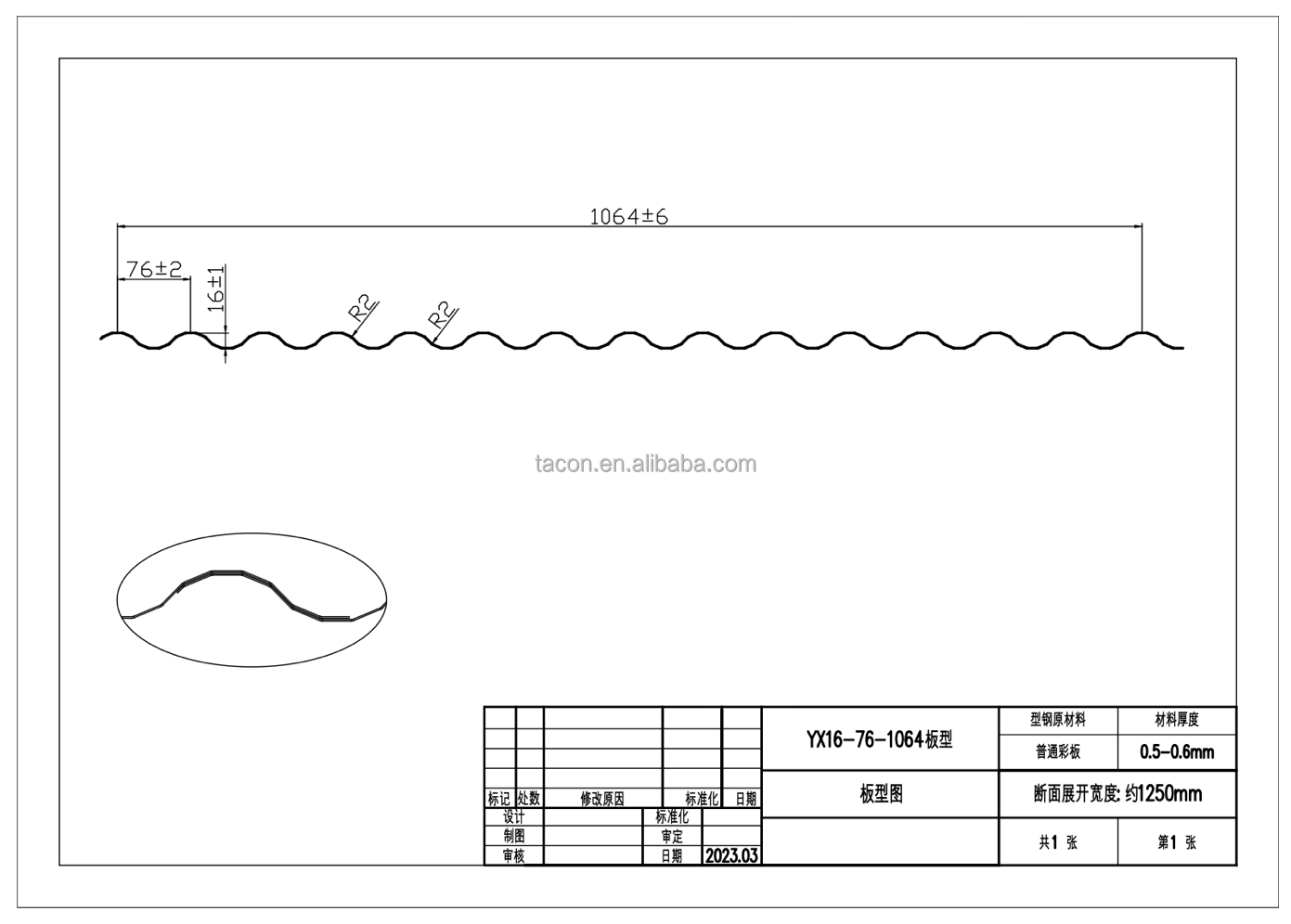

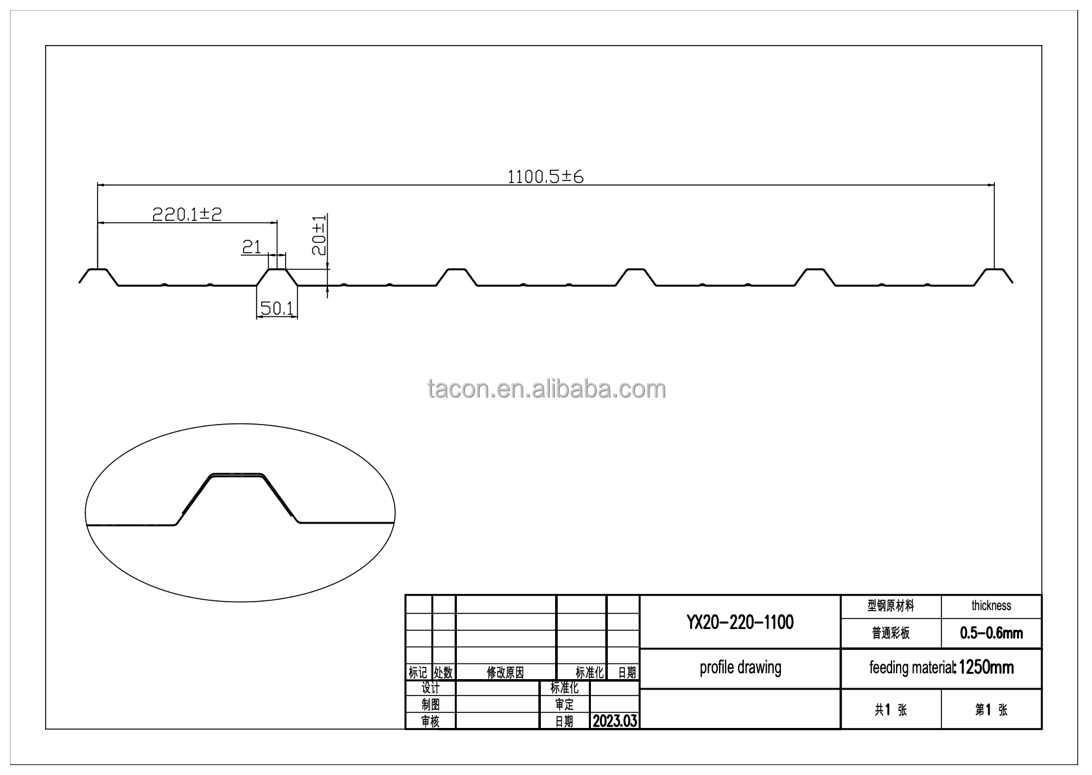

Profile Drawing
Material：color coated steel sheet, galvanized steel sheet Yield strength: Q235-350Mpa

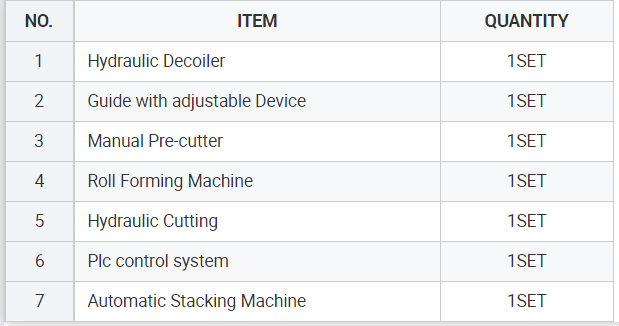

Machine Components
Our products can be customized according to your requirements.
Machine Flow
Hydraulic Decoiler→Feeding And Leveling Device→ Manual Pre-cutter→ Roll Forming Machine→ Hydraulic Cutting →Automatic Stacking Machine
FEATURES AT A GLANCE
Ⅰ Hydraulic Decoiler with car
A. Decoiler type: Hydraulic decoiler
B. Weight capacity of decoiler: 6.0 T
C. Inner diameter of decoiler: 510+/-30mm
D. Max outer diameter of decoiler: 1500mm
E. Automatic Motor: 3KW
Ⅱ Guide with adjustable Device
It is used for guide and levelling when coil come into Roll forming Machine.
Ⅲ Manual Pre-cutter

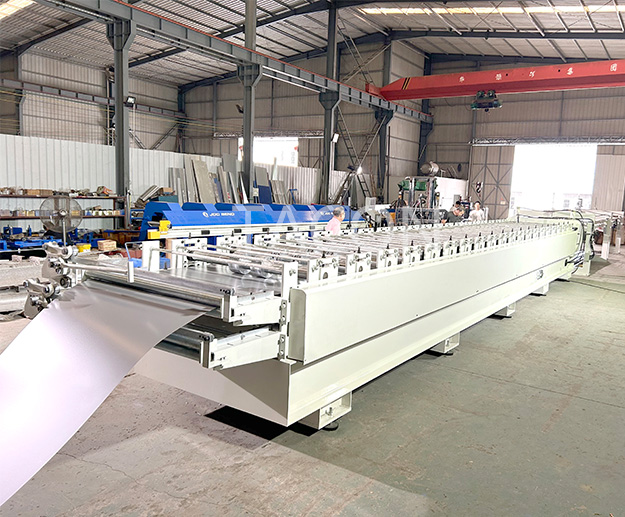

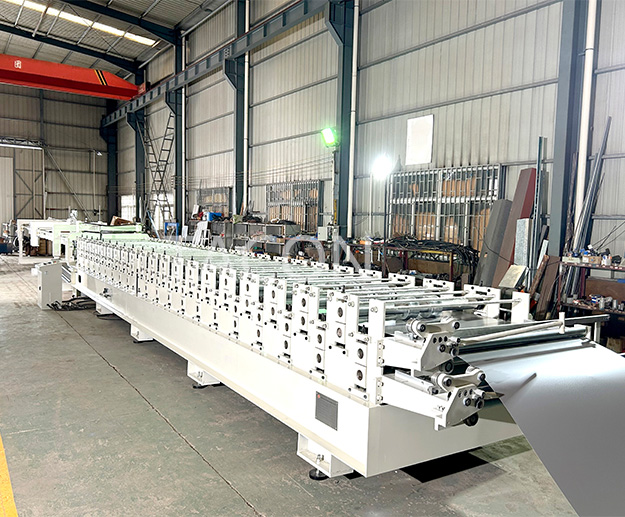

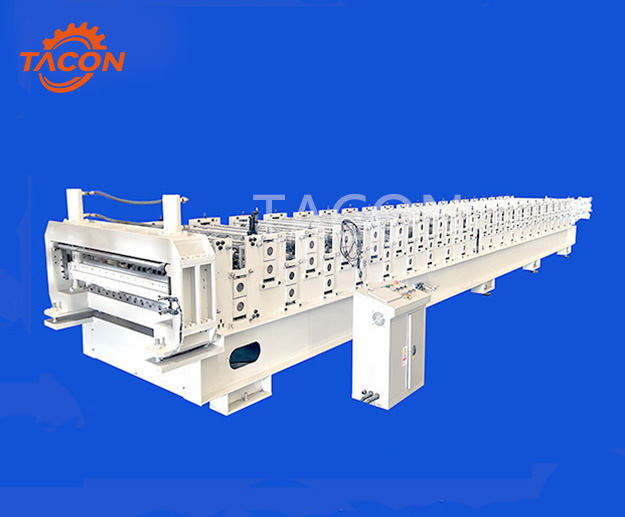

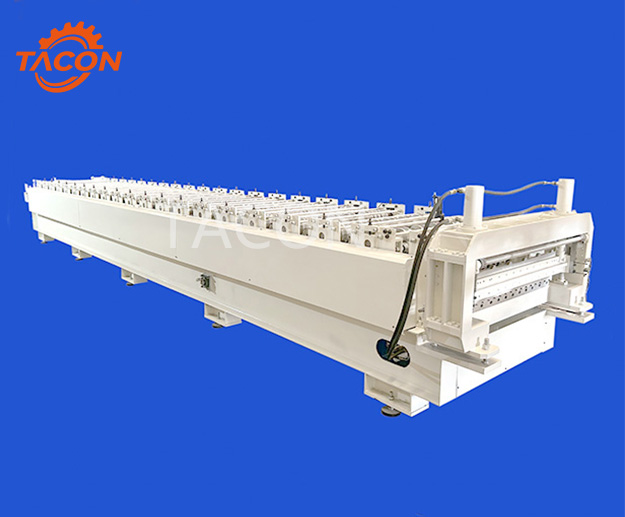

Ⅳ Rolling Forming Machine
1.Motor Type: Frequency Motor
2.Main motor power: 11KW
3.Wall-Plate-Frame design: 18mm
4.Machine frame: H450
5.Speed of forming: 15m/min, Frequency Speed Control
6.Rollers Manufactured from 45#, CNC Lathes, hard Chrome Coated
7.Up layer YX30-171-1025 Rollers: 20 Stations
8.Down Layer YX19-102.5-1025 Rollers: 20 stations
9.Material of main shaft: 45#
10.Diameter of main shaft: ø75/90mm

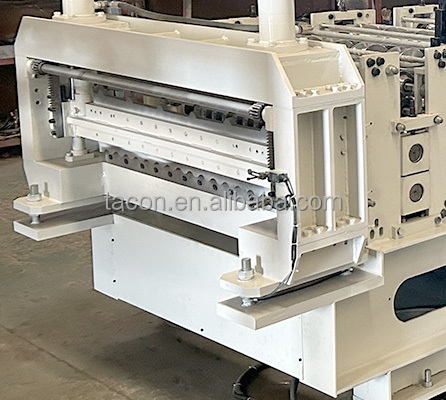

Ⅴ Hydraulic Cutting
1.Cutting type: Hydraulic Cutting
2.Cutting material: Cr12, Heat Treatment
3.Hydraulic motor power: 4.0KW
Ⅵ PLC control system
1.Control the quantity & cutting length automatically
2.The Machine will be stopped while cutting
3.Automatic Length and punching and quantity counting (precision+/- 2mm)
4.Voltage: 380V, 3 Phase 50Hz
5.PLC manufacturer: SIEMENS6. Control Voltage: 24V

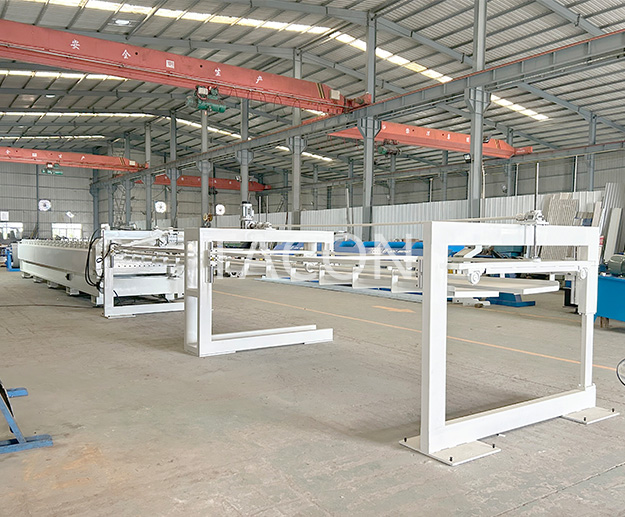

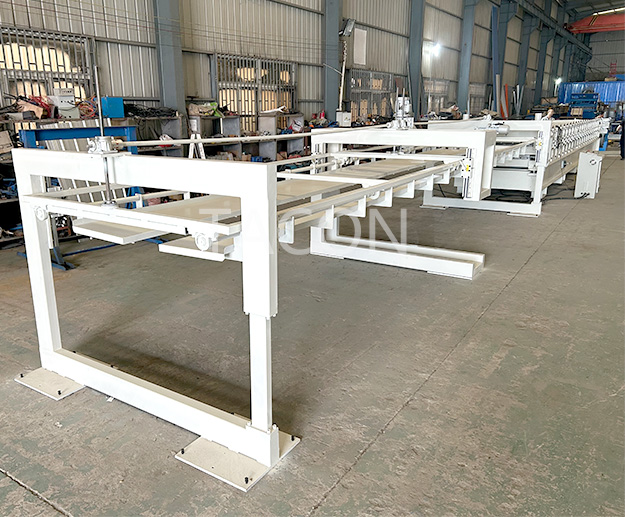

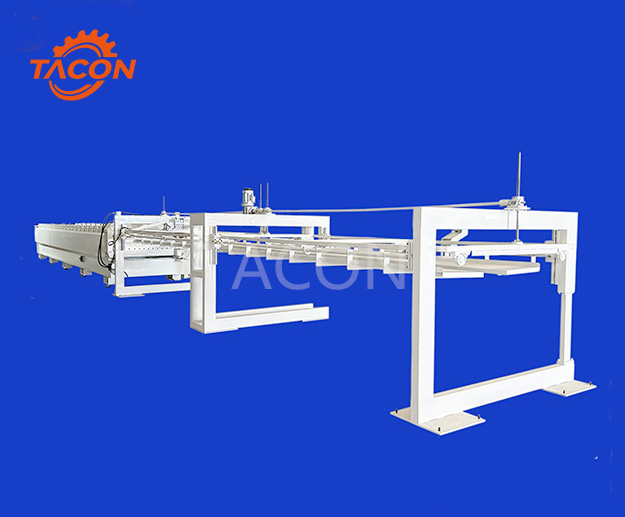

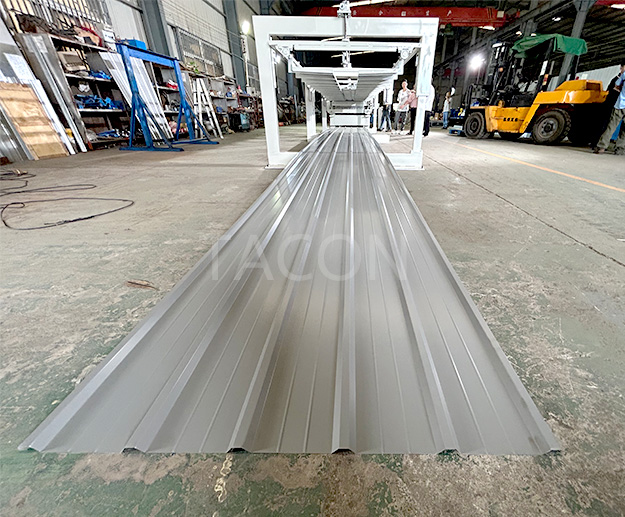

Ⅶ Automatic Stacking Machine(8M)
Height can be adjusted up and down by press button
