Product details

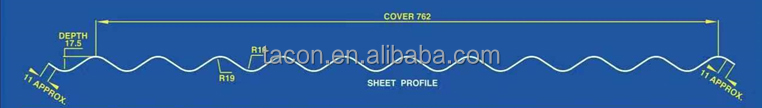

Profile Drawing

Our products can be customized according to your requirements.

1) material：color coated steel sheet, galvanized steel sheet,

2) Thickness：0.4-0.6mm
3) Yield strength: G550Mpa

4) Feeding width：1000mm

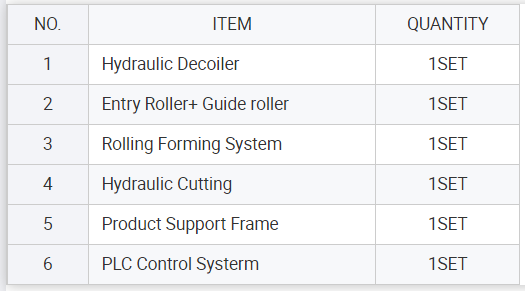

Machine Components

Our products can be customized according to your requirements.

Flow Chart

Manual Decoiler→Entry Roller+ Guide roller→ Rolling Forming System→ Hydraulic Cutting→ Product Support Frame

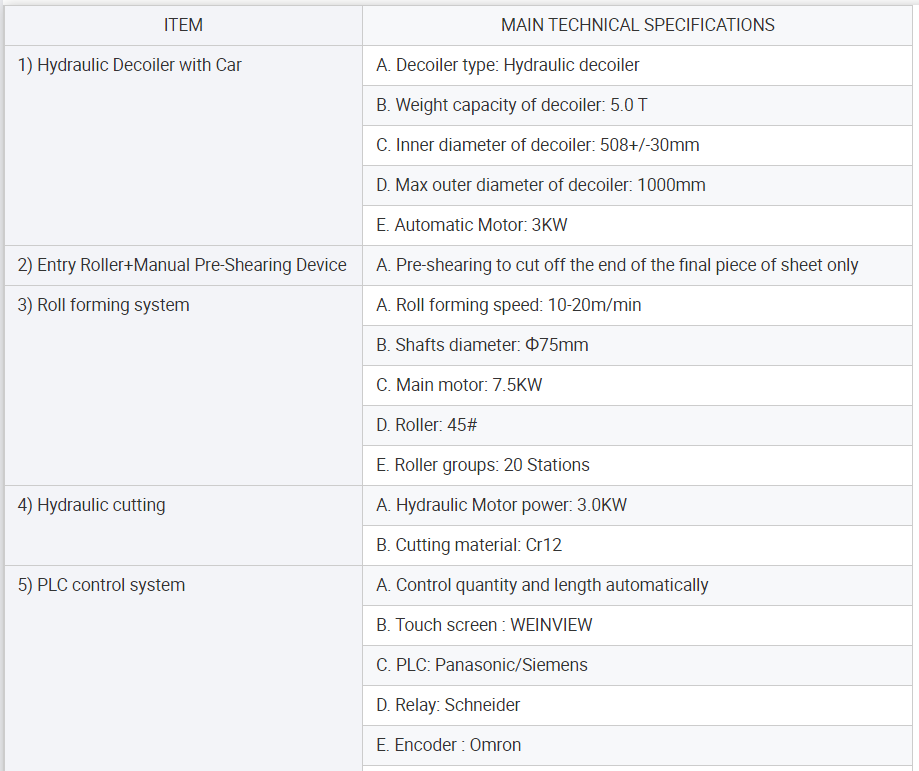

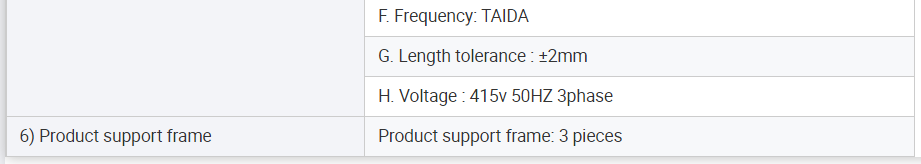

PRODUCT SPECIFICATIONS
