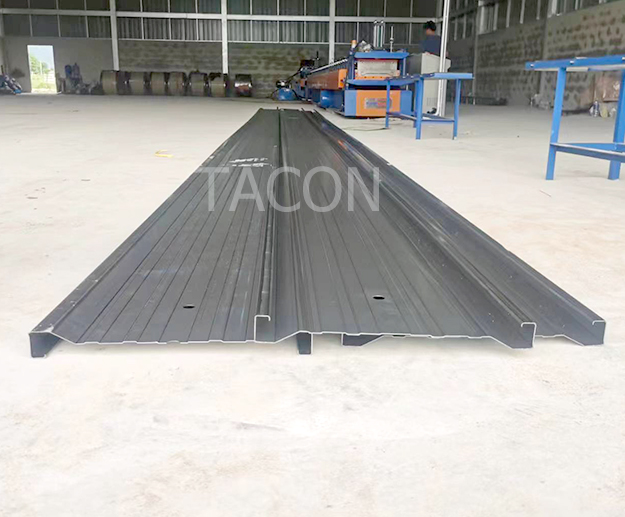

Profile Drawing
* Coil material：color coated steel sheet, galvanized steel sheet,
* Yield strength: G360Mpa
* Thickness：1.5mm
* Test thickness: 1.5mm
* Effective Width: 445mm and 480mm

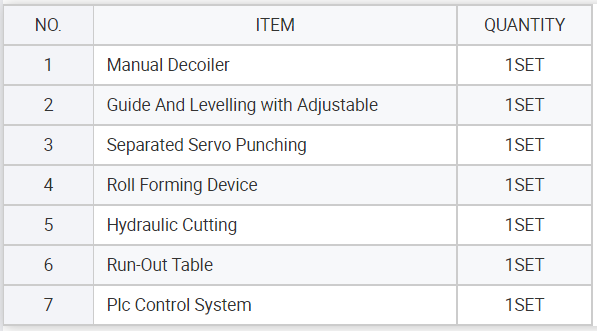

Machine Components
Our products can be customized according to your requirements.
Machine Flow
Manual Decoiler→ Guide and levelling with Adjustable + Servo Punching → Rolling Forming Device→ Hydraulic Cutting→ Product Support Frame
FEATURES AT A GLANCE
ⅠManual Decoiler
* Un-coiler Type: Manual
* Weight capacity of Un-coiler : 5.0T
* Diameter of Inner: 508±30mm
Ⅱ Guide and levelling with Adjustable
Ⅲ Separated Servo Punching

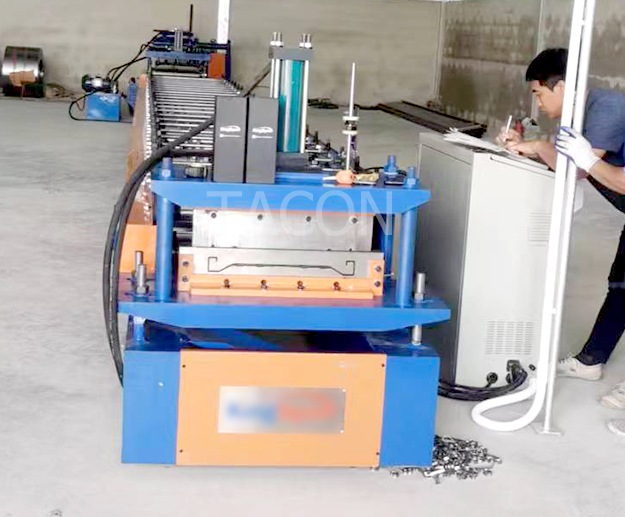

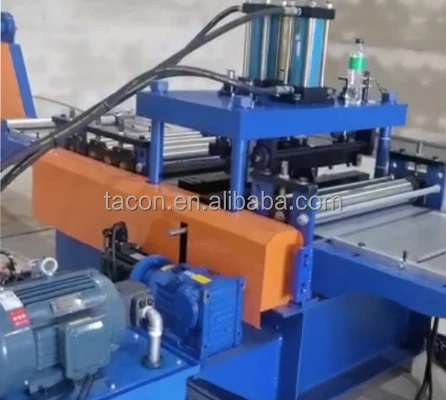

Ⅳ Rolling Forming Machine
Ⅴ Feeding Section with guide
* main motor power: 15KW
* Wall-Plate-Frame design 18mm
* Drive: chain
* speed of forming: 15-20m/min, Frequency Speed Control
* Rollers Manufactured from 45#, CNC Lathes, hard Chrome Coated
* rollers: 24 Stations
* Bearing: HRB
* material of main shaft: 40Cr
* diameter of main shaft: ø75mm

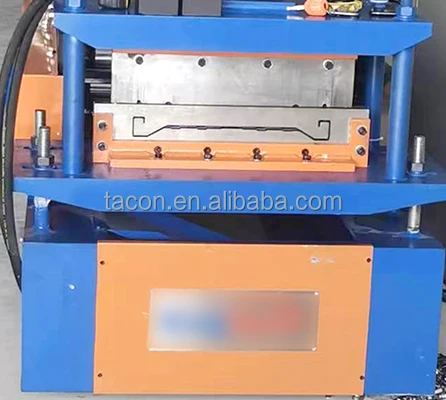

Ⅶ Hydraulic Cutting
* Cutting type: Hydraulic cutting
* Cutting material: Cr12, Heat Treatment
* Hydraulic motor power: 3.0 KW
Ⅷ PLC Control System
Control the quantity &punching length& cutting length automatically
* PLC Control Board Screen shall be with PC Transparent Material protection
* The Machine will be stopped while it is punching and cutting
* Automatic Length and punching and quantity counting (precision+/- 2mm)
* Voltage: 380V, 3 Phase 50Hz
* PLC manufacturer: Panasonic
* Solenoid valve: huade
* Oil hydraulic cylinder: HUADE
* frequency converter: Panasonic or Delta
* Control Voltage: 24V
Ⅸ Run-out table
Un-Powered, 6mx2
