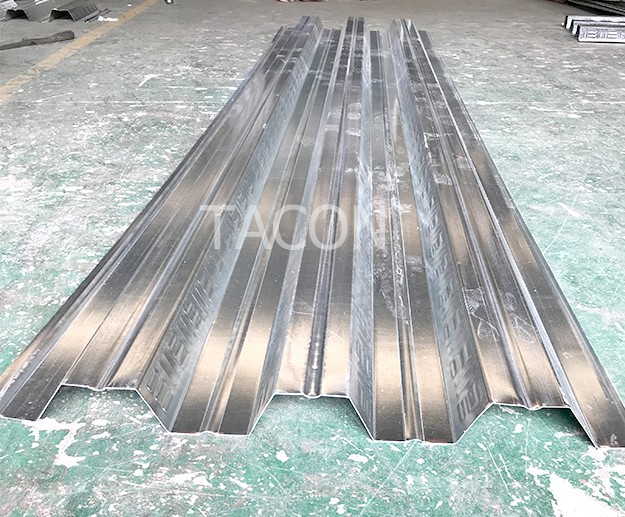

Profile Drawing

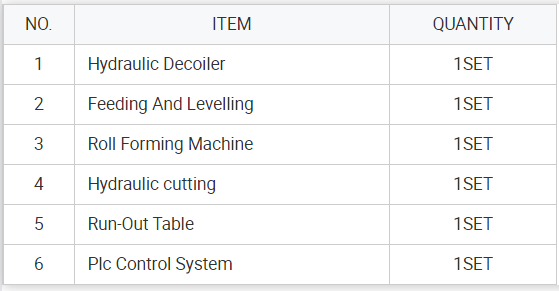

Machine Components
Machine Flow
Hydraulic Decoiler→ Feeding And Leveling Device→ Rolling Forming Device→ Hydraulic Cutting→ Product Support Frame
FEATURES AT A GLANCE
Ⅰ Manual Un-coiler
A. Un-coiler Type: Hydraulic
B. Weight capacity of Un-coiler : 8.0T
C. Coil Width Max: 1250mm
D. Diameter of Inner: 508±30mm
E. Decoiler will be have arm

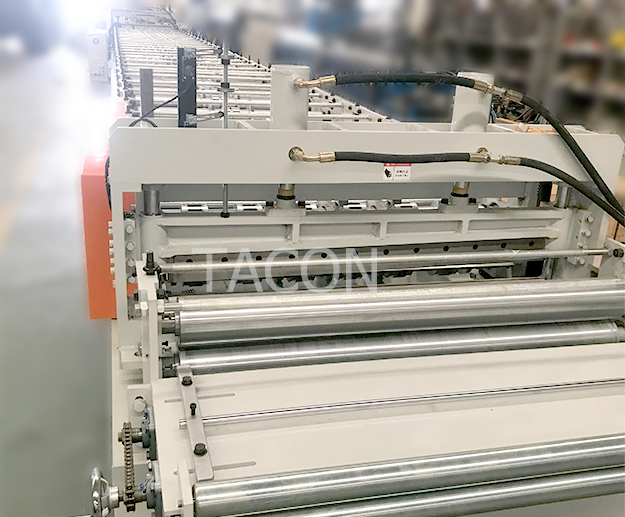

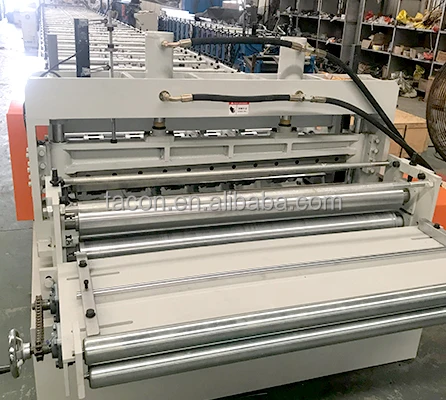

Ⅱ Feeding And Levelling Device

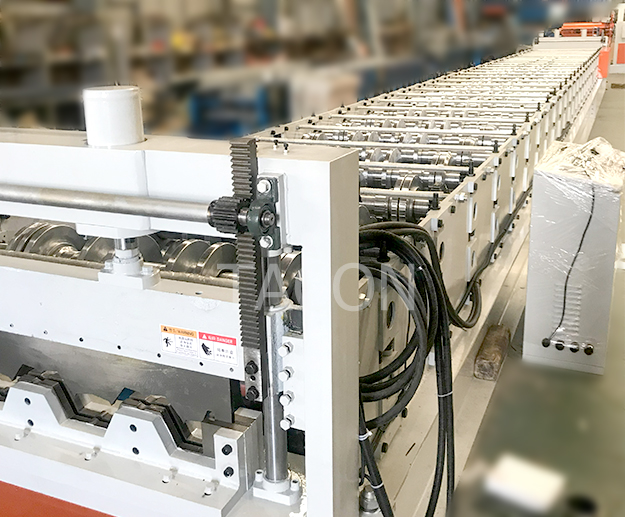

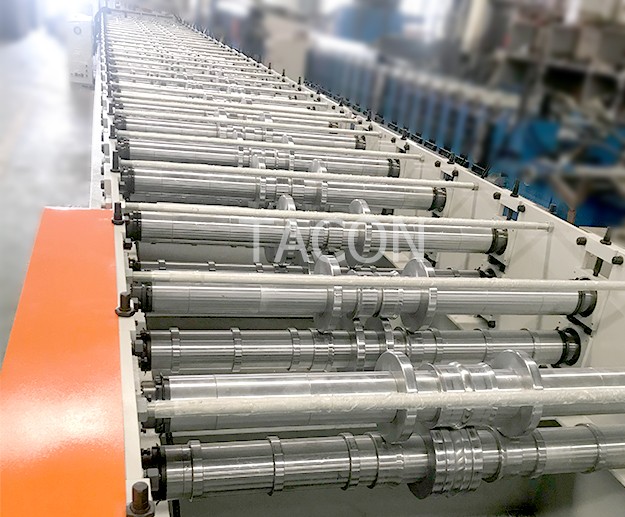

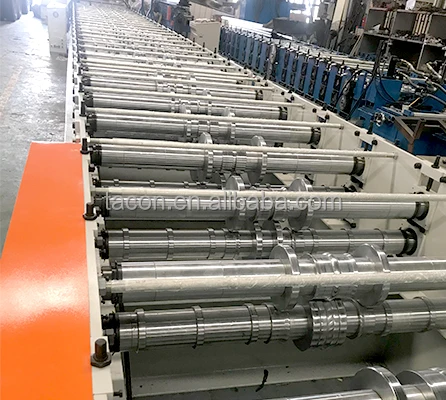

Ⅲ Rolling Forming Machine
A. Feeding Section with guide
B. main motor power: 15KWX2
C. Wall-Plate-Frame design

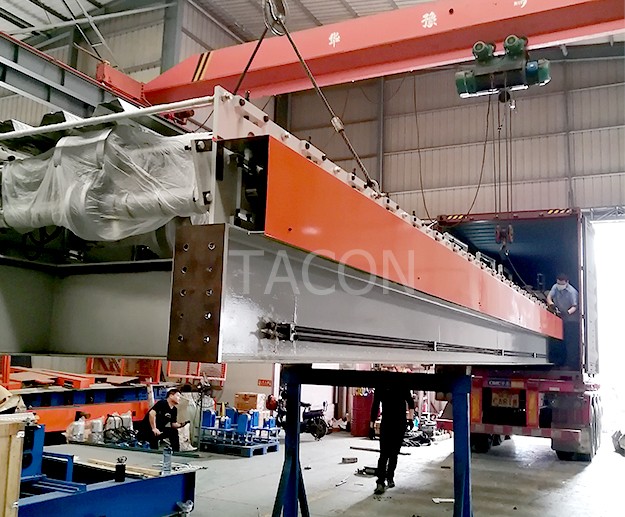

D. H beam: H450mm
E. speed of forming: 15-18m/min, Frequency Speed Control
F. Rollers Manufactured from 45#, CNC Lathes, hard Chrome Coated
G. rollers: 24 Stations
H. Bearing: HRB (It is China famous brand)
I. material of main shaft: 40Cr
J. diameter of main shaft: ø95mm

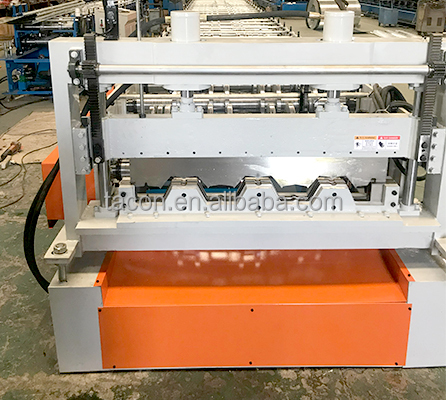

Ⅳ Hydraulic Cutting Device
A. Cutting type: Hydraulic cutting
B. Cutting material: Cr12, Heat Treatment
C. Hydraulic motor power: 5.5 KW

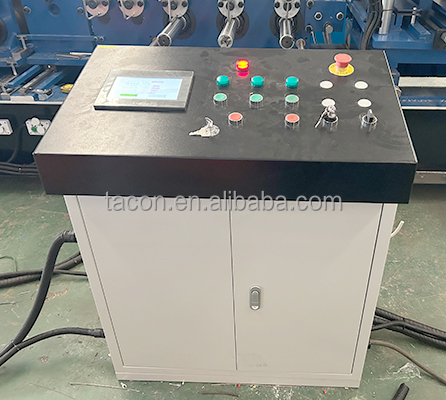

Ⅴ PLC Control System
A. Control the quantity &punching length& cutting length automatically
B. PLC Control Board Screen shall be with PC Transparent Material protection
C. The Machine will be stopped while it is punching and cutting
D. Automatic Length and punching and quantity counting (precision+/- 2mm)
E. Voltage: 380V, 3 Phase 50Hz
F. Control Voltage: 24V

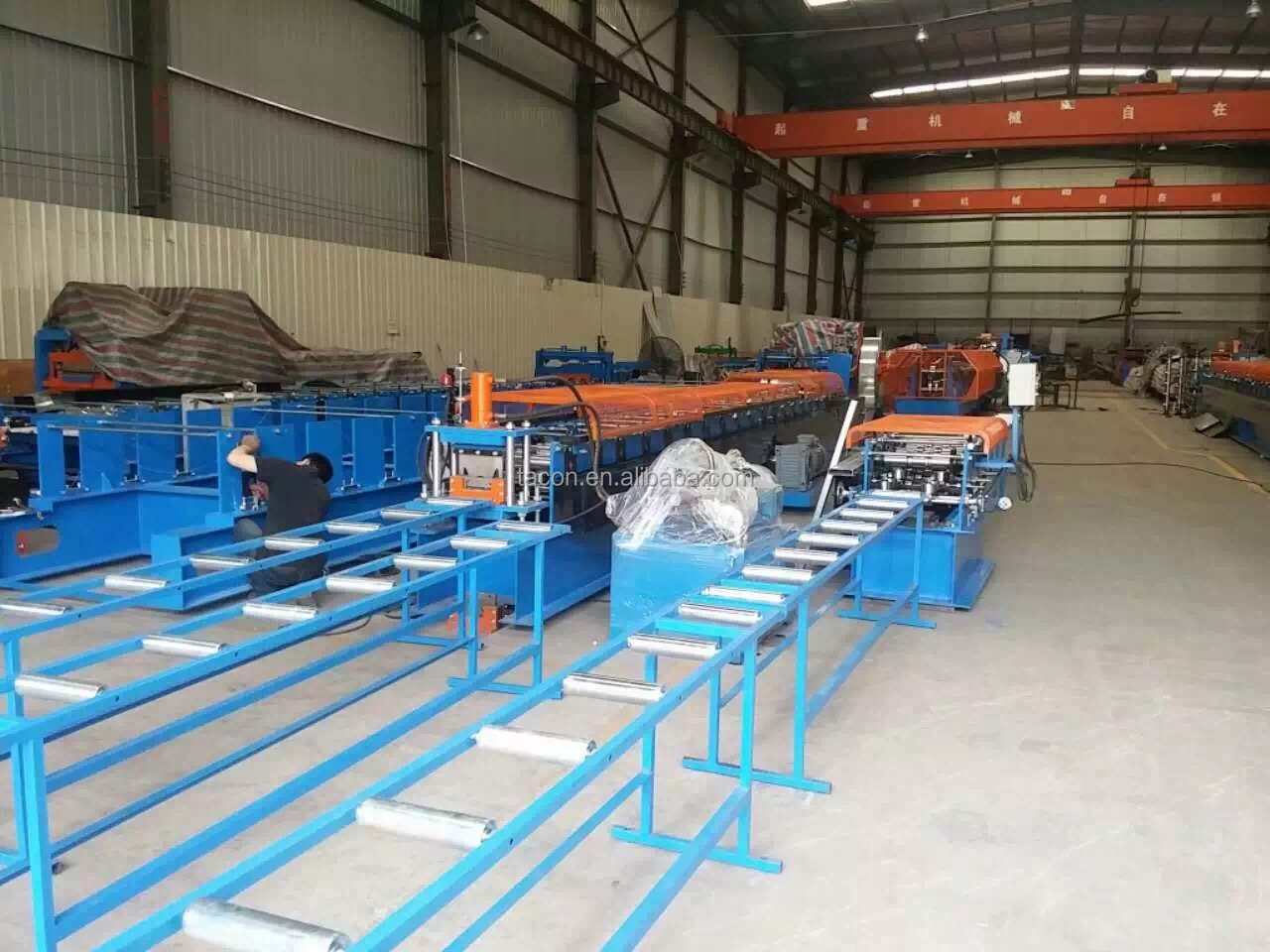

Ⅵ Run-out table
A. Un-Powered, thr ee units
