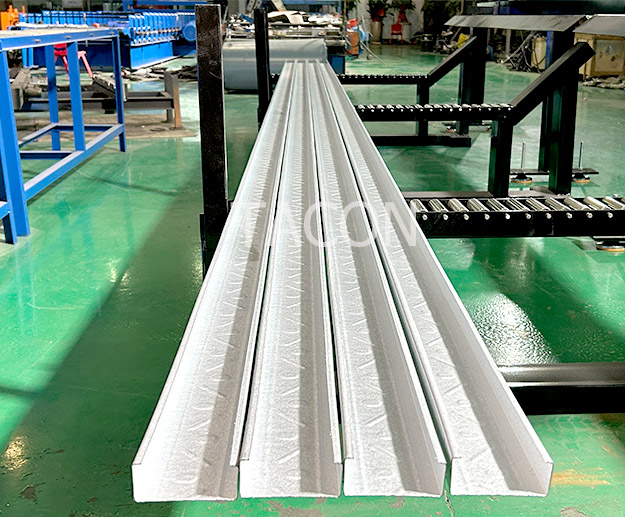

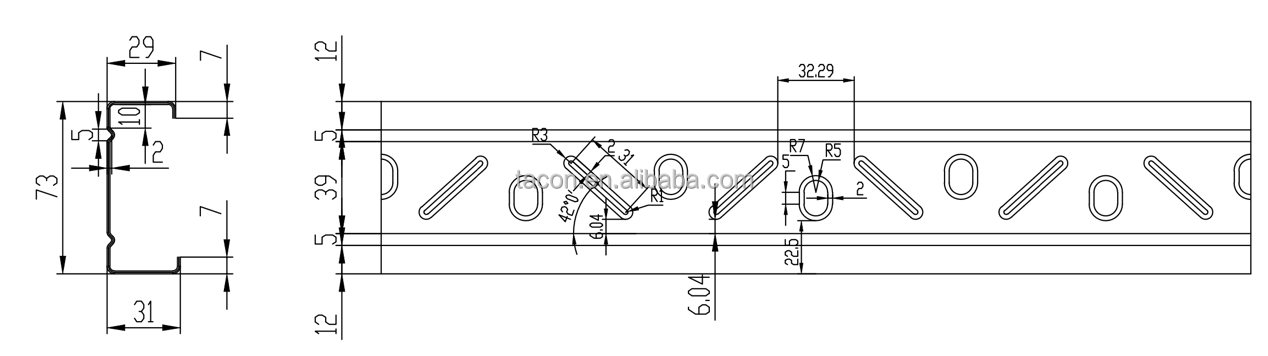

Profile Drawing
Our products can be customized according to your requirements.
1) Material Thickness: 0.7-1.2mm
2) Yield strength: G300 G550Mpa

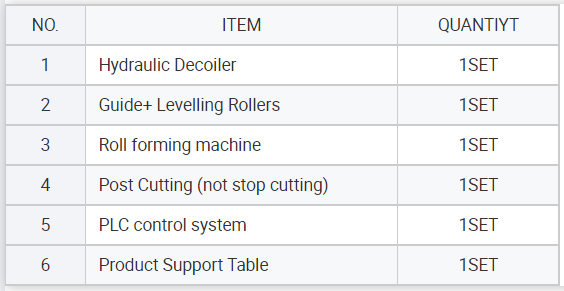

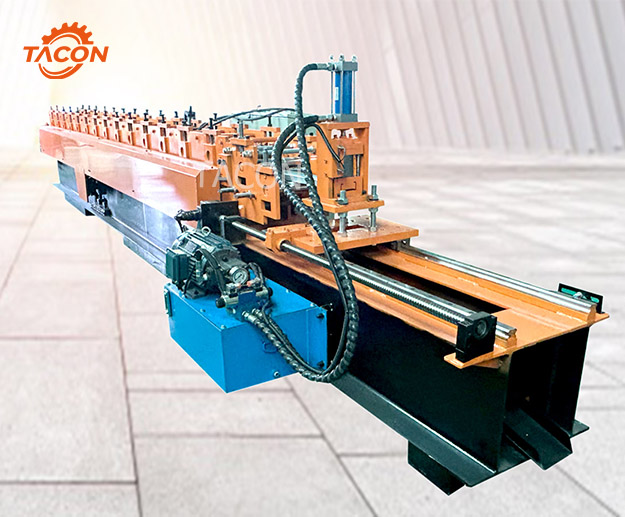

Machine Components
Flow Chart
Manual Decoiler→ Guide+ Levelling Rollers→ Rolling Forming System→ Hydraulic Post Cutting→ Product Support Frame
FEATURES AT A GLANCE

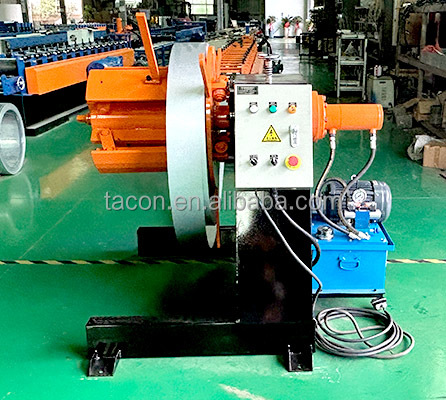

Ⅰ Hydraulic Decoiler
1. Tightening of coil: By Hydraulic
2. Weight capacity of decoiler: 3.0T
3. Inner diameter of decoiler: 380-550mm
4. Max outer diameter of decoiler: 1500mm

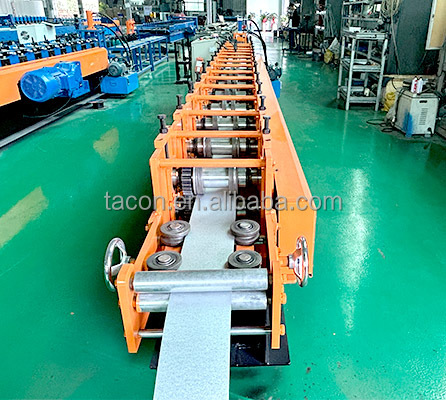

Ⅱ Guide+ Levelling Rollers

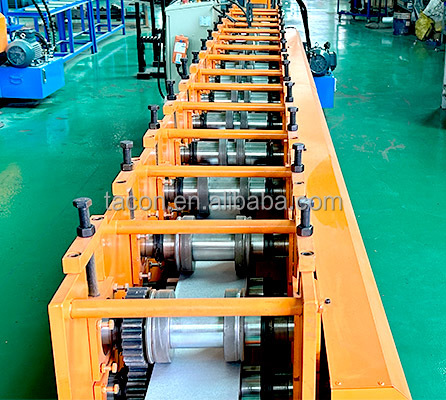

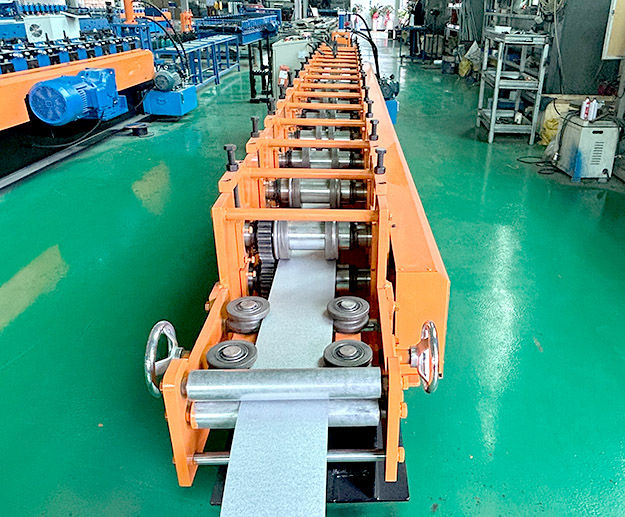

Ⅲ Roll forming machine
1. Main Motor: Frequency Motor
2. Voltage：415V 3phase 50HZ
3. Motor Power: 7.5 KW
4. Roller material: GCr15
5. Stations: 13
6. Main Shaft Material：40Cr
7. Main Shaft Diameter: ø65mm
8. forming speed: 20-25m/min

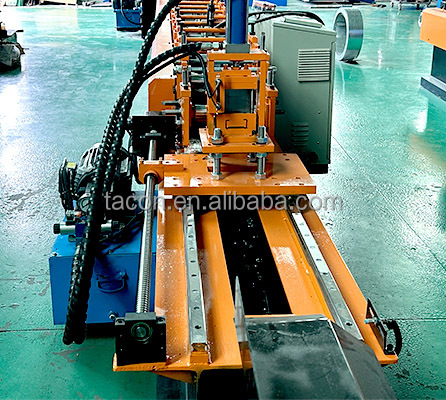

Ⅳ Post Cutting (not stop cutting)
1. Cutting type: Hydraulic cutting
2. Cutting material: Cr12MoV
3. Hydraulic motor power: 4.0KW
4. Servo motor: 2.0KW

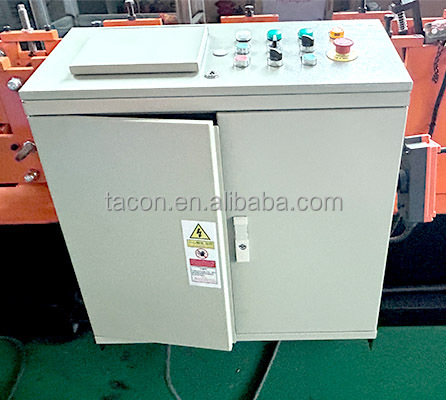

Ⅴ PLC control system
1. Control the quantity &punching length& cutting length automatically
2.Voltage: 415V, 3 Phase 50Hz
3. PLC manufacturer: Japan Panasonic
4.Solenoid valve: Beijing hade
5. Oil hydraulic cylinder: TAIWEI
6. Hydraulic Value: YUKEN
7. Oil pipeline: parkers
8. Encoder: Omron

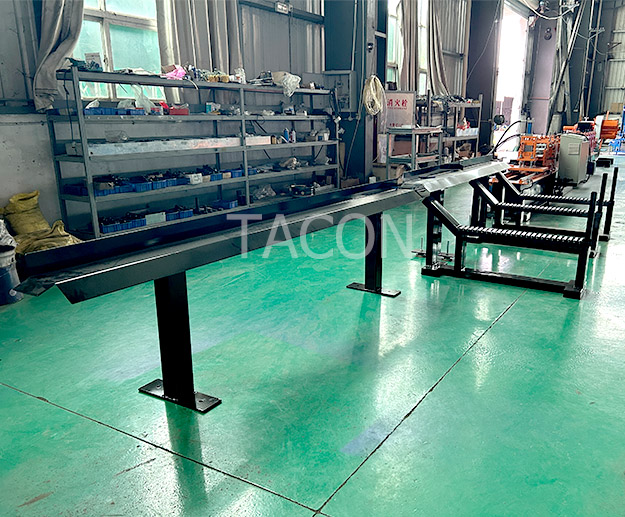

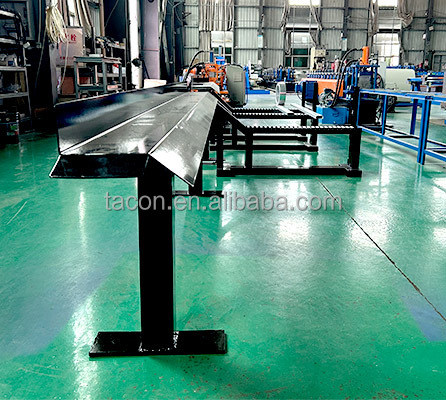

Ⅵ Product Support Table
The length of product support Table: 4m
