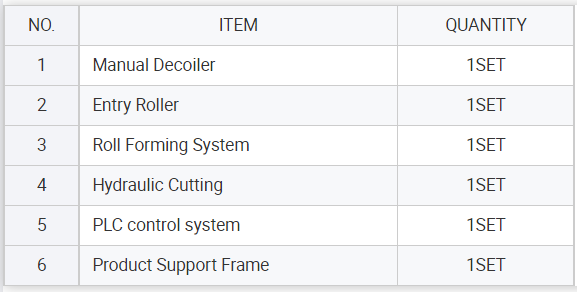

Machine Components
Flow Chart
Manual Decoiler→Entry Roller→ Rolling Forming System→ Hydraulic Cutting→ Product Support Frame
FEATURES AT A GLANCE
Ⅰ Manual Decoiler
* Tightening of coil: By Manual
* Weight capacity of decoiler : 5.0T
* Inner diameter of decoiler: 380-550mm
* Max outer diameter of decoiler: 1600mm

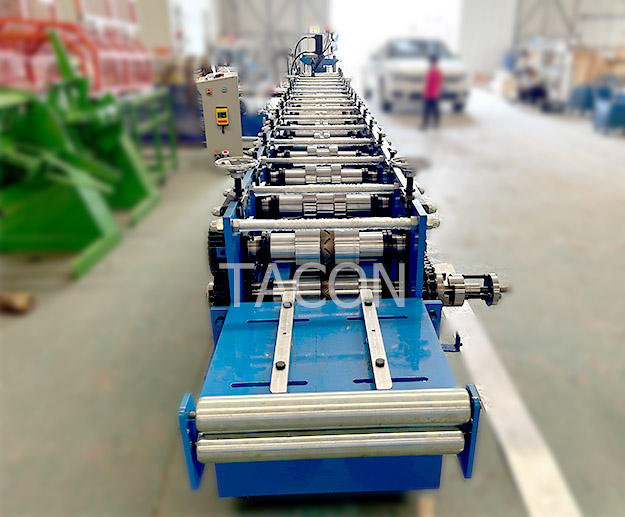

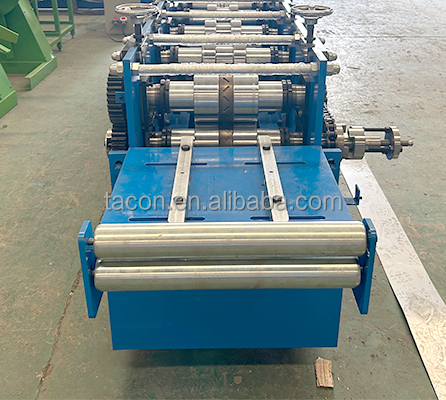

Ⅱ Entry Roller

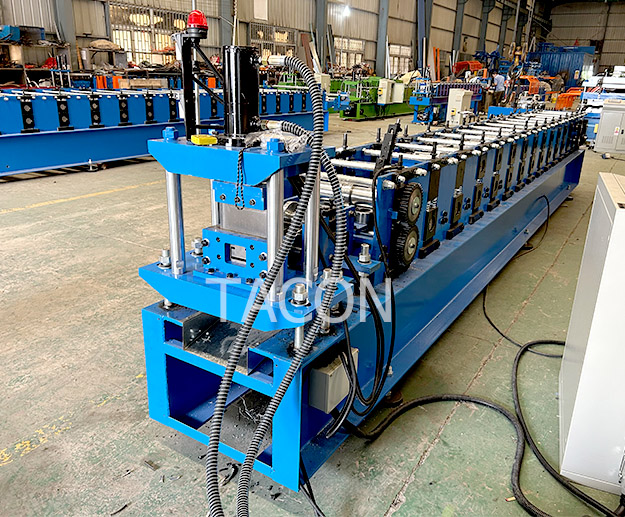

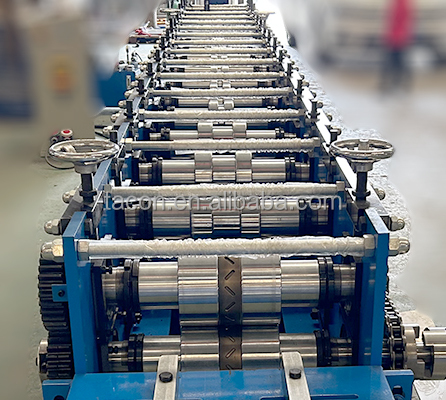

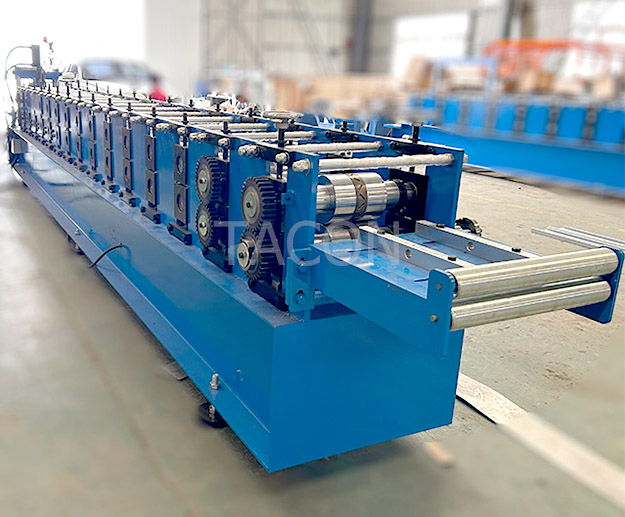

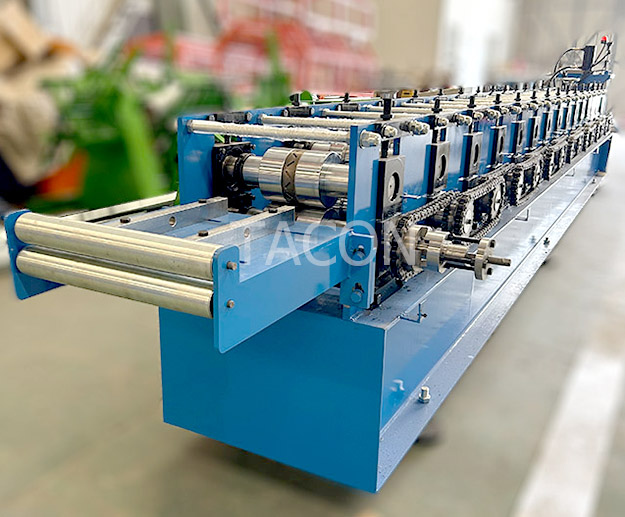

Ⅲ Roll Forming System
* main motor type: frequency motor
* motor power: 5KW
* Drive: chain
* speed of forming: 15-20m/min
* material of roller : Cr12 (Heat Treatment)
* 16 groups rollers
* material of main shaft : 40Cr (The main shaft have the high frequency grinding &heat Treatment and the surface of shaft is chroming
* diameter of main shaft: ø75-88mm

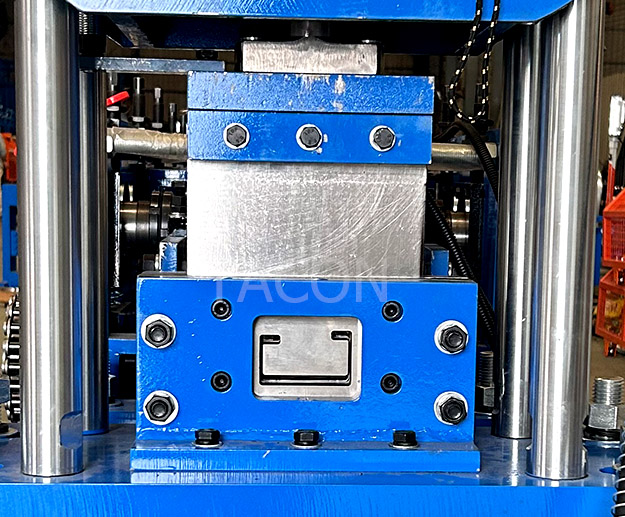

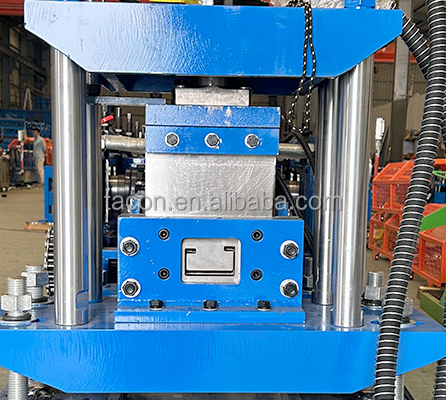

Ⅳ Hydraulic Cutting
* Cutter Type: Hydraulic Cutting
* Cutter Material: Cr12

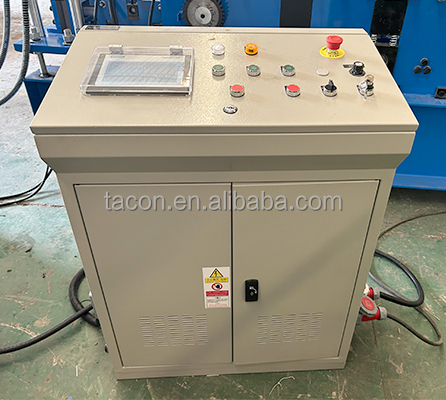

Ⅴ PLC control system
* Control the quantity &punching length& cutting length automatically
* Voltage: 415V, 3 Phase 50Hz
* PLC manufacturer: Japan Panasonic
* Solenoid valve: Beijing hade
* Oil hydraulic cylinder: TAIWEI
* Hydraulic Value: YUKEN
* Oil pipeline: parkers
* Encoder: Omron

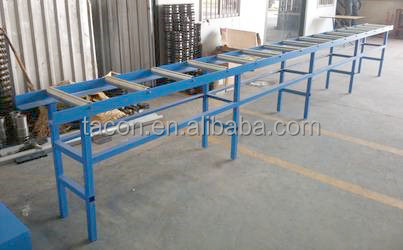

Ⅵ Product Support Frame
The length of product support frame : 6m
