Product details

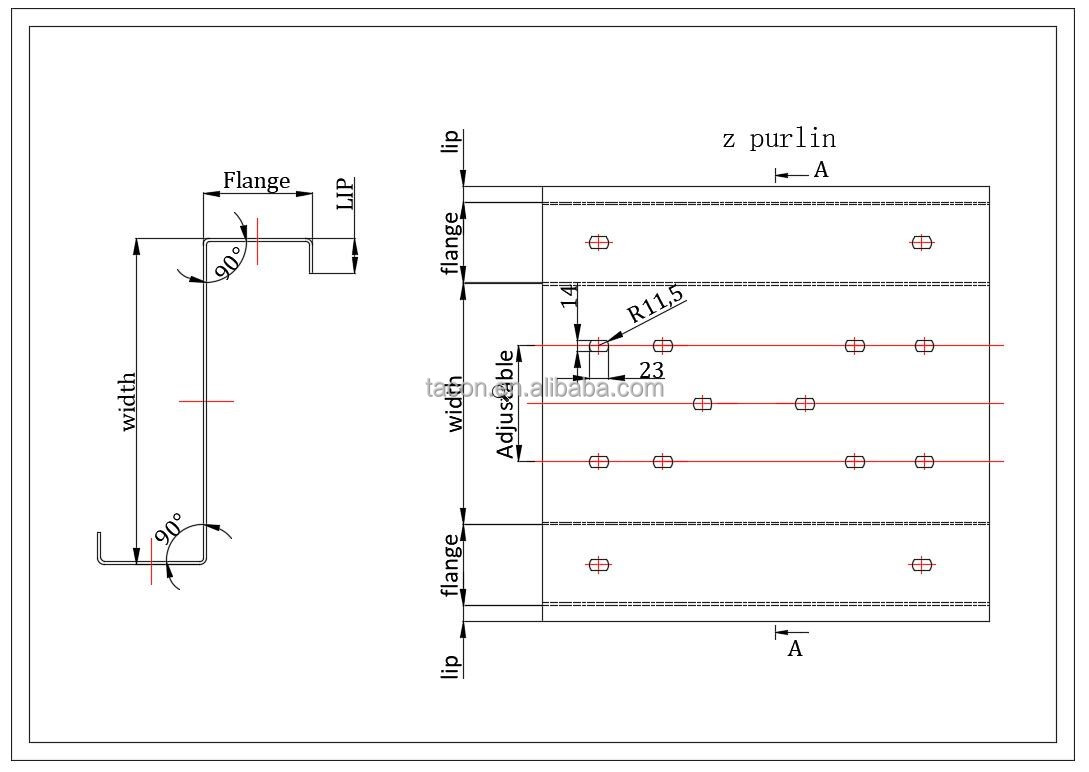

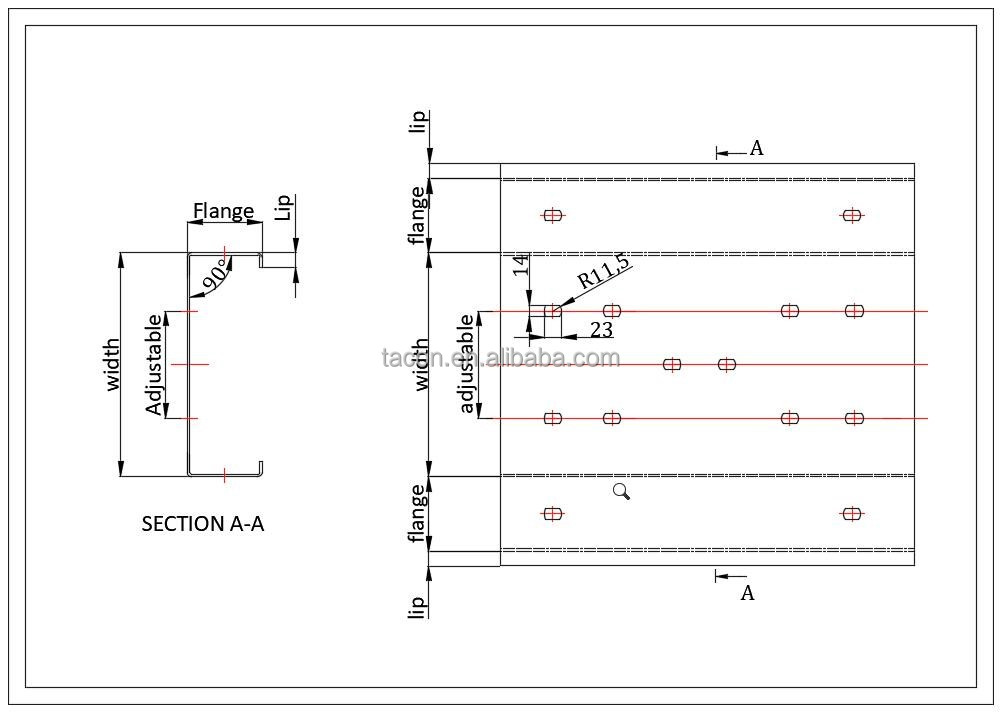

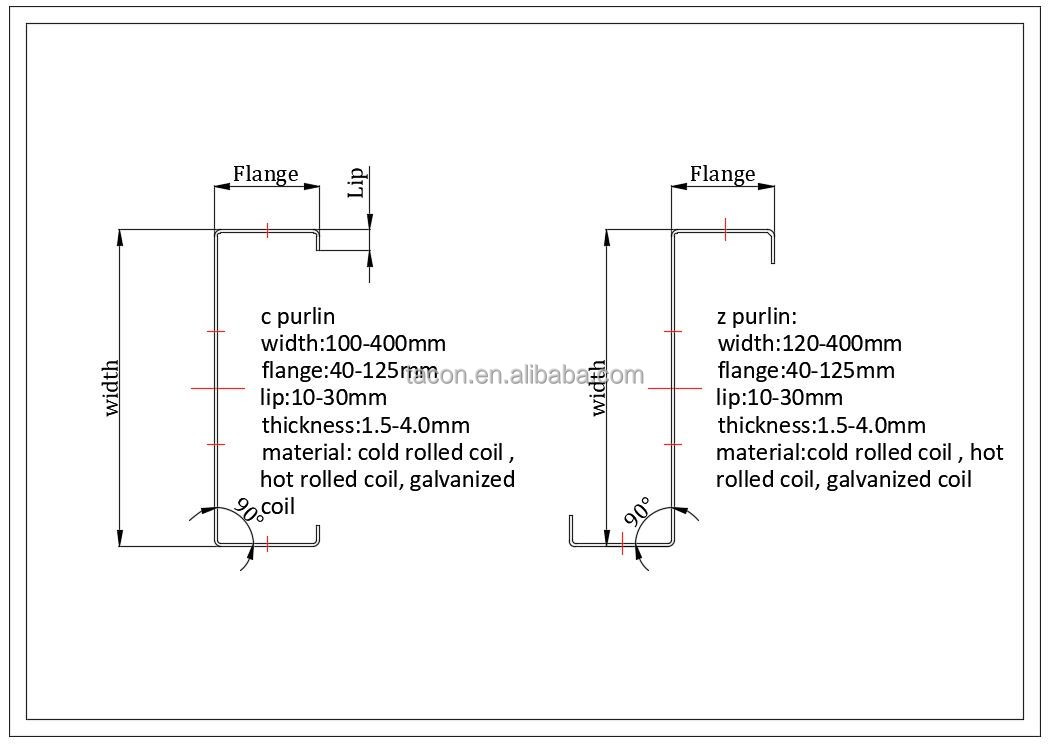

Profile Drawing

*  material : cold rolled coil , hot rolled coil, galvanized coil
*  yield strength :Q235Mpa Q345Mpa G450Mpa G550Mpa
*  lip and flange angel: 135 or 90

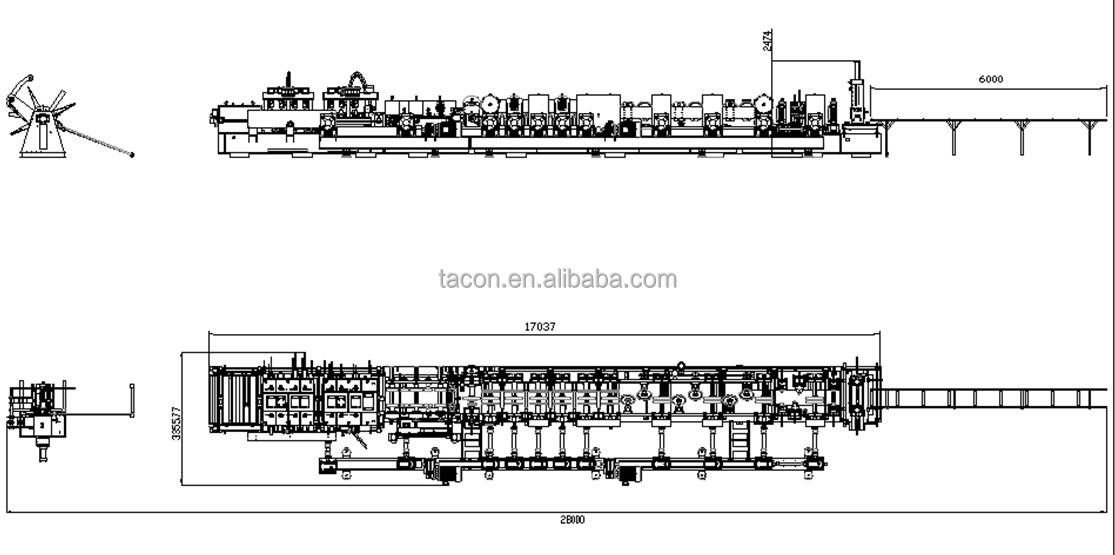

Machine Components

Flow Chart

Hydraulic Decoiler→ Feed And Leveling Device→ Pre-Punching and pre-cutting→ Rolling Forming Machine→ Post Cutting→Product Support Frame

PRODUCT SPECIFICATIONS

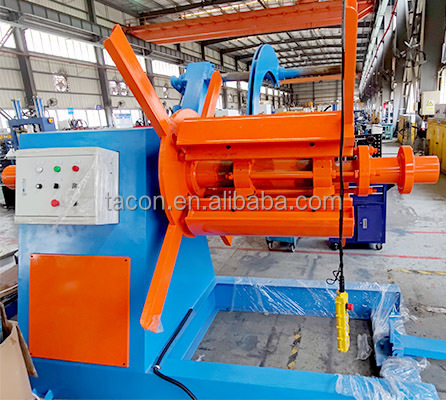

ⅠDecoiler With Pressure Arm

*  Tightening of coil: By Hydraulic
*  Weight capacity of decoiler : 10.0T
*  Inner diameter of decoiler: 500-760mm
*  Max outer diameter of decoiler: 1900mm
*  Drive Power: 7.5KW
*  Hold Down System: Pressure Arm

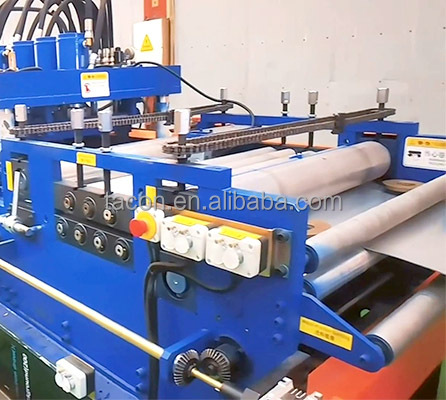

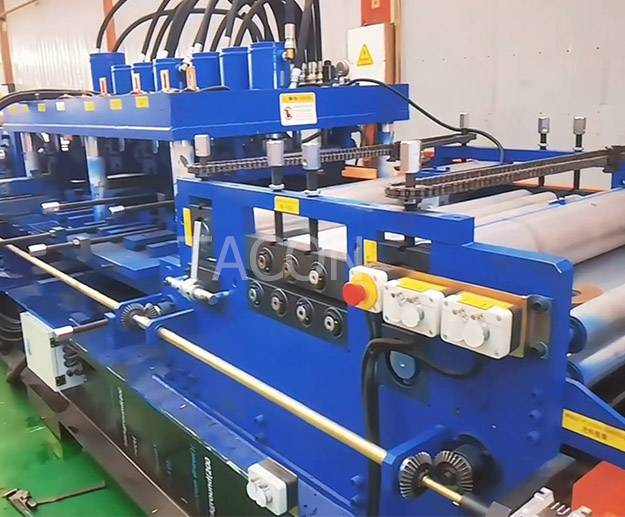

Ⅱ Feeding and Leveling Device

*  It used for making the material flat before feeding into the roll forming machine
*  11 rollers (five upper and six lower)

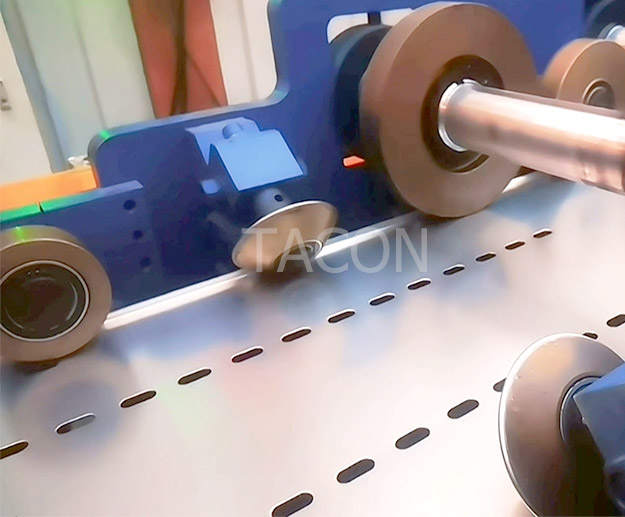

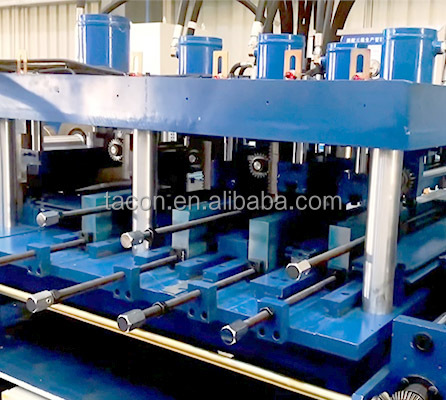

Ⅲ Pre-punching and pre-cutting

*  Punching stations: 4 stations
*  Double holes: 14X28mm
*  Double holes: 14X28mm
*  Double holes: 14X28mm
*  Single holes: 14X28mm
*  Punching Pin and Die: Cr12
*  Cutting Blade Material: Cr12

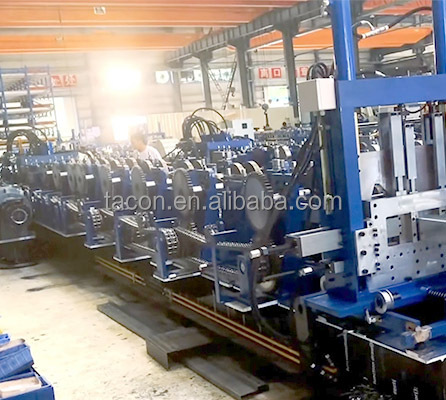

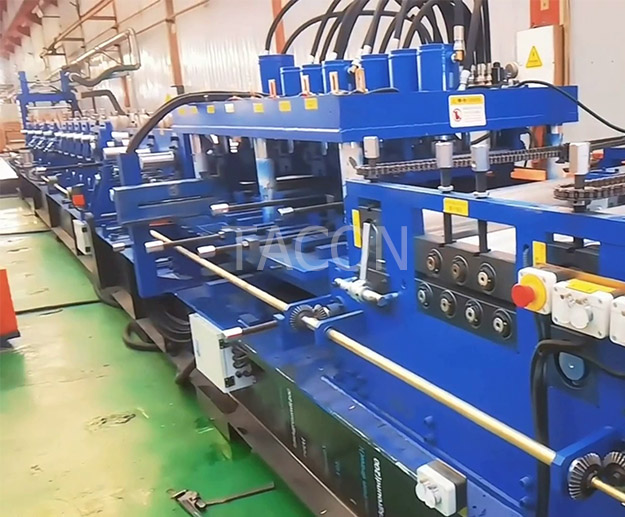

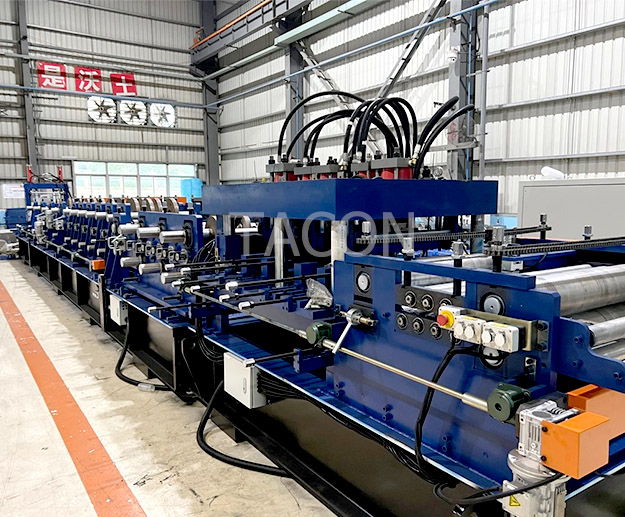

Ⅳ Rolling Forming System

*  main motor type: Servo Motor
*  motor power: 55KW
*  Drive: double chain
*  speed of forming: 15-30m/min
*  material of rollers: Cr12
*  Motor for width adjusting: 2.25KW(0.75KW*3)
*  24 groups rollers
*  material of main shaft : 40Cr (The main shaft have the high frequency grinding &heat Treatment and the surface of shaft is
  chroming
*  diameter of main shaft: ø80- ø100mm

Ⅴ Hydraulic post Cutting

*  Punching Type: Hydraulic Punching
*  Cutting type: Hydraulic cutting
*  Cutting material: Cr12MoV
*  Hydraulic motor power: 15KW

Ⅵ PLC Control System

*  Control the quantity &punching length& cutting length automatically
*  Voltage: 380V, 3 Phase 50HZ(up to your request)
*  Size of PLC Control Board (PLC: 700mm(L)x1000mm(H)x300mm(W)
*  PLC manufacturer: Panasonic
*  Solenoid valve: Yuken
*  Oil hydraulic cylinder: XINGDE
*  Oil pipeline: OMAR
*  Encoder : Omron
*  Control system: laptop/Industry computer

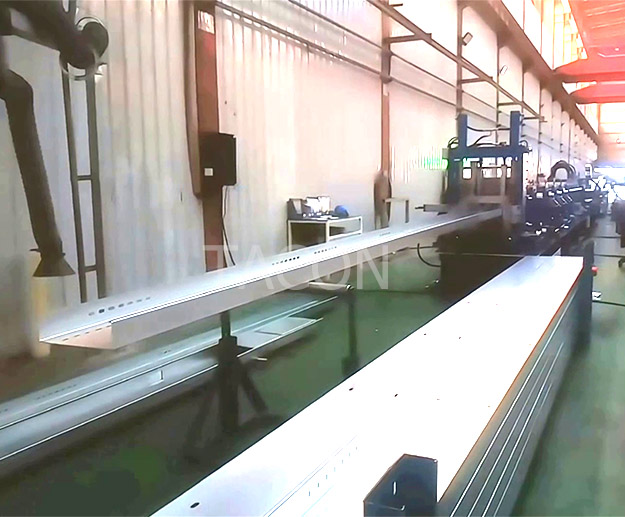

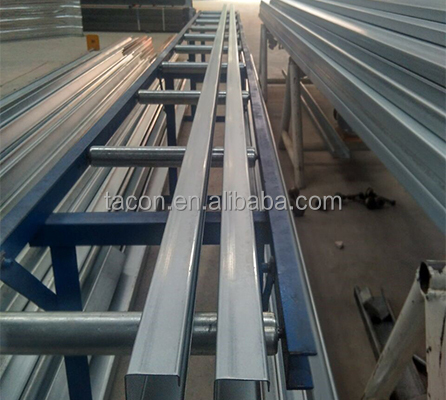

Ⅶ Product support frame

The length of product support frame: 6m
