Product details

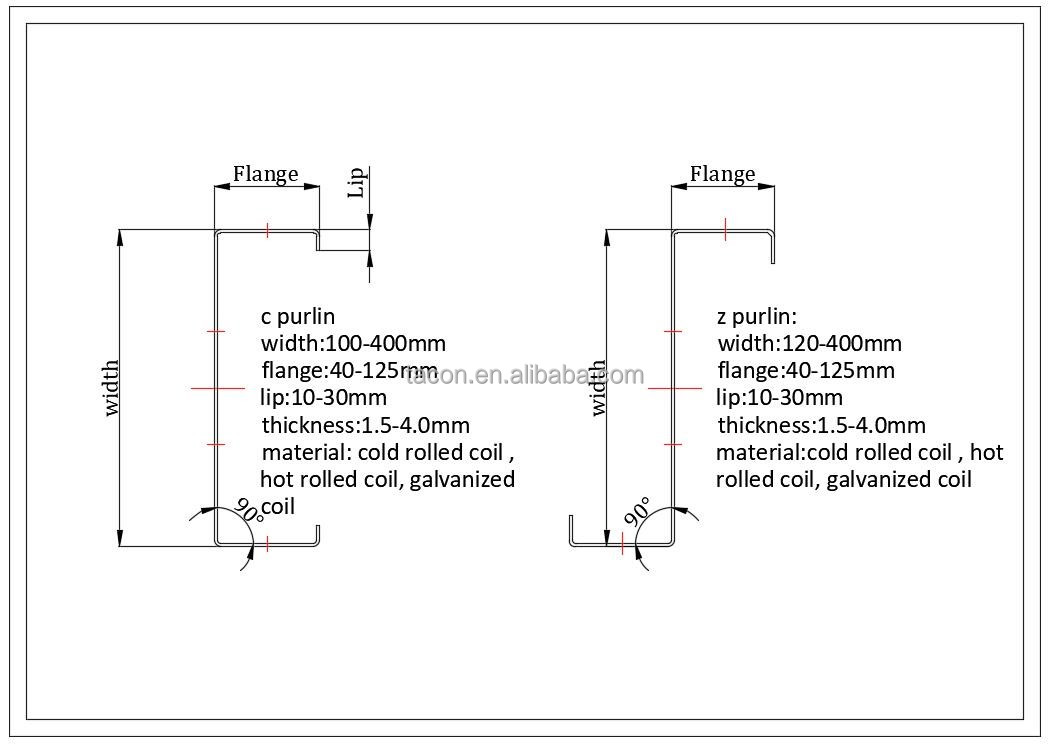

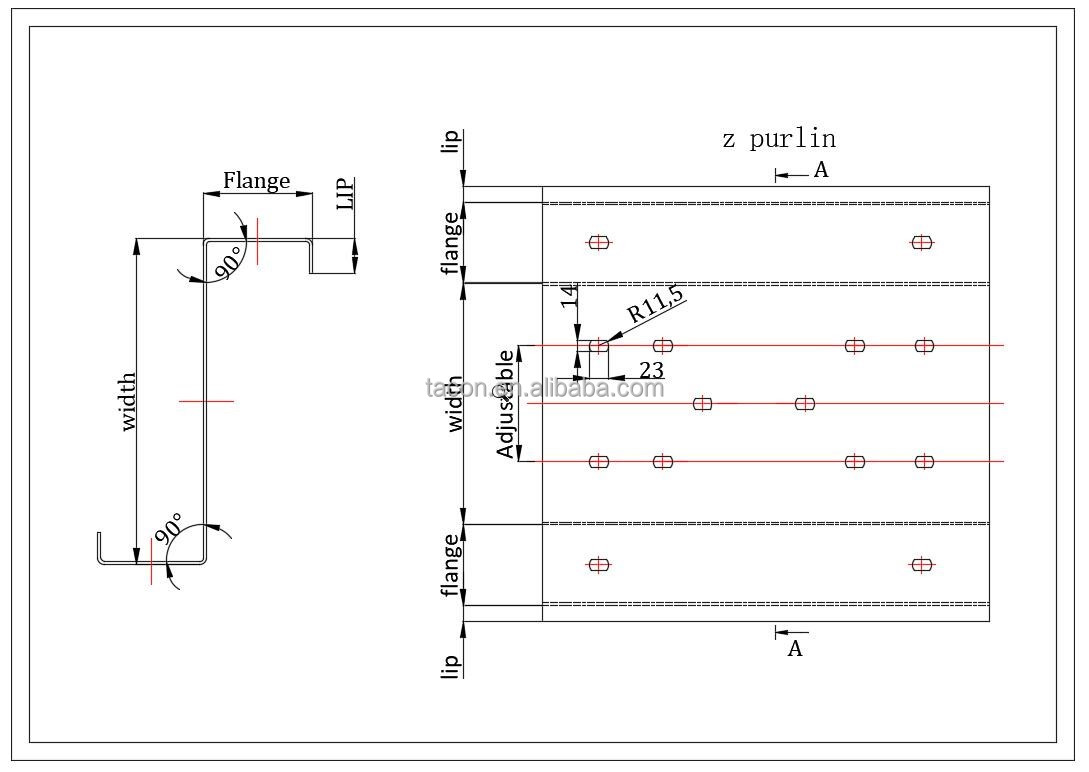

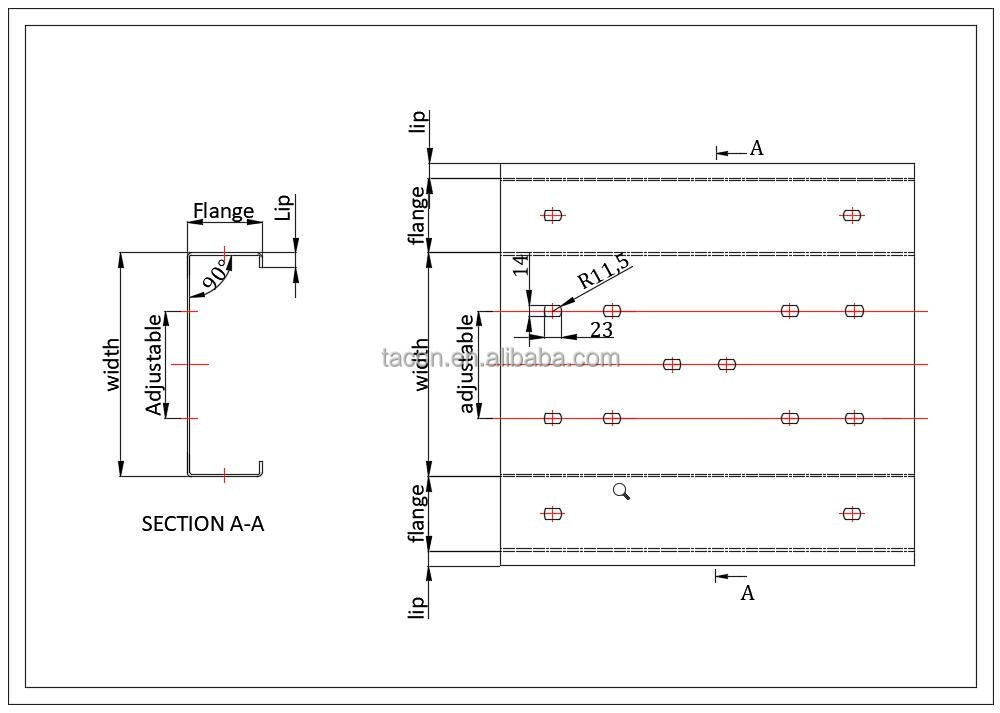

Profile Drawing

* material : cold rolled coil , hot rolled coil, galvanized coil
* yield strength :Q235Mpa Q345Mpa G450Mpa G550Mpa
* lip and flange angel: 135 or 90

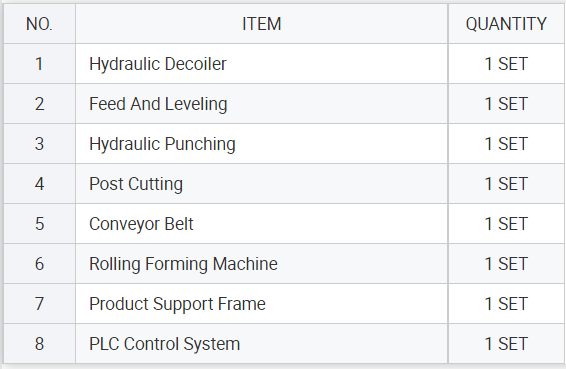

Machine Components

Flow Chart

Hydraulic Decoiler→ Feed And Leveling→ Hydraulic Punching→ Post Cutting→ Conveyor Belt→ Rolling Forming Machine→Product Support Frame

FEATURES AT A GLANCE

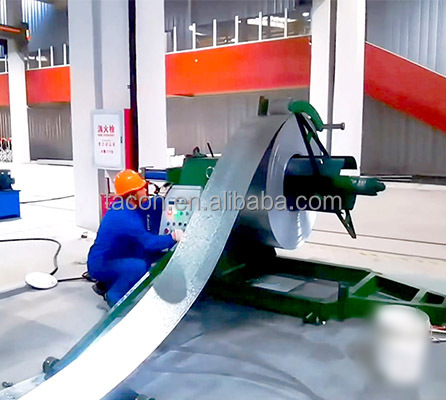

Ⅰ Decoiler With Pressure Arm

* Tightening of coil: By Hydraulic
* Weight capacity of decoiler : 10.0T
* Inner diameter of decoiler: 500-760mm
* Max outer diameter of decoiler: 1900mm
* Drive Power: 7.5KW
* Hold Down System: Pressure Arm

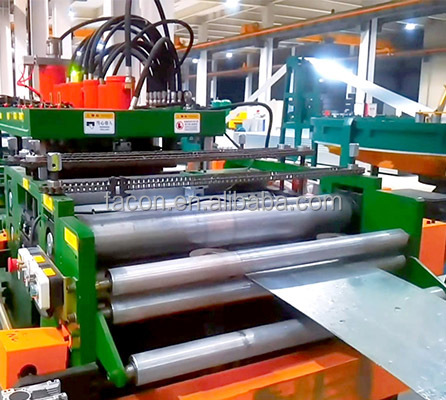

Ⅱ Feeding and Leveling Device

* It used for making the material flat before feeding into the roll forming machine
* 11 rollers (five upper and six lower)

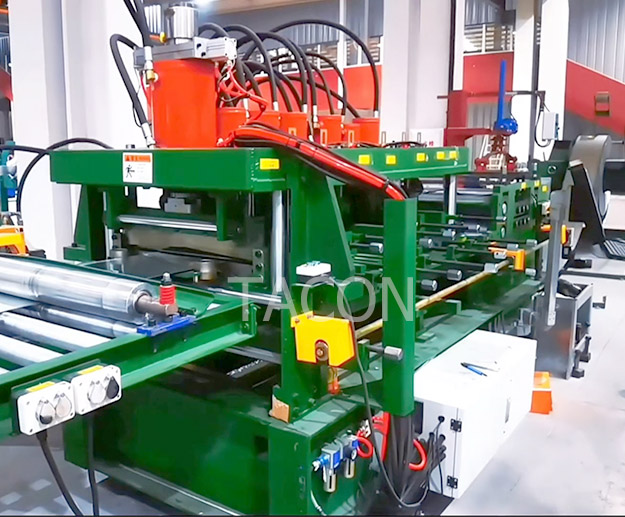

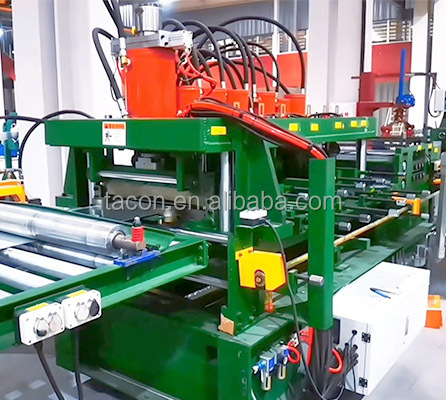

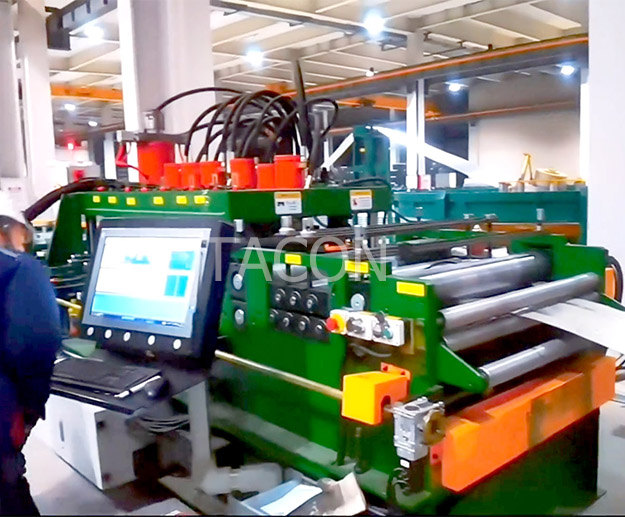

Ⅲ Hydraulic punching

*  Punching stations: 6 stations
*  6 double punching holes
*  Dimensions of holes: max 20x60mm
*  Hydraulic Motor: 22kw
*  Main Moter: servo motor
*  Main motor power: 14kw
*  Servo motor brand: Inovance

Ⅳ Hydraulic cutting

*  Cutter Type: Hydraulic Cutting
*  Cutter Material: Cr12

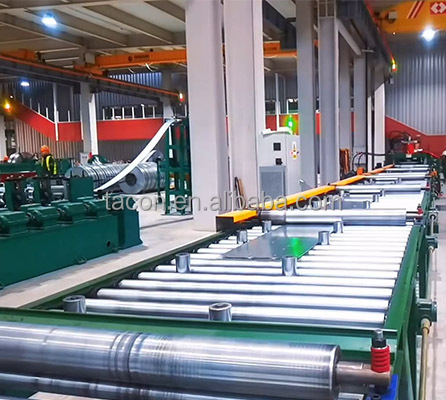

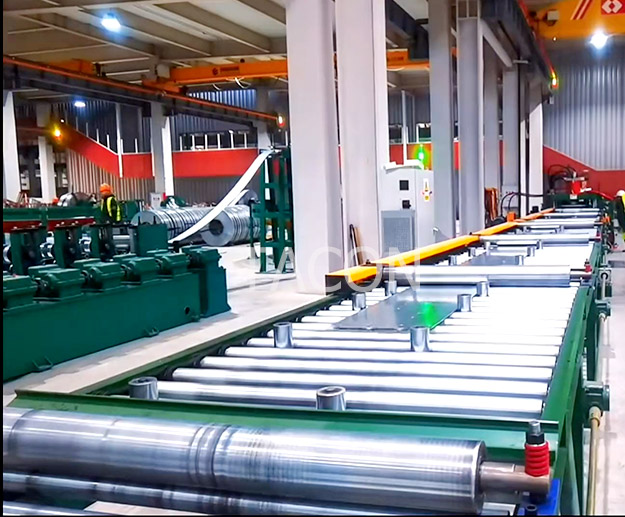

Ⅴ Conveyor belt

Conveyor belt: 14m

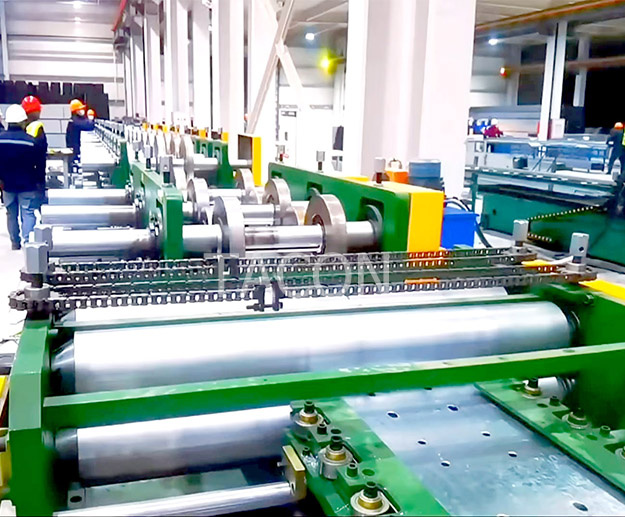

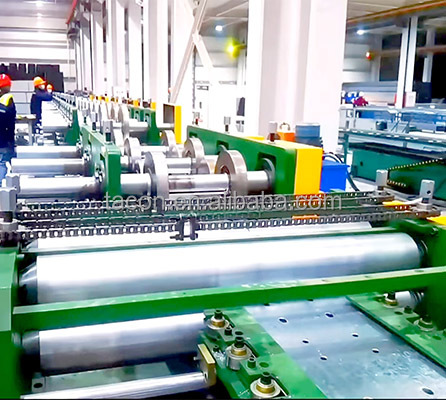

Ⅵ Rolling Forming System

* main motor type: Servo Motor
* motor power: 55KW
* Drive: double chain
* speed of forming: 15-30m/min
* material of rollers: Cr12
* Motor for width adjusting: 2.25KW(0.75KW*3)
* 24 groups rollers
* material of main shaft : 40Cr (The main shaft have the high frequency grinding &heat Treatment and the surface of shaft is
chroming
* diameter of main shaft: ø80- ø100mm

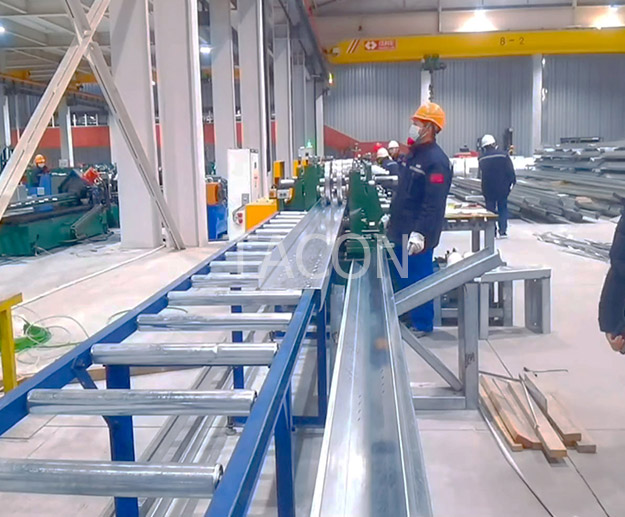

Ⅶ Product support frame

The length of product support frame: 6m

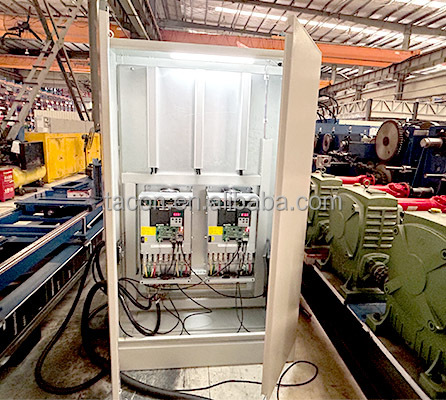

Ⅷ PLC Control System

* Control the quantity &punching length& cutting length automatically
* Voltage: 380V, 3 Phase 50HZ(up to your request)
* Size of PLC Control Board (PLC: 700mm(L)x1000mm(H)x300mm(W)
* PLC manufacturer: Panasonic
* Solenoid valve: Yuken
* Oil hydraulic cylinder: XINGDE
* Oil pipeline: OMAR
* Encoder : Omron
* Control system: laptop/Industry computer
