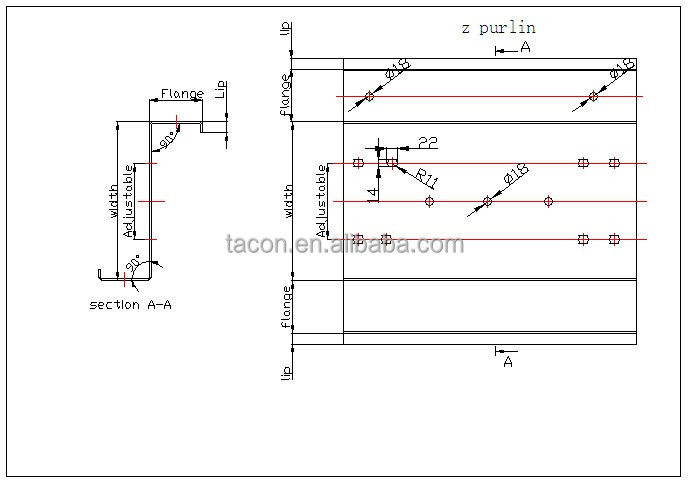

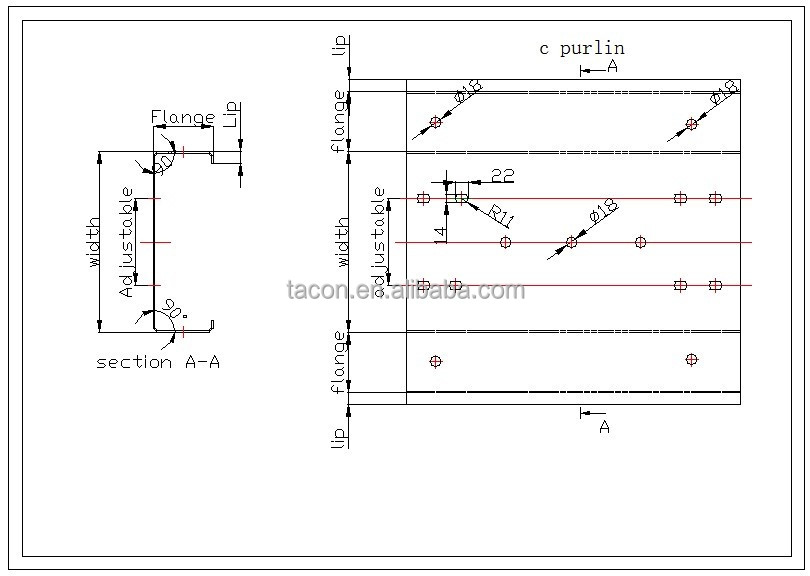

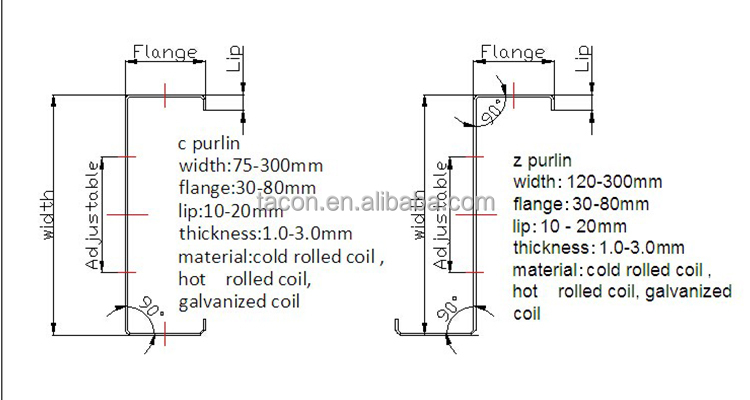

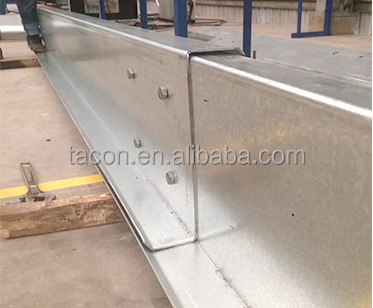

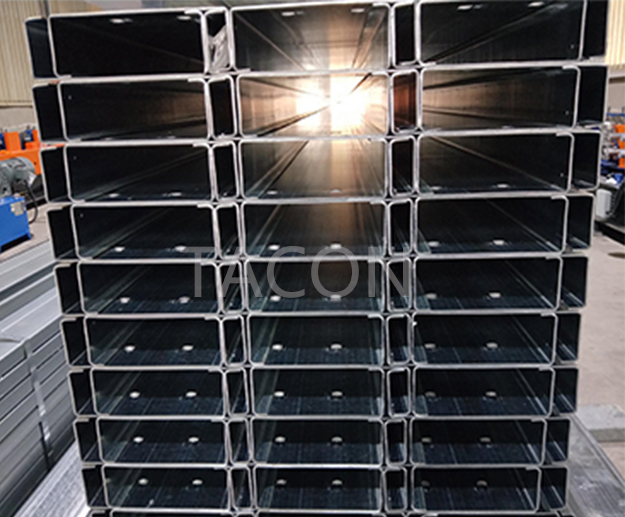

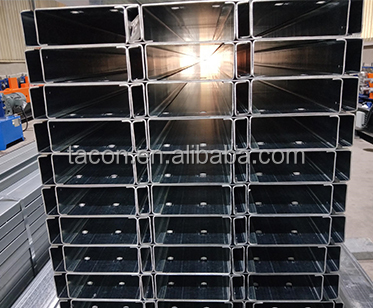

Profile Drawing
* material : cold rolled coil , hot rolled coil, galvanized coil
* yield strength :Q235Mpa Q300Mpa Q345Mpa

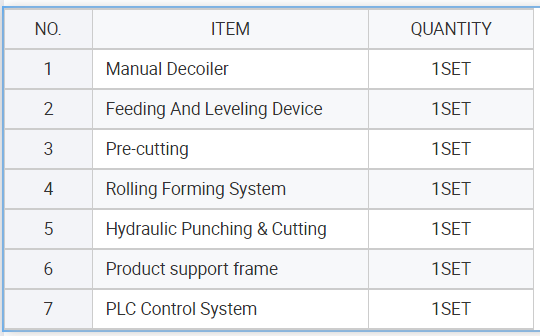

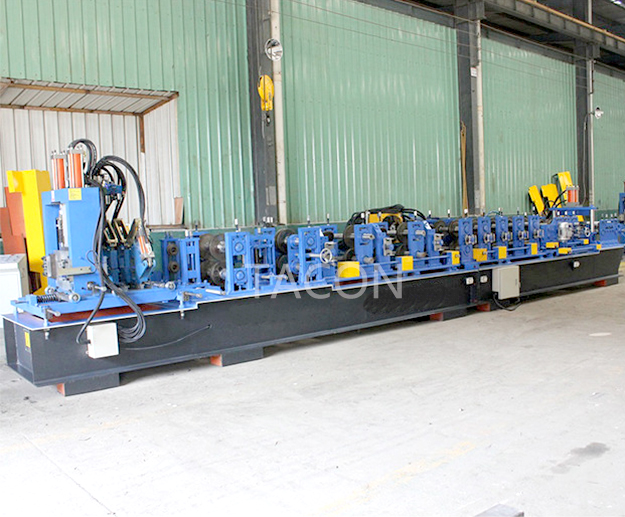

Machine Components
Our products can be customized according to your requirements.

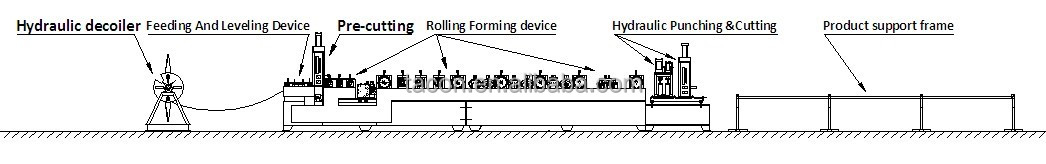

Flow chart
Manual Decoiler→ Feed And Leveling Device→ Pre-cutting→Rolling Forming System→ Hydraulic Punching &Cutting→ Product Support Frame
FEATURES AT A GLANCE

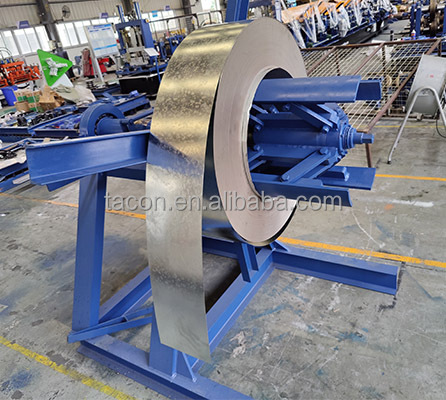

Ⅰ Manual Decoiler
* Tightening of coil: By Manual
* Weight capacity of decoiler : 6.0T
* Inner diameter of decoiler: 380-550mm
* Max outer diameter of decoiler: 1600mm
Ⅱ Feeding and Leveling Device
* It used for making the material flat before feeding into the roll forming machine
* 9rollers(five upper and six lower)

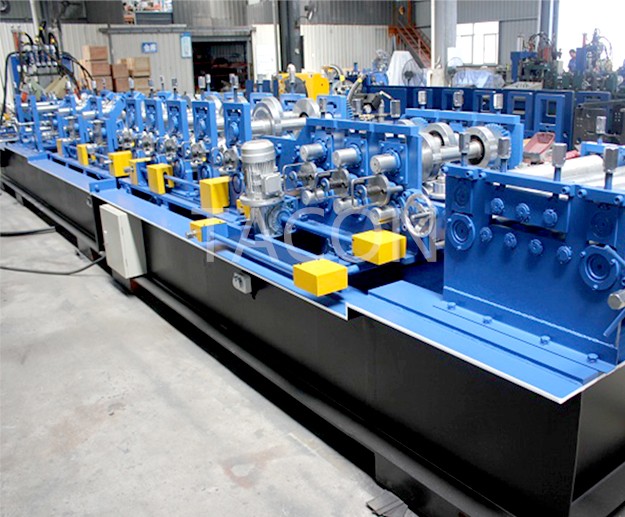

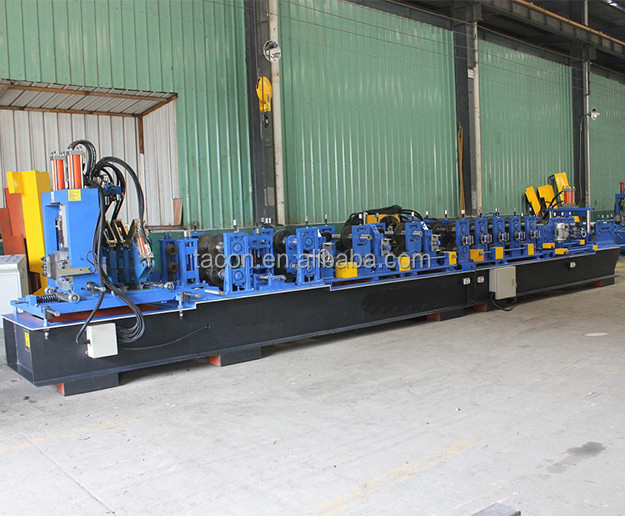

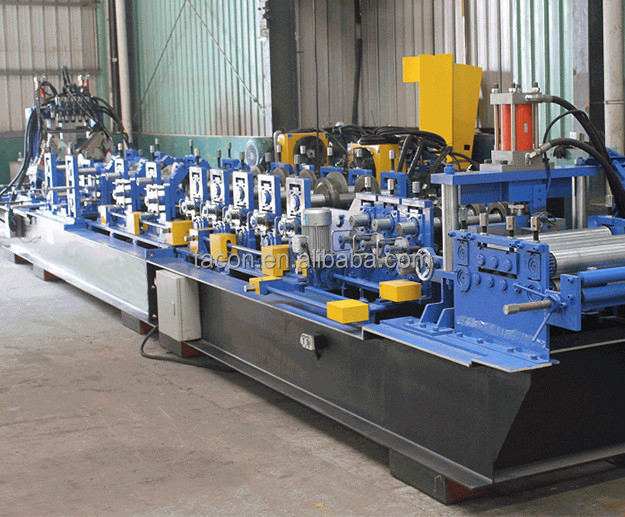

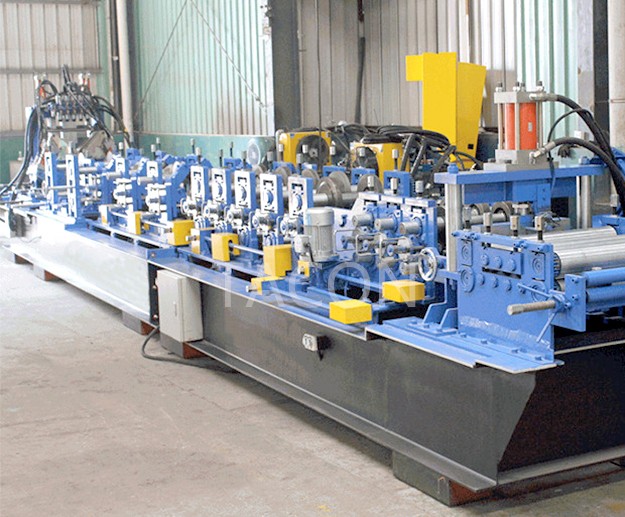

Ⅲ Rolling Forming System
* main motor type: Frequency Motor/Hydraulic Motor/Servo Motor(As requested)
* motor power: 5KW
* Drive: chain
* speed of forming: 10-20m/min
* material of roller : Cr12
* Motor for purlin size adjusting: .225KW(3*0.75KW)
* 18 groups rollers
* material of main shaft : 40Cr (The main shaft have the high frequency grinding &heat Treatment and the surface of shaft is chroming
* diameter of main shaft: ø80mm

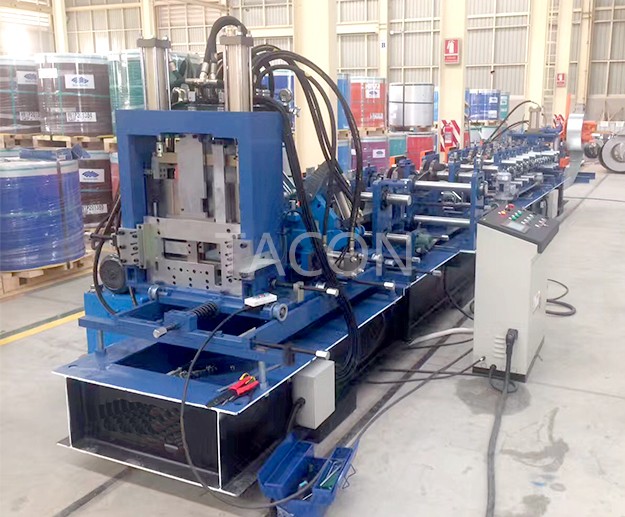

Ⅳ Hydraulic Punching & Cutting
* Punching Type: Hydraulic Punching(after roll forming)
* Cutting type: Hydraulic cutting (we have the patent technology, because our post cutting can be adjustable from 80-300mm)
* Cutting material: Cr12MoV
* Hydraulic motor power: 7.5KW
* Hydraulic Pressure: 16Mpa
Ⅴ PLC Control System
* Control the quantity &punching length& cutting length automatically
* Voltage: 415V, 3 Phase 50Hz
* Size of PLC Control Board(PLC: 700mm(L)x1000mm(H)x300mm(W)
* PLC manufacturer: Japan Panasonic
* Solenoid valve: Beijing hade
* Oil hydraulic cylinder: taiwei
* Oil pipeline: parkers
* Touch Screen manufacturer: Japan Panasonic
* Encoder : Omron

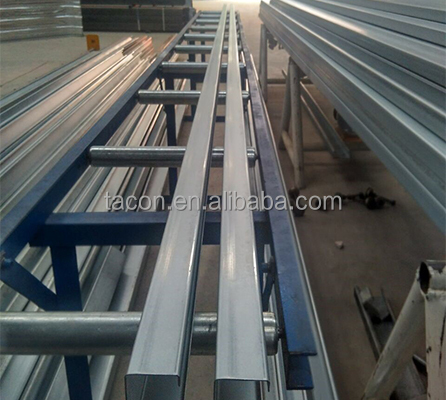

Ⅵ Product Support Frame
The length of product support frame : 6m
