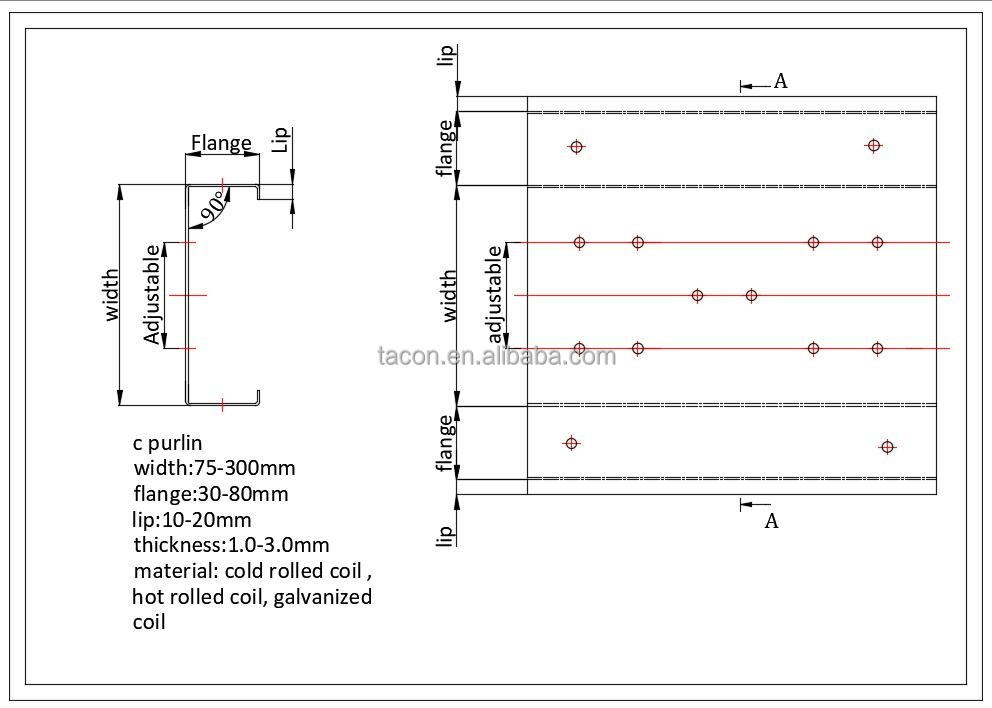

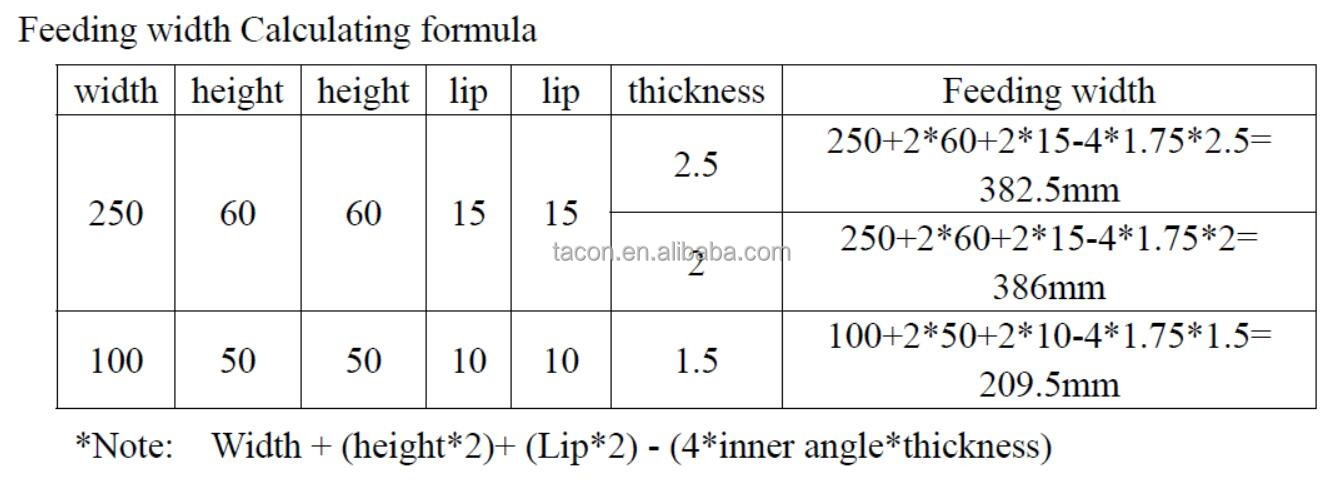

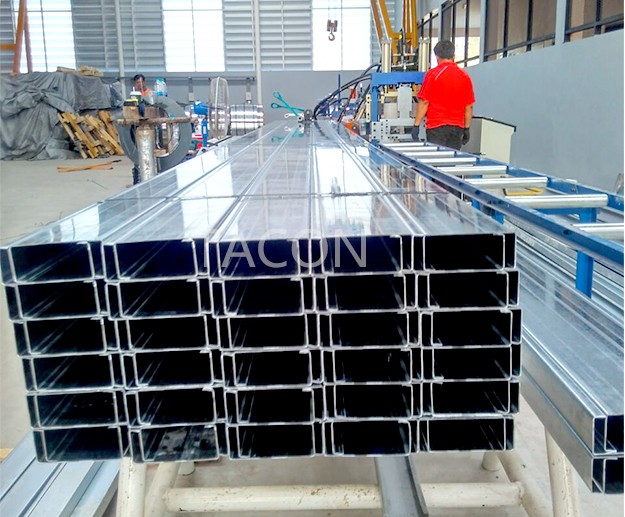

Profile Drawing
* Material：hot coil、galvanized coil
* Yield strength) :Q235Mpa Q345Mpa Q450Mpa

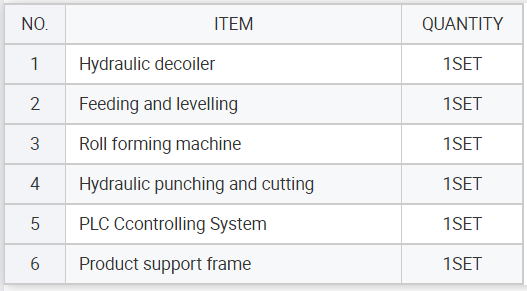

Machine Components

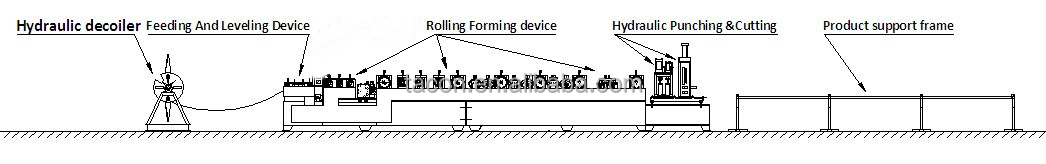

Flow Chart
Hydraulic decoiler→ Feeding and levelling→ Roll forming machine→ Hydraulic punching and cutting→ Product support frame
FEATURES AT A GLANCE

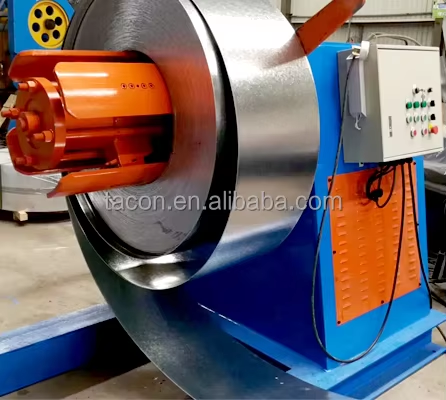

Ⅰ Decoiler
* Decoiler Type: Hydraulic decoiler
* weight capacity of decoiler : 6.0T
* diameter of inner: 350-580mm
* diameter of outer: 1200mm
* Decoiler will be with Coil Car
Ⅱ Feeding and Levelling
* Used for feeding and levelling before roll forming
* Feeding and guide rollers: 7 rollers up 3 down 4

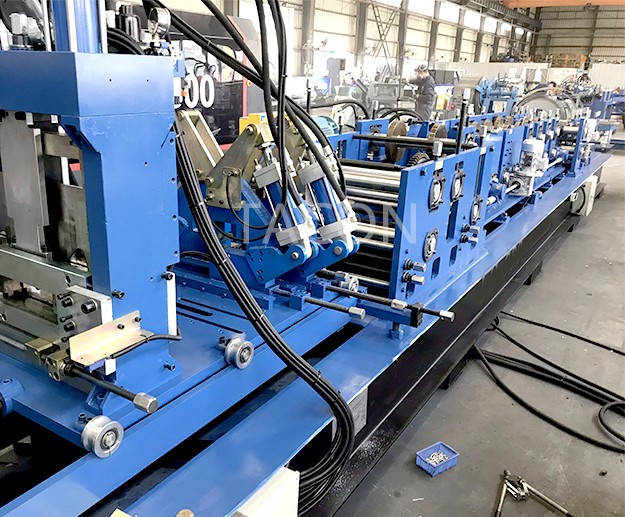

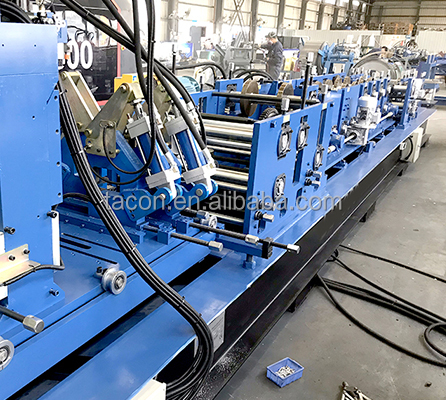

Ⅲ Roll Forming Machine
* Main motor type: Frequency Motor/Hydraulic Motor/Servo Motor(As requested)
* Motor power: 22KW
* Drive type: chain
* Roll speed: 10-22m/min
* Roller material: Cr12
* Change purlin size motor power: 2.25KW(0.75KW*3)
* Roller no.：16+1 (rib roller)
* main shaft material: 40Cr
* Main shaft diameter: ø75- ø93mm
* Changing sizes by computer

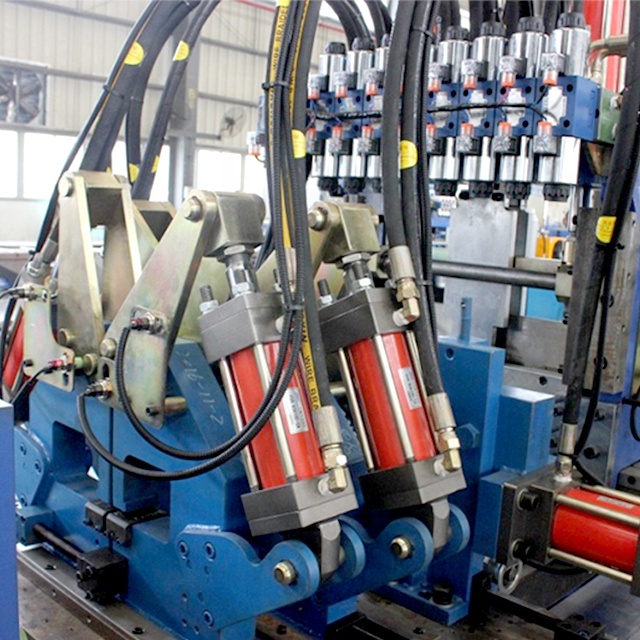

Ⅳ Hydraulic Punching
* Punching Type: Hydraulic Punching(after roll forming)

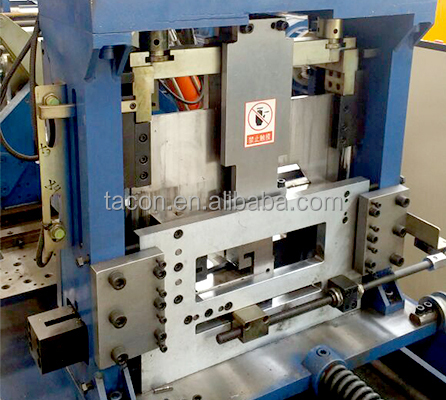

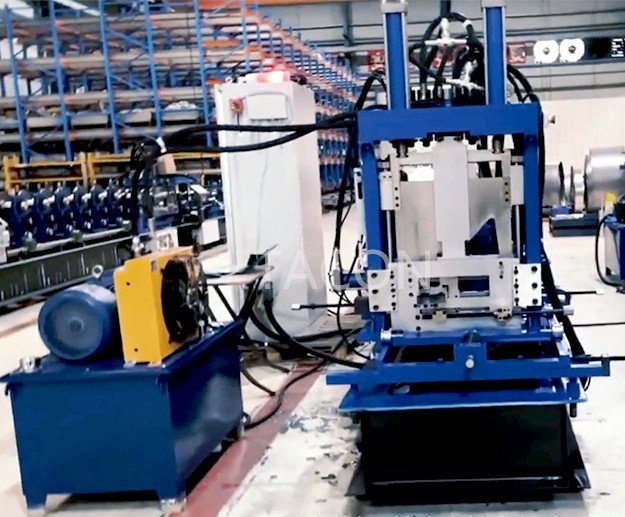

Ⅴ Hydraulic Post Cutting
* Cutting type: Hydraulic Post cutting
* Blade material: Cr12MoV
* Motor power：11KW
* Hydraulic pressure: 16Mpa

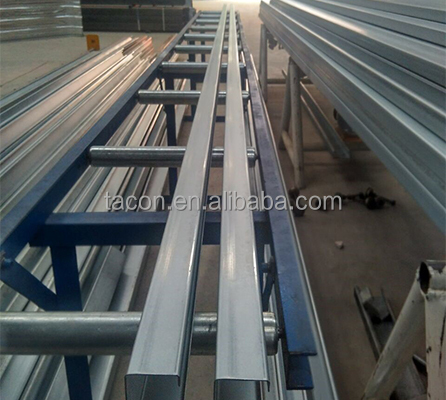

Ⅵ Product Support Frame
Product support frame: 6m

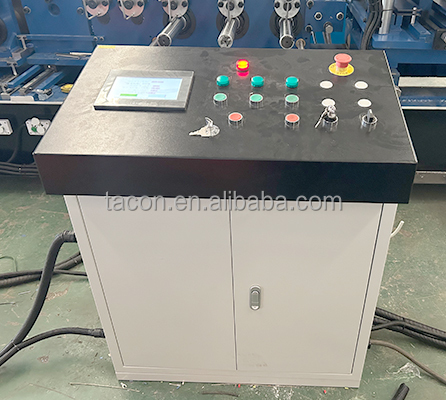

Ⅶ PLC Control System
* Voltage: 380V, 3 Phase 50HZ(according to your request)
* Plc sizes：700mmx1000mmx300mm
* PLC manufacturer: Japan panasonic
* Solenoid: YUKEN
* Cylinder: XINGDE
* Pipe: Omar
* Touch screen：Japan panasonic
* Encoder : Omron
