Product details

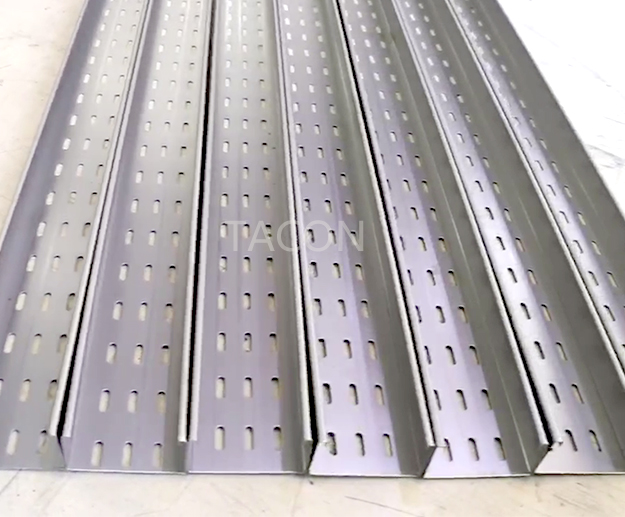

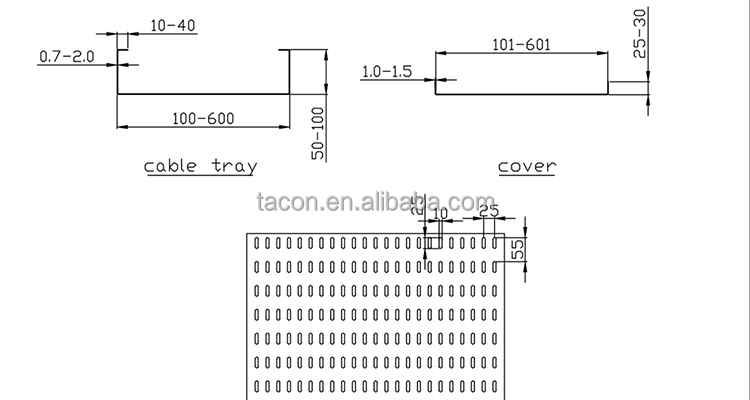

Profile Drawing

1. Width: 100-600mm

2. Flange: 50-100mm

3. Lip: 10-40mm

4. material：Galvanized/hot rolled/cold rolled

5.Thickness：0.7-2.0mm

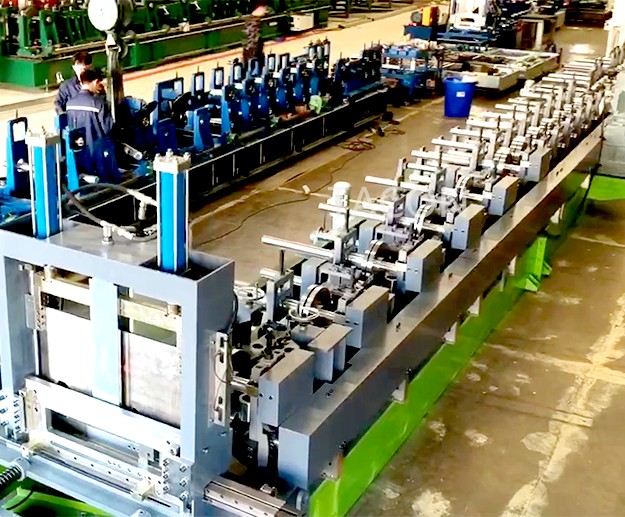

Machine Components

Our products can be customized according to your requirements.

Flow Chart

Manual Decoiler→ Feeding And Leveling Device→ Separated Hydraulic Punching with servo feeding→ Rolling Forming Machine→ Hydraulic Cutting →Product Support Frame

FEATURES AT A GLANCE

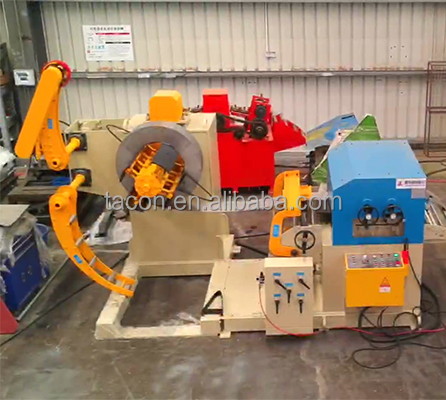

Ⅰ Decoiler

1.Un-coiler Type: Manual
2.Weight capacity of Un-coiler : 5.0T
3.Diameter of Inner: 508±30mm
4.Diameter of Outer: 1600mm

Feeding And Levelling Device

It is used for guide and levelling

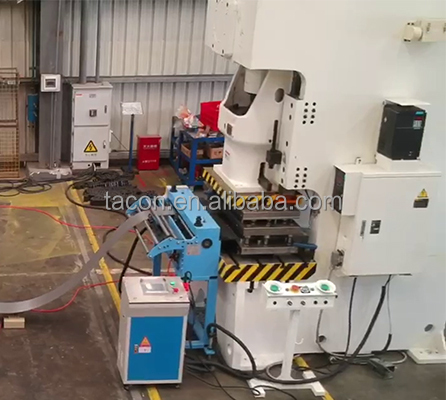

Ⅱ Separated Hydraulic Punching with servo feeding

1. Punching capacity: 200Ton
2.punching machine type: Penumatic
3.Servo motor : 5.5kw
4.Servo feeding: NCF900

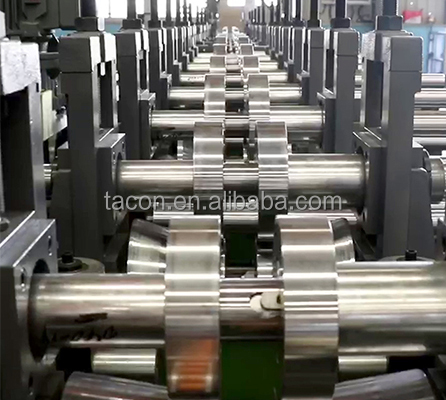

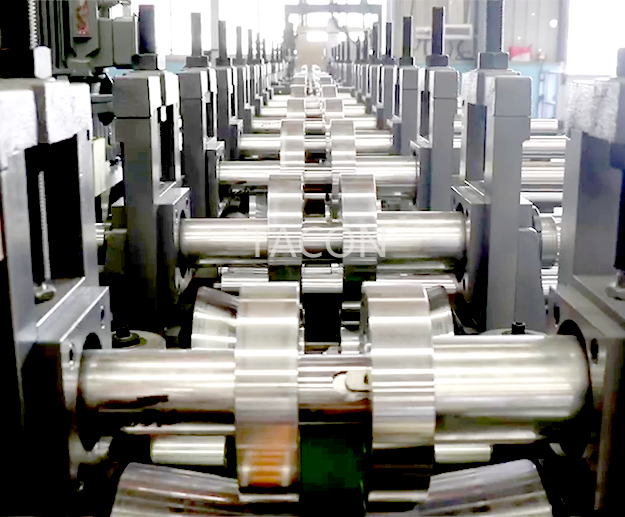

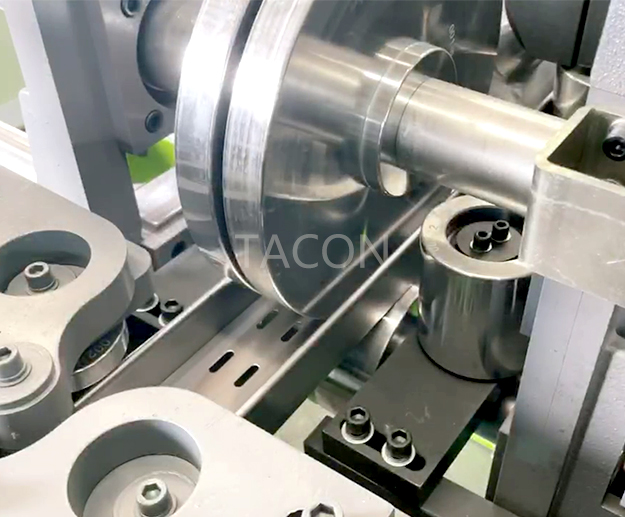

Ⅲ Rolling Forming Device

1. Motor Type: Frequency Motor
2. Main motor power: 15KW
3. Speed of forming: 8-15m/min, Frequency Speed Control

4.Rollers Manufactured from GCr15, CNC Lathes, hard Chrome Coated
5. Rollers: 18+2 Stations
6. Material of main shaft: 40Cr
7. Diameter of main shaft: ø65-80mm

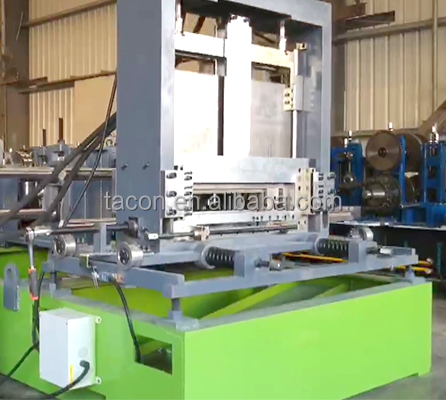

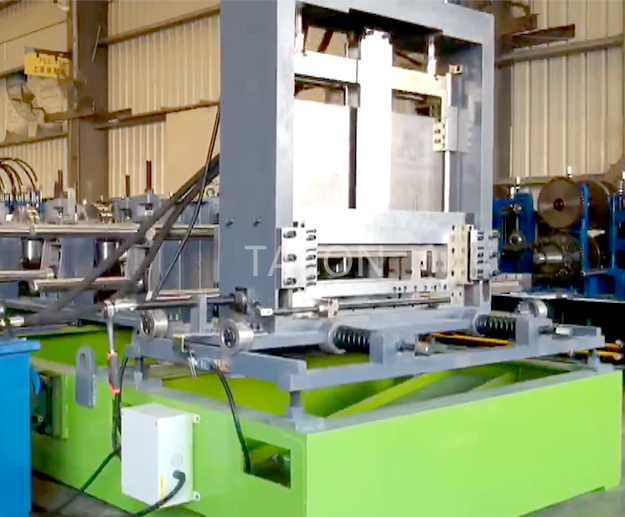

Ⅳ Hydraulic Cutting

1. Cutting type: Hydraulic Cutting
2. Cutting material: Cr12, Heat Treatment
3. Hydraulic motor power: 7.5KW

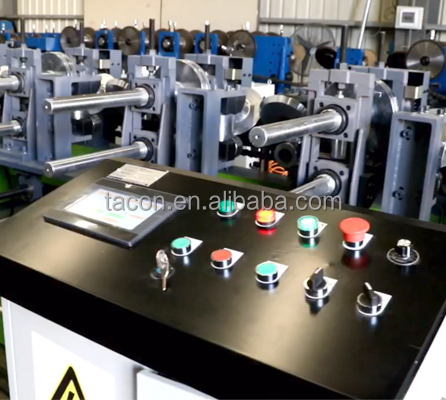

Ⅴ PLC Control System

1.Control the quantity &punching length& cutting length automatically 2. PLC Control Board Screen shall be with PC Transparent Material protection 3.The Machine will be stopped while it is punching and cutting 4.Automatic Length and punching and quantity counting 5. Voltage: 380V, 3 Phase 50HZ 6. PLC manufacturer: SIEMENS/PANASONIC 7. Solenoid valve: HUADE 8. Oil hydraulic cylinder: XINGDE 9. Oil pipeline: HUADE 10.Touch Screen manufacturer: WEINVIEW 11. Relay: Schneider 12. Encoder: Omron 13. Control Voltage: 24V

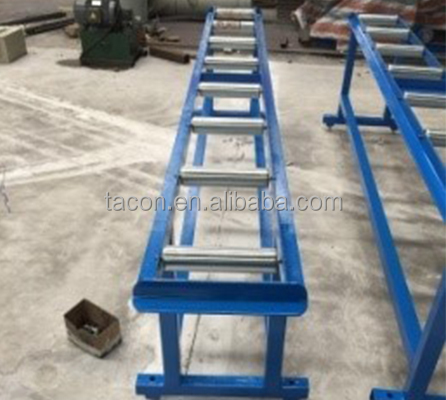

Ⅵ Run-out table

Un-Powered, Two units
