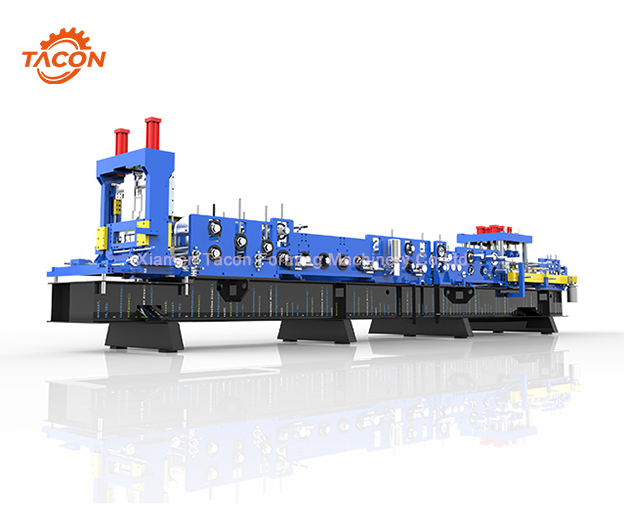

Product details

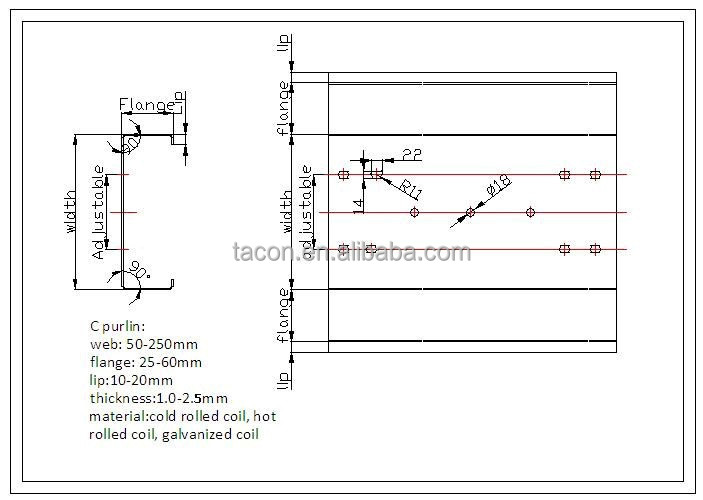

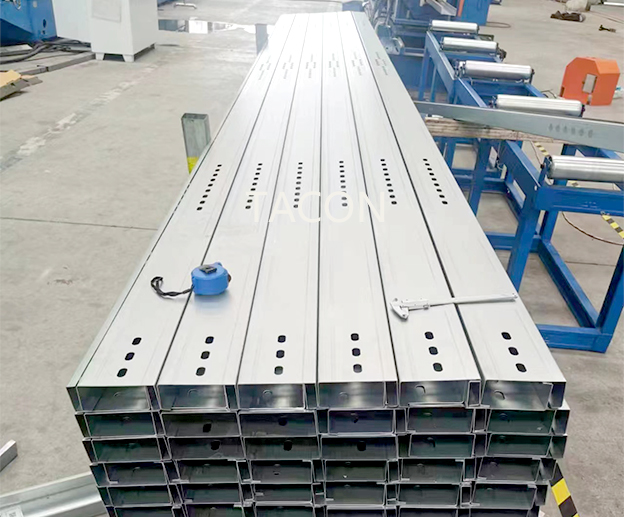

Profile Drawing

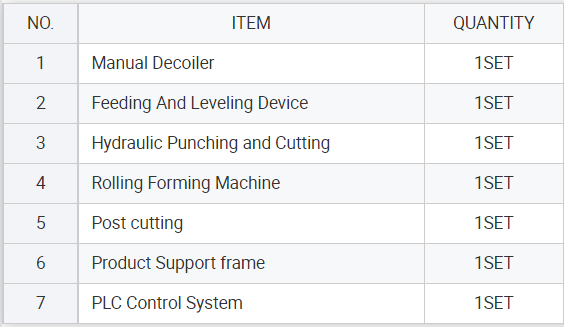

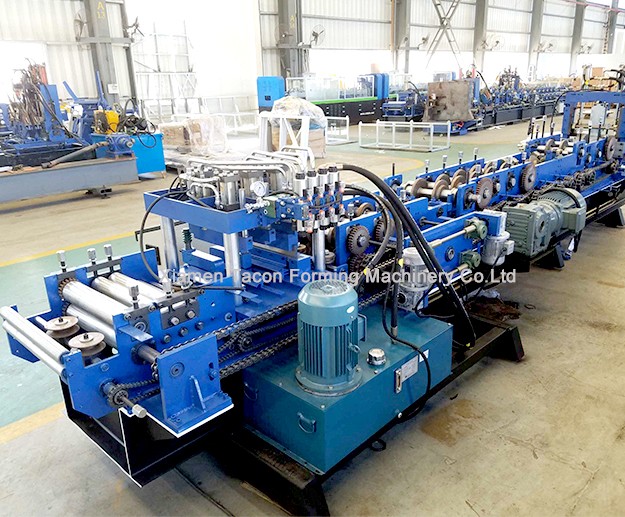

Machine Components

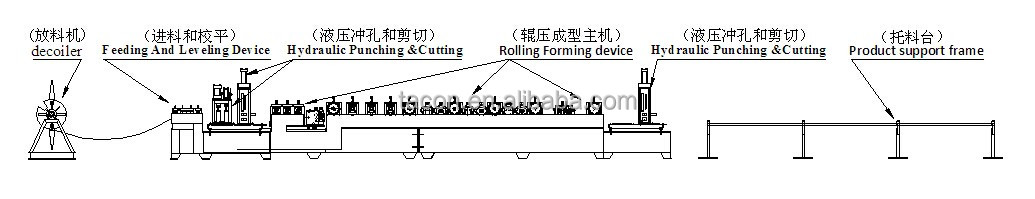

Flow Chart

Manual Decoiler→ Feed And Leveling Device→ Hydraulic Punching and Cutting→ Roll Forming Machine→ Post cutting→ Product Support Frame

* material: cold rolled coil , hot rolled coil, galvanized coil

* yield strength: Q235Mpa Q345

FEATURES AT A GLANCE

Ⅰ Decoiler

* Tightening of coil: By Manual
* Weight capacity of decoiler : 4.0T
* Inner diameter of decoiler: 380-550mm
* Max outer diameter of decoiler: 1200mm

Ⅱ Feeding and Leveling Device

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding * It used for making the material flat before
feeding into the roll forming machine
* 7 rollers (three upper and four lower)

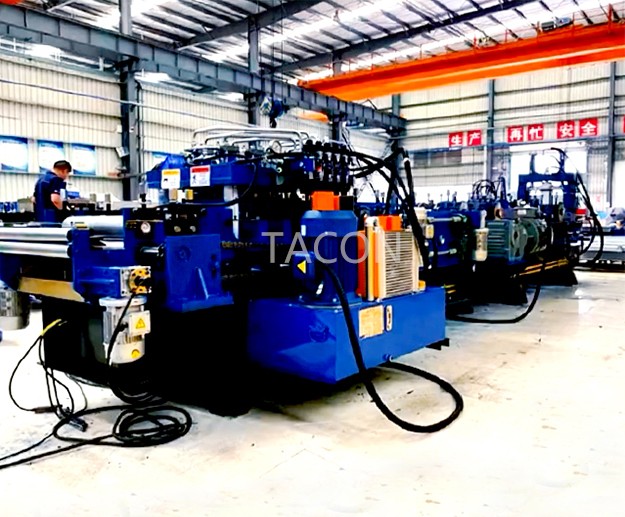

Ⅲ Hydraulic punching and Cutting

* Punching Type: Hydraulic Punching
* Punching sizes and no.: 2 punching units
* Punching Type: Hydraulic Punching
* Cutting type: Hydraulic cutting
* Cutting material: Cr12MoV
* Hydraulic motor power: 7.5KW
* Hydraulic Pressure: 12-20Mpa
* Hydraulic cooling system by fan

Ⅳ Rolling Forming System

* main motor type: Servo Motor
* motor power:15KW
* Drive: chain
* speed of forming: 8-15m/min
* material of roller : Cr12
* Motor for width adjusting: 2.25KW(0.75KW*3)
* 16 groups rollers
* material of main shaft : 40Cr (The main shaft have the high frequency grinding &heat Treatment and the surface of shaft is
chroming
* diameter of main shaft: ø65-70mm

Ⅴ Post Cutting

* From can be adjustable within 70-250mm

Ⅵ PLC Control System

* Control the quantity &punching length& cutting length automatically
* Voltage: 415V, 3 Phase 50Hz
* Size of PLC Control Board(PLC: 700mm(L)x1000mm(H)x300mm(W)
* PLC manufacturer: Japan Panasonic
* Solenoid valve: Beijing hade
* Oilhydrauliccylinder: TAIWEI
* Oil pipeline: parkers
* Touch Screen manufacturer: Japan Panasonic
* Frequency: TAIDA
* Encoder : Omron

Ⅵ Product Support Frame

The length of product support frame : 6m
