Machine Components
Flow Chart

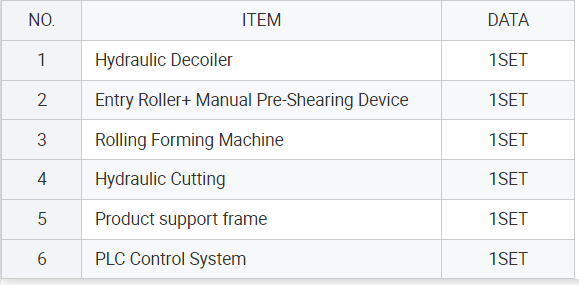

Hydraulic Decoiler →Entry Roller+Manual Pre-Shearing Device→ Rolling Forming Machine→ Hydraulic Cutting→ Product Support Frame

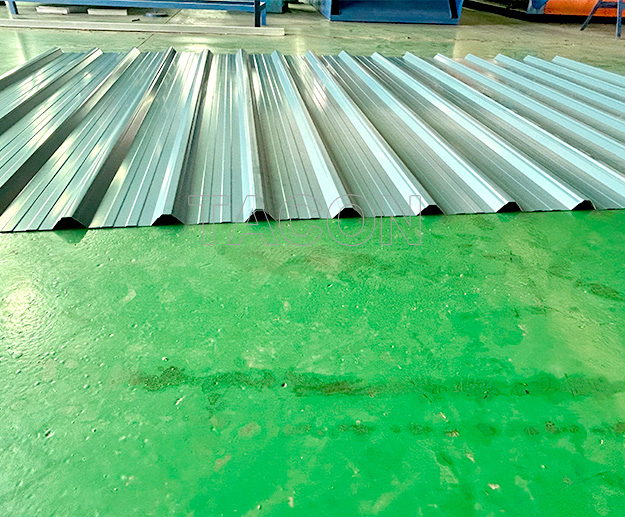

FEATURES AT A GLANCE

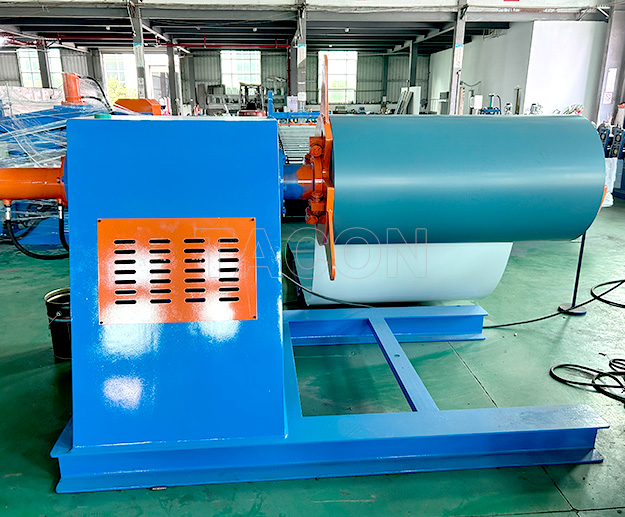

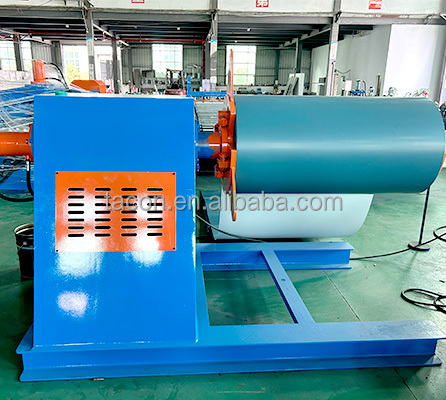

ⅠHydraulic Decoiler
A. Decoiler type: Hydraulic decoiler
B. Weight capacity of decoiler: 6.0 T
C. Inner diameter of decoiler: 510+/-30mm
D. Max outer diameter of decoiler: 1500mm
E. Automatic Motor: 3KW

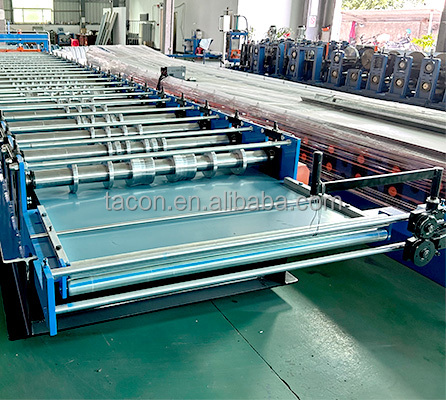

ⅡEntry Roller+ Manual Pre-Shearing Device
A. Pre-shearing to cut off the end of the final piece of sheet only

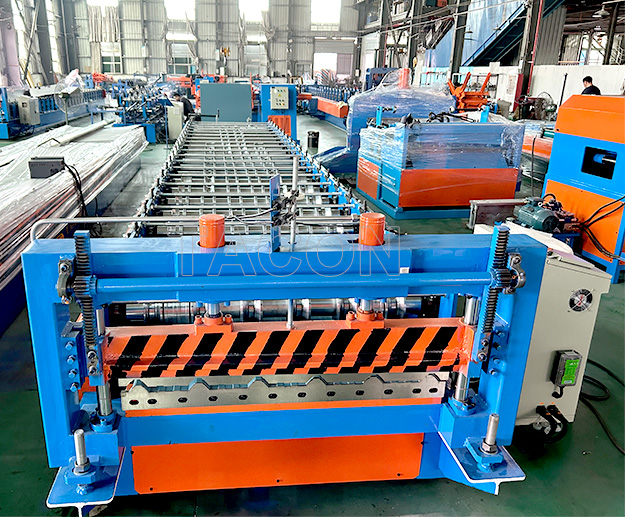

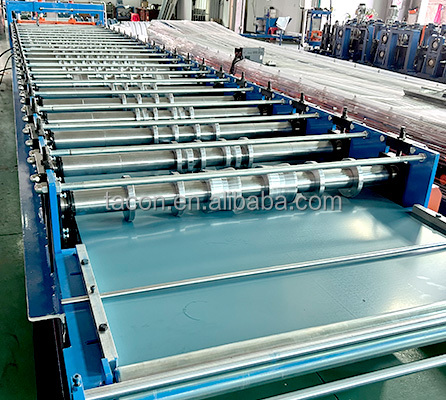

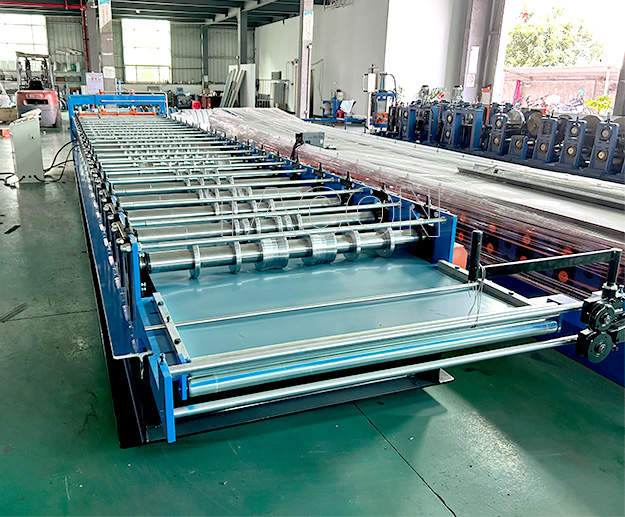

Ⅲ Roll forming Machine
A. Roll forming speed: 15-18m/min
B. Shafts diameter: Φ75/95mm
C. Main motor: 7.5KW
D. Rollers material: 40Cr
E. Roller groups: 22 Stations
F. from the floor to the frame: 250mmH. Machine will have protective cover

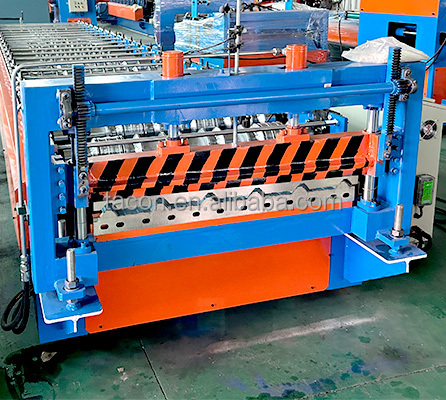

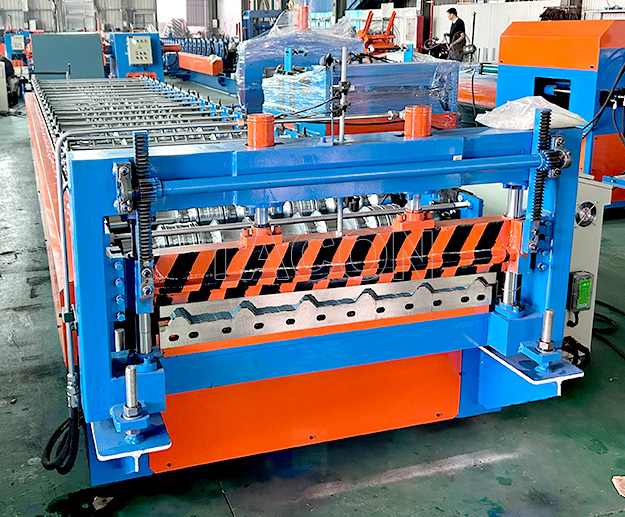

Ⅳ Hydraulic cutting
A. Hydraulic Motor power: 3.0KW
B. Cutting material: Cr12
C. Hydraulic valves HUADE brand
D. Cutter material: Cr12Mov

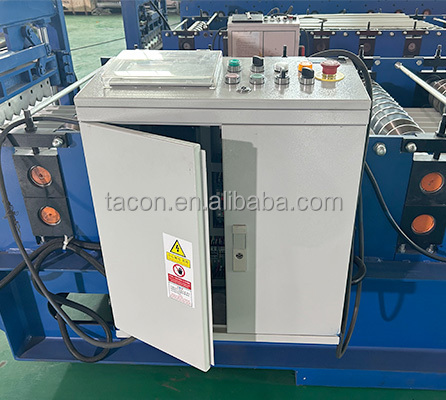

Ⅴ PLC control system
A. Control quantity and length automatically
B. Touch screen: MITSUBISHI
C. PLC: MITSUBISHI
D. Relay: Schneider
E. Encoder : Omron
F. Frequency: TAIDA
G. Length tolerance : ±2mm
H. Voltage : 480v 60HZ 3phase
