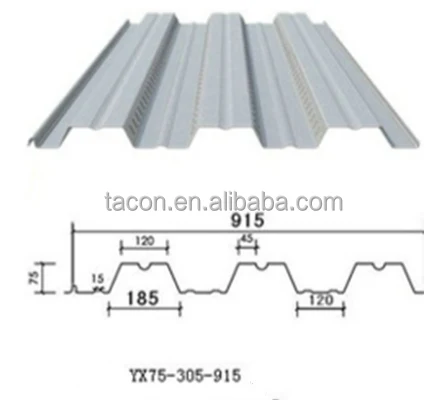

Profile Drawing
* Coil material：color coated steel sheet, galvanized steel sheet,
* Yield strength: G360Mpa
* Thickness：0.9-1.2mm
* Test thickness: 0.9-1.2mm
* Effective Width: 915mm

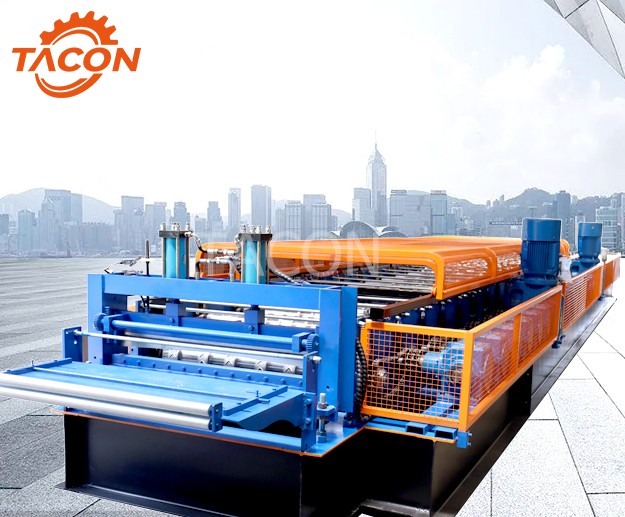

Machine Components
Our products can be customized according to your requirements.
Flow Chart
Hydraulic Decoiler→ Guide with Adjustable → Pre-Cutting → Rolling Forming Device→ Hydraulic Cutting→ Product Support Frame
FEATURES AT A GLANCE
Ⅰ Hydraulic Un-coiler
* Un-coiler Type: Hydraulic
* Weight capacity of Un-coiler : 8.0T
* Coil Width Max: 1250mm
* Diameter of Inner: 508±30mm
* Decoiler will be have arm
Ⅱ Guide with Adjustable
Ⅲ Pre-Cutting
Ⅲ Rolling Forming Machine
* Feeding Section with guide
* main motor power: 18.5KWX2
* Drive: Gear box
* Wall-Plate-Frame design 18mm
* H beam: H450mm
* speed of forming: 15-18m/min, Frequency Speed Control

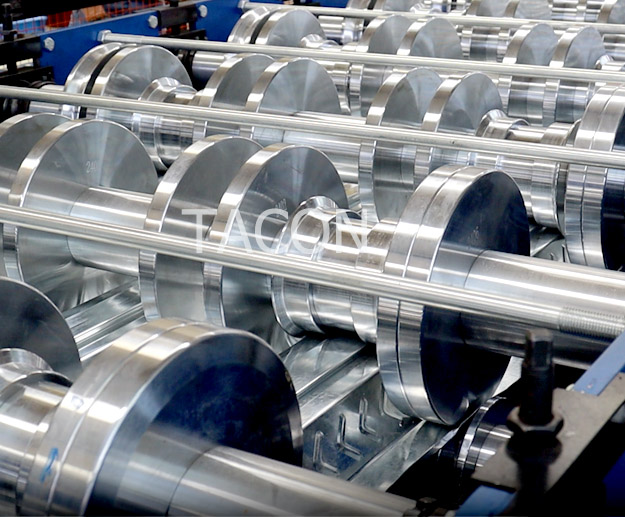

* Rollers Manufactured from 45#, CNC Lathes, hard Chrome Coated
* rollers: 26 Stations
* Bearing: HRB
* material of main shaft: 40Cr
* diameter of main shaft: ø95mm

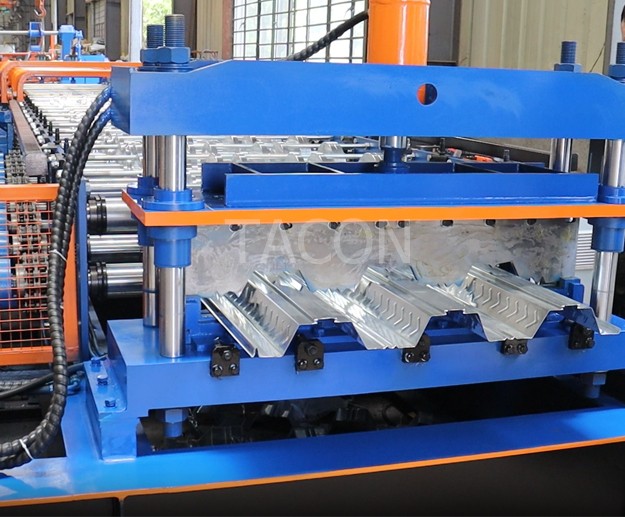

Ⅳ Hydraulic Cutting Device
* Cutting type: Hydraulic cutting
* Cutting material: C r12, Heat Treatment
* Hydraulic motor power: 5.5 KW
Ⅴ PLC Control System
* Control the quantity &punching length& cutting length automatically
* PLC Control Board Screen shall be with PC Transparent Material protection
* The Machine will be stopped while it is punching and cutting
* Automatic Length and punching and quantity counting (precision+/- 2mm)
* Voltage: 415V, 3 Phase 50Hz
* PLC manufacturer: Panasonic
* Solenoid valve: huade
* Oil hydraulic cylinder: HUADE
* frequency converter: Panasonic
* Control Voltage: 24V
