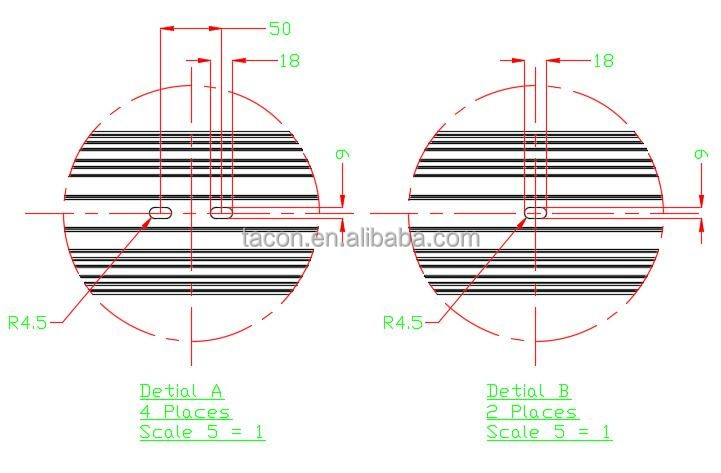

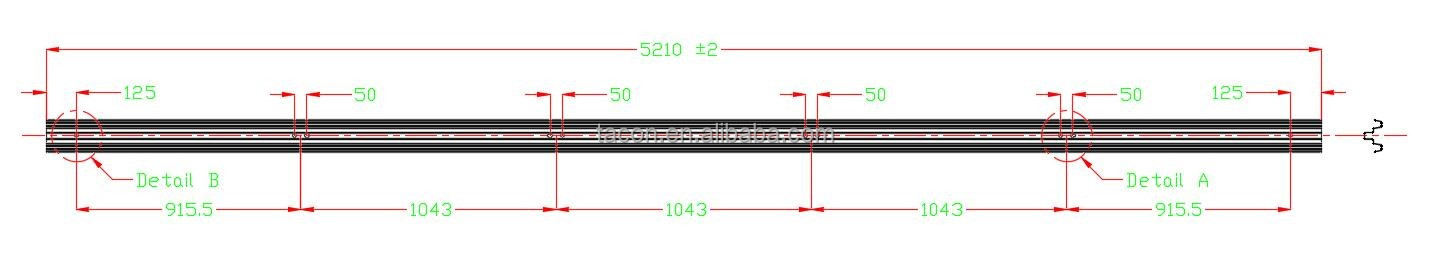

Profile Drawing
* Material Thickness: 0.8-1.2 mm
* Yield strength: G550Mpa
* Coil Width: 302mm

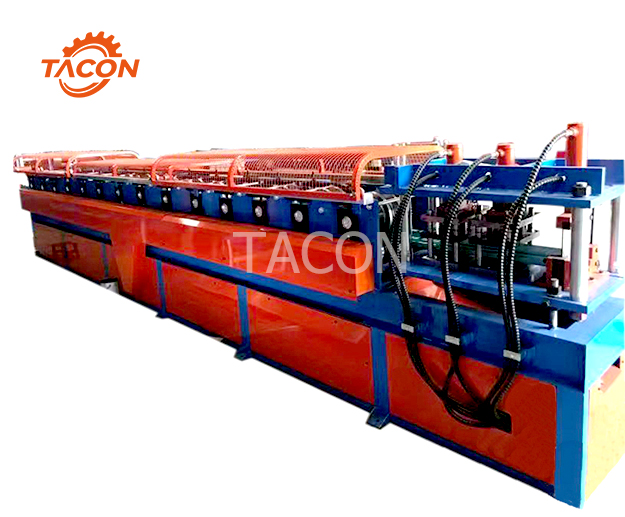

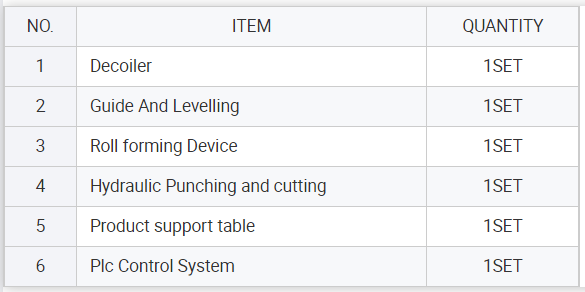

Machine Components
Flow chart
Decoiler→ Guide and levelling →Roll Forming Device → Hydraulic punching and cutting → Product Support Table
Technology Parameters

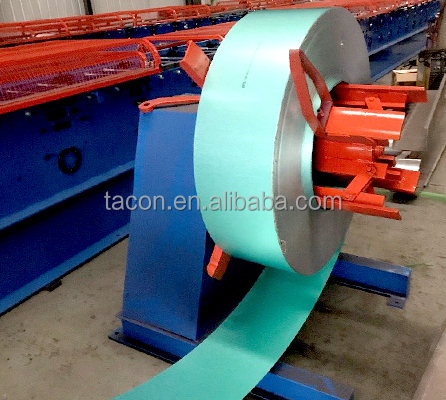

Ⅰ Decoiler
* type of Fasten: Manual
* Capacity Weight: 3.0T
* Inner Diameter: ¢480-¢540mm
* Diameter of Outer：1200mm

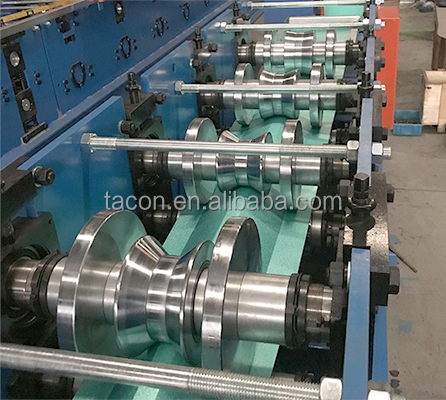

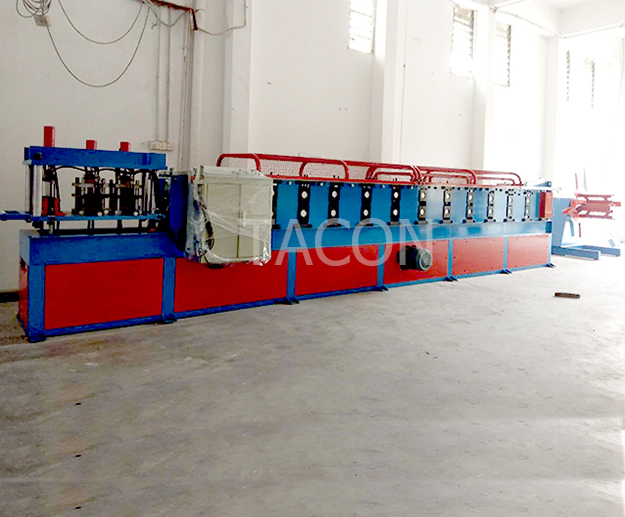

Ⅱ Roll forming Device
* Main Motor: Frequency Motor
* Motor Power: 11KW
* Forming Speed: 15m/min
* Rolls Material : Cr12
* Stations: 14
* Main Shaft Material：45#
* Main Shaft Diameter: ø75mm

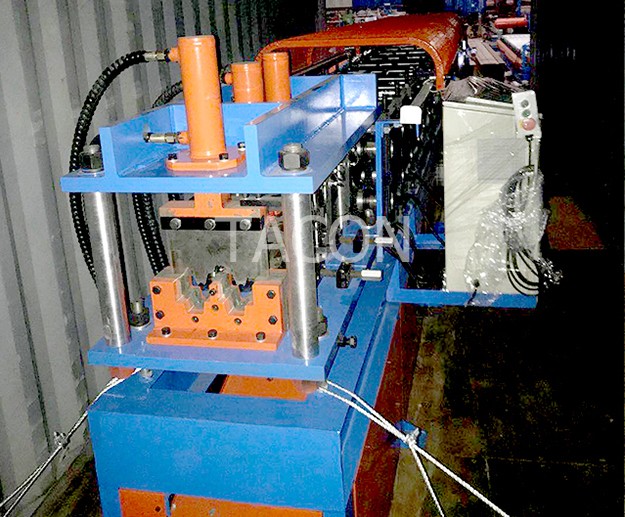

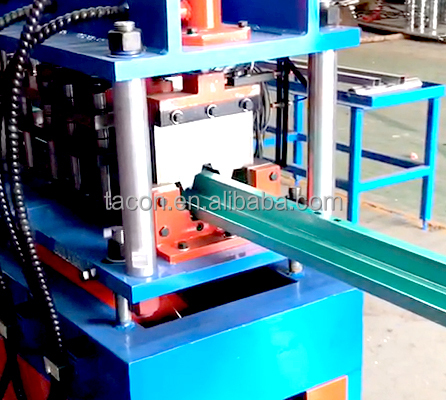

Ⅲ Hydraulic punching and cutting
* Punching Type: Hydraulic punching
* Punching No.: Two Units
* Cutting type：hydraulic cutting
* Hydraulic power：3.0 KW
* Cutter Material: Cr12
Ⅳ PLC Control System
* Voltage: 380V 3 Phase 50Hz (according to your request)
* Length Tolerance：+/- 2mm
* Plc Manufacturer: Siemens
* Frequency：DELTA
* Hydraulic Value: Beijing Huade
* Cylinder: TAIWEI
* Oil Pipe: huade
* Touch screen：Siemens
* Encoder: Omron

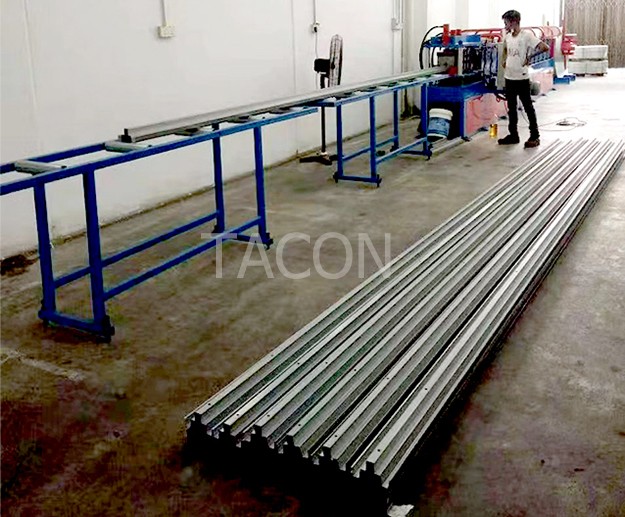

Ⅴ Product Support Table
* Product Support Table: 4m

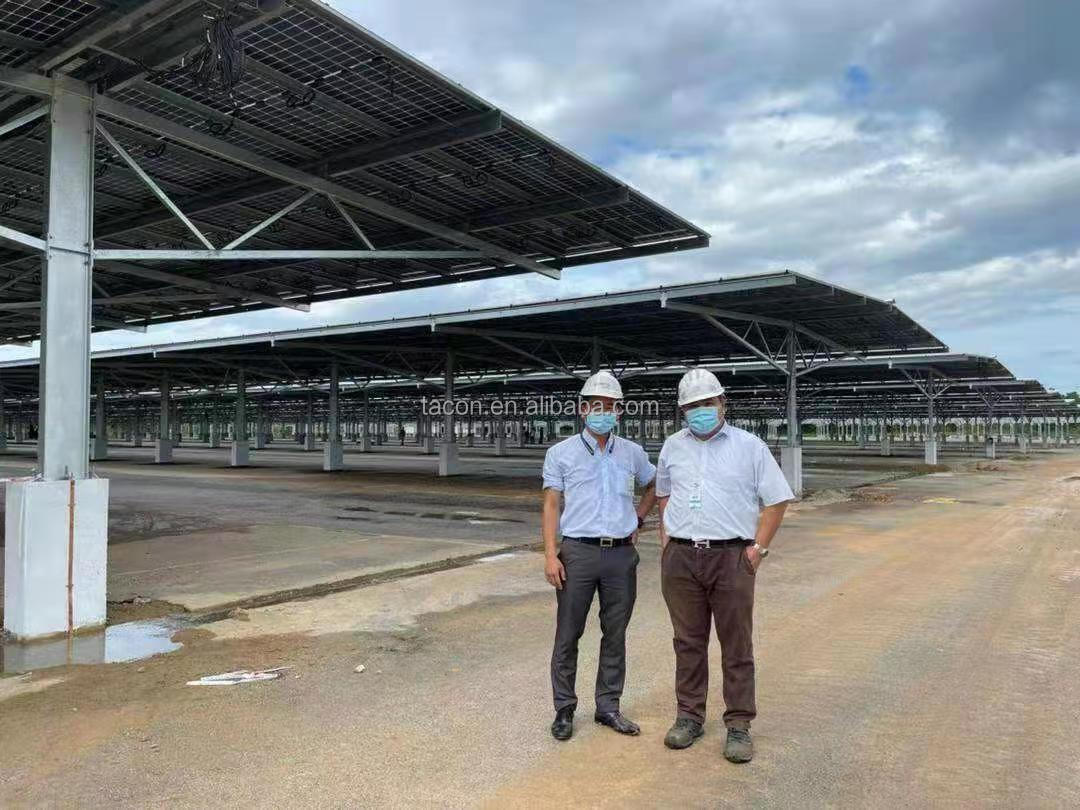

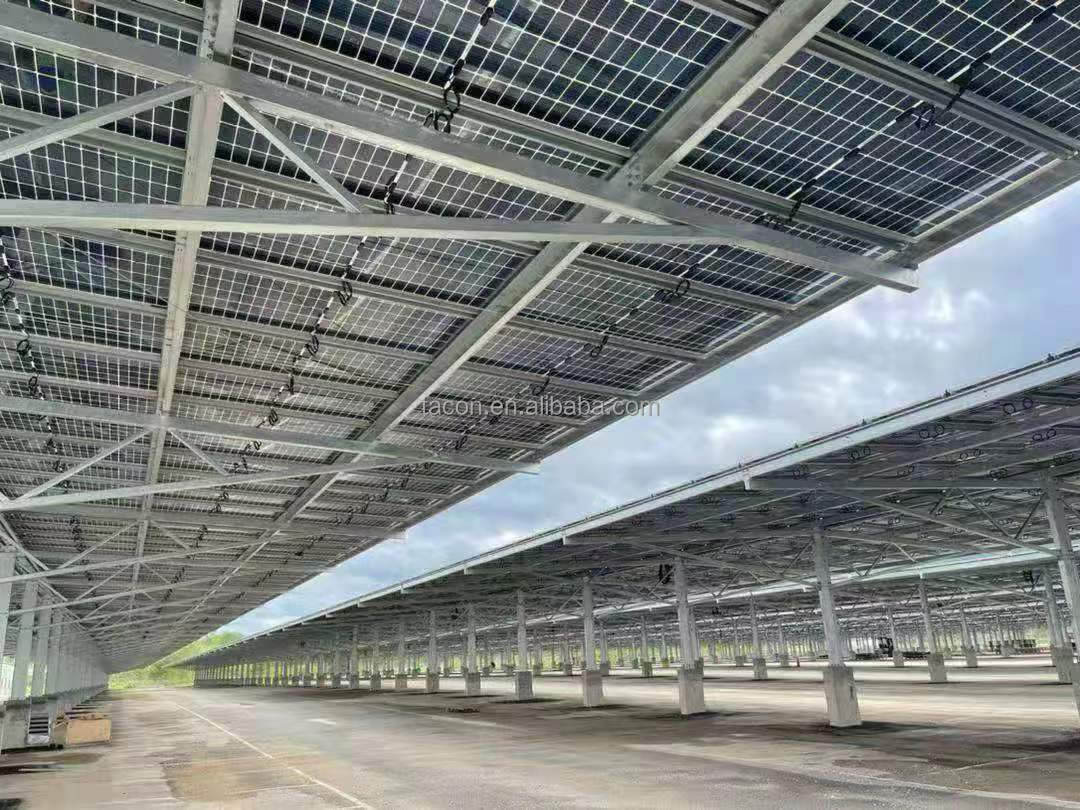

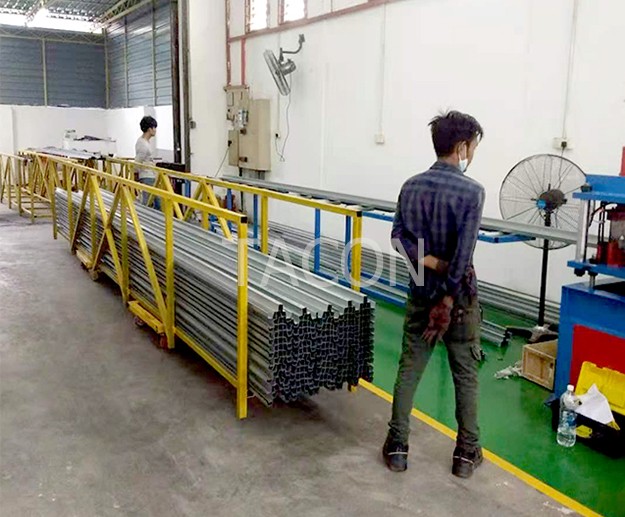

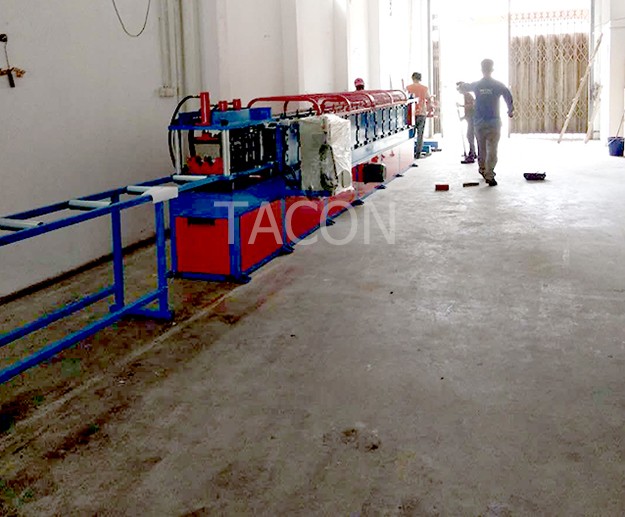

Successful Project
