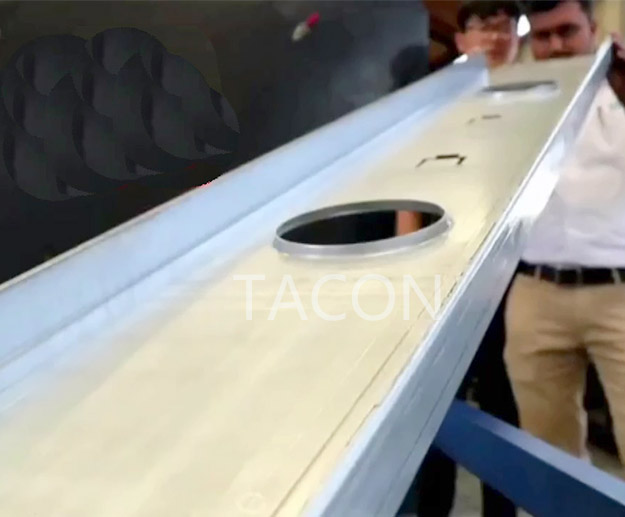

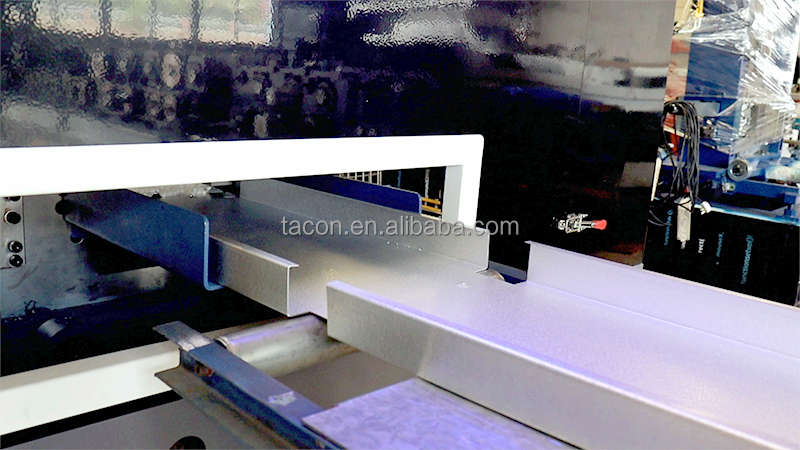

Profile Drawing
1.L: 75-220mm B: 32-51mm A: 8-15mm Thickness: 0.8-1.6mm
2.Material : cold rolled coil , hot rolled coil, galvanized coil
3.Yield strength :Q235Mpa Q300Mpa Q350Mpa Q450Mpa Q550Mpa

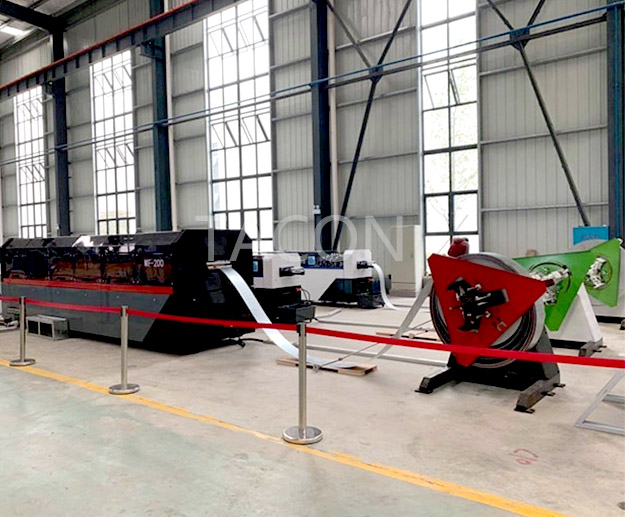

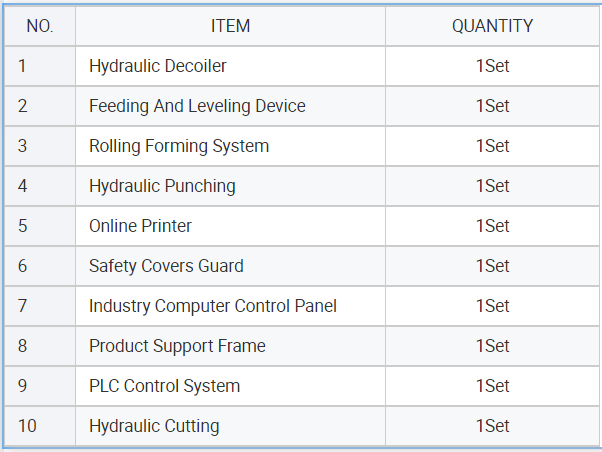

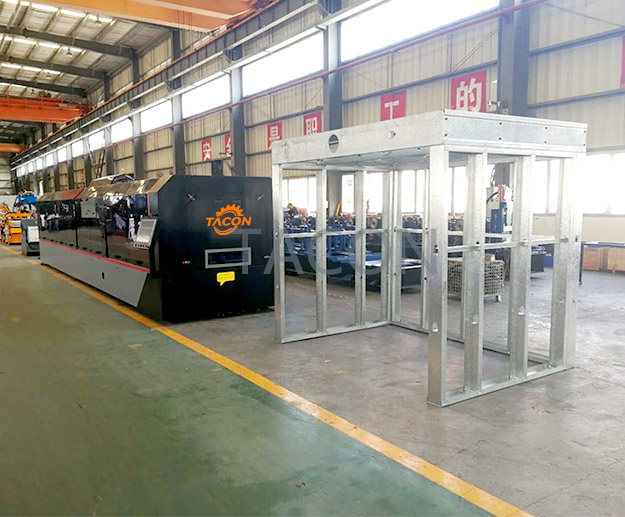

Machine Components
Flow Chart
Decoiler→ Feed And Leveling Device→ Hydraulic punching→ Roll Forming System→ Hydraulic Cutting→ Product Support Frame
FEATURES AT A GLANCE

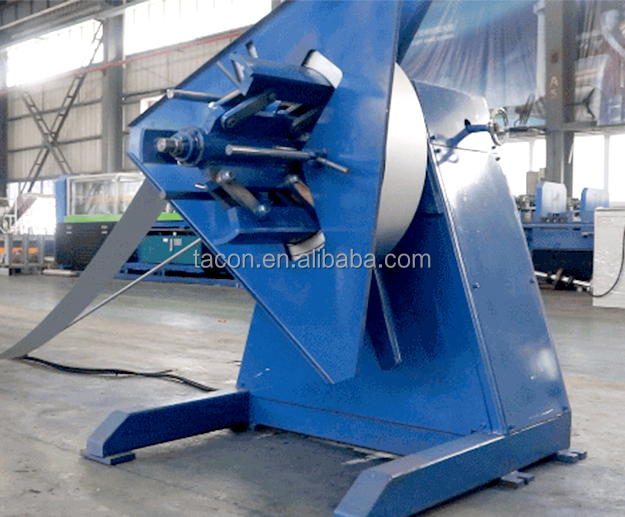

Ⅰ Manual Decoiler(automatic rotation)
* Tightening of coil: By Manual
* Weight capacity of decoiler : 6.0T
* Inner diameter of decoiler: 380-550mm
* Max outer diameter of decoiler: 1600mm

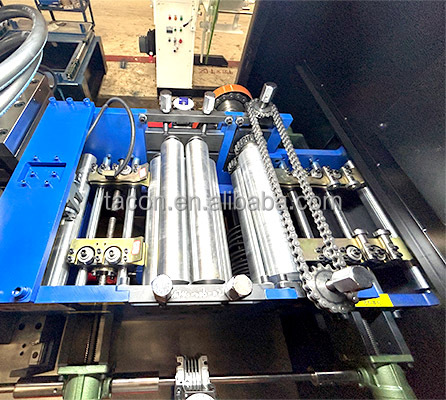

Ⅱ Feeding and Leveling Device
* It used for making the material flat before feeding into the roll forming machine
* 11 rollers (five upper and six lower)

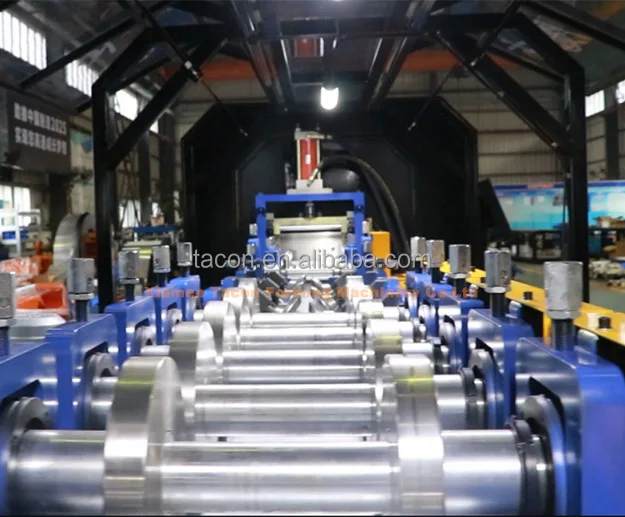

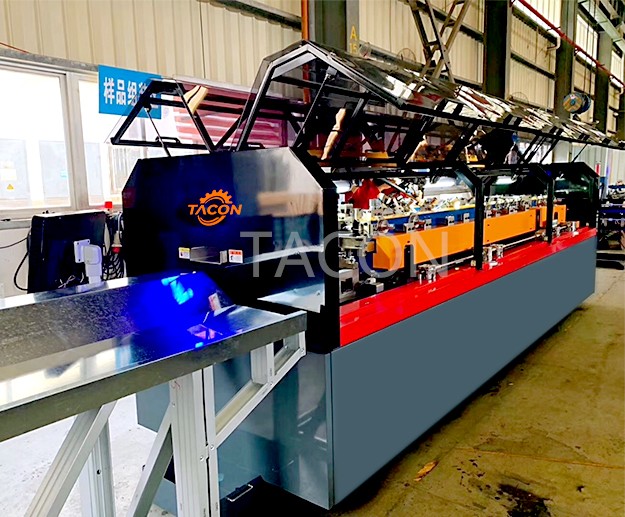

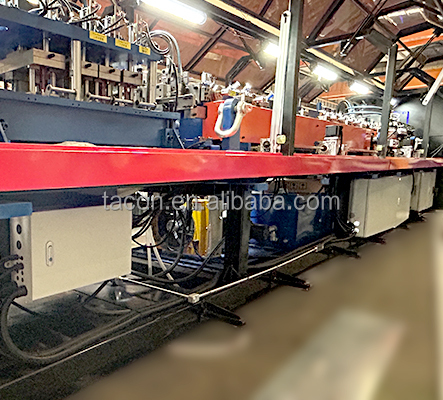

Ⅲ Rolling Forming System
* main motor type: Servo motor
* motor power: 22KW
* Drive: double chain
* speed of forming: 10-15m/min
* material of roller : Cr12
* Motor for width adjusting: 2.25KW(0.75KW*3)
* 18 groups rollers
* material of main shaft : 40Cr (The main shaft have the high frequency grinding &heat Treatment and the surface of shaft is chroming)
* diameter of main shaft: ø75-93mm

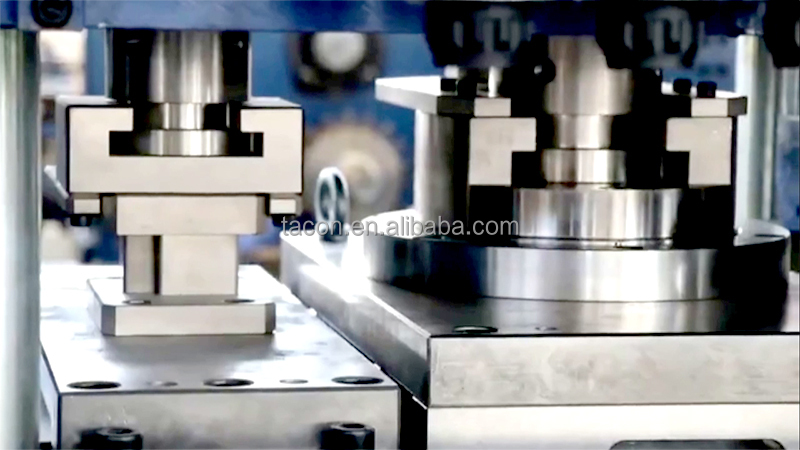

Ⅳ Hydraulic Punching
Ⅴ Hydraulic Cutting
* Cutting type: Hydraulic cutting
* Cutting material: Cr12MoV
* Hydraulic motor power: 5.5KW
* Hydraulic Pressure: 16Mpa

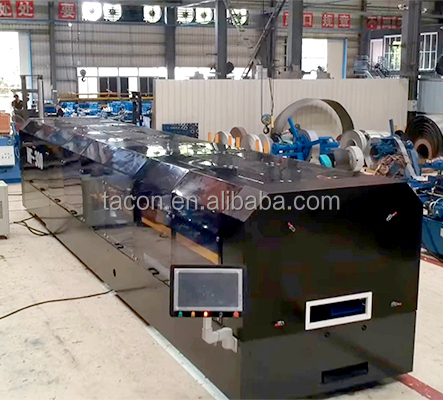

Ⅵ Safety Covers Guard
1. Safety Guard covers the whole machine to ensure worker’s safe.
2. Each parts of safety guard is linked with lock. Safety switch is available to stop machine when safety guard is open.

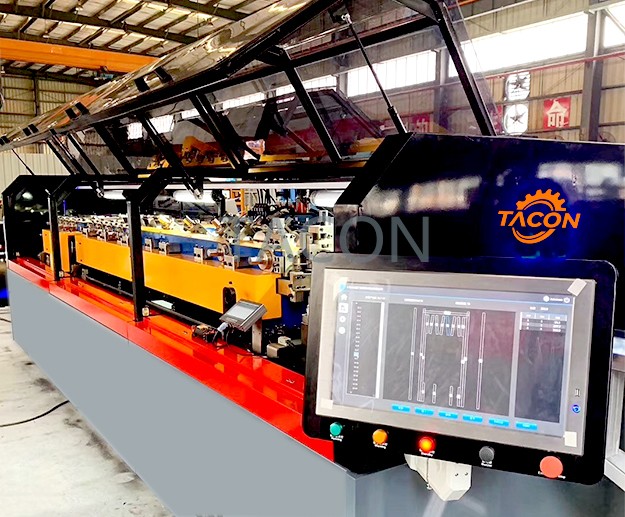

Ⅶ Industry computer control panel
Ⅷ PLC Control System
* Control the quantity &punching length& cutting length automatically
* Voltage: 415V, 3 Phase 50Hz
* PLC manufacturer: Japan Panasonic
* Solenoid valve: Beijing hade
* Oil hydraulic cylinder: XINGDE
* Oil pipeline: Omar
* Touch Screen manufacturer: Japan Panasonic
* Industry Computer
* Encoder : Omron
Ⅸ Product support frame
The length of product support frame : 12m

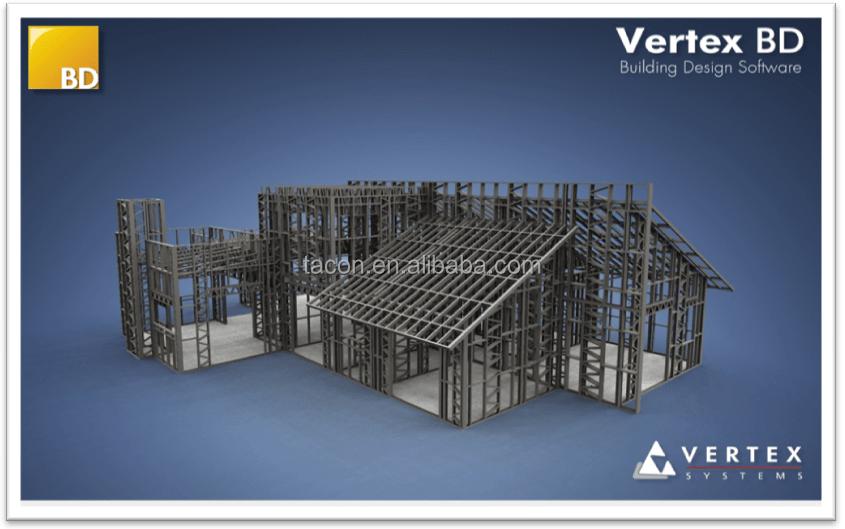

The Design System
