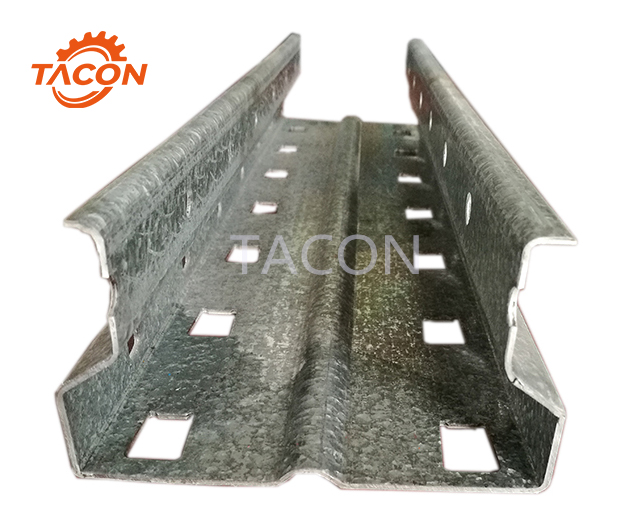

Machine Components
Flow chart

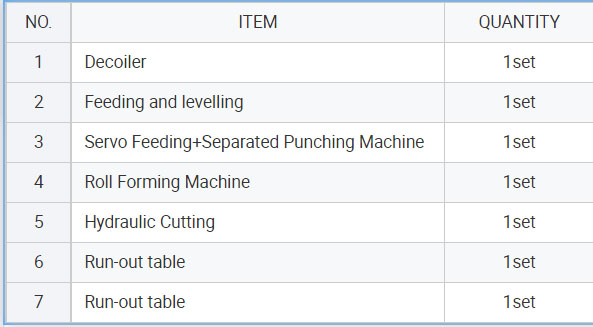

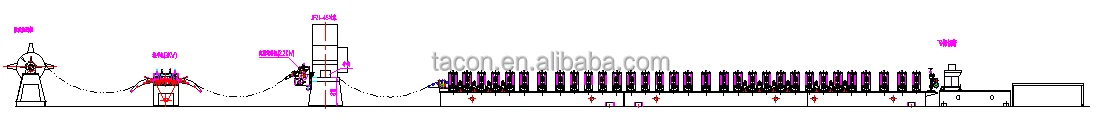

Decoiler→ Feeding And Levelling →Servo Feeding Machine→ Punching Machine→ Roll forming Machine→ Hydraulic Cutting→ Run-out table
Technology Parameters

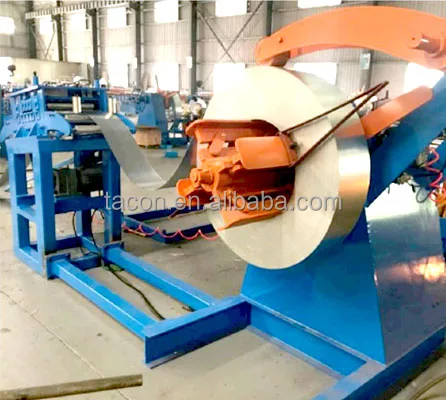

Ⅰ Decoiler
* Decoiler Type: Hydraulic decoiler
* weight capacity of decoiler : 6.0T
* Material width: ≦350mm
* Coil inner sizes: Φ508mm(Φ480-520mm)
* Coil outer sizes: ≦Φ1200mm
Ⅱ Feeding and Levelling
* It used for making the material flat before feeding into the roll forming machine.

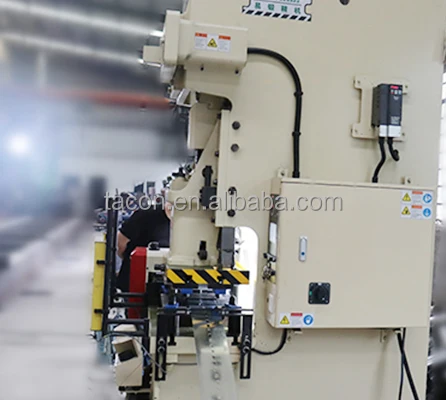

Ⅲ Servo Feeding Machine+ Separated Punching Machine
* 100Ton Punching Machine
* Brand: YANGLI

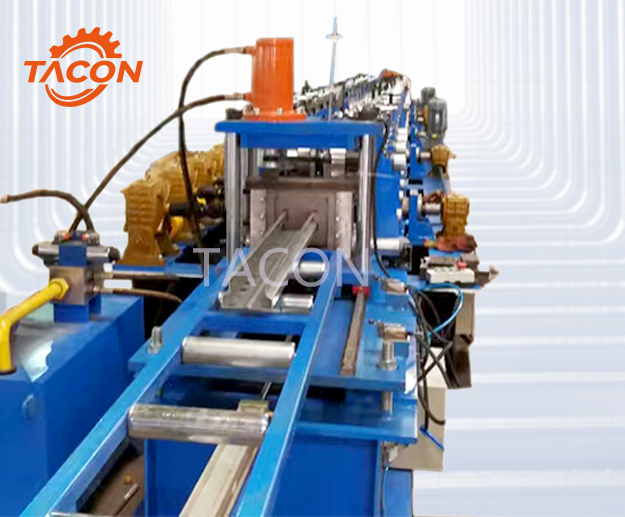

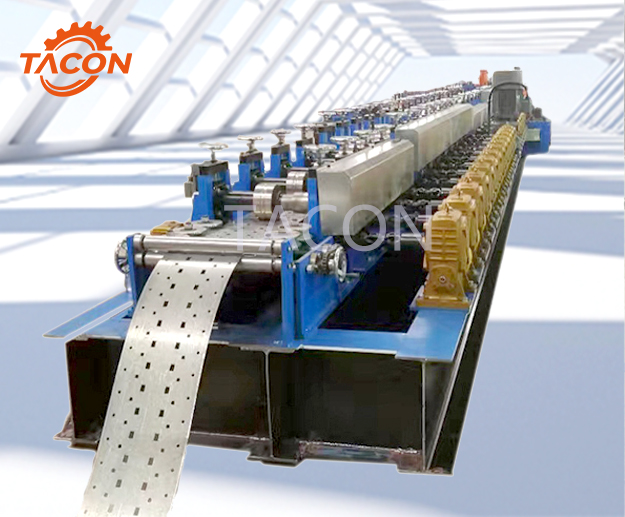

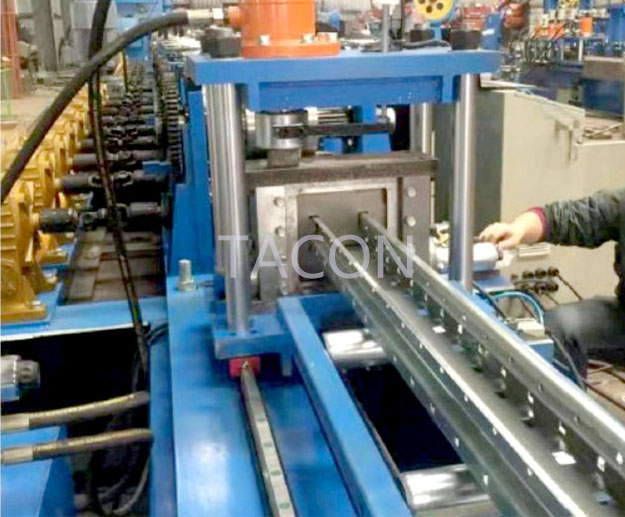

Ⅳ Roll Forming Machine
* main motor type: Frequency motor
* total power: 22KW
* Driver: gear box
* speed of forming: 6-10m/min
* material of roller : Cr12 HRC58-62
* rollers: 22 groups
* material of main shaft: 40Cr (The main shaft have the high frequency grinding &heat Treatment and the surface of shaft is
chroming)
* diameter of main shaft: ø75- ø95mm
Ⅴ Hydraulic Cutting
* Punching Type: Hydraulic cutting
* Hydraulic motor power: 5.5KW

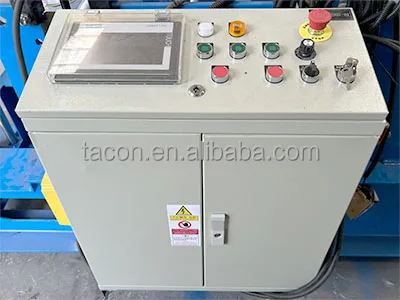

Ⅵ PLC Control System
* Control the quantity &punching length& cutting length automatically
* The Machine will be stopped while it is punching and cutting
* Automatic Length and punching measures and quantity counting (precision +/- 1.0mm)
* Voltage: 380V, 3 Phase 50Hz
* Size of PLC Control Board: 700mm(L)x1000mm(H)x300mm(W)
* PLC manufacturer: panasonic
* Solenoid valve: taiwei
* Oil hydraulic cylinder: taiwei

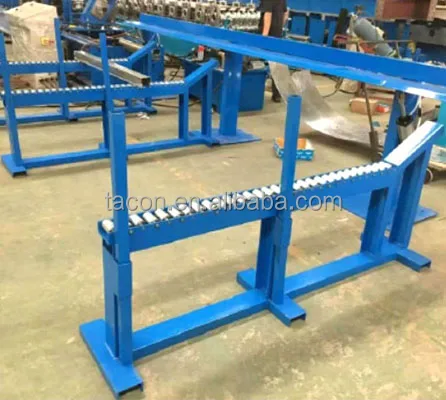

Ⅶ Run-out Table
The length of product support frame : 6m
