Product details

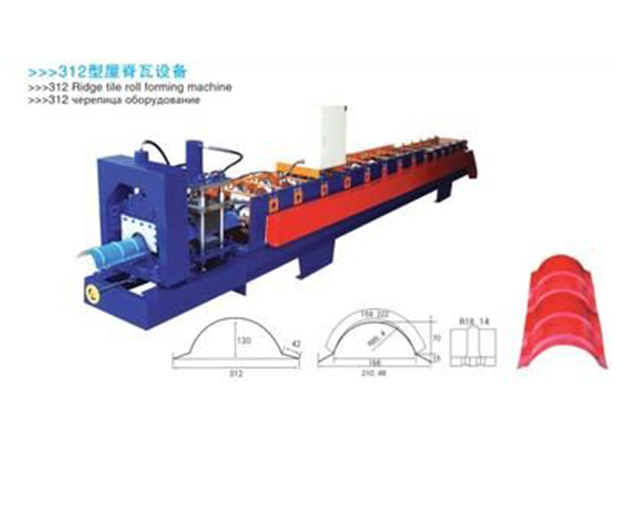

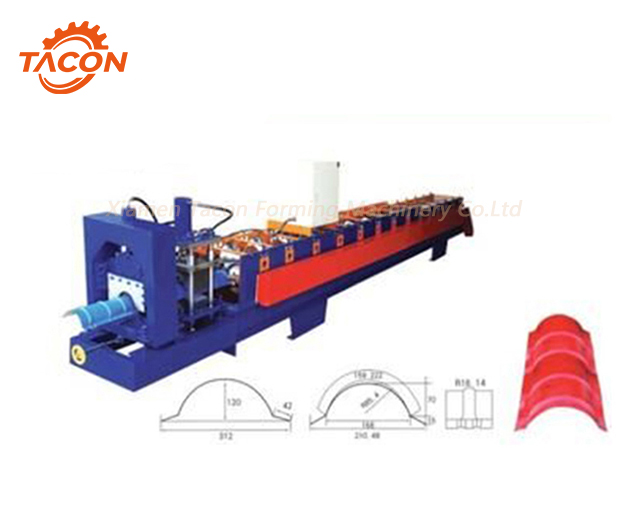

PRODUCT VERSION DRAWING

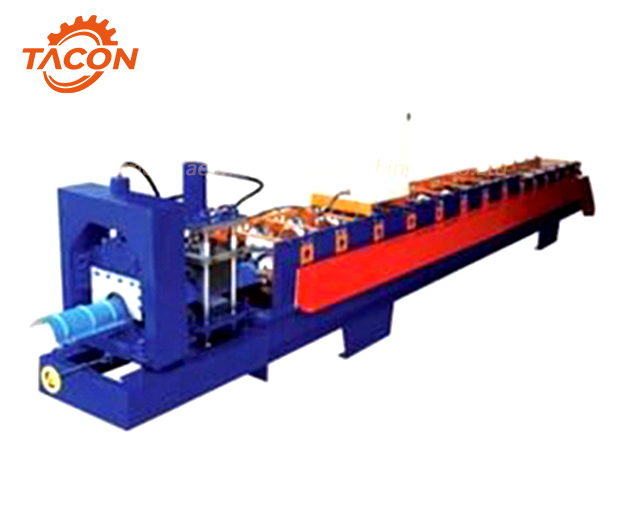

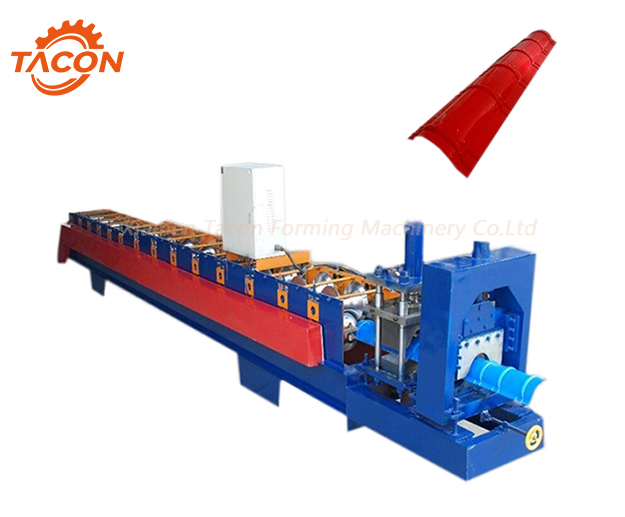

PRODUCT OVERVIEW

Ⅰ Product Advantages

1.A stylish and attractive design,giving the appearance of a traditional roof tile.
2.Resistant to frost heave,hail and gales : 100% waterproof, thanks to the lateral run-off channel on each sheet for several models.
3.The raw material can be in different color,elegant and noble looking. It is widely used as the garden like factory, hotel,
exhibition,villa,civil construction etc.

Ⅱ Product Features

1.Precise forming.
2.High-solid forming stand guarantees the good and uniform quality of final products.The operation automatically minimizes the tolerance of cutting length.

3.Hydraulic decoiler with Break is equipped for roll forming production, not manual one.
4.Refine steel plates in 22- 25 mm as Sidewall of machine is used.

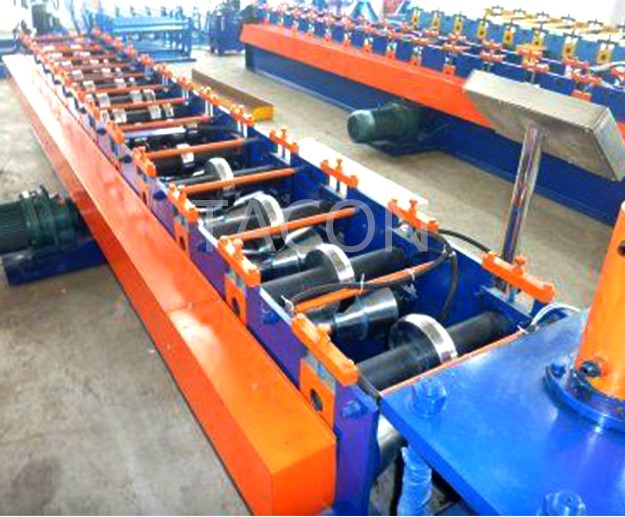

5.12-16 Nos of Rollers is used for ridge cap forming, ensuring profile strength.
6.Step forming by AC Motor is adopted for its ridge stepping.
7.Mitsubishi (Japan) PLC and 5.7' Touchable Screen are used for for data processing and setting.6.Roll forming speed is 2 - 12 meters / minute.

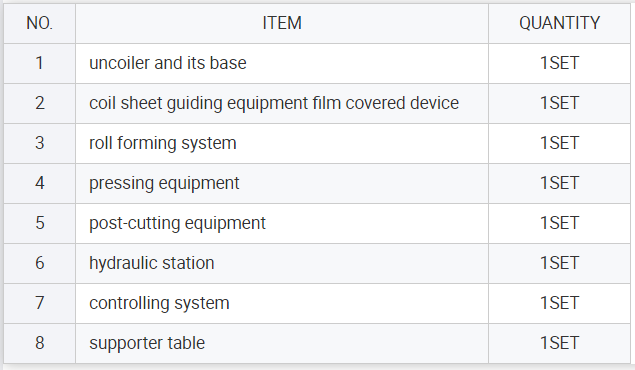

Ⅲ Product Components

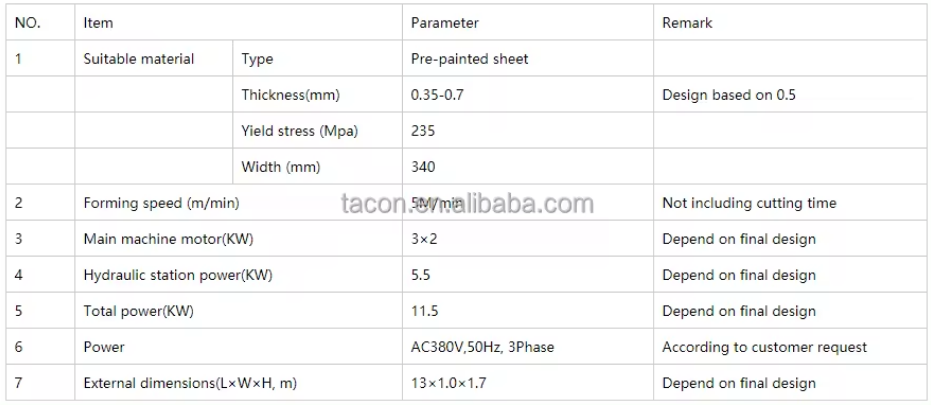

PRODUCT SPECIFICATIONS
