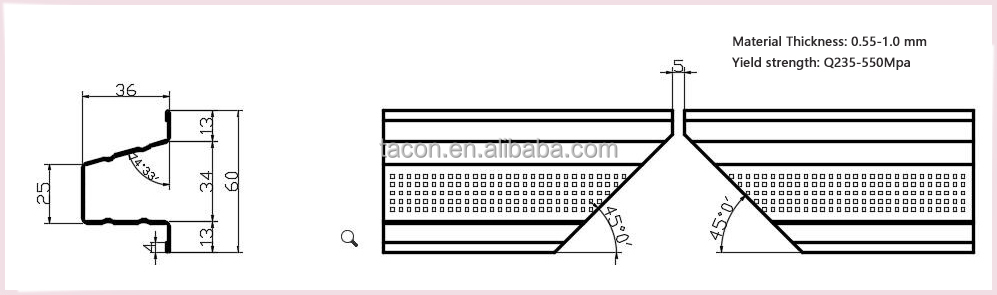

Profile Drawing

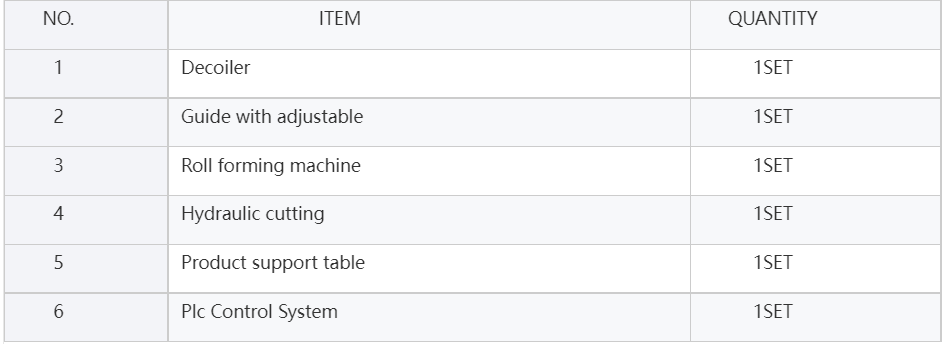

Machine Components
Our products can be customized according to your requirements.
Machine Total Weight : 2.5T
Machine Total Length: (length)5.5m x (width)0.8m x (height)1.5m
Flow chart
Decoiler→ Guide and levelling →Roll Forming machine → Hydraulic cutting → Product Support Table
Machine Parameters

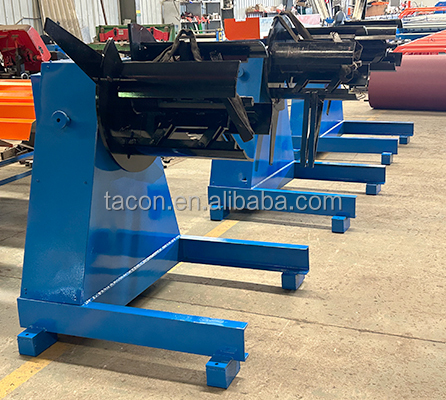

ⅠDecoiler
* type of Driver: Manual
* Capacity Weight: 3.0T
* Inner Diameter: ¢480-¢540mm
* Diameter of Outer：1300mm
Ⅱ Guide of Adjustable

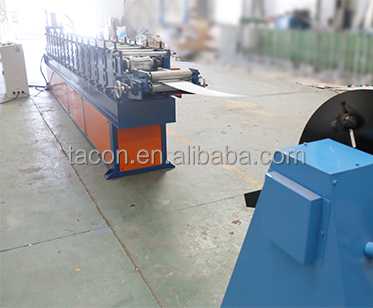

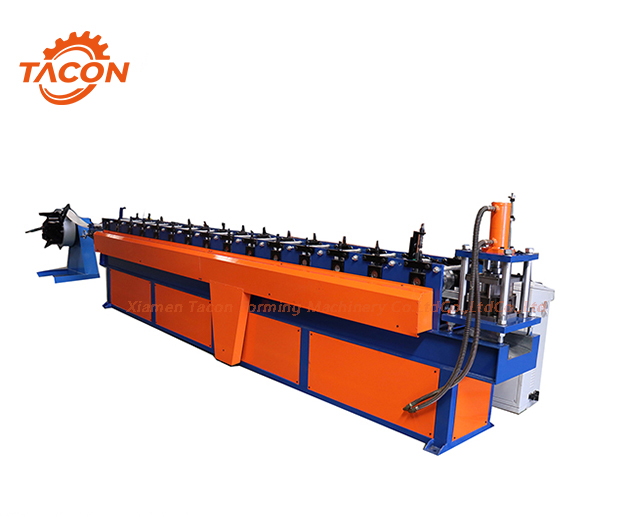

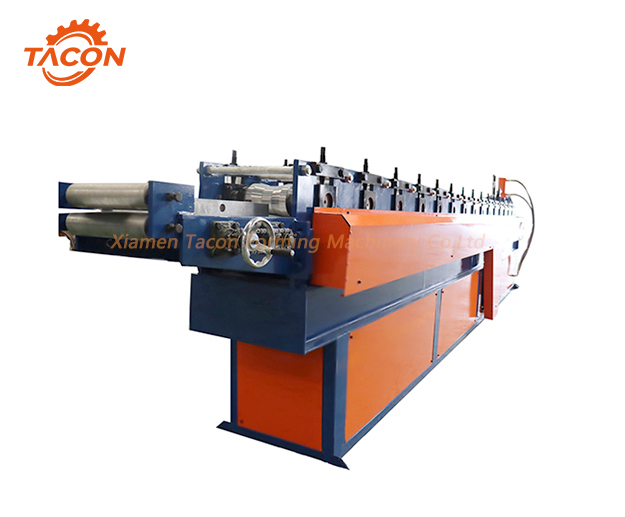

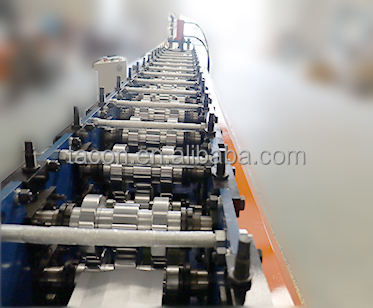

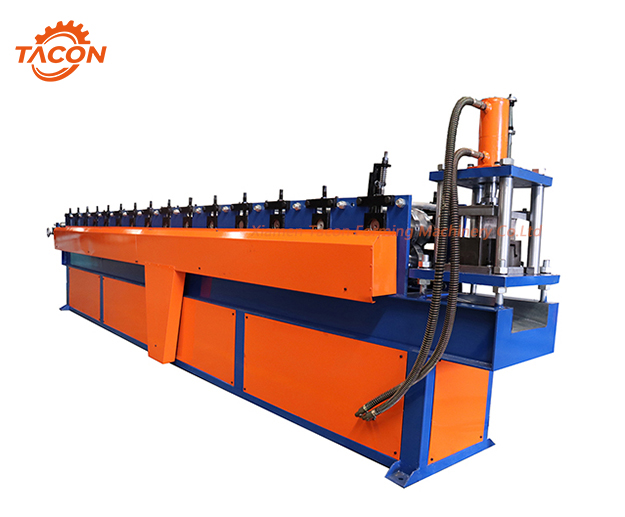

Ⅲ Roll forming Machine
* Main Motor: Frequency Motor
* Power: 7.5KW
* Forming Speed: 15m/min
* Roller material : 45#
* Stations: 14
* Main Shaft Material：45#
* Main Shaft Diameter: ø65-70mm

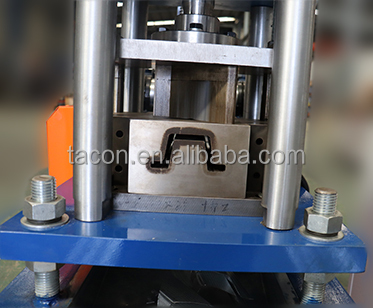

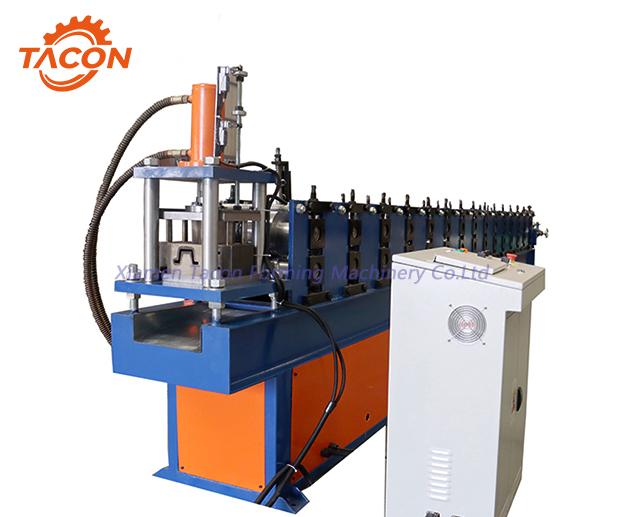

Ⅳ Hydraulic cutting
* Cutting type：hydraulic cutting
* Hydraulic power：2.2KW
* Cutter Material: Cr12

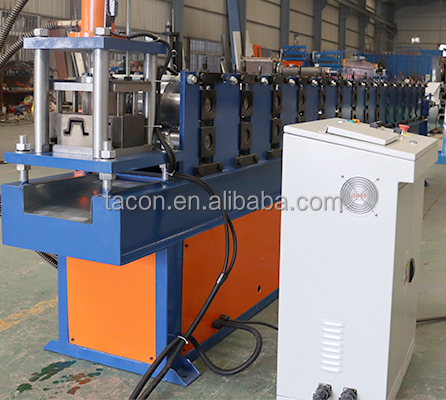

Ⅴ Plc Control System
* Voltage: 380V 3 Phase 50Hz
* Length Tolerance：+/- 2mm
* PLC Size：700mm(L)x1000mm(H)x300mm(W)
* Plc Manufacturer: Panasonic
* Frequency：DELTA
* Hydraulic Value: Beijing Huade
* Cylinder: TAIWEI
* Pipe: Omar
* Touch screen：Panasonic
* Encoder: Omron

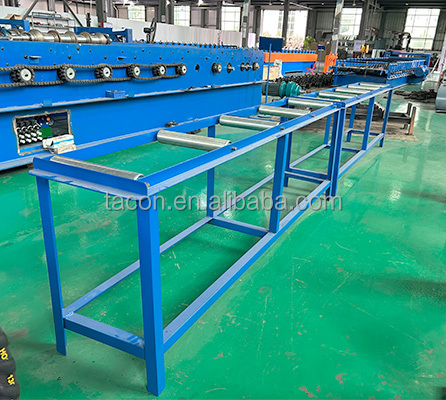

Ⅵ Product support frame
3 pieces(6m)
