Product details

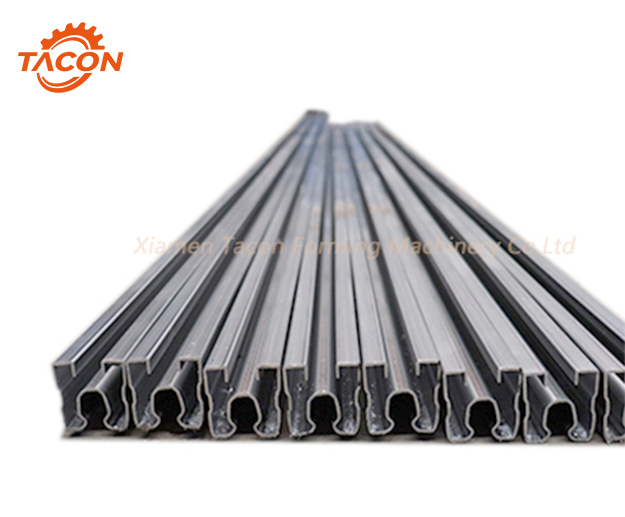

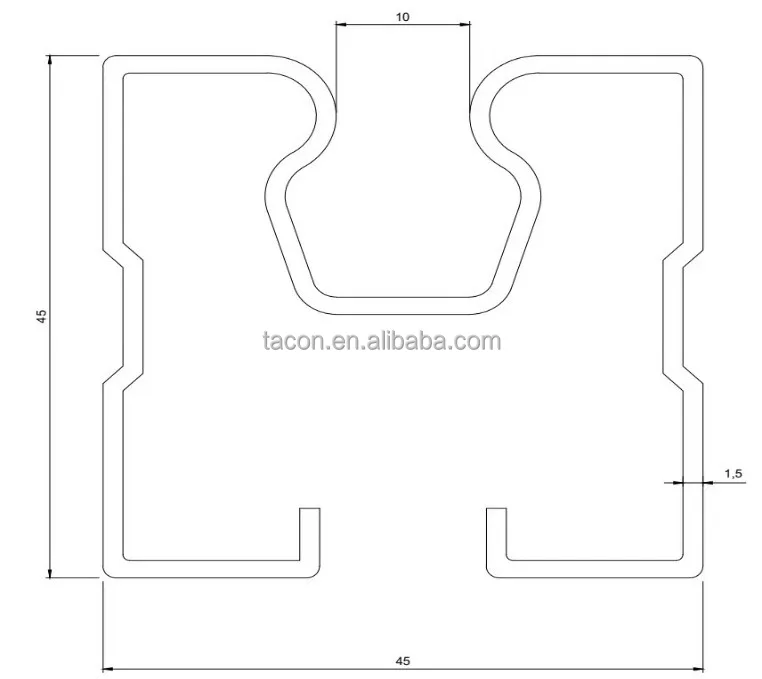

PRODUCT VERSION DRAWING

* Material Thickness: 1.5mm

* Test thickness: 1.5mm
* Material: Galvanized steel strip

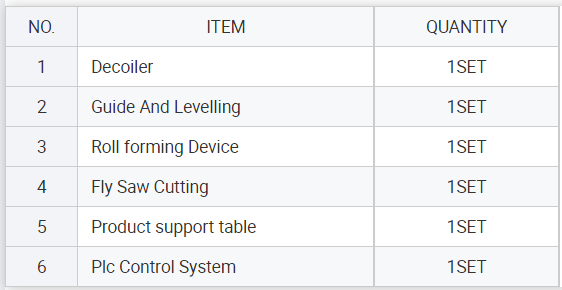

Machine Composition

Our products can be customized according to your requirements.

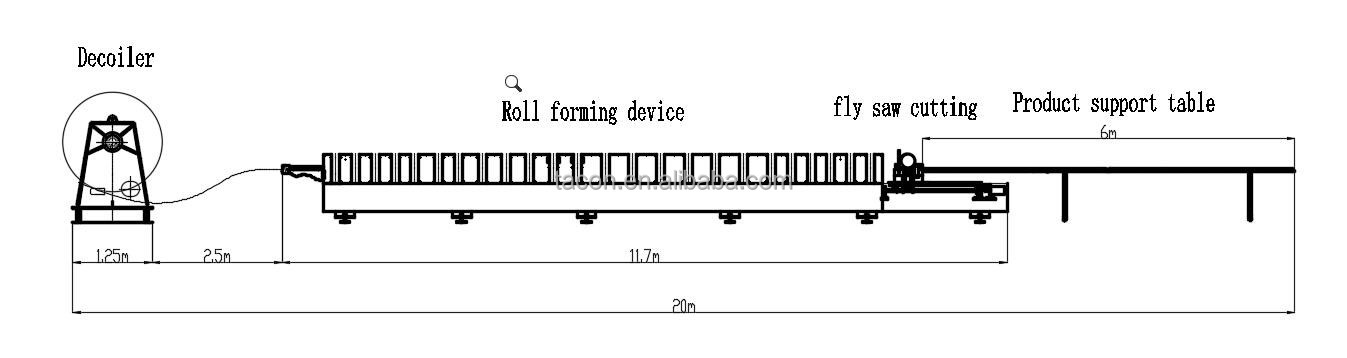

Flow Chart

Decoiler→ Guide and levelling →Roll Forming Device → Fly Saw cutting → Product Support Table

Machine Parameters

Ⅰ Decoiler

*  Type of Fasten: Manual
*  Capacity Weight: 1.5T
*  Inner Diameter: ¢500-600mm
*  Diameter of Outer：1600mm

Ⅱ Guide and Levelling

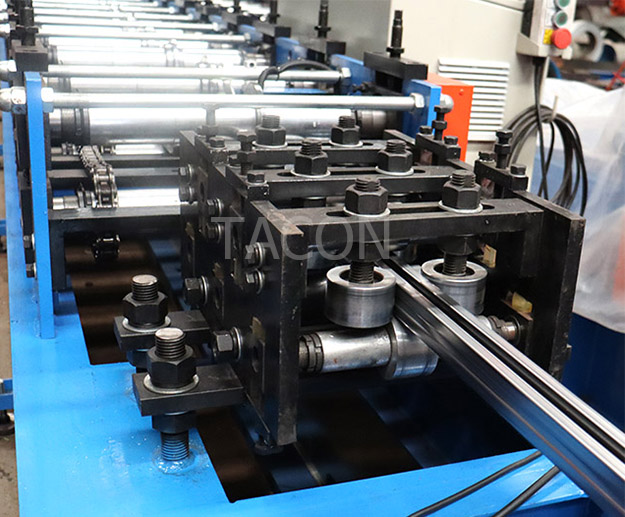

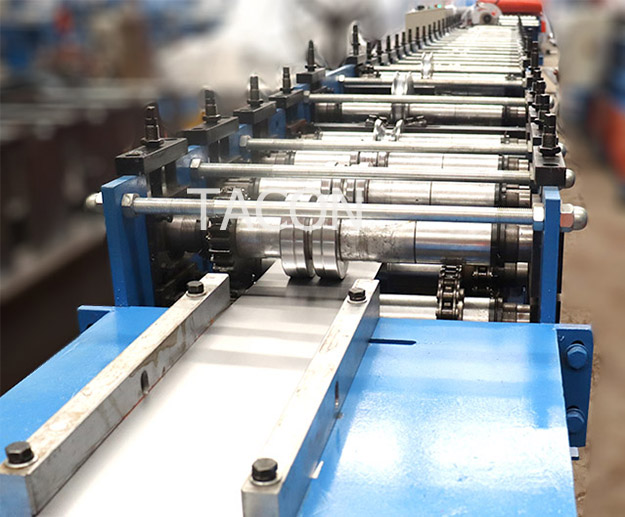

Ⅲ Roll forming Device

*  Main Motor: Frequency Motor
*  Motor Power: 7.5KW
*  Forming Speed: 18m/min
*  Roll Material : 45#
*  Stations: 24
*  Main Shaft Material：45#
*  Main Shaft Diameter: ø60mm

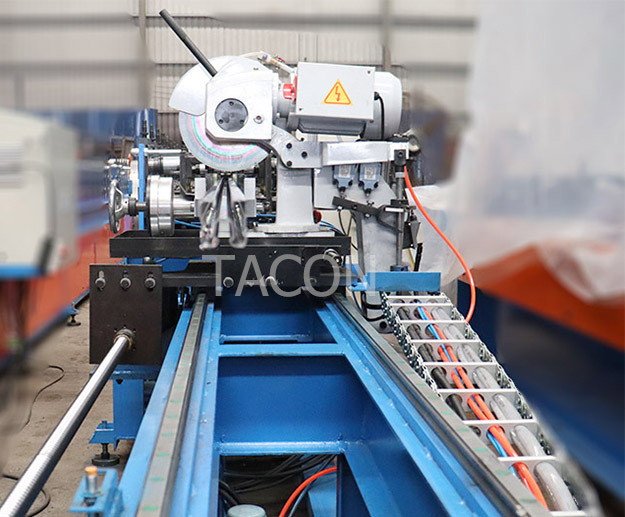

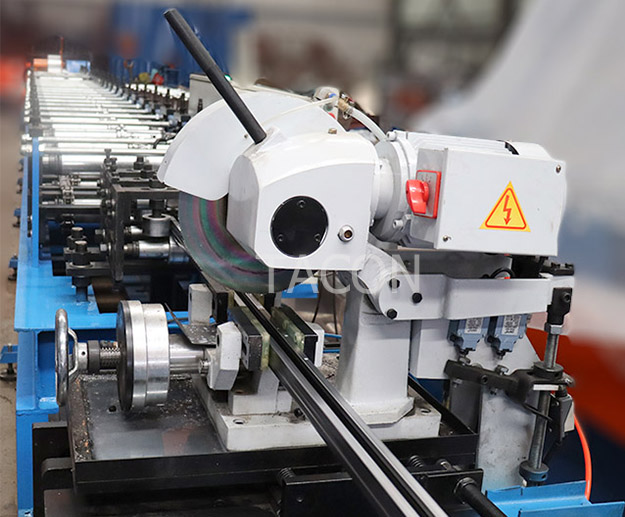

Ⅳ Flying Saw Cutting

*  Cutting type: Flying Saw cutting
*  Hydraulic power：3.0 KW

Ⅴ PLC Control System

*  Voltage: 380V 3 Phase 50Hz

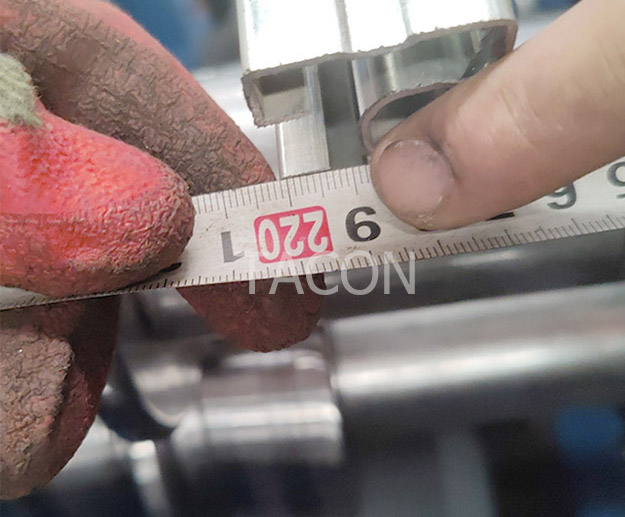

*  Length Tolerance：+/- 2mm
*  Plc Manufacturer: Siemens
*  Frequency：SIEMENS
*  Hydraulic Value: Beijing Huade
*  Cylinder: TAIWEI
*  Oil Pipe: huade
*  Touch screen: Siemens
*  Encoder: Omron

Ⅵ Product Support Table

*  Product Support Table: 3MX2
