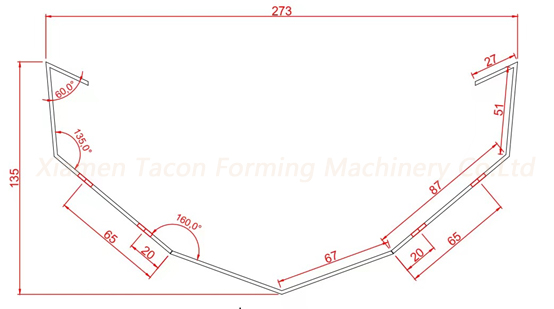

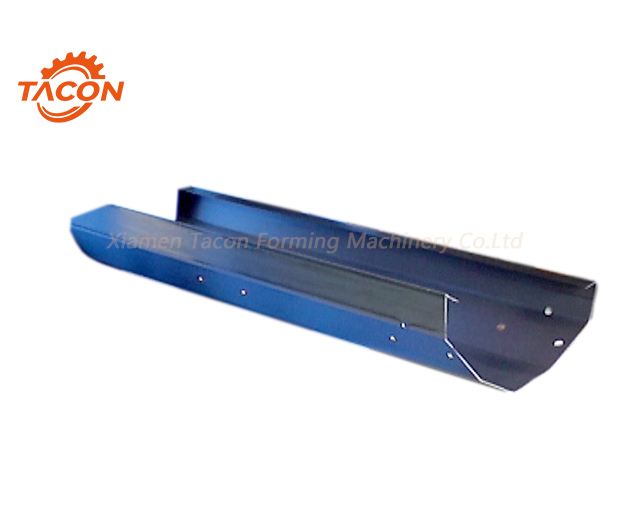

Profile Drawing
Material Thickness: 2.0mm
Test thickness: 2.0 mm
Material: Galvanized steel strip

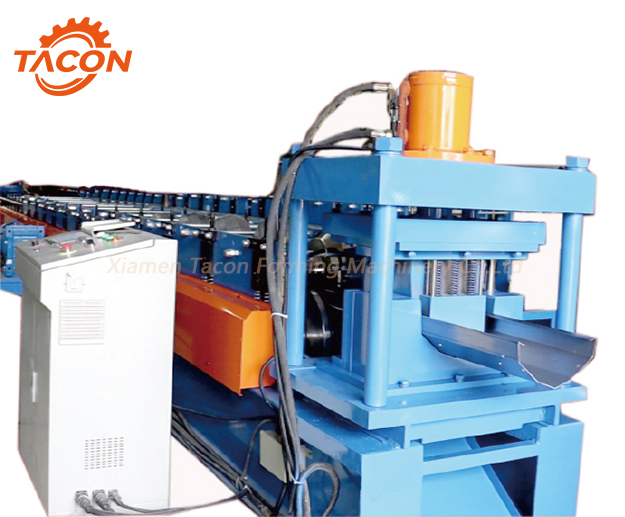

Machine Composition
Work Flow

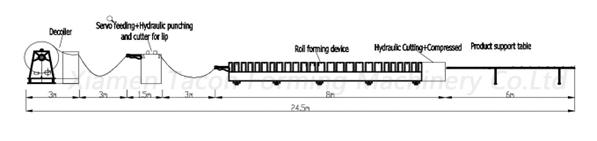

Decoiler→ Guide and levelling + Servo Feeding+ Separated Hydraulic punching and cutting for lip→ Roll Forming Device → Hydraulic cutting+ Compressed →Product Support Table
Machine Parameters
Machine Total Weight : 8.5T
Machine Total Length: (length)10m x (width)1.0m x (height)1.6m
Ⅰ Decoiler
● Type of Fasten: Manual
● Capacity Weight: 5.0T
● Inner Diameter: ¢500-600mm
● Diameter of Outer: 1600mm
● With Rotation Function
Ⅱ Guide and Levelling
● 7 rollers for guide and levelling
Ⅲ Servo Feeding + Separated Hydraulic Punching and cutting for lip
●With Servo Feeding
●Totally Two stations cylinders
Ⅳ Roll forming Device
● Main Motor: Frequency Motor
● Motor Power: 11KW
● Forming Speed: 18m/min
● Roll Material : GCr15
● Stations: 18
● Main Shaft Material：40Cr
● Main Shaft Diameter: ø75mm

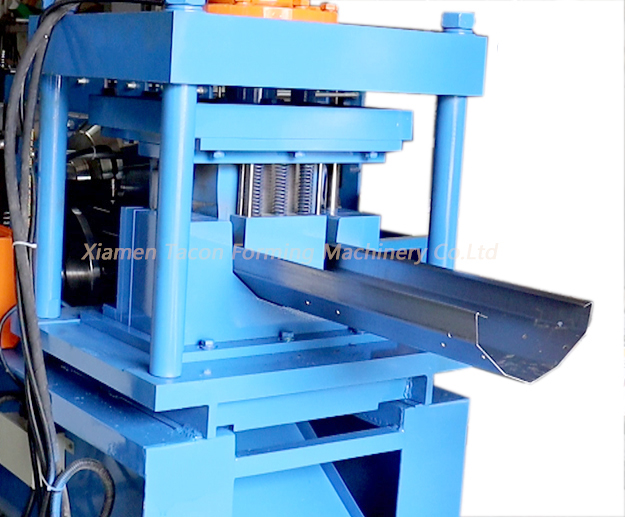

Ⅴ Hydraulic stop cutting+ Compressed
● Cutting type: Hydraulic cutting
● Hydraulic power: 5.5 KW
●Hydraulic Station will be together with hydraulic punching and cutting for lip
Ⅵ Plc Control System
● Voltage: 380V 3 Phase 50Hz
● Length Tolerance：+/- 2mm
● Plc Manufacturer: Siemens
● Frequency：SIEMENS
● Hydraulic Value: Beijing Huade
● Cylinder: TAIWEI
● Oil Pipe: huade
● Touch screen: Siemens
● Encoder: Omron
Ⅶ Product Support Table
●Product Support Table: 3Mx2
