1. Machine Components
1) Manual Decoiler ------------------------------------------------1 set
2) Feeding And Leveling Device---------------------------------- 1 set
3) Rolling Forming System----------------------------------------1set
4) Hydraulic Cutting------------------------------------------------1 set
5) Product support frame------------------------------------------1 set
6) PLC Control System---------------------------------------------1 set
2. Flow Chart
Manual Decoiler→ Feeding and levelling Device→Rolling Forming System→Hydraulic Cutting→Product Support Frame
3. Technology Parameters
Main Machine size : 8.5mx1.5mx1.7m
Machine weight : 6.0TON
1) Decoiler
A. Decoiler type: Manual decoiler
B. Weight capacity of decoiler : 5.0 T
C. Inner diameter of decoiler: 380-550mm
D. Max outer diameter of decoiler: 1600mm
2) Feeding and Levelling Device
3) Roll forming system
A. Roll forming speed: 8-15m/min
B. Shafts diameter: Φ75mm
C. Main motor: 7.5KW
D. Roller: 45#
E. Roller groups: 18groups

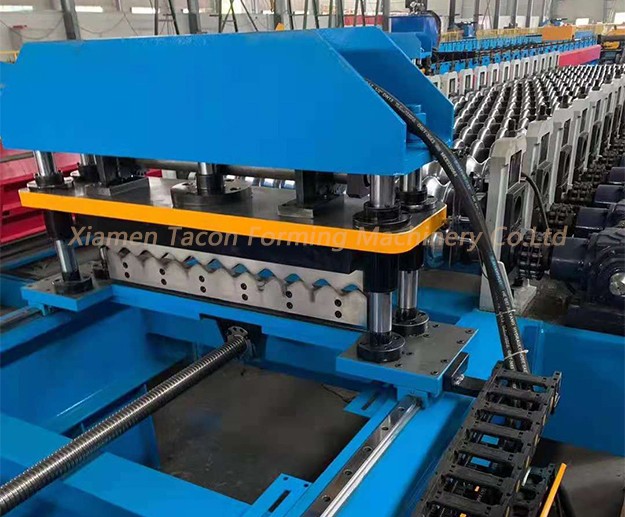

4) Hydraulic cutting
A. Hydraulic Motor power: 3.0KW
B. Cutting material: Cr12
5) PLC control system
A. Control quantity and length automatically
B. Touch screen : WEINVIEW
C. PLC: Panasonic
D. Relay: Schneider
E. Encoder : Omron
F. Frequency: TAIDA
G. Length tolerance : ±3mm
H. Voltage : 415v 50HZ 3phase
6) Product support frame: 6m
