Product details

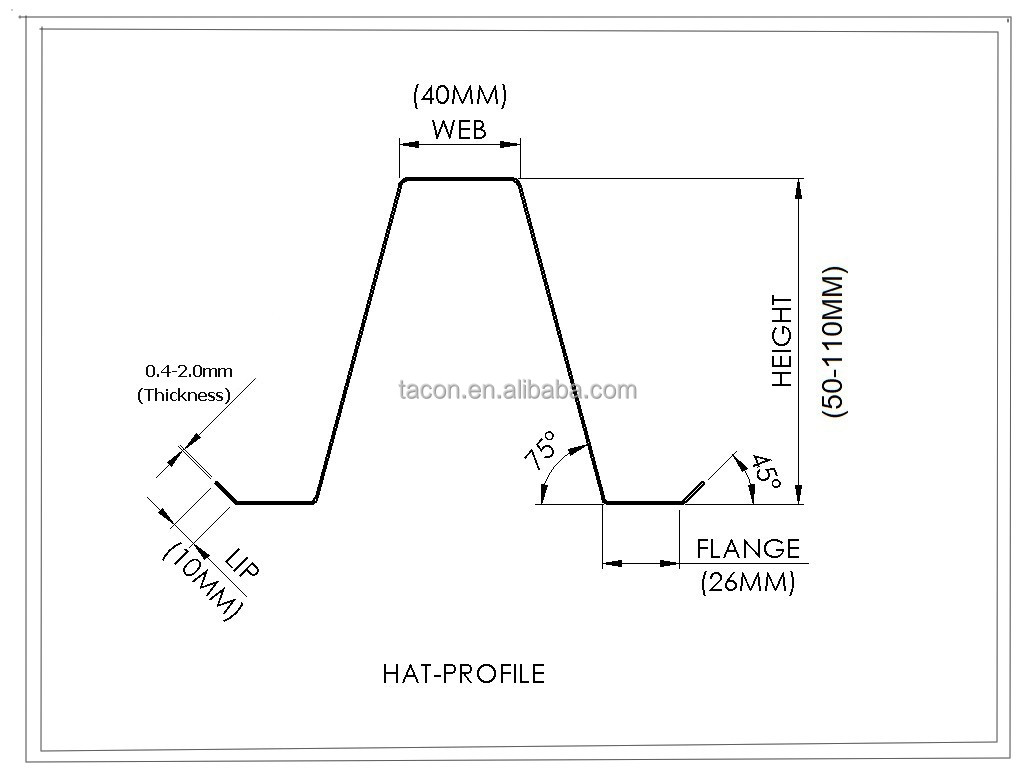

Profile Drawing

Ø Material Thickness: 0.4-2.0mm
Ø Yield strength: G235Mpa G300Mpa G550Mpa

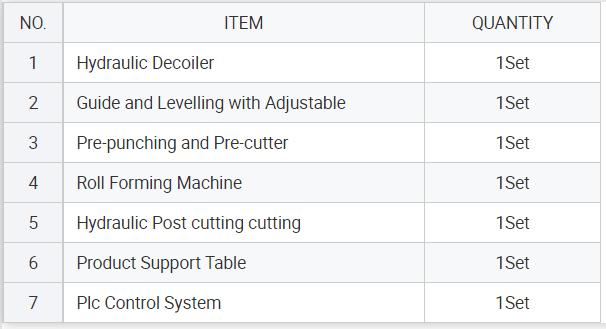

Machine Components

Our products can be customized according to your requirements.

Work Flow

Hydraulic Decoiler→ Guide and levelling with adjustable →Roll forming machine → Hydraulic post cutting → Product Support Table

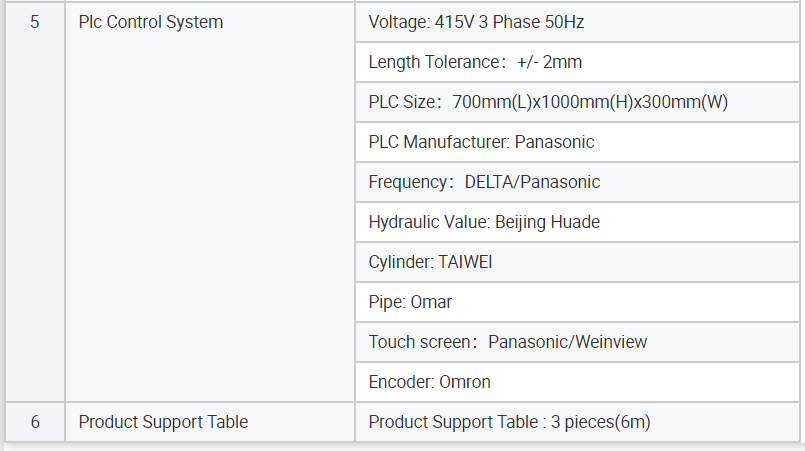

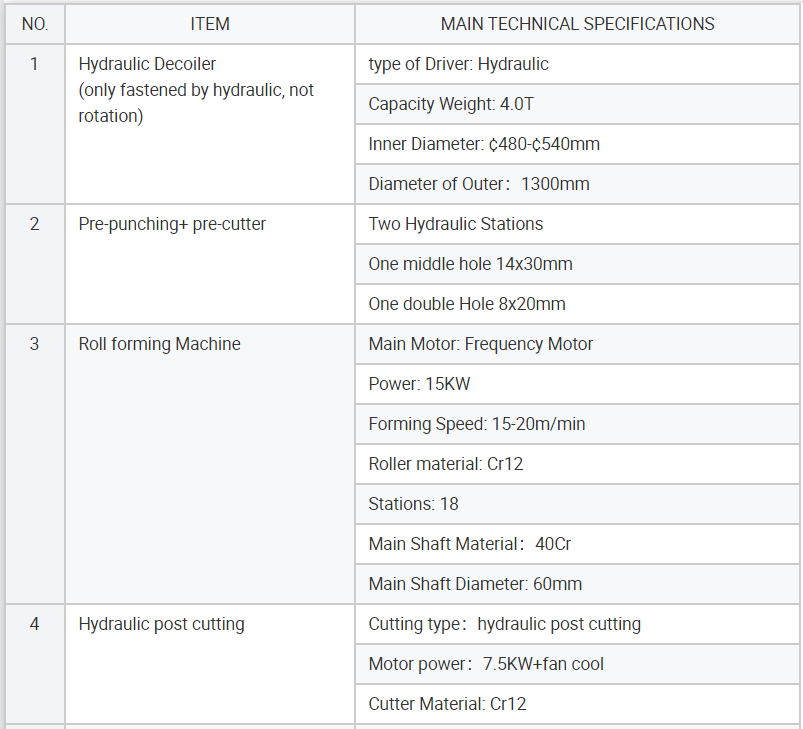

PRODUCT SPECIFICATIONS
