Product details

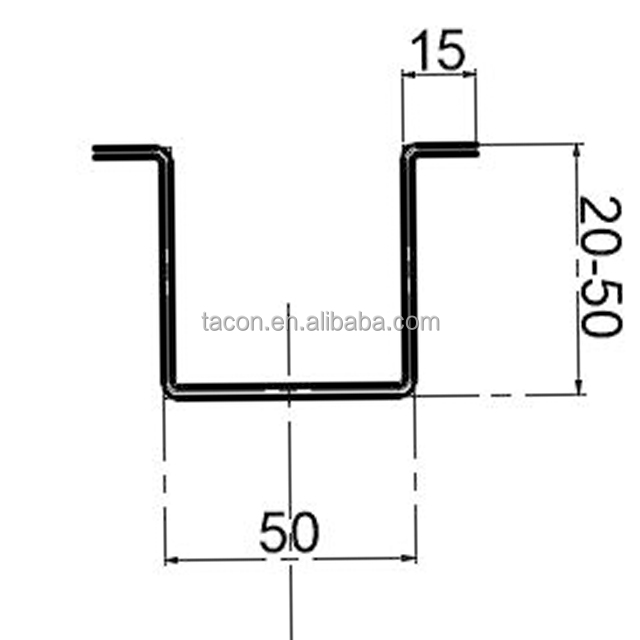

Profile Drawing

1)material：color coated steel sheet, galvanized steel sheet,
2) Thickness：1.0-2.5mm
3) Yield strength: G550Mpa
4) Feeding width：155-161mm

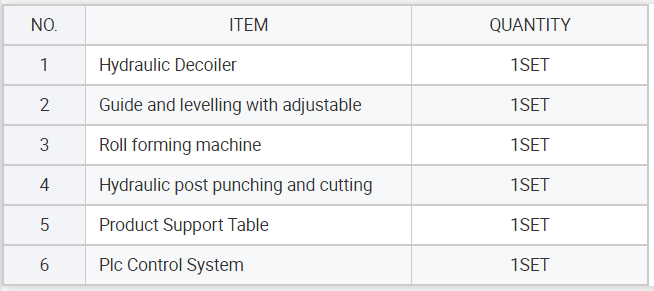

Machine Components

Our products can be customized according to your requirements.

Flow Chart

Hydraulic Decoiler→ Guide and levelling with adjustable →Roll forming machine → Hydraulic post punching and cutting → Product Support Table

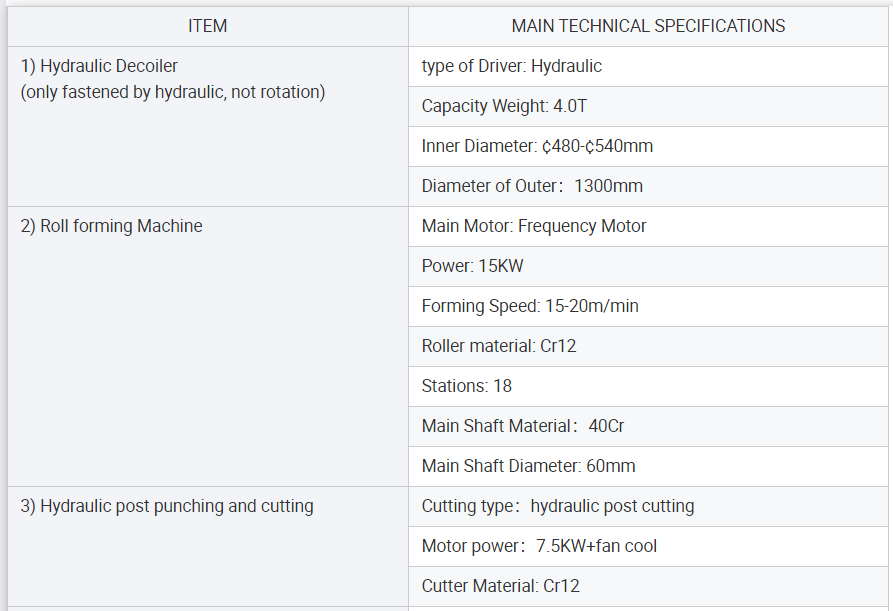

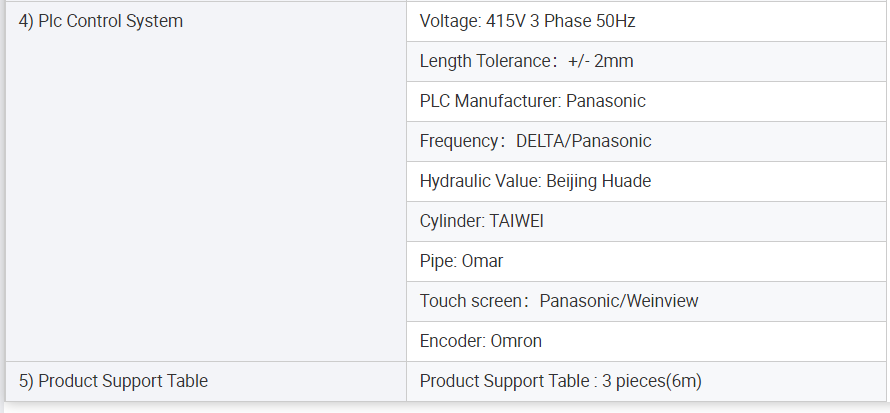

PRODUCT SPECIFICATIONS
