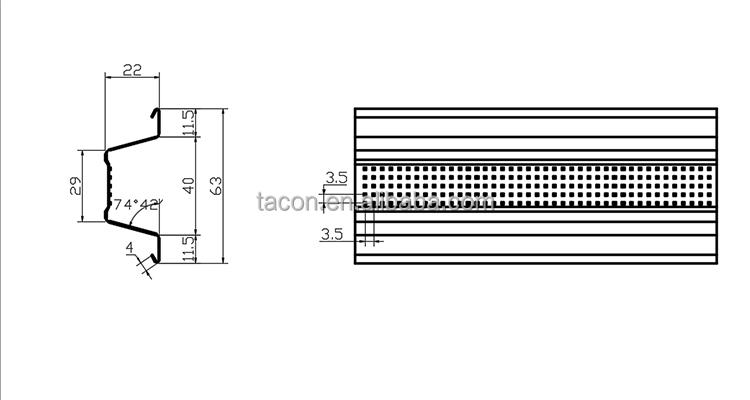

Profile Drawing
1) material：color coated steel sheet, galvanized steel sheet
2) Thickness：0.55-1.2mm
3) Yield strength: G550Mpa
4) Feeding width：102mm

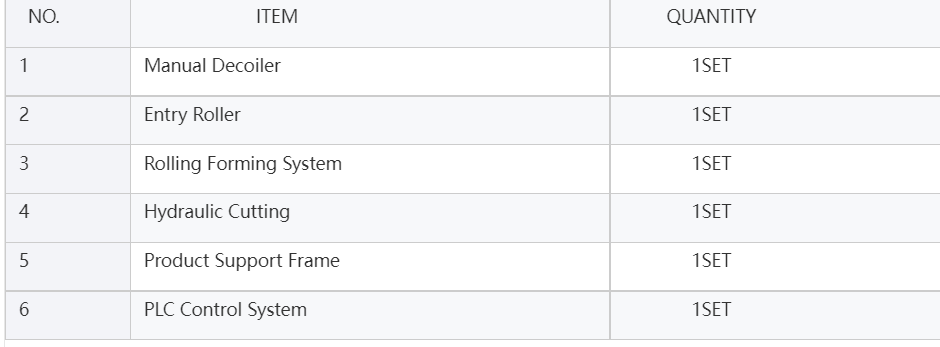

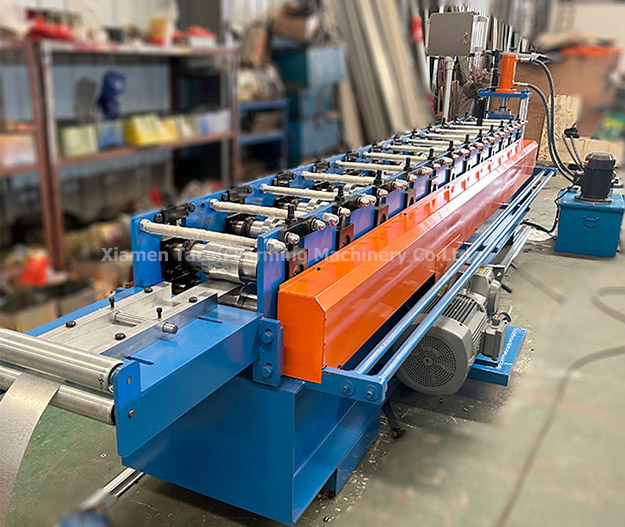

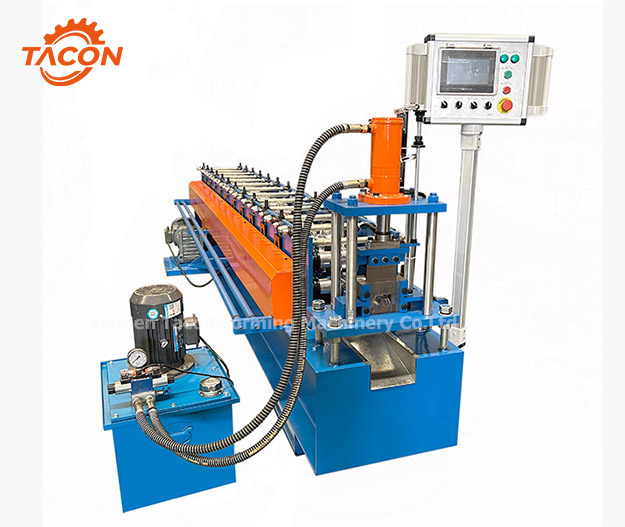

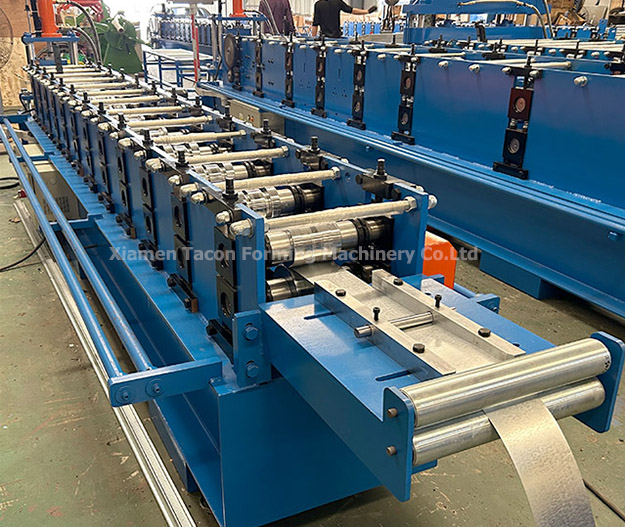

Machine Components
Our products can be customized according to your requirements.
Flow Chart
Manual Decoiler→Entry Roller→ Rolling Forming System→ Hydraulic Cutting→ Product Support Frame
Technology Parameters

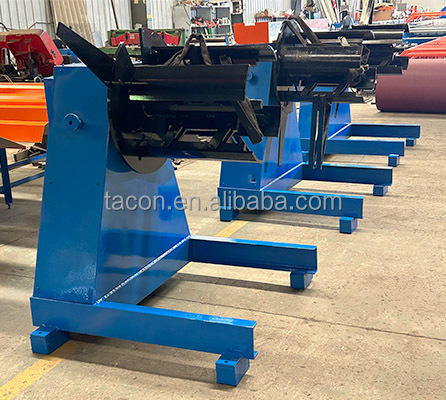

Ⅰ Manual Decoiler
1. Decoiler type: Manual decoiler
2. Weight capacity of decoiler: 3.0 T
3. Inner diameter of decoiler: 508+/-30mm
4. Max outer diameter of decoiler: 1000mm

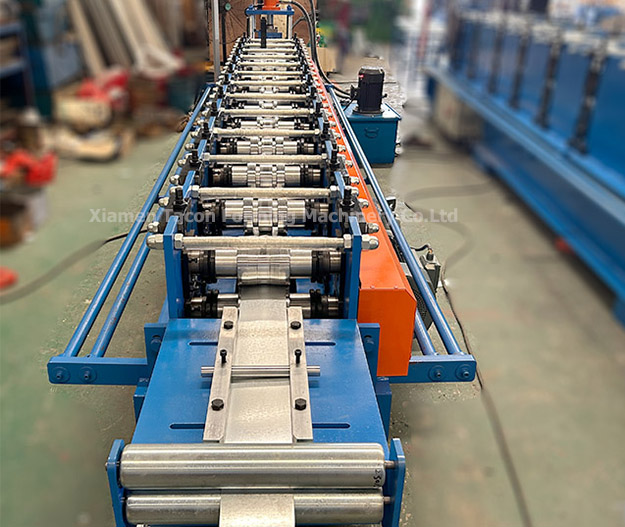

Ⅱ Roll Forming System
1. Roll forming speed: 10-20m/min
2. Shafts diameter: Φ70mm
3. Main motor: 5.5KW
4. Roller: 45#
5. Roller groups: 12 Stations
6. Machine will have protective cover

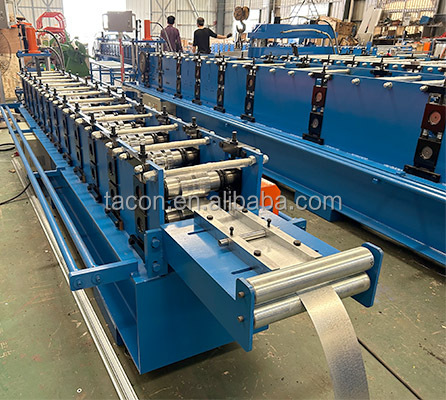

Ⅲ Entry Roller+ Guide Roller

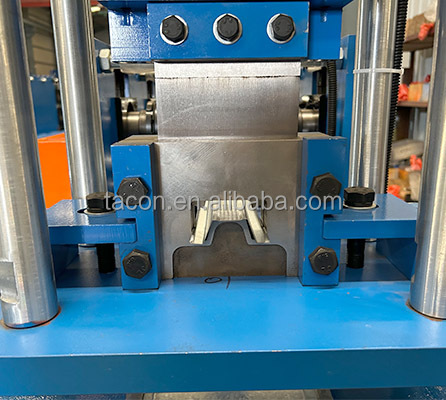

Ⅳ Hydraulic Cutting
1. Hydraulic Motor power: 3.0KW
2. Cutting material: Cr12

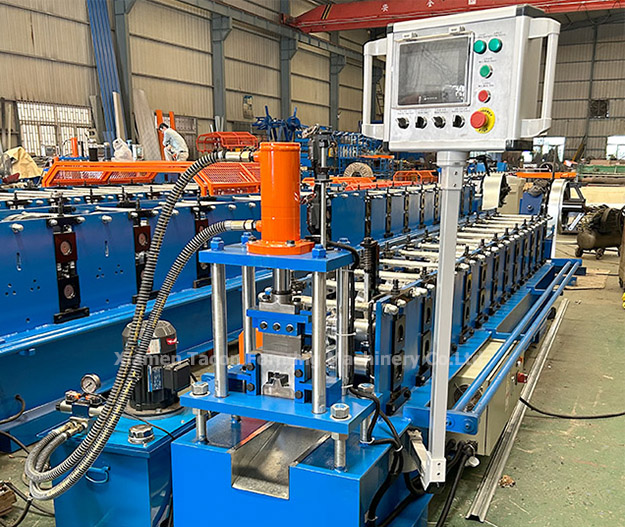

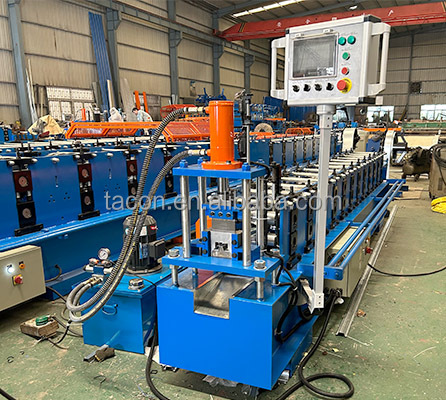

Ⅴ PLC Control System
1.Control quantity and length automatically
2.Touch screen : WEINVIEW
3.PLC: Panasonic/Siemens
4.Relay: Schneider
5.Encoder : Omron
6.Frequency: TAIDA
7.Length tolerance : ±2mm
8.Voltage : 415v 50HZ 3phase( According to customer requirements)

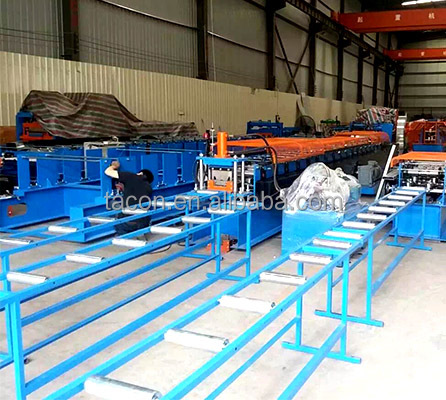

Ⅵ Product Support Frame
3 pieces
