Product details

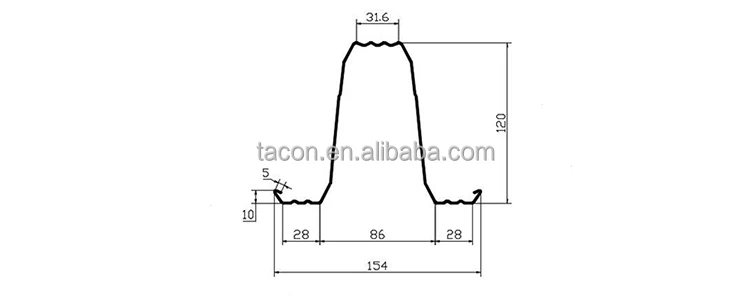

Profile Drawming

Our products can be customized according to your requirements.

1) material：color coated steel sheet, galvanized steel sheet,

2) Thickness：0.55-1.2mm
3) Yield strength: G550Mpa

4) Feeding width：376mm

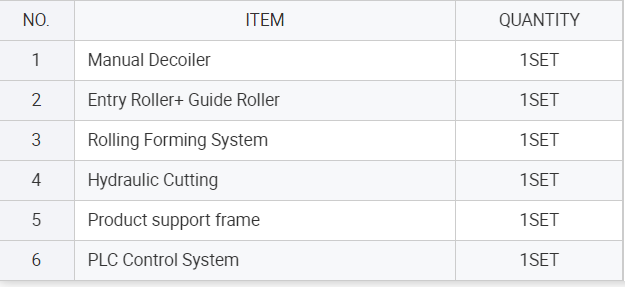

Machine Components

Flow Chart

Manual Decoiler→ Entry Roller→ Rolling Forming System→ Hydraulic Cutting→ Product Support Frame

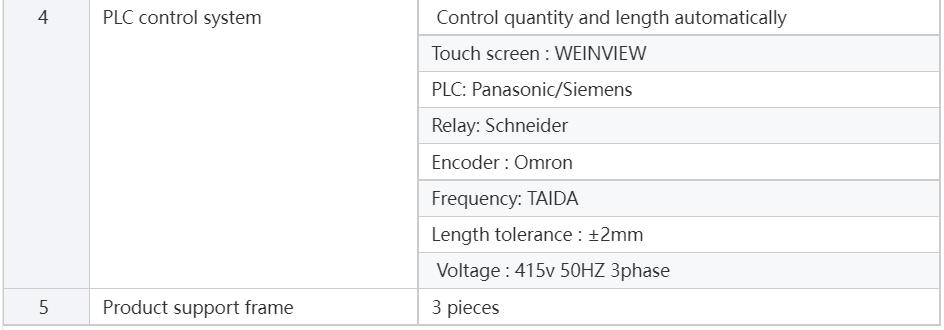

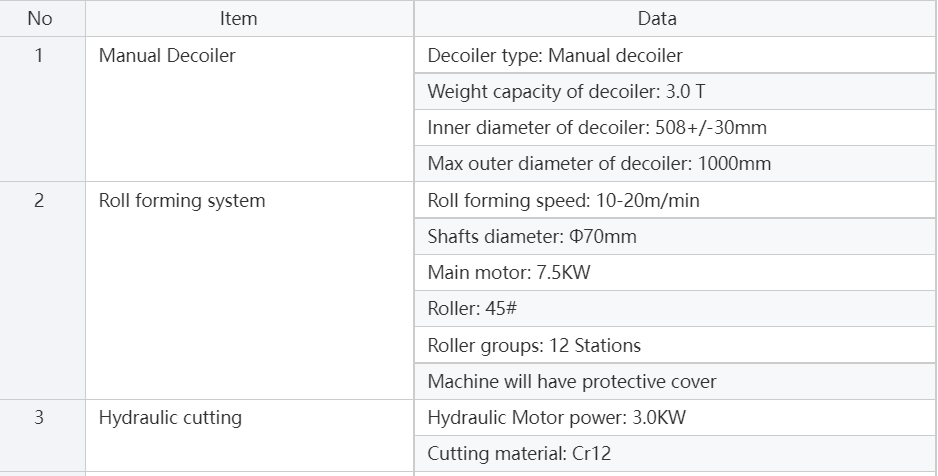

Technology Parameters

Main Machine size : 5.8mx0.8mx1.5m
